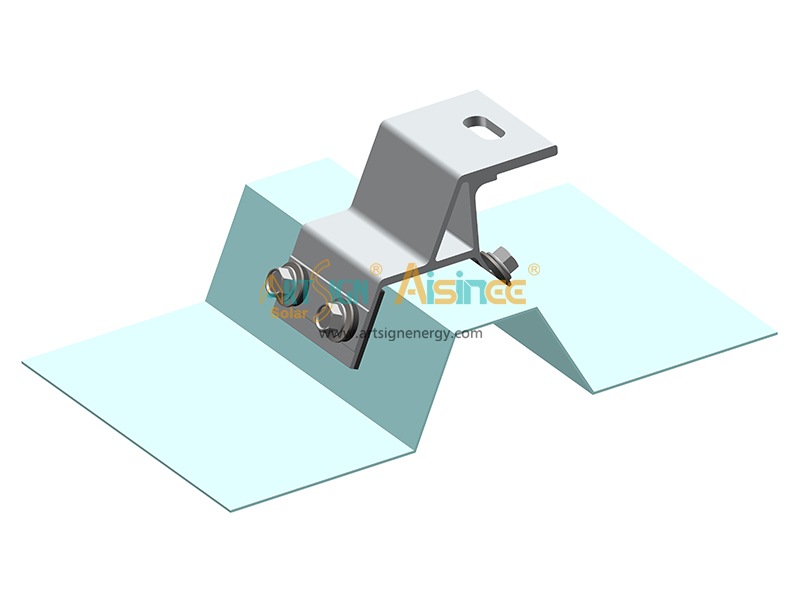

Factory Aluminum Solar Roof Brackets for Metal PV Roof Mounting Kit |ART SIGN

Factory Aluminum Solar Roof Brackets for Metal PV Roof Mounting Kit |ART SIGN

Customized penetrating aluminum 6005-T5 solar roof brackets ,work with different types of L foot ,designed for leek proof on tile roof.

Item NO.:
AS-ARH-27
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western Union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

Factory Aluminum Solar Roof Brackets for Metal PV Roof Mounting Kit |ART SIGN

Design Features

— Can be directly fixed with long rail or use L foot to fix with long rail profiles.
— It is light for transportation and easy for installation.

Mode Number	AS-ARH-27	Brand Name	ART SIGN
Specs	Anodized Above 10um	Material	Aluminum 6005-T5
Application	Metal Roof, Tile Roof	Packing	Carton Or Pallet
Keyword	China solar pv roof brackets factory	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

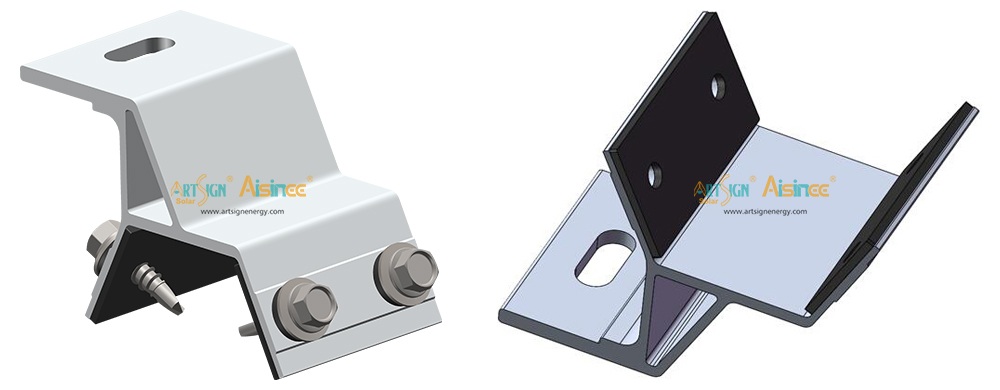

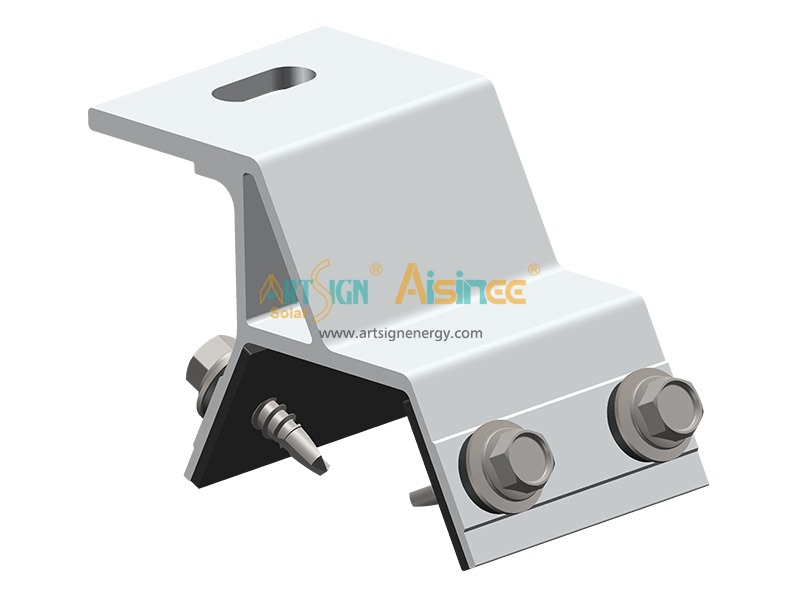

Our penetration roof brackets provide a robust and secure mounting foundation for solar PV systems on various metal and tile roofs. Engineered for maximum durability, AS-ARH-27 ensure a seamless integration between the solar racking system and the roof structure. 1、Superior Waterproofing: Equipped with high-quality EPDM rubber to ensure leak-proof seal. 2、High Strength & Durability: Manufactured from anodized AL6005-T5 aluminum and SUS410 drilling screw for excellent corrosion resistance. 3、Universal Compatibility: Designed to work perfectly with standard L-feet and rail systems. 4、Easy Installation: Pre-assembled components significantly reduce on-site labor time and costs.

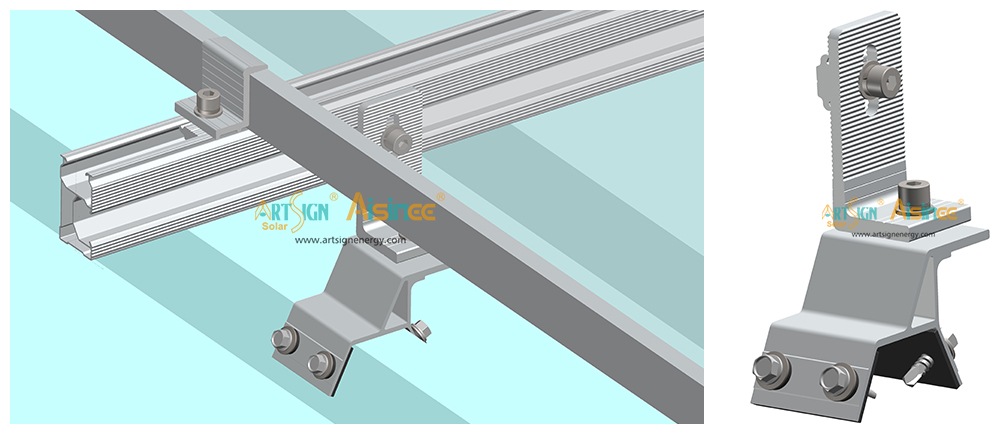

Suitable metal roof type for AS-ARH-27

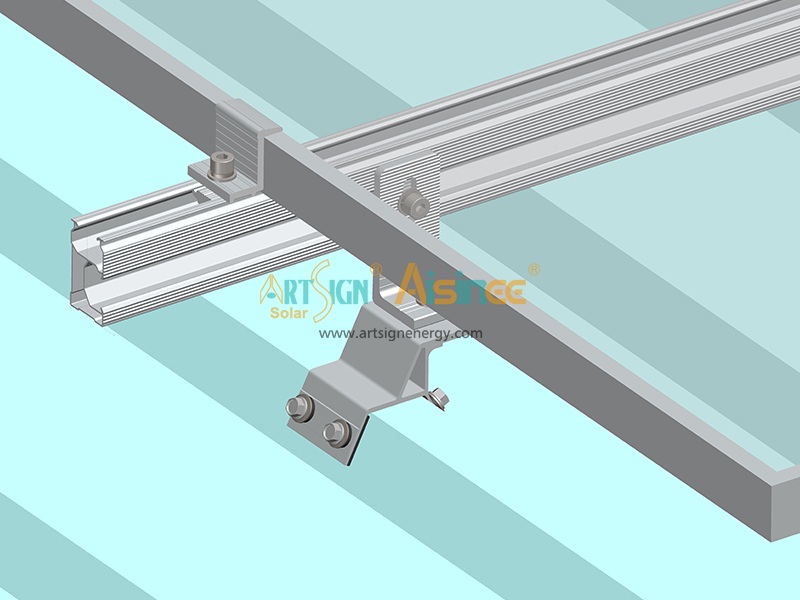

Use L feet to fix with long rail profiles. It is easy for installation and light for transportation. Some components needed: 1、Roof brackets AS-ARH-27 + 4 pcs M6.325 self-drilling screw+2 pcs EPDM rubber 2、L foot +allen bolt M825 + flange nut +allen bolt M8*25 + D nut(other nuts optional)

ART SIGN quick installation solar end clamp 30-40mm related accessories

Customized cutting length to be suitable for different wind load and snow load requirements.

Category : Aluminum roof bracket


AS-ARH-11	AS-ARH-12	AS-ARH-20	AS-ARH-20

AS-ARH-21	AS-ARH-26	AS-ARH-27	AS-ARH-28
