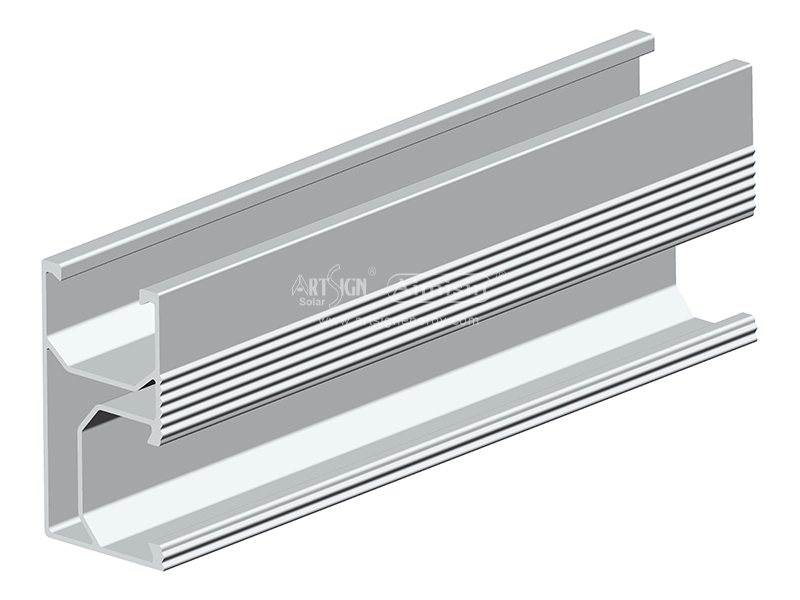

XR 03# solar panel supporting rail

XR 03# solar panel supporting rail which is most suitable for solar panel roof mount while has various size of profile for option, different size of aluminum rail is suitable for different strength request.
  • Item NO.:

    AS-XR-03
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

Aluminum Solar Mounting Rail for Roof and Ground PV Mount System XR Rail 03# |ART SIGN


Design Features

— Optimized profile design reduces material weight while maintaining structural stability.
— Anodized treatment ensure the reliability of solar rails suited for coastal and high-humidity conditions.

Mode Number

  AS-XR-03

Brand Name

  ART SIGN
Specs

  W28*H50mm Silver or Black

Material

  Aluminum 6005-T5

Application
   Suited for rooftop or ground PV mounted Packing
  Carton or Pallet
Keyword
  China Customized Solar PV Mounting Aluminum Rail Manufacturer Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting systemSolar Rails Applications

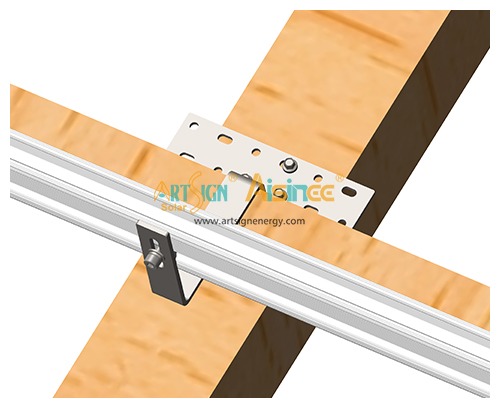

ART SIGN pv racking rail x nut

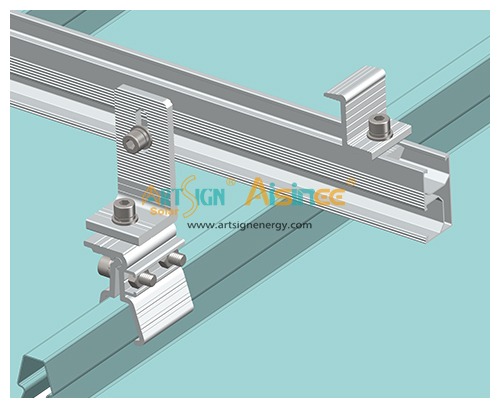

ART SIGN solar aluminium mount rails AS-XR-02 installation method

Residential Rooftop PV Systems

Solar aluminum bracket for pitched and flat residential roofs, providing a secure and lightweight mounting solution with fast installation and long-term durability.

Commercial & Industrial Rooftop Projects

PV panel support rail designed to support large-scale rooftop installations, offering high load capacity, structural stability, and efficient module layout for C&I projects

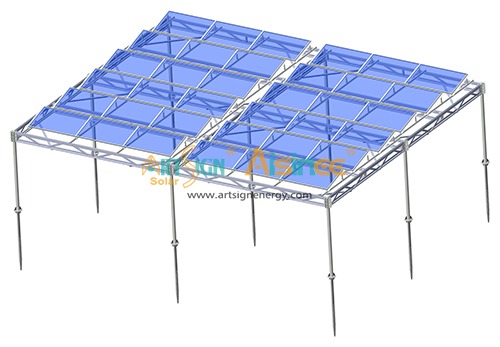

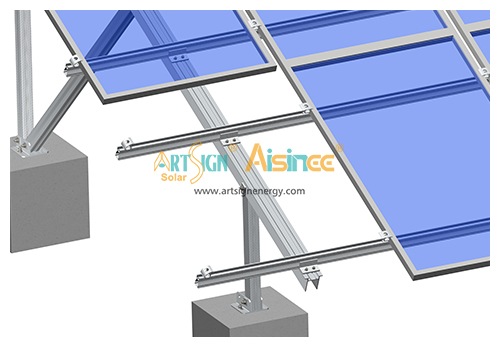

Ground-Mounted Solar Power Plants

Aluminum PV solar rail structure suitable for ground mounted systems, ensuring reliable structural support under high wind and snow load.

Agricultural & Carport Solar Structures

PV solar panel rail designed for agricultural PV and solar carport systems, offer corrosion resistance, and flexible system.


ART SIGN solar mounting systemCompatibility & Installation

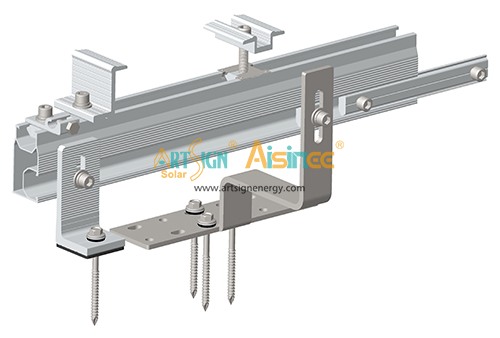

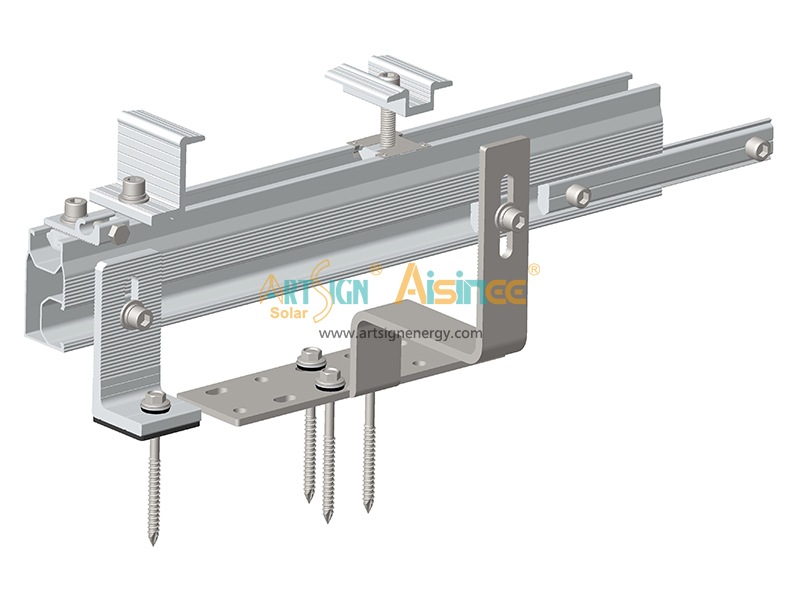

ART SIGN aluminum bracket and L foot.
ART SIGN roof bracket and L clamp.
Suited with most PV clamps and solar mounting accessories
Pre-assembled or cut-to-length options available to quick installation

ART SIGN solar mounting systemCustomization & Service

With over 20 years of manufacturing experience, ArtSign provides reliable solar mounting solutions suited for project needs
ART SIGN aluminum bracket and L foot.
ART SIGN roof bracket and L clamp.
OEM & ODM support
Free Project Evaluation and Quotation



  Package Type

 Outer packing: wooden case / pallet

ART SIGN pv racking rail AS-XR-02 packages



ART SIGN solar mounting related accessories

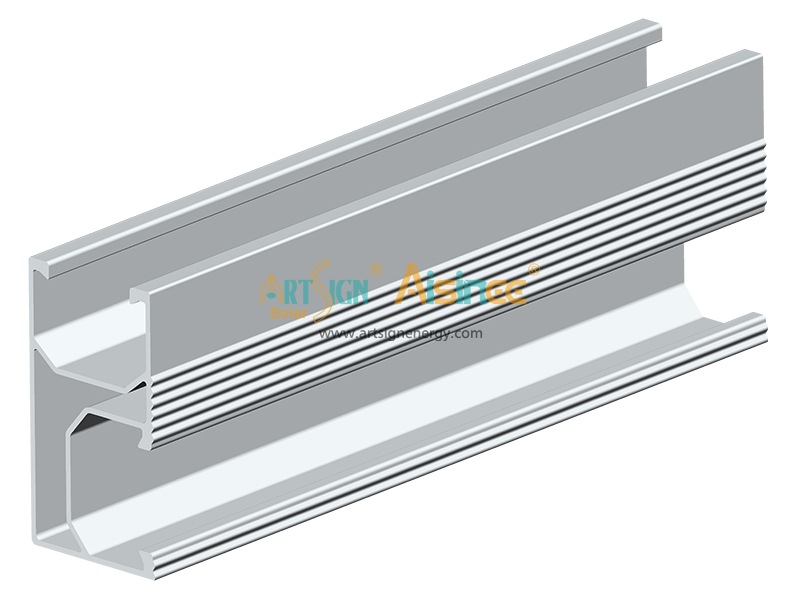

Aluminum Solar panel roof rails AS-XR-03 which is most suitable for solar panel roof mount while has various size of profile for option, different size of aluminum rail is suitable for different strength request.

Click to see more XR nut series;

ART SIGN pv racking rail AS-XR-01
ART SIGN pv racking rail AS-XR-02
ART SIGN pv racking rail AS-XR-03
ART SIGN pv racking rail AS-XR-05
AS-XR-01
AS-XR-02
AS-XR-03
AS-XR-05
ART SIGN pv racking rail AS-XRS-01



AS-XRS-01
