Aluminum agricultural farm solar mounting system

Aluminum agricultural farm solar mounting system

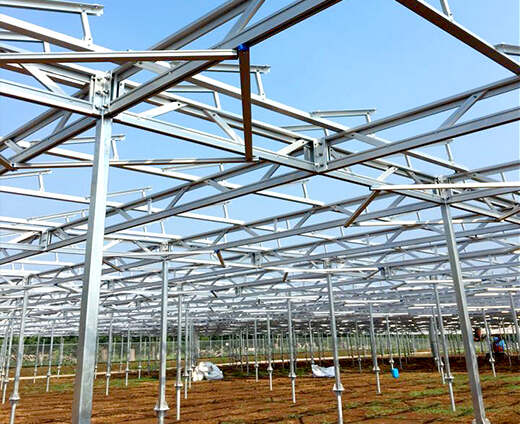

Aluminum agricultural farm solar mounting system is designed for solar farm, under the farm mounting system, the farmer can grow the plant with farming machine.

Item NO.:
AS-SAM-A
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

Aluminum agricultural farm solar mounting system

· Design Features

① Agricultural mounting structure which is available for farm cart handing underneath.
② Aluminum structure will be lighter and easier for installation.
③ Top triangle kit could be pre-assembled.

· Surface treatment:

10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.

· Design Strength:
The structure is designed according to the wind load or snow load request.

Suitable for	agricultural farm
Module	Framed, thin film
Material&Surface treatment	10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color	silver, black or customer requirement
Module orientation	Landscape and portrait
Wind load	Max 60m/s
Snow load	Max 1.5kn/m2
Standards	Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty	20 years


AS-GSF-89	AS-SF02-STRS	AS-SF02-MTRS

AS-SF02-SP

Aluminum agricultural farm solar mounting system

Step 1

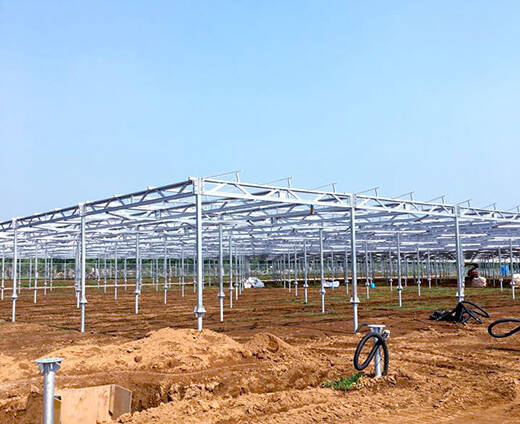

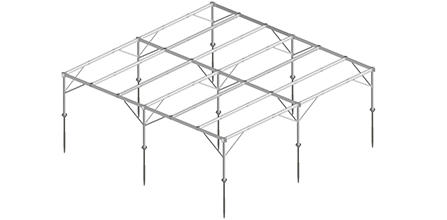

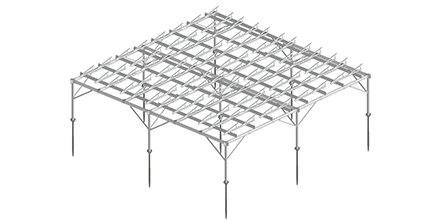

Post position and truss installation

Step 2

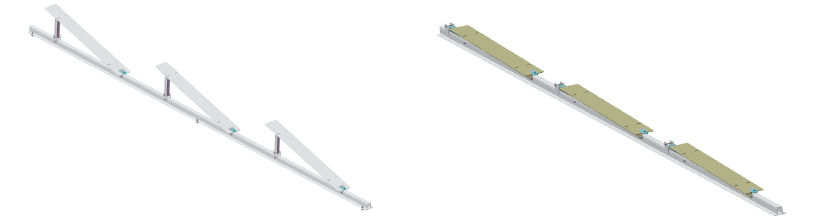

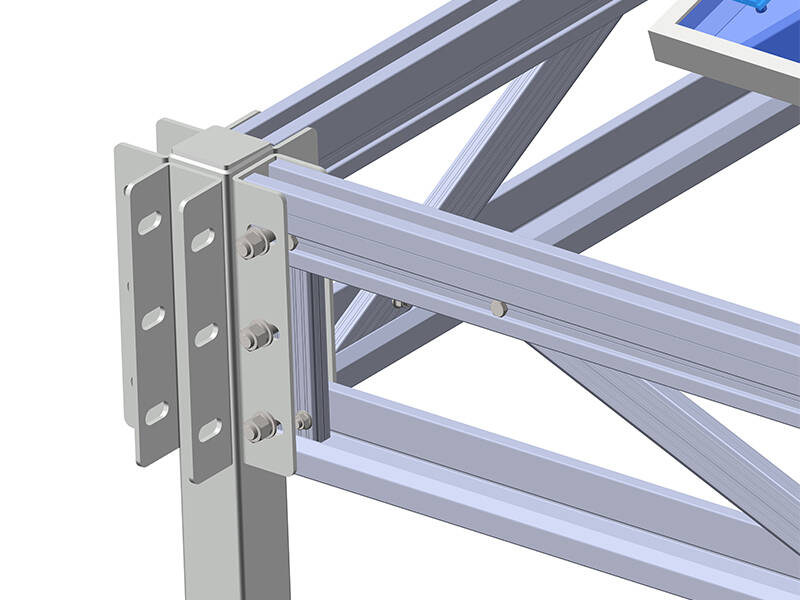

Fix the pre-assembled triangle kit.

Step 3

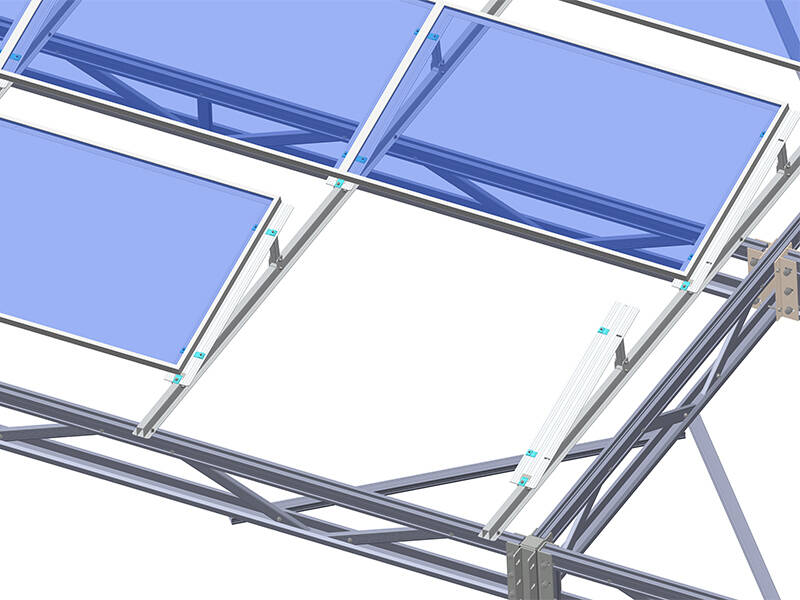

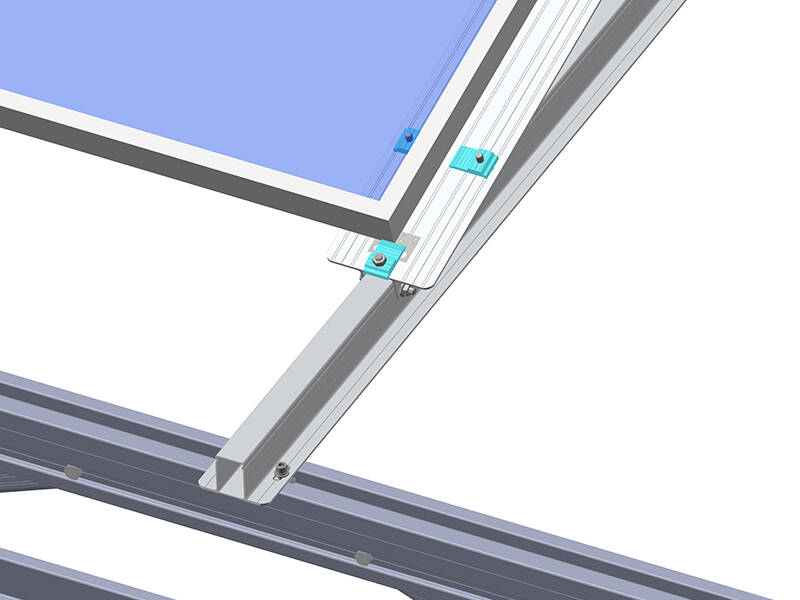

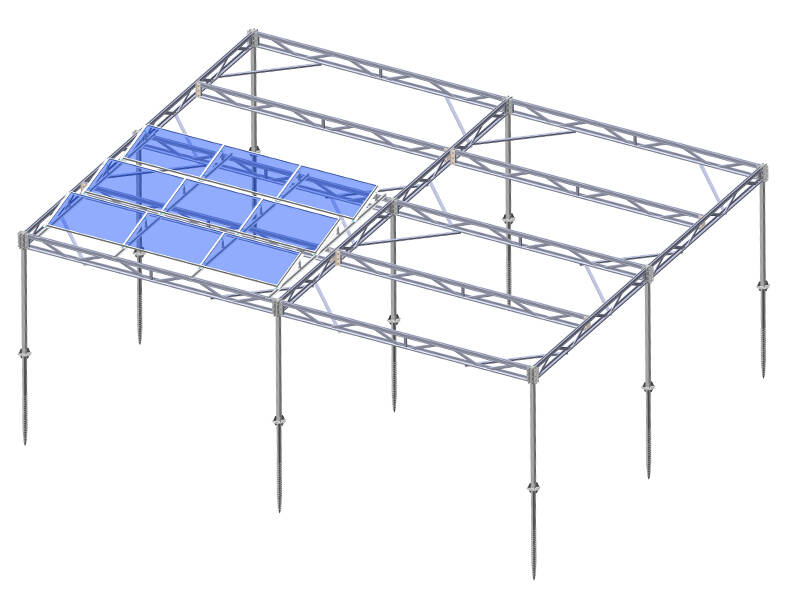

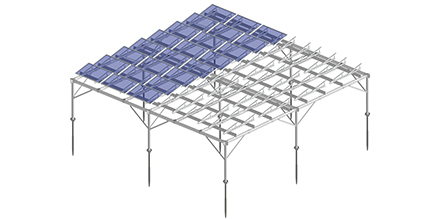

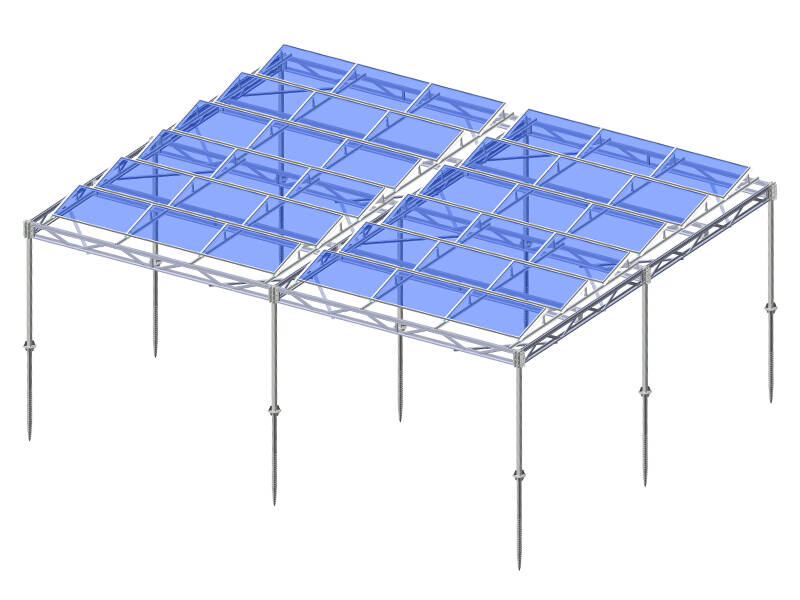

Solar panel installed on the farming mounting system.

Aluminum agricultural farm solar mounting system

Category : Solar Agricultural Mount
