Extruded Aluminum Clamp for Frameless Thin-Film Solar Panels |Art Sign
Design Features

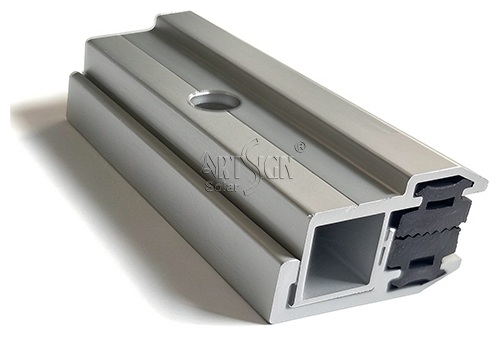

—— Material & Structure: Extruded from high-strength aluminum alloy, offering lightweight durability and excellent corrosion resistance.
—— Surface & Customization: Features an anodized surface treatment available in silver or black, with custom cutting options for project lengths.
—— Function & Compatibility: Designed to securely lock frameless solar panels onto mounting rails without damaging the glass, ensuring long-term structural stability
Mode Number | AS-TFEC | Brand Name | ART SIGN |
| Specs | Cutting length 80mm or Customized | Material | Anodized Aluminum &EPDM Rubber |
| Application | solar panel clamp | Packing | Carton and Pallet |
| Keyword | solar mount clamp | Certificate | ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
| Service Life | 25 years | Quality Warranty | 20 years |

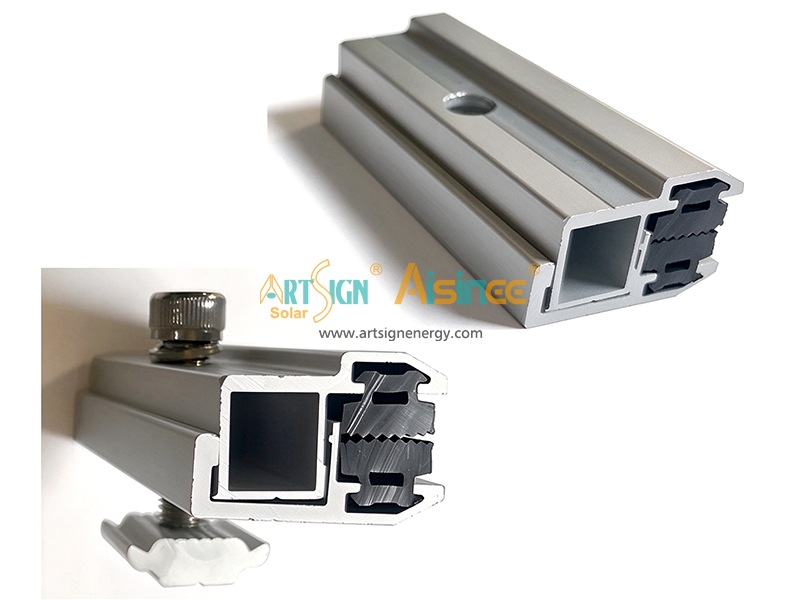

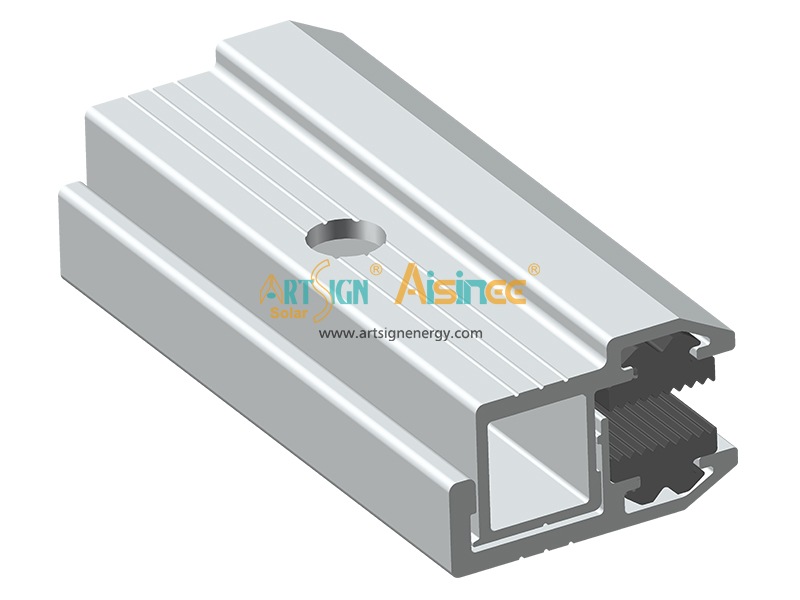

Extruded Aluminum Clamp for Frameless Solar Panels
 | Product Overview: Specifically engineered for frameless thin-film solar modules, providing a stable and reliable grip on solar mounting rails. Function: Secures glass panels firmly without causing damage, ensuring structural stability across photovoltaic mounting systems. | |

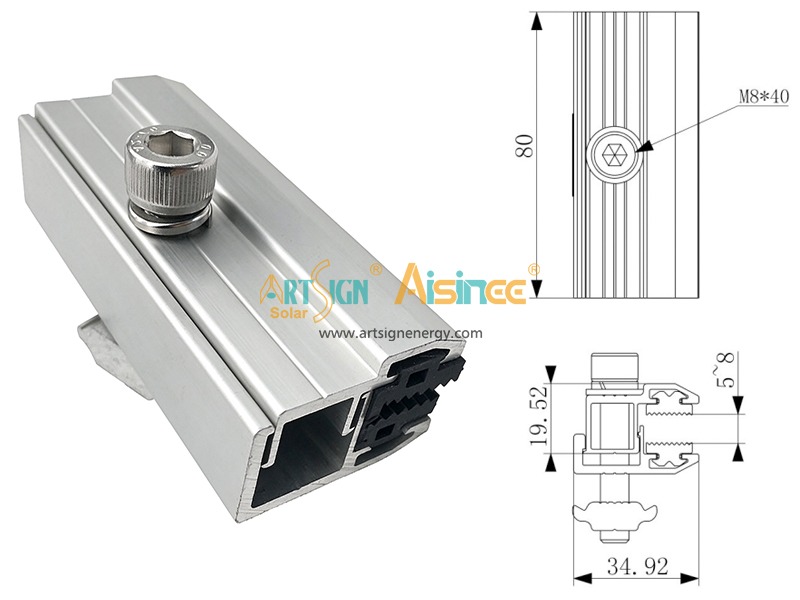

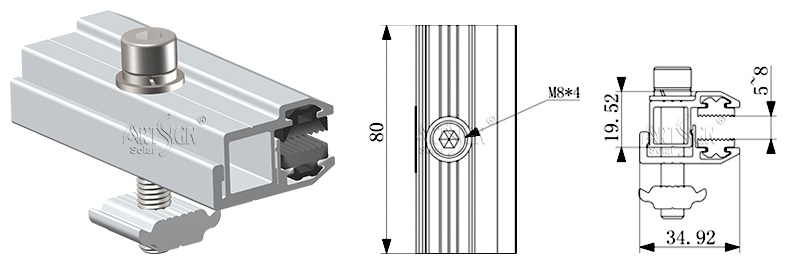

Dimension Specifications for Frameless Thin Film Solar Panel End Clamp
| Designed for photovoltaic mounting structures and solar racking systems, this frameless thin film solar panel end clamp features a precise length of 80mm, a width of 34.92mm, and comes equipped with an M8×40 socket head cap screw for secure rail integration. It offers an adjustable clamping range of 5mm to 8mm, perfectly accommodating various thin-film solar module thicknesses while ensuring a reliable, damage-free grip on commercial and residential solar installations.
|
Material & Specifications for Thin Film Solar End Clamp

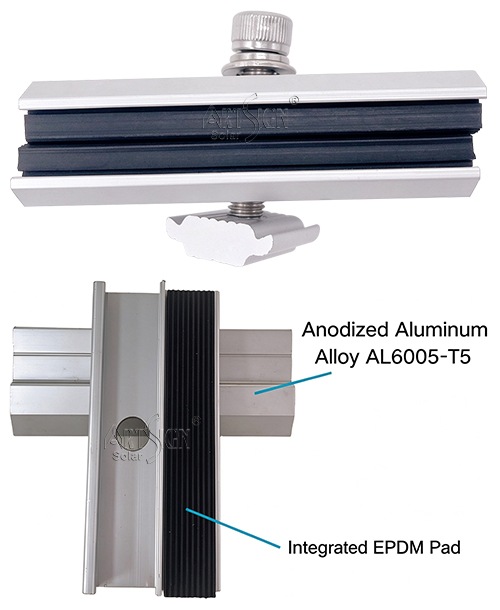

 | Clamp Body Material: Extruded Aluminum Alloy (AL6005-T5) used in our thin film solar panel mid clamp with EPDM rubber, ensuring high strength, lightweight, and excellent corrosion resistance.
| |
Material & Specifications for Thin Film Solar End Clamp

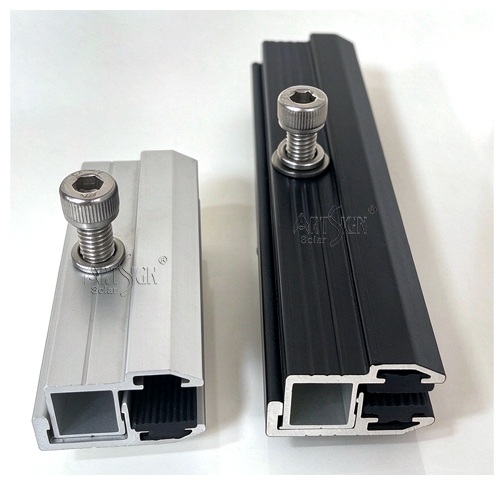

 | Surface Finish: Each anodized aluminum thin film solar panel clamp features a premium anodized surface treatment available in classic silver or matte black, providing enhanced weather and corrosion resistance.
|
Thin film mid end clamp for thin film mid end clamp

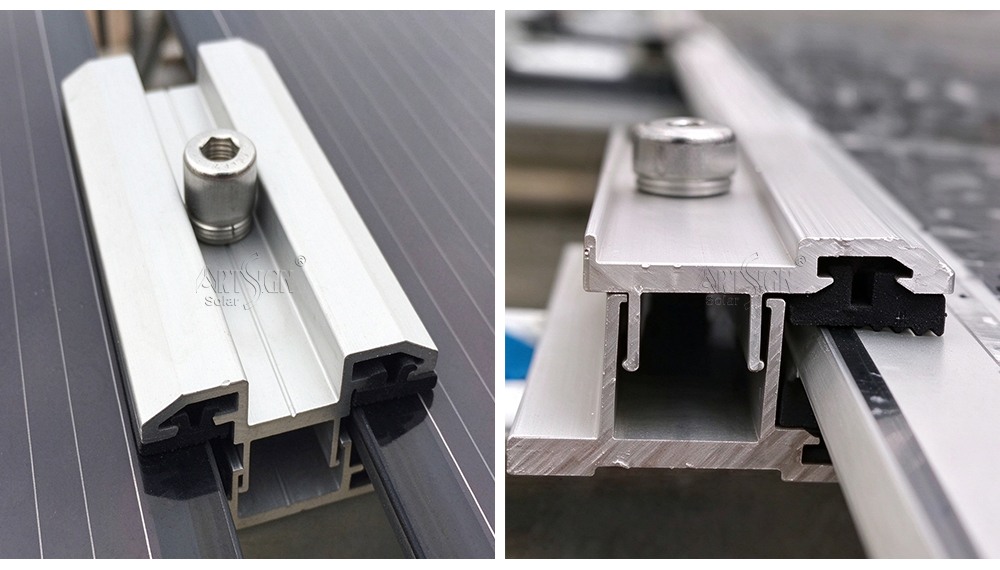

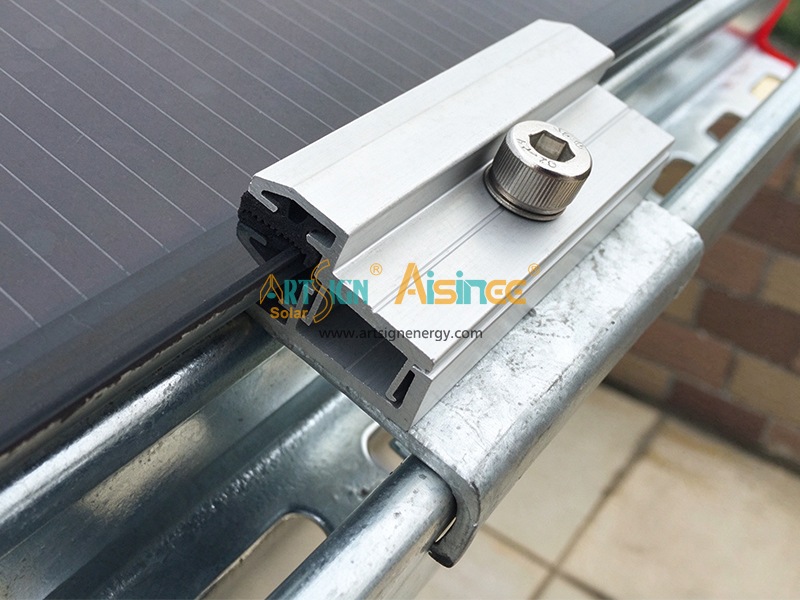

Designed for seamless on-site integration, our versatile thin film mid end clamp solution is widely deployed in commercial and residential photovoltaic mounting systems. As demonstrated in the actual installation photos, it provides a secure, flush fit between frameless solar panels and solar rails, ensuring optimal holding power, structural stability, and a clean finish across diverse solar project sites.
Click to see more Module clamp.
 |  |  |  |
| AS-TFMC | AS-TFEC | AS-TFMC-04 | AS-TFEC-04 |
FAQ1: What materials are used for this thin film clamp in solar mounting systems?
A: The clamp body is made of high-strength extruded aluminum alloy (AL6005-T5), providing excellent corrosion resistance and lightweight durability for photovoltaic mounting structures.
FAQ2: What surface finishes and custom options are available for these solar panel clamps?
A: They feature an anodized surface treatment with a film thickness of 10–15μm available in silver or matte black, and the extrusion length can be custom cut to fit various solar racking project requirements.
FAQ3: What are the dimensions and clamping range for this frameless solar end/mid clamp?
A: It features a width of 34.92 mm and an adjustable clamping height range of 5 to 8 mm, securing standard frameless solar panels onto solar rails with an M8×40 bolt assembly.
FAQ4: How does this clamp protect thin-film photovoltaic modules during installation?
A: It is specifically engineered to lock frameless solar modules firmly onto solar mounting rails without damaging the glass surface, ensuring long-term structural stability.
