Solar roof mounting system of penetarting roof bracket 28# |ART SIGN
Design Features
— Light for transportation and easy for installation.
|
Mode Number |
AS-ARH-28 |
Brand Name |
ART SIGN |
|
Specs |
W33.6×H40mm / Angle: 51° |
Material |
Aluminum 6005-T5 |
|
Application |
metal / tin / trapezoidal roof |

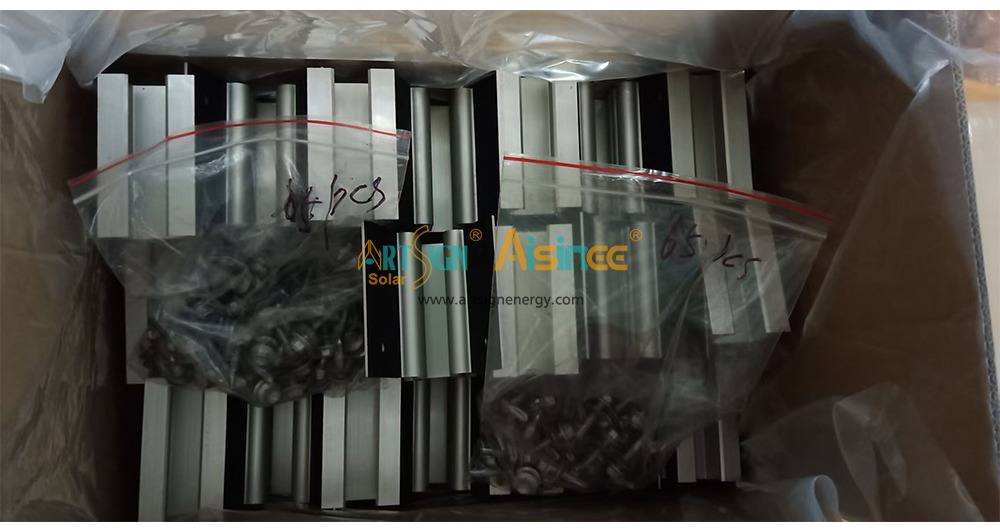

Packing |
Carton |
|
Keyword |
Bracket for metal roof solar mounting system form China supplier |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |

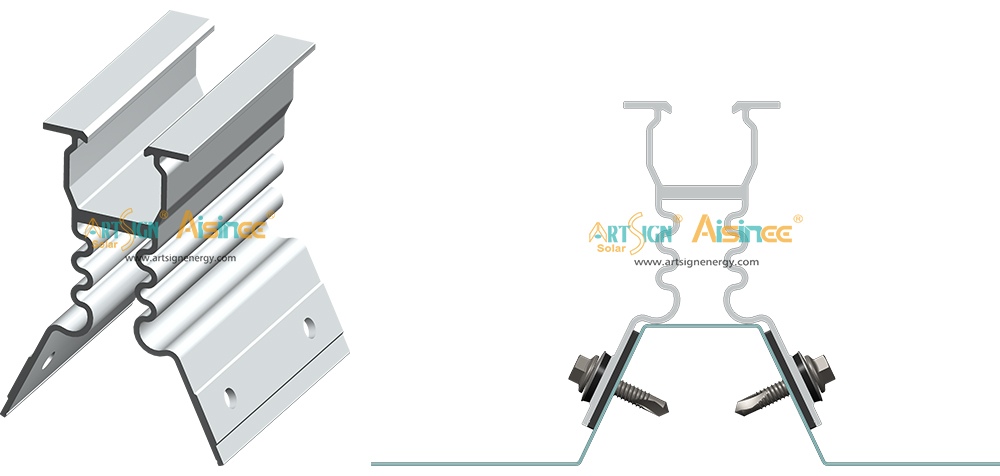

The wave-shaped, flexible, penetrating roof bracket provide continuous clamping force, and when used with screws, ensure a more secure installation on roof structures. This design enhances friction and anti-slip properties, ensuring long-term stability under varying wind and snow loads.

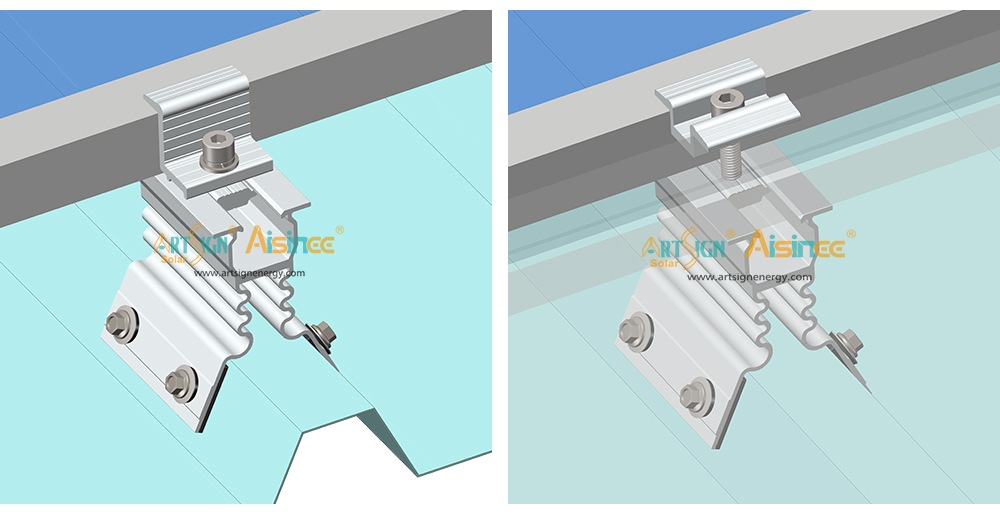

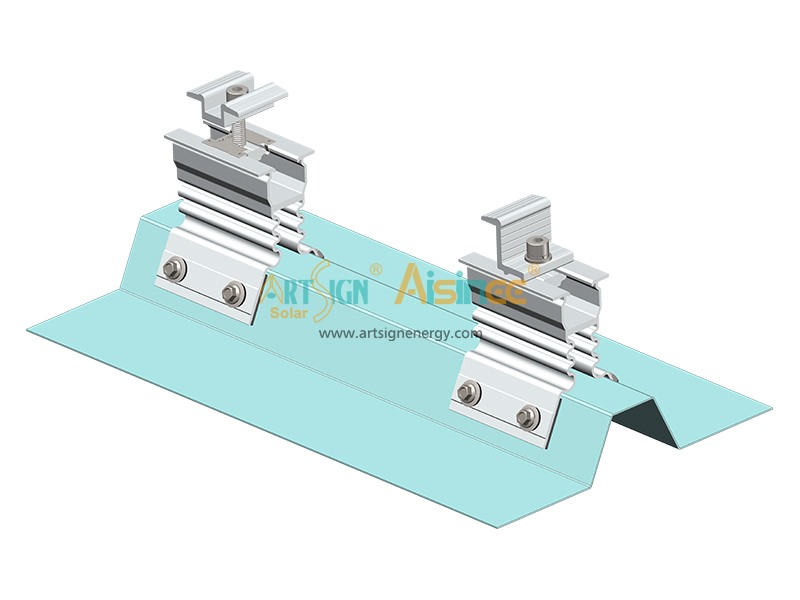

Using this aluminum clip, it can be directly connected to the clamp for direct edge locking, eliminating the need for rails.
This reduces costs, simplifies installation, facilitates transportation, and lowers shipping expenses.
However, this installation method is suitable for areas with low wind and snow loads.

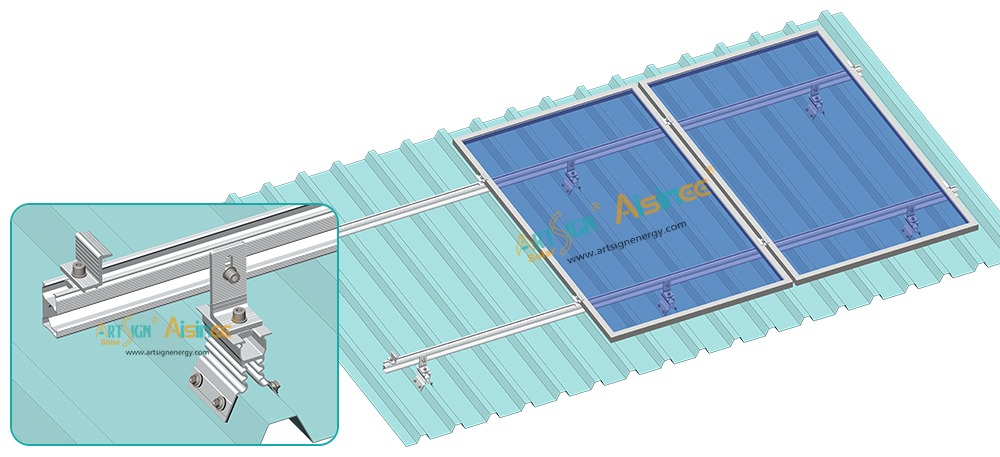

In areas with heavy snow and wind, it's safer to use rails.

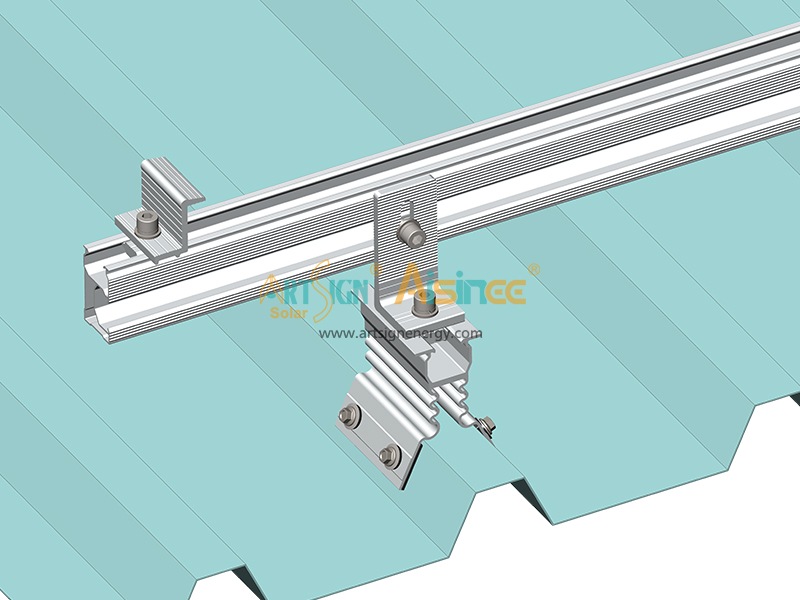

When using long rails, L feet are needed for connection.
Installation is also simple, but it involves more parts than installation without rails.
Customized cutting length to be suitable for different wind load and snow load requirements.
