Design Features

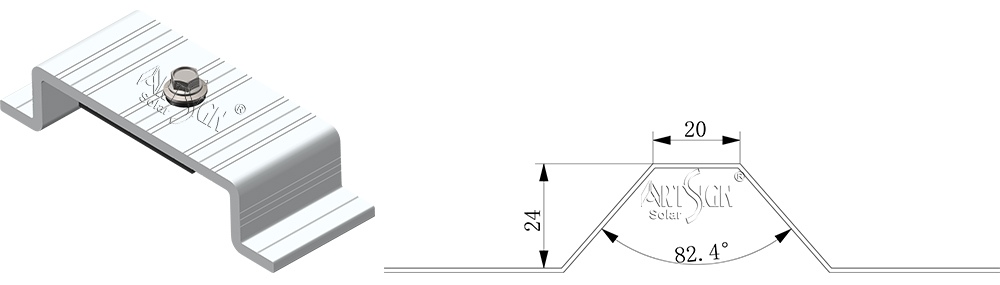

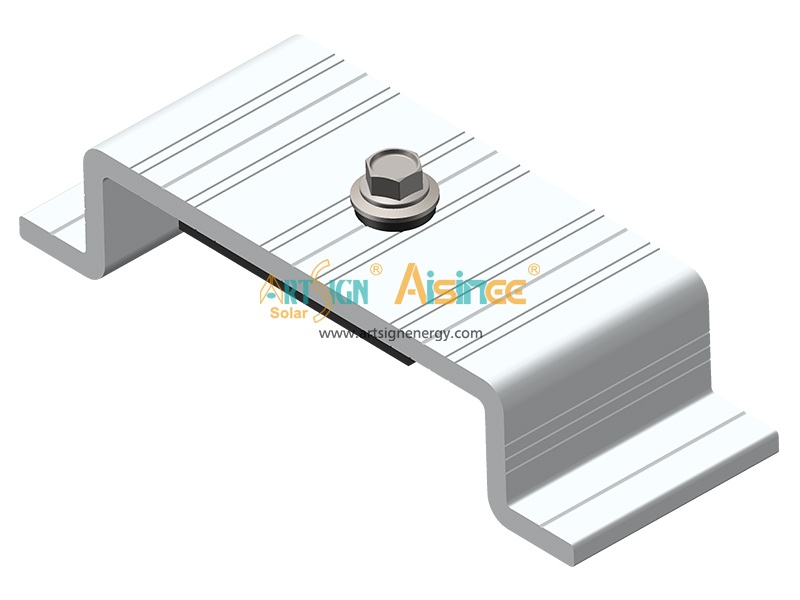

Tile roof mount bracket 32# serves as a highly adaptable solar bracket for tile roof and metal roof installations. Manufactured from high-grade aluminum alloy with an anodizing finish, it features a robust, form-fitting design.

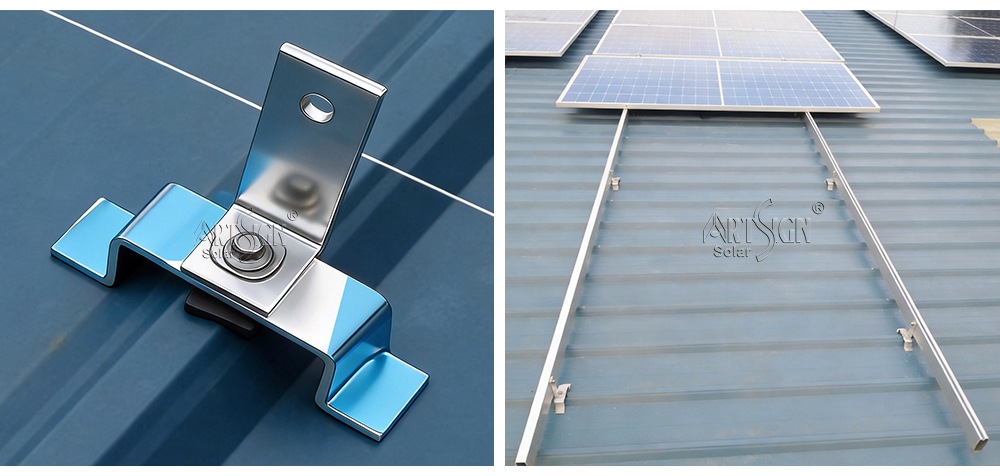

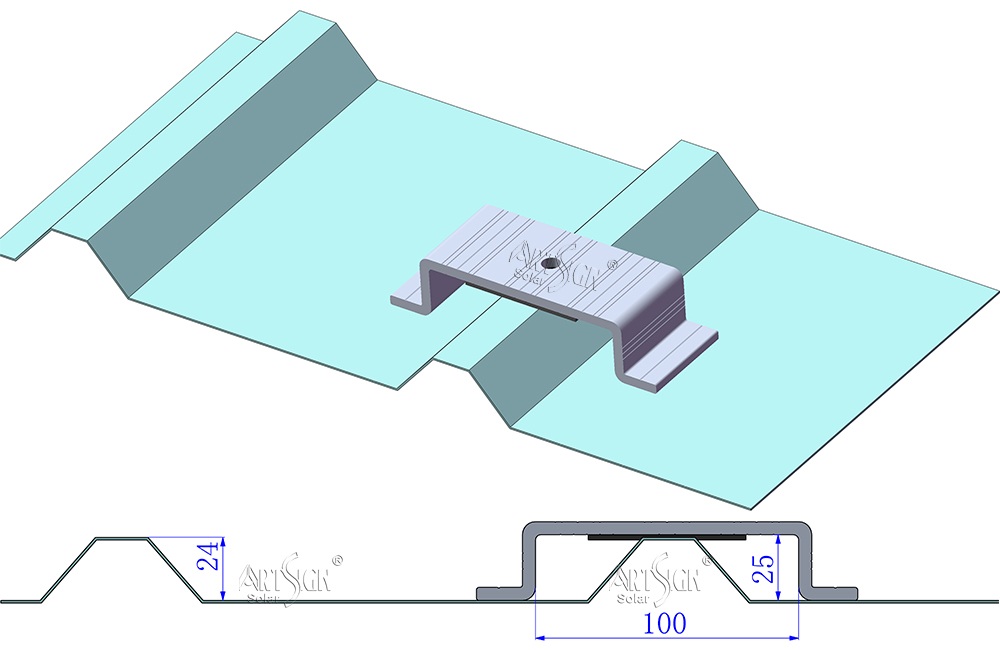

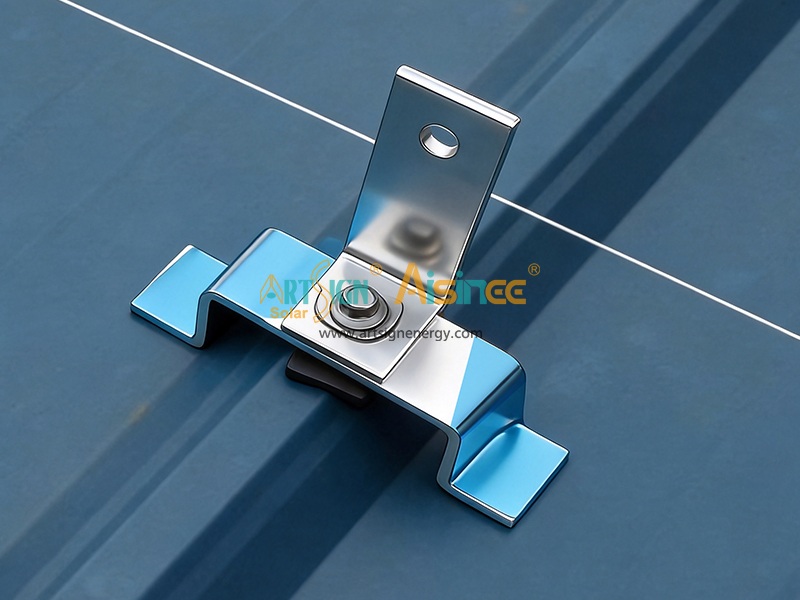

It can be installed directly using L-feet; installation is simple, and it is suitable for most standing-seam roofs. The bridge-like geometric design evenly distributes clamping pressure, ensuring a tight, wobble-free grip when integrated with a solar bracket tile roof system.

Customized cutting length to be suitable for different wind load and snow load requirements.

Category : Aluminum roof bracket

AS-ARH-01	AS-ARH-03	AS-ARH-03F3	AS-ARH-08A
AS-ARH-08B	AS-ARH-08C	AS-ARH-10B	AS-ARH-18D

FAQ1: What are the main benefits of using an anodized aluminum solar bracket over steel?

A: Anodized aluminum (such as AL6005-T5) offers three major advantages for solar roof mountings: Excellent Corrosion Resistance: Unlike steel, it won’t rust when exposed to rain, UV, or coastal salt spray. Lightweight Durability: It reduces the dead load on tile roofs and metal structures while maintaining high tensile strength. Ease of Installation: It is easier to handle on steep roofs, significantly speeding up the solar racking setup.

FAQ2: Is this fixing clamp compatible with all standard solar mounting rails?

A: This clamp is designed based on universal industry standards for solar racking components. It perfectly fits most standard aluminum solar rails used in both Standing seam roof systems and commercial metal roof systems. Tip: We highly recommend verifying your specific rail channel dimensions with our specification chart before bulk purchasing.

FAQ3: What is the lifespan of this aluminum fixing clamp in harsh outdoor environments?

A: It is designed to last over 25 years. Thanks to the heavy-duty anodized surface treatment, this clamp offers industrial-grade protection against UV radiation, heavy rain, and extreme temperatures. It matches the standard 25-year lifespan of modern solar panels, ensuring your solar bracket system requires zero structural maintenance.

FAQ4: Is this fixing clamp suitable for high-wind and heavy-snow regions?

A: Yes, it is engineered for high-load capacity. At the same time, we will recommend the most suitable accessories based on the wind and snow load specifications you provide.

FAQ5: If any quality problem caused, what you can do?

A: ART SIGN can issue you an warranty letter which ensure that if any quality problem cause within our warranty time, we will send the replacement to you without any charge.

FAQ6: What is your terms of payment?

A: Payment≤1000 USD, 100% in advance. Payment≥1000 USD, 30% T/T in advance, balance before shipment.For more request, we can discuss and make a payment plan according to both of our financial situation.

FAQ7: Are you a manufacturer or trading company?

A: We are a professional manufacturer of solar mounting systems with over 19 years of experience. Our factory is located in Xiamen, China, covering 10,500㎡ with full production and QC control.

FAQ8: Which countries have used your mounting systems?

A: Our solar mounting systems have been exported to Europe, the Middle East, Southeast Asia, Africa, South America, and many other regions worldwide.
