Mounting solar panel on to roof rack

Aluminum solar rooftop bracket is more lightweight and stable when installation
  • Item NO.:

    AS-ARH-11
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight, Paypal, Western Union,
  • Surface Treatment:

    natural or black

  • Product Detail

Chinese Manufacturer for Solar panel roof mount | ART SIGN



Design Features

— Using anodized aluminum material is more lightweight

— Suited fornormal wind load

— With or without rail, some can work directly with mid clamps or end clamps


Mode Number

  AS-ARH-11

Brand Name

  ART SIGN
Specs

  W40*H73.2mm

Material

  Aluminum 6005-T5

Application
   solar panel roof mounting system Packing
  Wooden case
Keyword
  Chinese Manufacturer for Solar panel roof mount
Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years

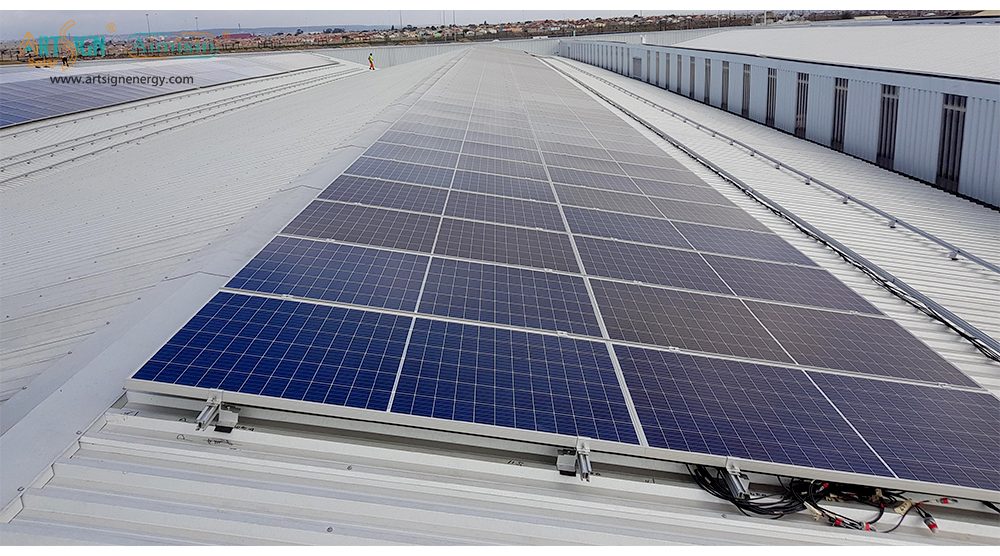

ART SIGN solar mounting system

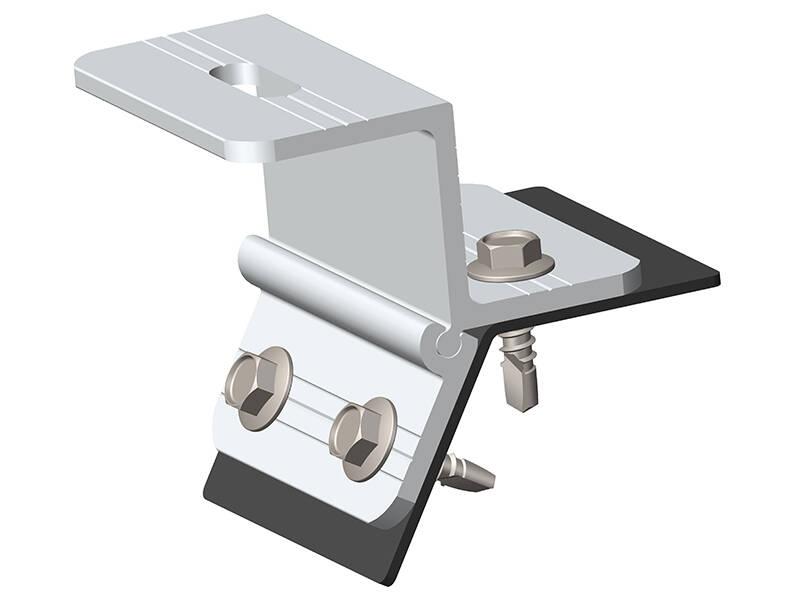

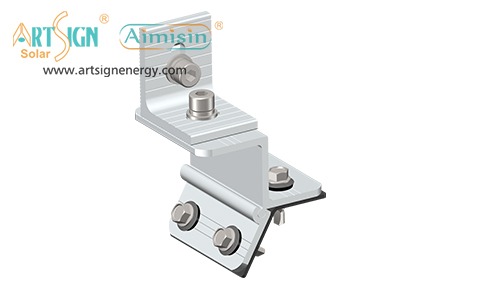

ART SIGN Solar panel roof mount AS-ARH-11

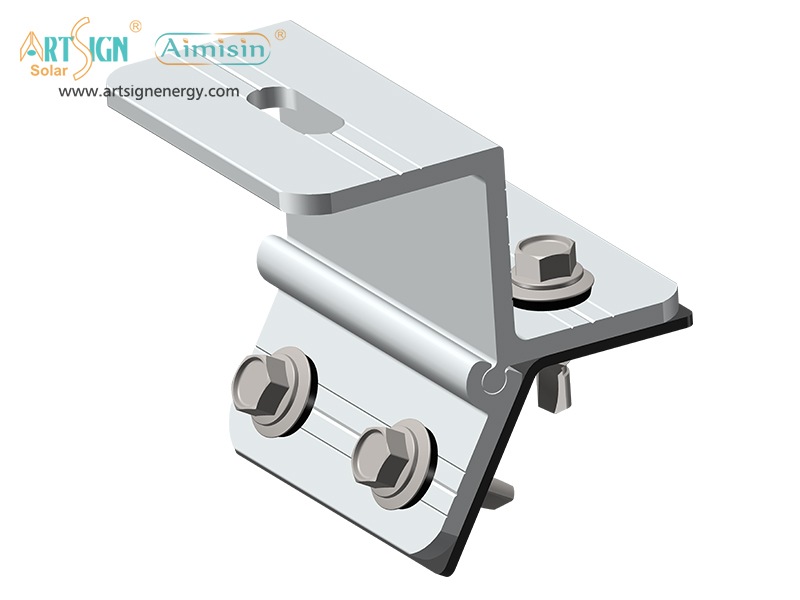

ART SIGN roof solar bracket AS-ARH-11
ART SIGN roof solar bracket AS-ARH-11

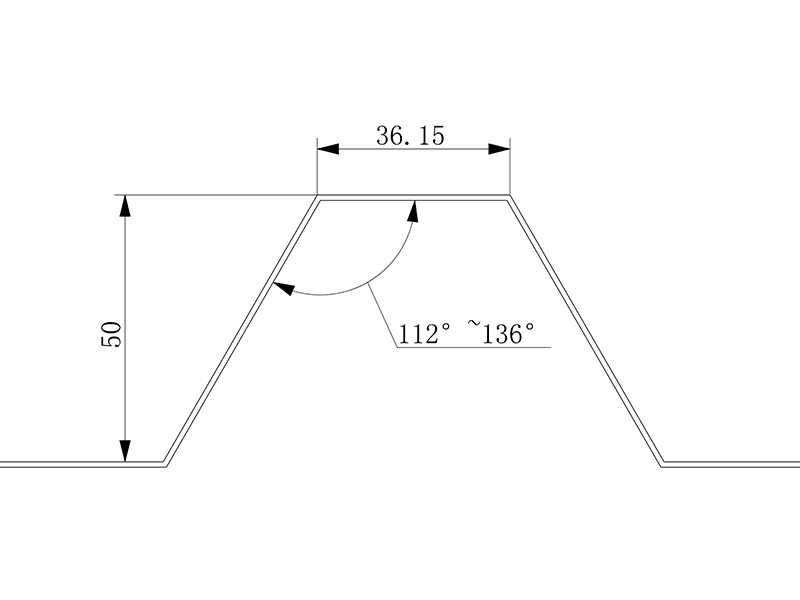

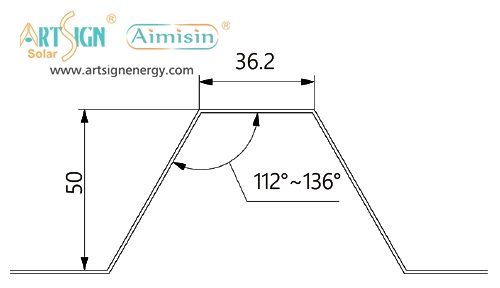

Applicative roof sheet

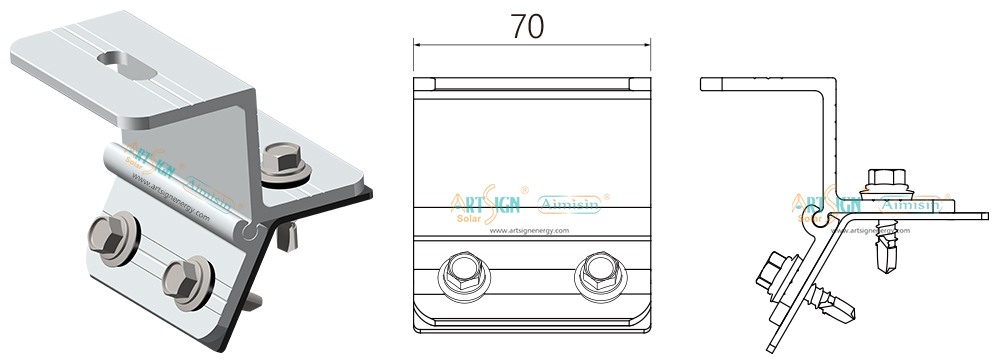

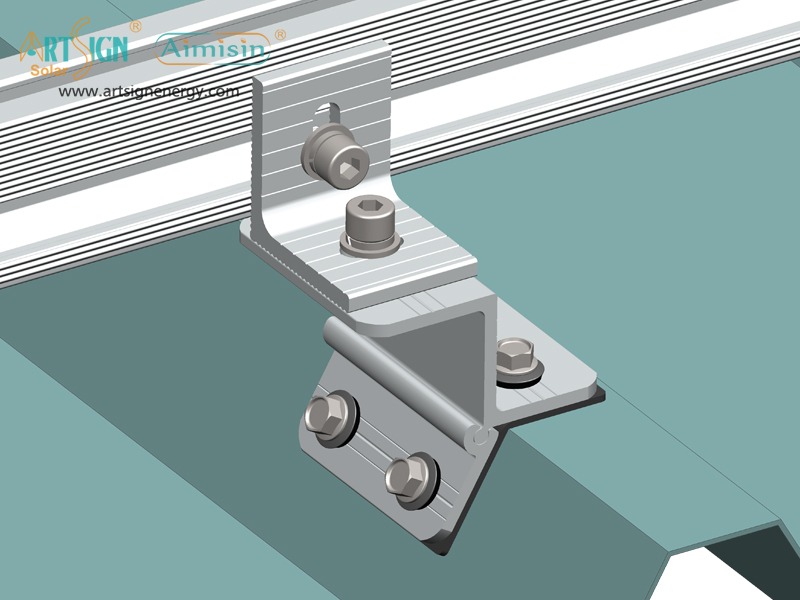

AS-ARH-11 with L connector


ART SIGN solar mounting systemInstallation diagram - the rail with groove on the side

ART SIGN Solar panel roof mount AS-ARH-11
ART SIGN Solar panel roof mount AS-ARH-11

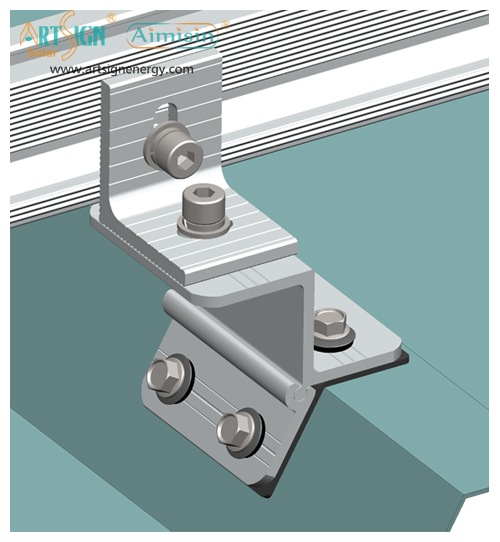

Using the L connector to keep with rail

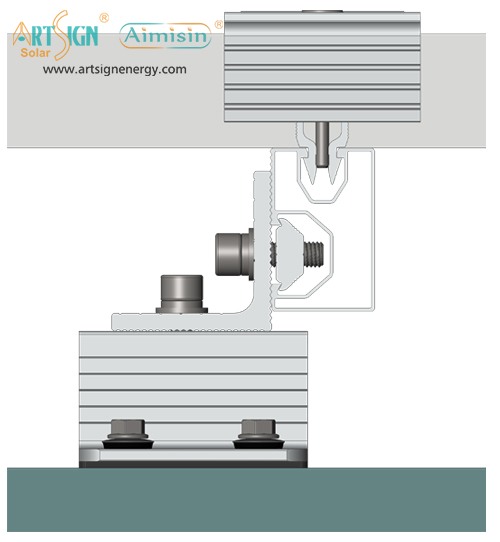

Side view
ART SIGN Solar panel roof mount AS-ARH-11

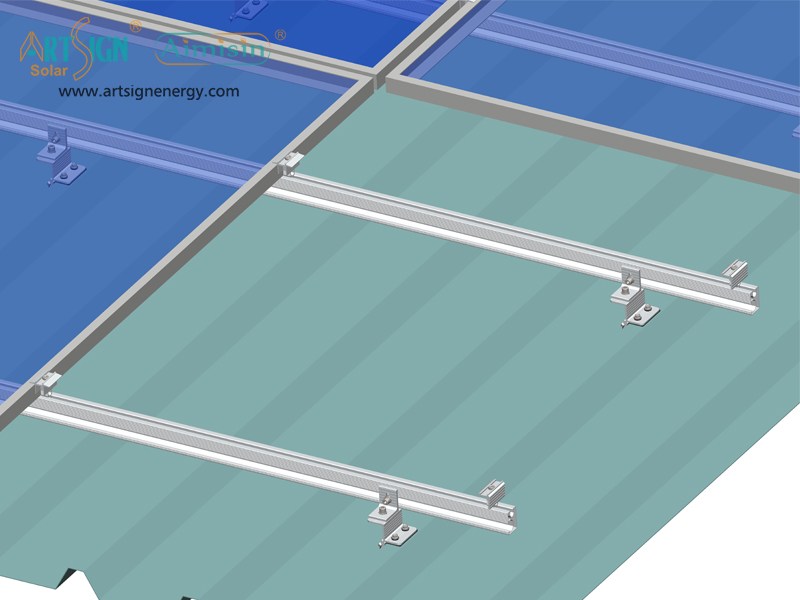

Put the mid and end clamps to connect the panels with rails




  Package Type
  · Inner packing: carton boxes
  · Outer packing: wooden case/pallet
ART SIGN roof solar bracket AS-ARH-19 package




ART SIGN solar mounting related accessories

Customized cutting length to be suitable for different wind load and snow load requirements.

Category : Aluminum roof bracket


ART SIGN solar tin roof clamp AS-ARH-11
ART SIGN solar tin roof clamp AS-ARH-12
ART SIGN solar tin roof clamp AS-ARH-20
ART SIGN solar tin roof clamp AS-ARH-20C
AS-ARH-11 AS-ARH-12
AS-ARH-20
AS-ARH-20
ART SIGN solar tin roof clamp AS-ARH-21
ART SIGN solar tin roof clamp AS-ARH-26
ART SIGN solar tin roof clamp AS-ARH-27
ART SIGN solar tin roof clamp AS-ARH-28
AS-ARH-21
AS-ARH-26
AS-ARH-27
AS-ARH-28

Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
