Design Features
— Available in various finished: mill, silver anodizing or black anodizing.
— It's light for transportation and easy for installation.
— With or without rail, some can work directly with mid clamps or end clamps.
— It's light for transportation and easy for installation.
— With or without rail, some can work directly with mid clamps or end clamps.
|
Mode Number |
AS-ARH-26 |
Brand Name |
ART SIGN |
|
Specs |
W42*H47.9mm |
Material |
Aluminum 6005-T5 |
|
Application |
solar panel roof mounting system |
Packing |
wooden case |
|
Keyword |
Chinese Manufacturer roof solar mounting brackets |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |

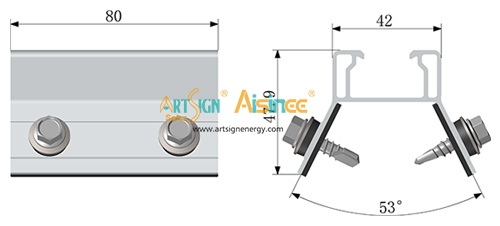

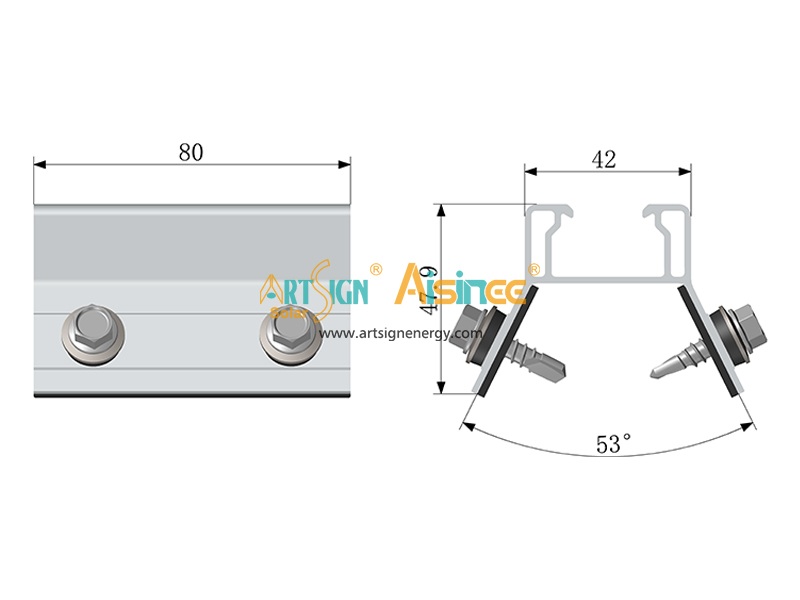

Side view

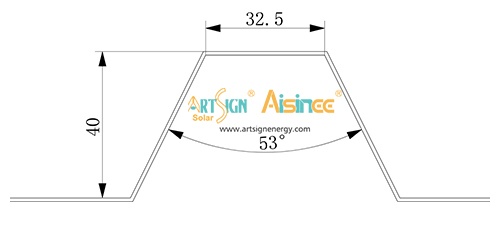

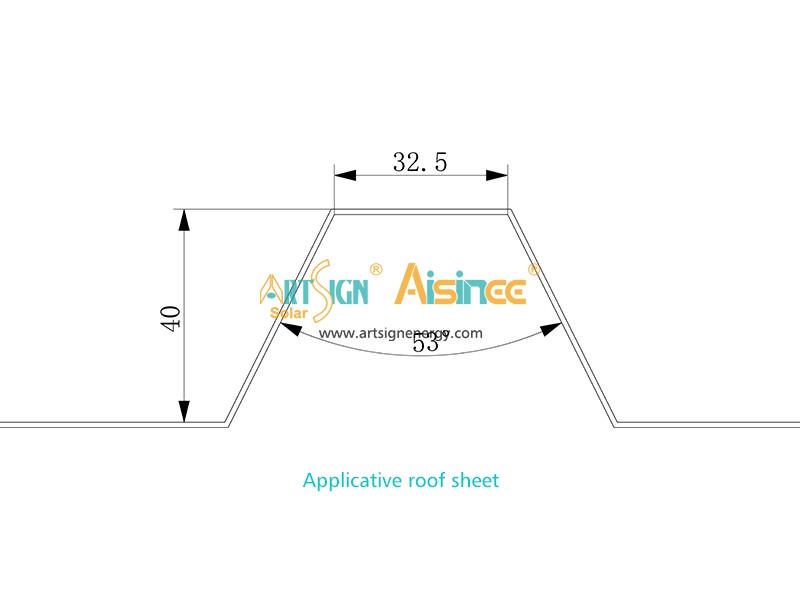

Applicative roof sheet

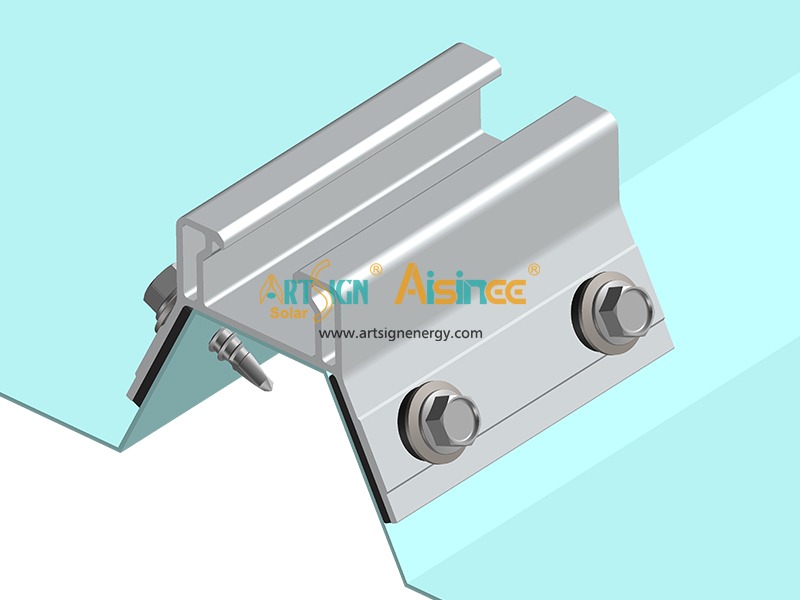

Solar roof bracket with the clamps
 |
 |
|

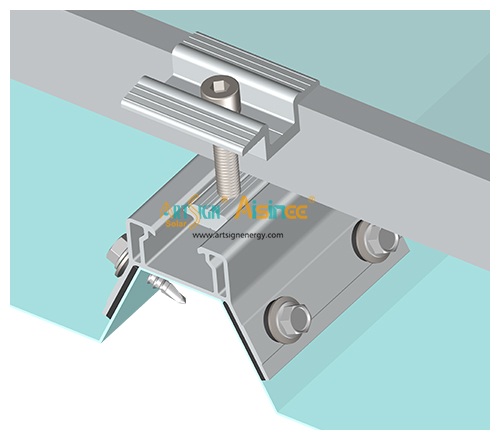

AS-ARH-26 with Mid clamp |

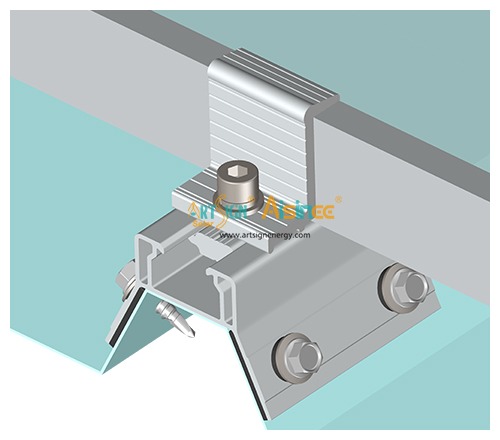

AS-ARH-26 with End clamp |
Customized cutting length to be suitable for different wind load and snow load requirements.
