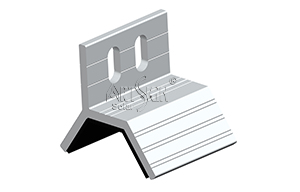

Waterproof Aluminum Bracket Mounting Soluiton for Metal Rooftop |Art Sign
Design Features
— Lightweight and compact, saving on transportation costs.
— EPDM adhesive on the bottom of mounting bracket for roof waterproofing.
|
Mode Number |
AS-ARH-12 |
Brand Name |
ART SIGN |
|
Specs |
L60*W68.7*H63.6mm |
Material |
Aluminum 6005-T5 |
|
Application |
Trapezoidal roof solar mounting |
Packing |
Wooden case |
|
Keyword |
Factory price aluminum roof bracket |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |

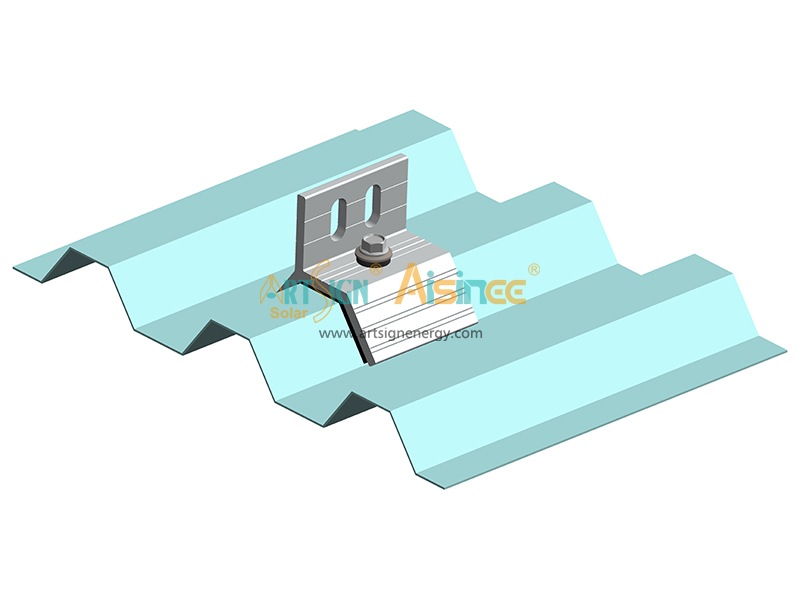

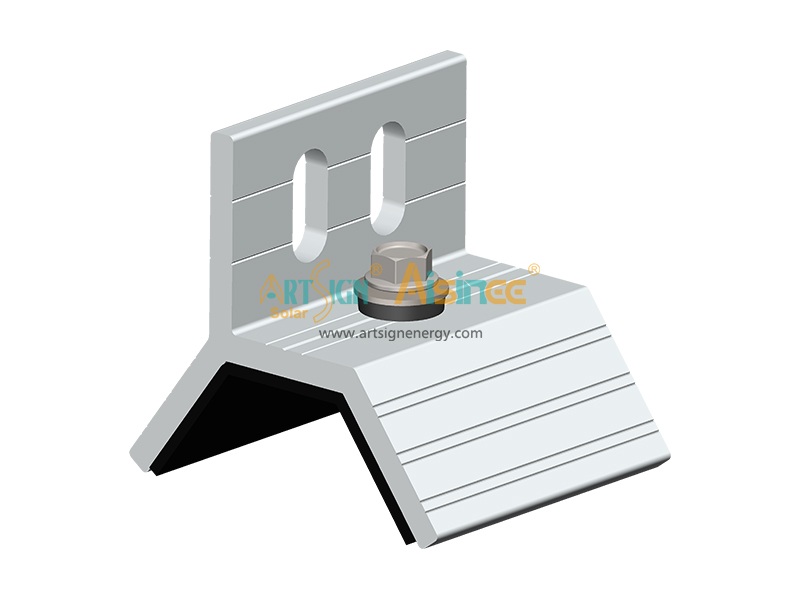

Solar panel roof clamp with self-drilling bolt
 |
 |
 |
|
To ensure roof waterproofing, EPDM is adhesive on the bottom of the clip. |
For metal roof mounting, each clip comes with a self-drilling bolt ST5.5*25. |

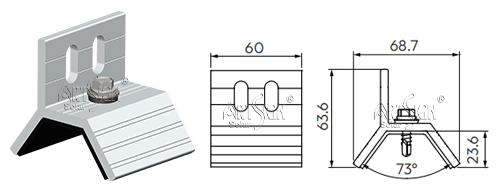

Roof bracket size: Length 60mm |
 |
||
|

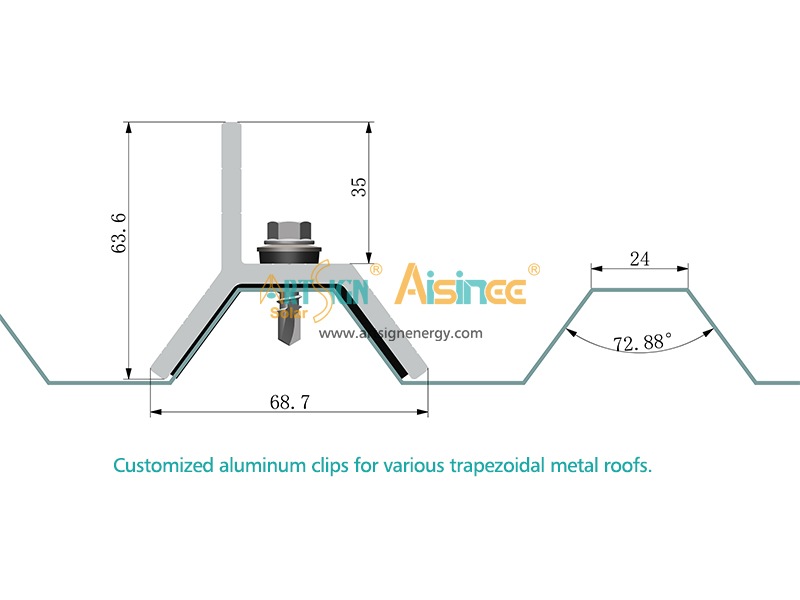

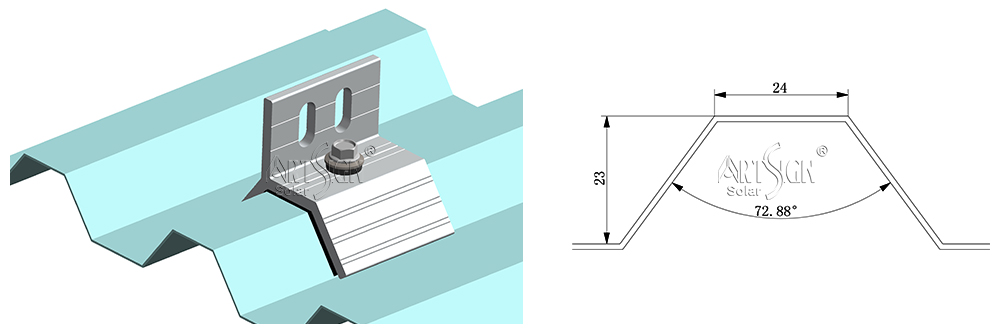

The dimensions of the roof structure to which this aluminum clip is suitable. |
||
|
Package Type · Inner packing: carton boxes · Outer packing: wooden case/pallet |
 |
Customized cutting length to be suitable for different wind load and snow load requirements.
