Design Features

— Targeted Application for Low-Wind Zones: FSpecifically engineered for solar farms located in inland or low-wind geographical zones. It strictly complies with localized load standards without forcing buyers to pay for over-engineered, heavy-weight metal.
— Light weight & Lower Transportation Costs: The light weight design significantly cuts down logistics and ocean freight expenses per watt. Installers can easily handle, position, and fasten the rails on-site without heavy hoisting machinery, speeding up ground installation and cutting labor expenses.

Designed specifically for landscape module orientation in ground-mounted solar systems, this lightweight aluminum rail offers an exceptionally cost-effective solution for region-specific installations. Engineered with an optimized profile weight, it provides reliable structural support in regions with moderate wind load requirements—allowing EPCs and developers to significantly lower overall metal material expenses and landed freight costs per watt.

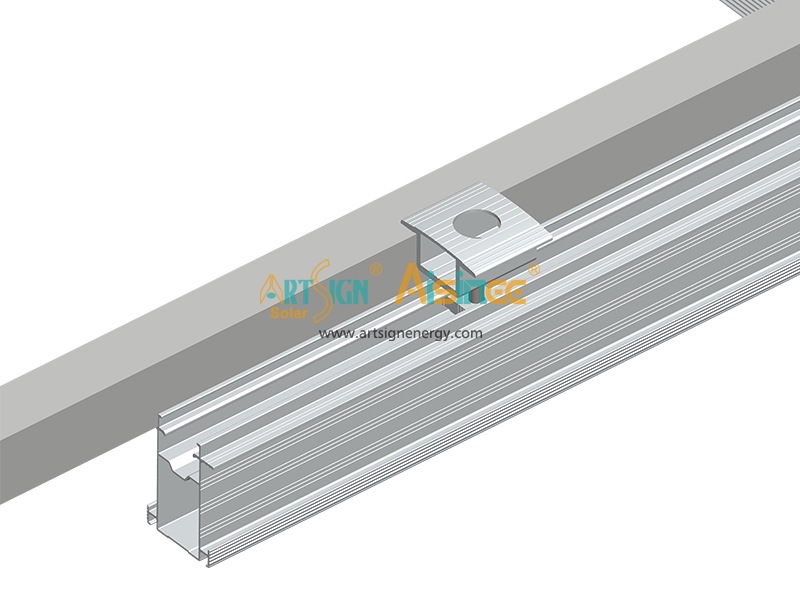

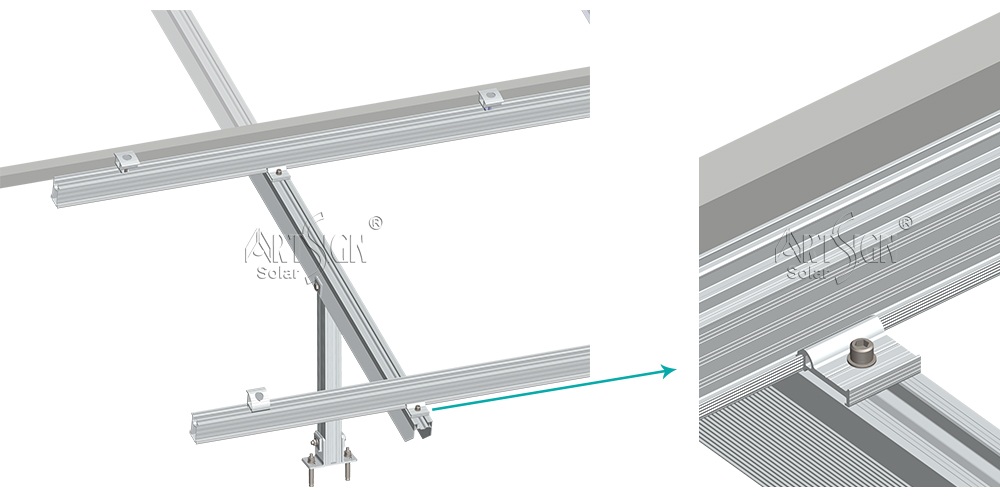

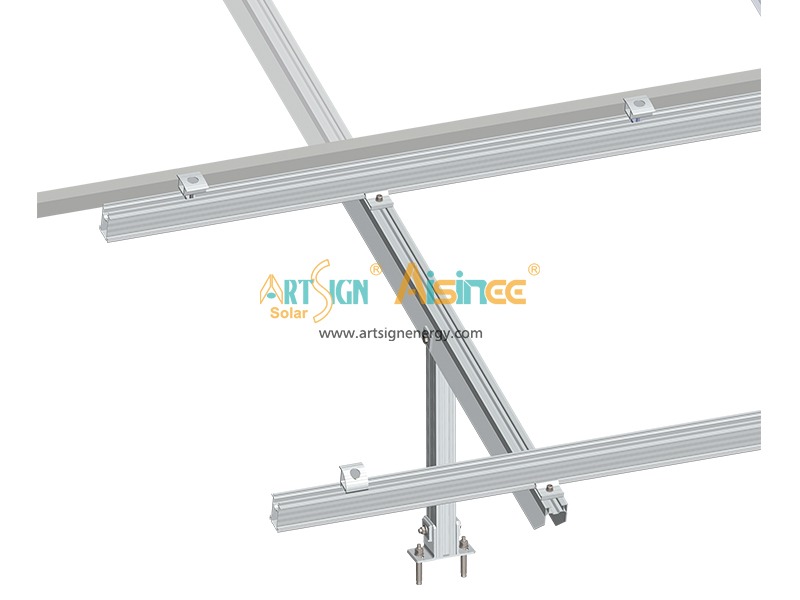

Rail-to-Beam Clamp Connection:The connection between the main aluminum mounting rail and the supporting crossbeam is secured using heavy-duty aluminum rail clamps. Designed for high-speed field assembly, this clamping mechanism ensures a rigid structural joint without requiring custom drilling on-site.

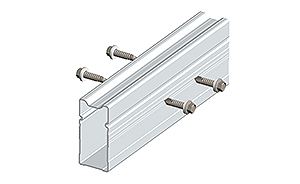

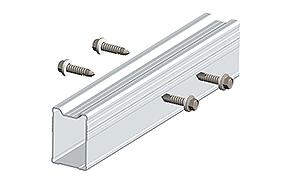

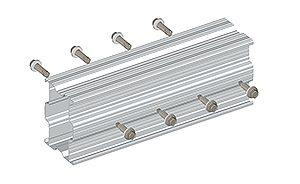

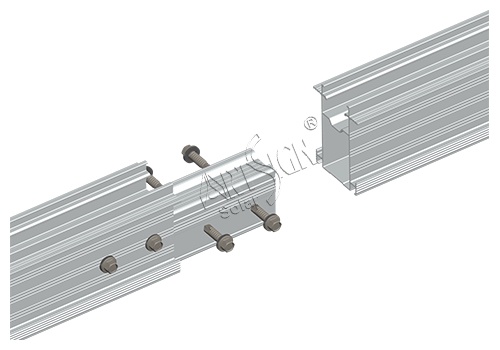

Solar Rail Splice Connection:The aluminum rail extension is secured using an internal splice connector fastened with self-drilling screws. This internal splice mechanism extends long-span purlin rails quickly on-site while maintaining high structural rigidity across connected joints.	Solar Panel Clamp Clamping Solution:The aluminum solar mid and end clamps are precision-engineered to secure both inner panel junctions and outer frame edges tightly onto the ground mounting rail. Designed for fast, standardized field assembly, these clamps ensure high structural resistance against wind uplift while accommodating various panel thicknesses.

Option A: Steel frame	Option B: ply-wooden case

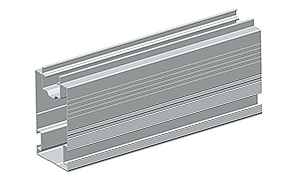

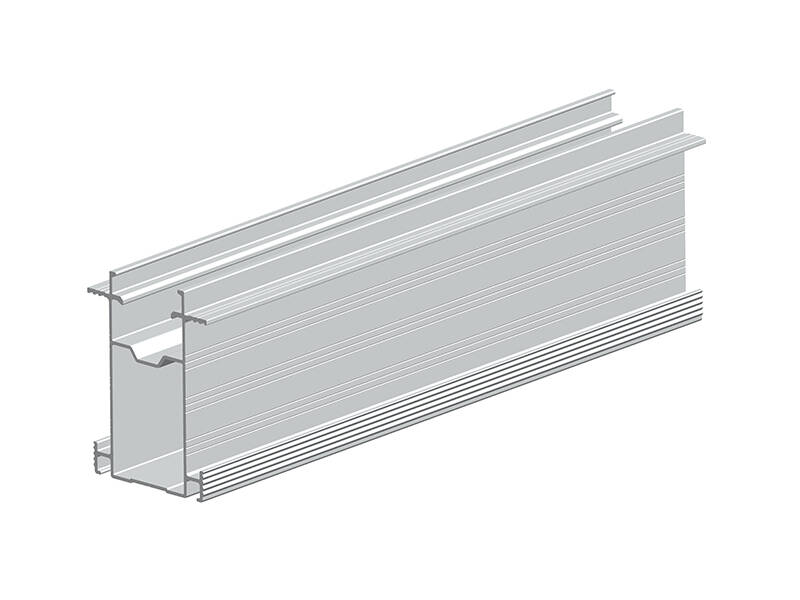

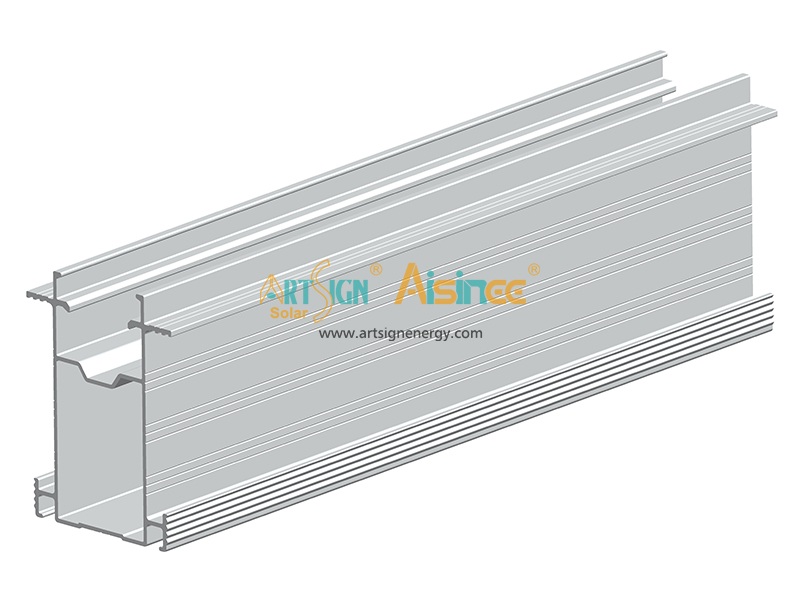

Aluminum Solar panel ground rails AS-TR65-01 which is most suitable for solar panel ground mount while has various size of profile for option, different size of aluminum rail is suitable for different strength request.

Click to see more China Aluminum Profile

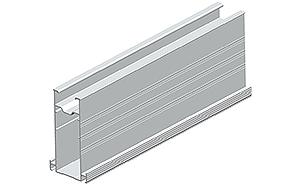

AS-TR65-01	AS-TR65-02	AS-TR85-01
AS-TR85-02	AS-TR85-03	AS-TR93
AS-TR105	AS-TRS-65	AS-TRS-85
AS-TRS-105

FAQ1: What is the design lifespan and warranty for ART SIGN ground mounting systems?

A: We provide a 20 year warranty with a 25 year design life. Made from AL6005-T5 aluminum (anodized ≥10 um) and SUS304 bolts&nuts, our systems offer long-term corrosion resistance.

FAQ2: Is this ground rail cost-effective for moderate wind regions?

A: Yes. Engineered specifically for landscape layouts in low-to-moderate wind areas, this lightweight aluminum rail optimizes metal weight, reducing raw material and ocean freight costs per watt.

FAQ3: How are rails connected to support beams and splices on site?

A: Rails attach to cross beams via bolt-on aluminum clamps (no pre-drilling needed) and extend seamlessly using internal splice connectors with self-drilling screws for rapid assembly.

FAQ4: Do these structures comply with international wind and snow codes?

A: Yes. We design the structure as your wind load and snow load request. Engineering reports are available upon request.

FAQ5: What are the lead times for LCL and FCL orders?

A: Standard rails, splices, and clamps ship in 7–15 days for LCL and 20–35 days for FCL. We support consolidated container loading to lower landed CIF shipping costs.

FAQ6: How does ART SIGN handle quality assurance and spare parts?

A: Every shipment includes complimentary spare components to prevent site delays. Any defective components within the warranty period are replaced free of charge immediately.
