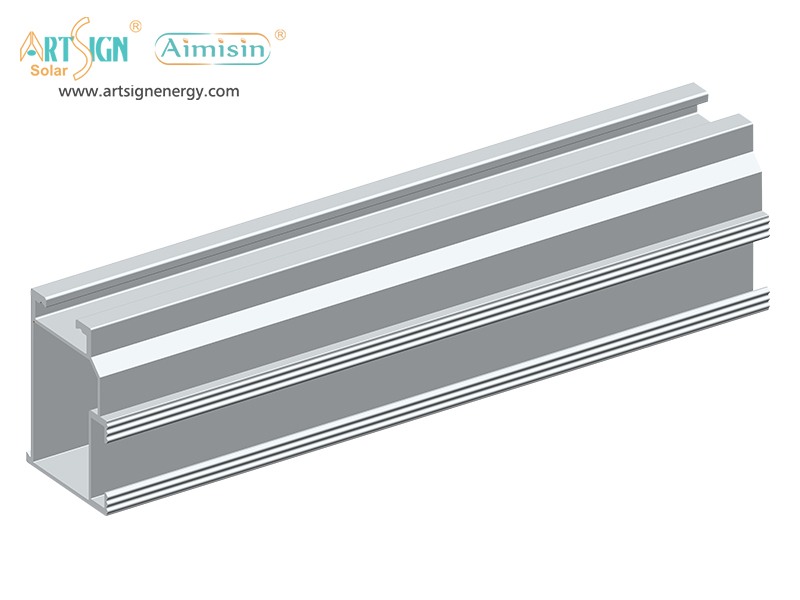

Solar panel roof mounting aluminum profile C rail 01#

Aluminum profile CR rail 01# is suited for various roof mounting.

Item NO.:
AS-CR-01
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

ART SIGN Solar panel aluminum profile CR rail 01#

Design Features

— Cost-effective solar pv rail for tile roof, trapezodidal roof.
— T bolt with clamps and adjustable solar clamps are for your option, which is quicker and easier for installation.

Mode Number	AS-CR-01	Brand Name	ART SIGN
Specs	W36.5*H50mm	Material	Aluminum 6005-T5
Application	Solar panel roof mounting system	Packing	Wooden case
Keyword	Factory direct solar mount aluminum profile rails	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

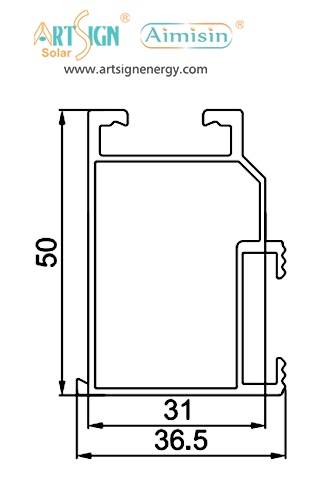

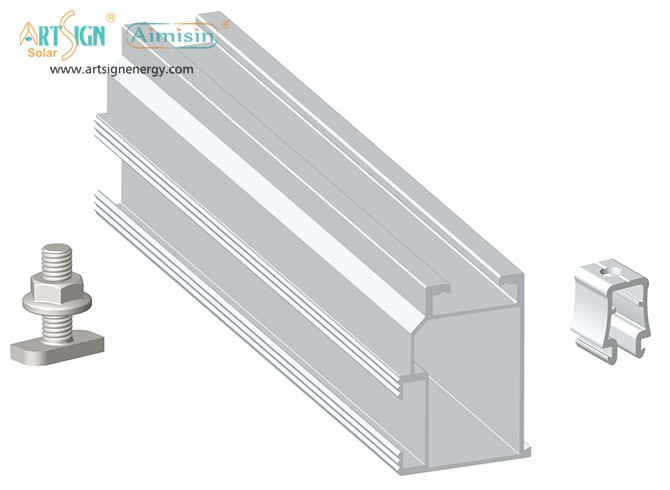

Suitable for T nut and N nut	Section size of solar CR rail 01#

Product Description

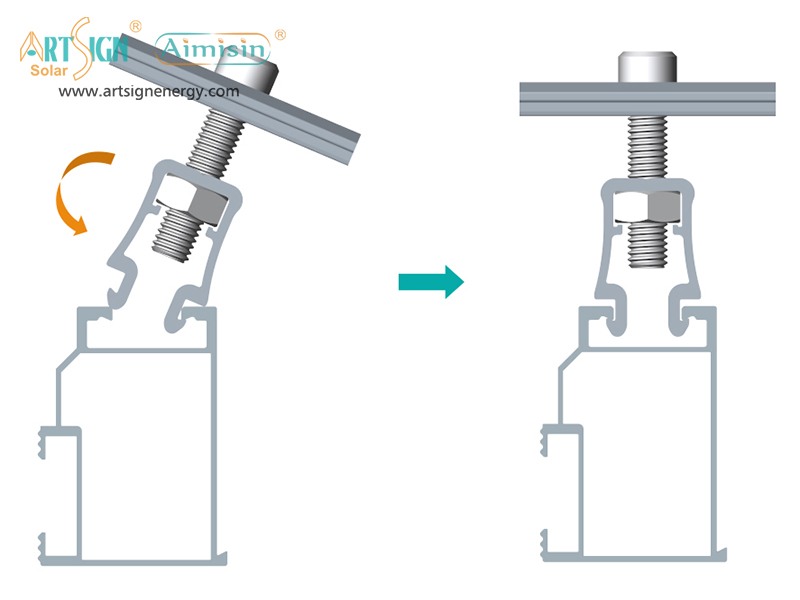

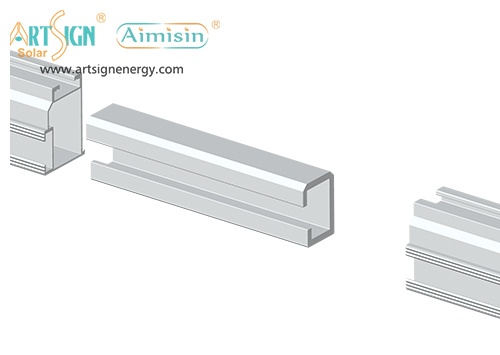

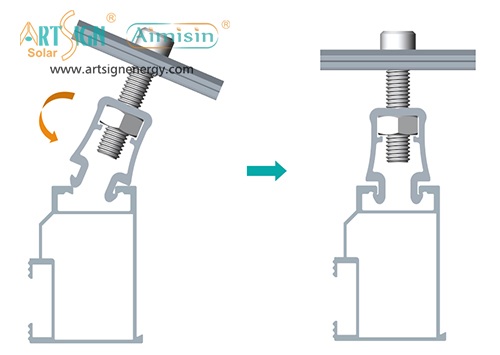

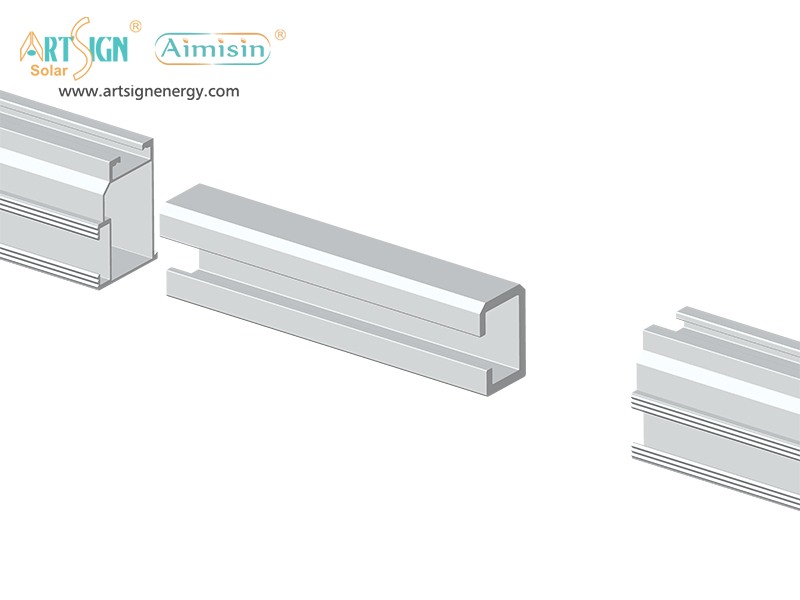

Installation method of solar clamps	Connector installation demonstration

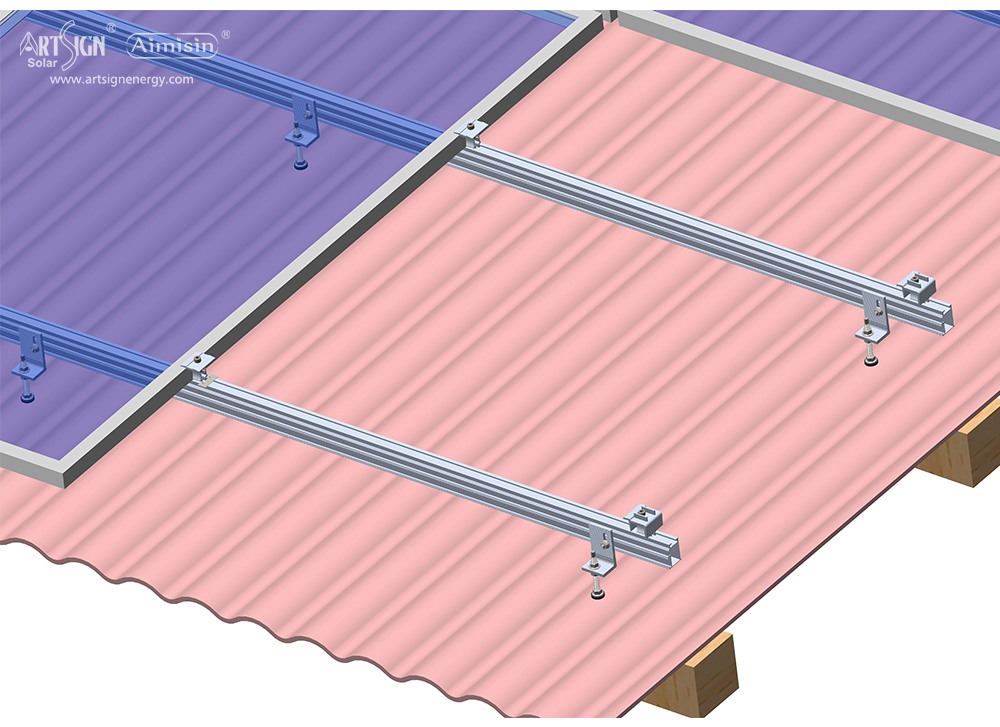

Can be used with L feet for metal roof.

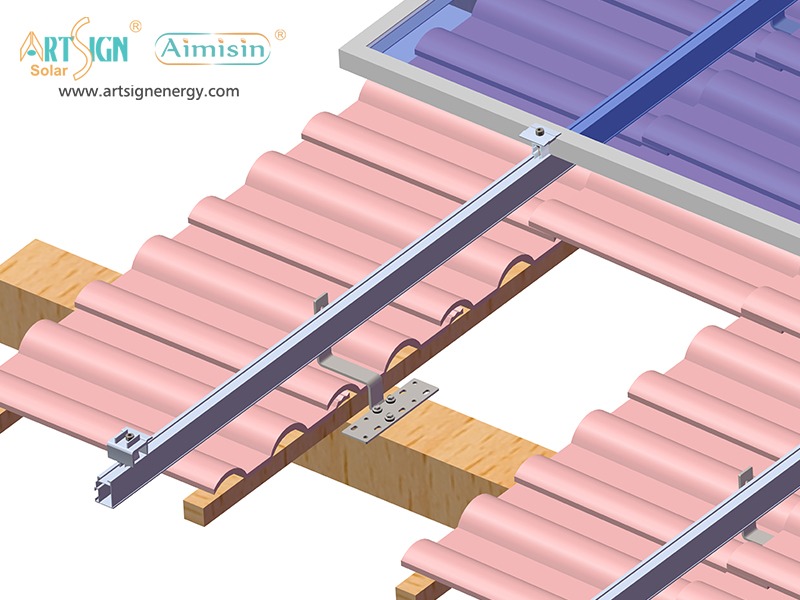

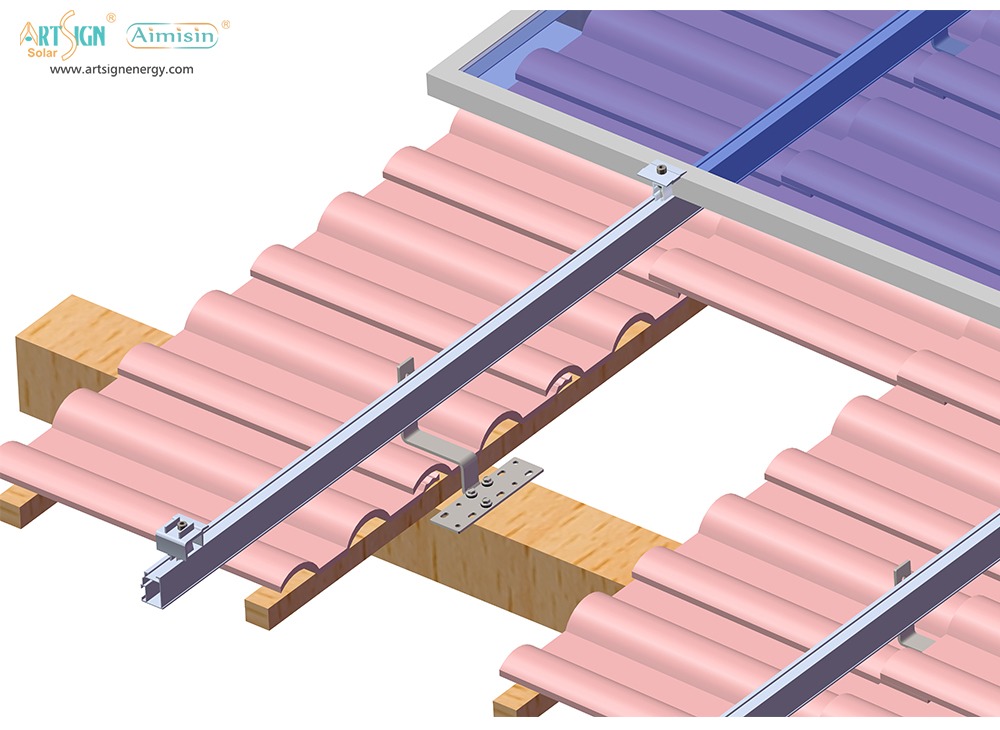

Can be used with roof hook for tile roof.

Click to see more N module series.


CR N nut	AS-CR-01	AS-CRS-01
