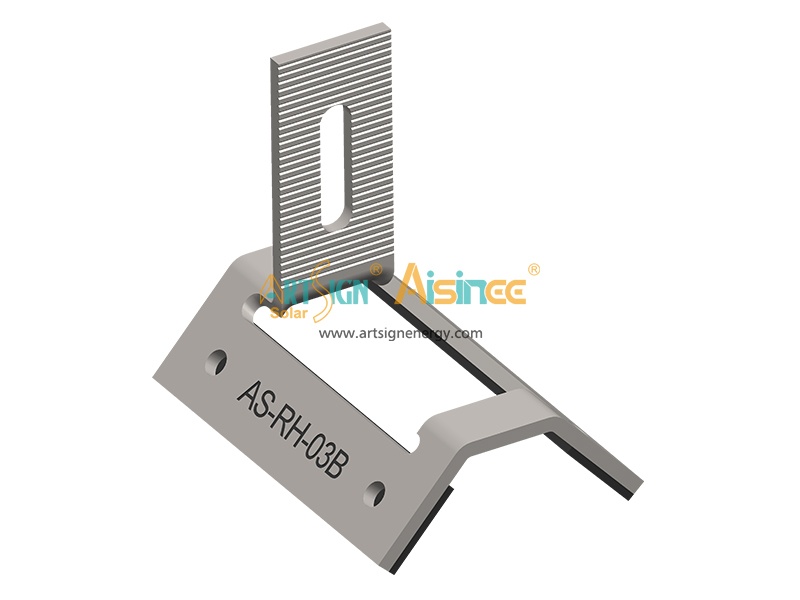

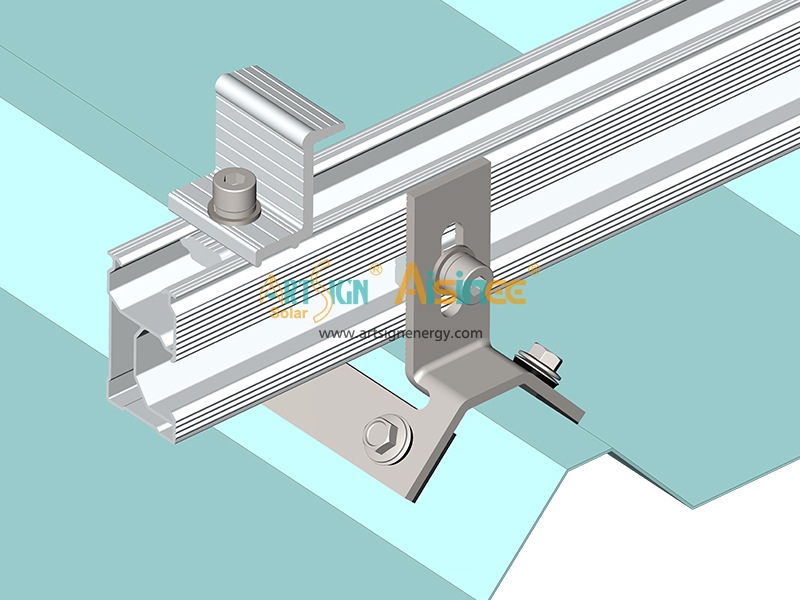

Roof hook for solar panel 03B#

Precision-Bent Metal Roof Solar Bracket for Tin Roof Mounting System |Art Sign

Design Features

— Precision Bending Design: Perfectly fits roof ribs with an 85° to 87° angle.
— Adjustable L-Slot Connection: Vertical 33.5 x 8.5 mm slot allows flexible rail height positioning.
— Durable Stainless Steel Build: Sandblasted finish ensures robust 25-year outdoor corrosion resistance.
— Dual Waterproof Protection: Pre-assembled EPDM gaskets deliver reliable leakage-free sealing performance.

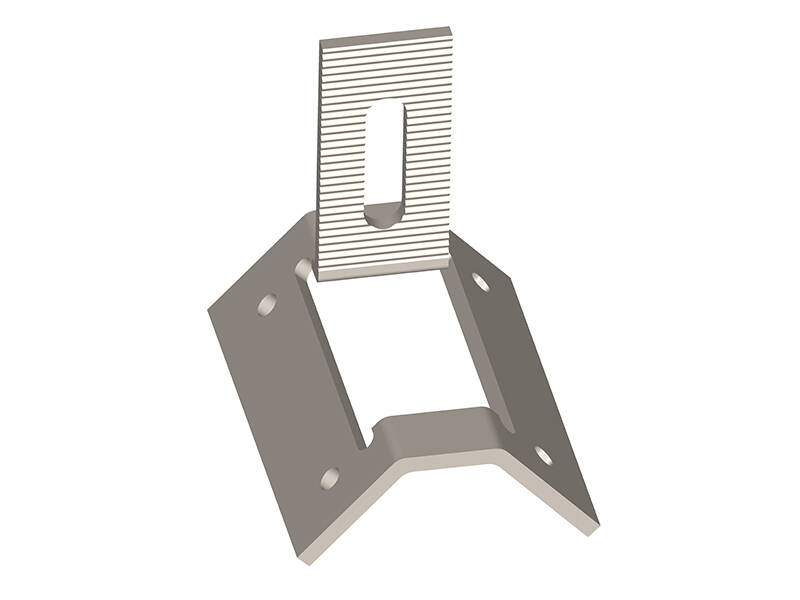

Precision-Bent Metal Roof Solar Bracket with Adjustable L-Slot Design

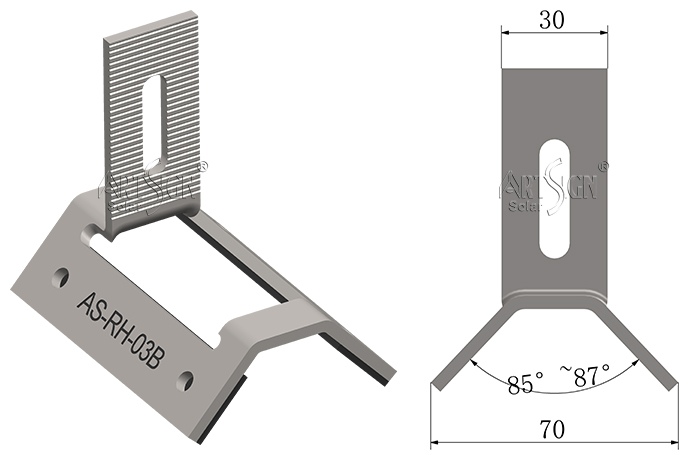

Precise Bending Design: This metal roof solar bracket features a specialized bottom design with a precise bending angle of 85° to 87°, allowing it to fit snugly and securely against the crests of trapezoidal metal roofs. L-Shaped Adjustable Bracket with Slot: Formed by an integrated bending process in the center to create a vertical L-shaped connection with an elongated slot (33.5 x 8.5 mm), allowing for vertical height adjustment during installation to accommodate various solar rails or leveling.

Durability and Waterproof Design of the Solar Panel Brackets for Metal Roof

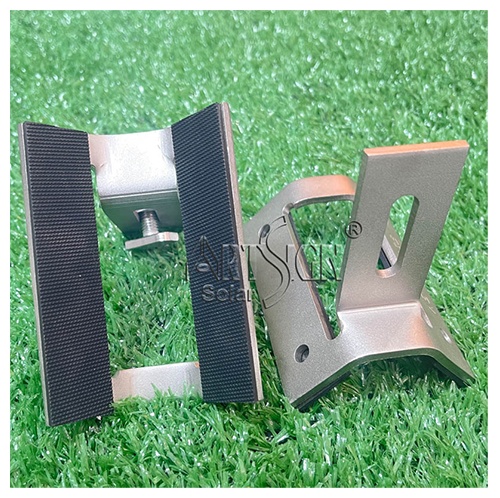

Premium Material & Surface Treatment: Crafted from high-quality stainless steel with a sandblasted finish, this solar panel brackets for metal roof offers both an aesthetic appeal and exceptional corrosion resistance, fully meeting the 25-year outdoor service life requirement. Pre-Assembled EPDM Gasket: Featuring a pre-assembled EPDM gasket design, it significantly saves labor time during installation while providing a reliable waterproof seal to prevent leaks.

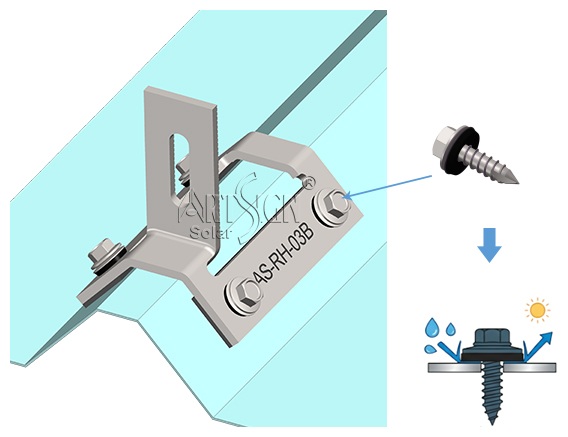

Clamping Structure and Dual Waterproof Design of the Roof Hook for Solar Panel

Dedicated Clamping Structure: Features an integrated curved clamp body secured symmetrically on both sides with multiple flange bolts, ensuring a firm grip on roof ribs and strong wind-uplift resistance. As an essential roof hook for solar panel, it provides reliable structural stability. Dual Waterproof Protection: Equipped with self-tapping screws featuring EPDM washers, working together with the EPDM on the solar hook for tin roof solar mounting to achieve a dual waterproof effect and prevent any rainwater leakage.

Optimized for the Metal roof hook for roof mounting system with flexible height adjustment and universal rail connection

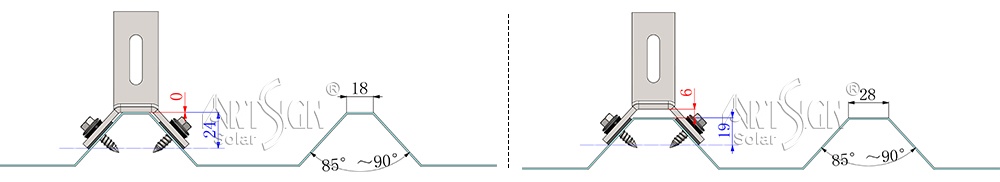

Flexible Height Adjustment: The bracket supports a height adjustment range of 0-6mm during installation, allowing it to flexibly adapt to different roof rib dimensions and meet diverse installation requirements.

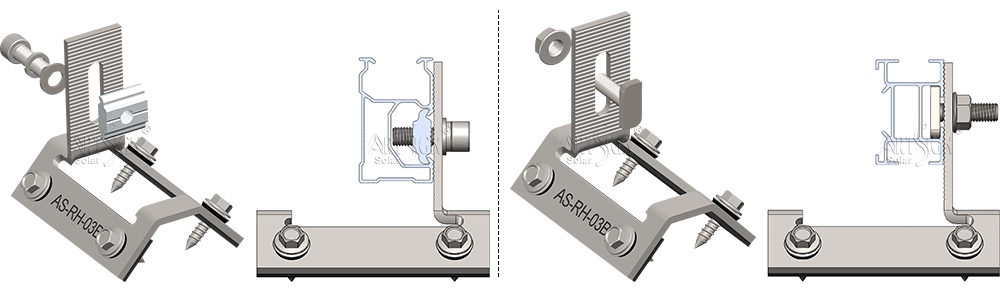

High Compatibility & Flexibility: Cleverly equipped with a butterfly-shaped clamp block and T-bolt assembly, this solar clamp perfectly adapts to the vast majority of mainstream solar photovoltaic rails on the market, demonstrating exceptional compatibility and flexibility.

Roof hook for solar panel tile roof mounting, various design of roof hooks for your options, stainless steel SUS304 hook, high corrosion resistant surface treatment.

Category : Stainless steel roof hook

AS-RH-01	AS-RH-03	AS-RH-03B	AS-RH-04
AS-RH-05	AS-RH-06	AS-RH-07	AS-RH-08
AS-RH-08C	AS-RH-09	AS-RH-10	AS-RH-11
AS-RH-12	AS-RH-12F	AS-RH-12G	AS-RH-13
AS-RH-14	AS-RH-18	AS-RH-235	AS-RH-260
AS-S-RH-38	AS-S-RH-40	AS-Z-A016

FAQ1: What materials are used in this solar mounting solution, and how long does it last?

A: The brackets are crafted from high-grade SUS304 Stainless Steel, ensuring exceptional corrosion resistance. It is specifically designed for coastal and high-humidity regions with a reliable service life of over 25 years.

FAQ2: What types of metal roofs are compatible with these brackets?

A: They feature universal compatibility and are specially designed for various metal rooftop applications, including trapezoidal and corrugated tin roofs. They also accommodate all standard solar panel dimensions on the market.

FAQ3: How does this design help reduce installation time and labor costs?

A: The system features a highly pre-assembled design that minimizes complex on-site assembly work. The bracket kits can be fixed quickly using standard tools, significantly reducing both installation time and on-site labor costs.

FAQ4: How does the system prevent roof leaks?

A: Superior waterproofing is ensured by high-quality EPDM rubber pads included with the brackets. These pads create a 100% leak-proof seal against the metal roof surface, fully protecting the building's structural integrity.
