Design Features

— Suitale for 25-52mm solar panels with frame.

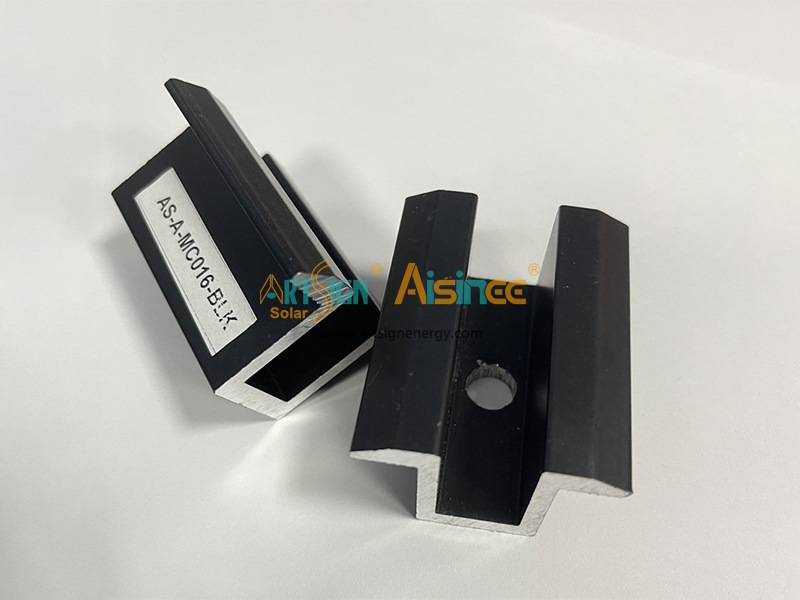

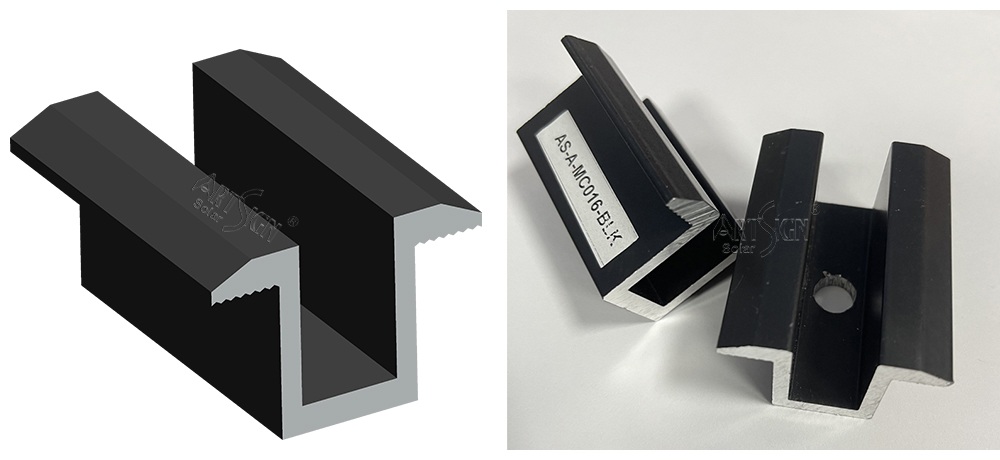

— Avaliable in various finishes: mill,silver anodizing or black anodizing.

Available in various finishes: mill, silver anodizing, black anodizing

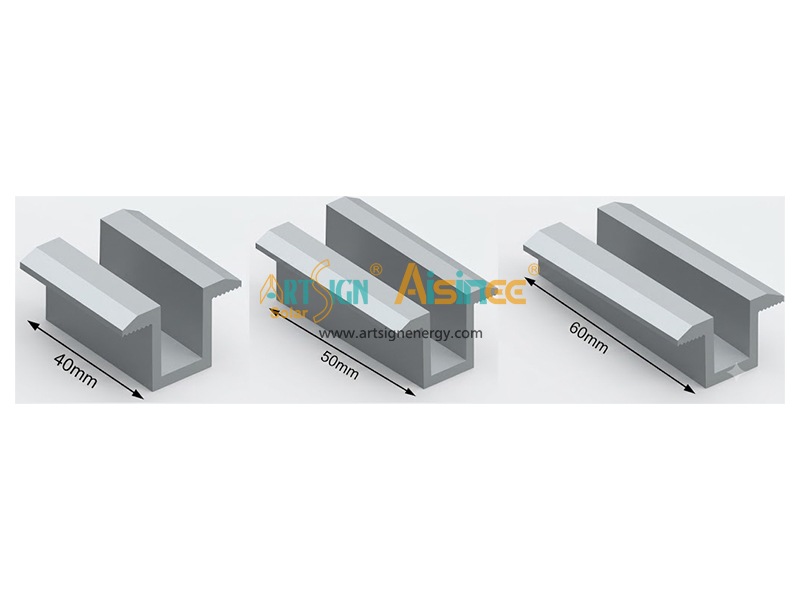

Standard cutting length is 40mm. The length is customized to be 50mm, 60mm or more, to meet the various demands of solar panel mounting installation.

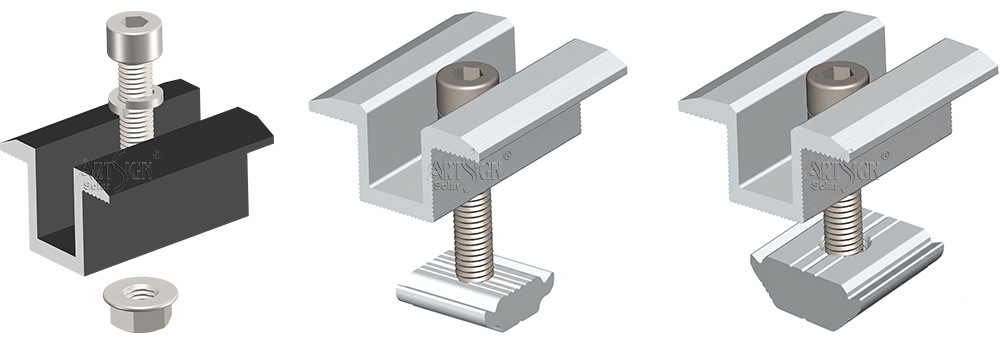

Different types of nuts to match different solar mounting rails.

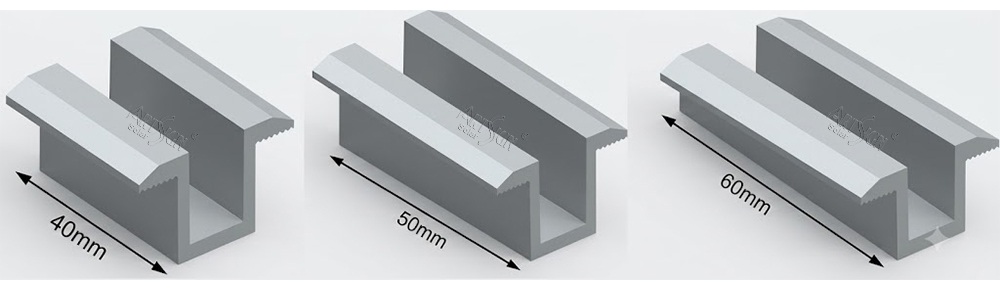

The mid clamp can be cut by 40mm/50mm/80mm etc. different lengths to be suitable for various projects. Color can be silver or black.

Click to see more module clamps.

AS-AMC	AS-AMC-04	AS-DMC	AS-DTFMC
AS-GMC	AS-STMC	AS-STMC02	AS-TK-MC
AS-CTMC-P	AS-A-MC016-BLK	AS-MC-G

FAQ1: What is the main function of this Deep-Channel Mid Clamp?

A: This is a mid clamp designed for solar photovoltaic (PV) racking systems. It securely fixes two adjacent solar panels to the mounting rail. The serrated grooves on the underside tightly grip the aluminum frames of the panels, providing exceptional wind resistance and preventing loosening caused by vibrations.

FAQ2: What are the advantages of the "Deep-Channel" design?

A: The U-shaped channel significantly increases structural strength while hiding the bolt head for a cleaner, safer installation.

FAQ3: What is the purpose of the serrated ridges on the underside of the clamp?

A: They bite into the panel frames to prevent physical slipping and pierce the anodized coating to create a secure electrical ground.

FAQ4: Where can this mid clamp be applied?

A: Made of durable, corrosion-resistant aluminum, it is perfect for residential roofs, commercial projects, and ground-mounted solar arrays.

FAQ5: How many mid clamps do I need between two solar panels?

A: You need at least 2 mid clamps (one for each supporting rail) to secure the connection between two adjacent panels.
