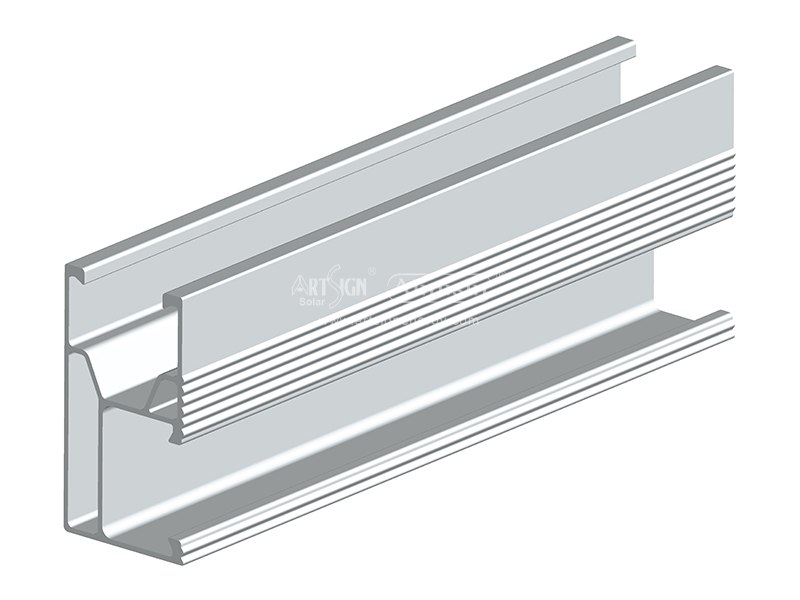

Solar aluminum profile XR rail 02#

Factory direct sale solar rail #XR02 is ideal for various roof mounting systems. It can be flexibly installed with other solar accessories, such as an L bracket or stainless steel roof hook.
  • Item NO.:

    AS-XR-02
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

Solar Rail Mounting System with High Quality Aluminum Rail Profile | ART SIGN


Design Features

— #XR02 aluminum rail profiles are ideal for long solar panel railing mounting on roofs.
— The side groove design is a very convenient installation method.

Mode Number

  AS-XR-02

Brand Name

  ART SIGN
Specs

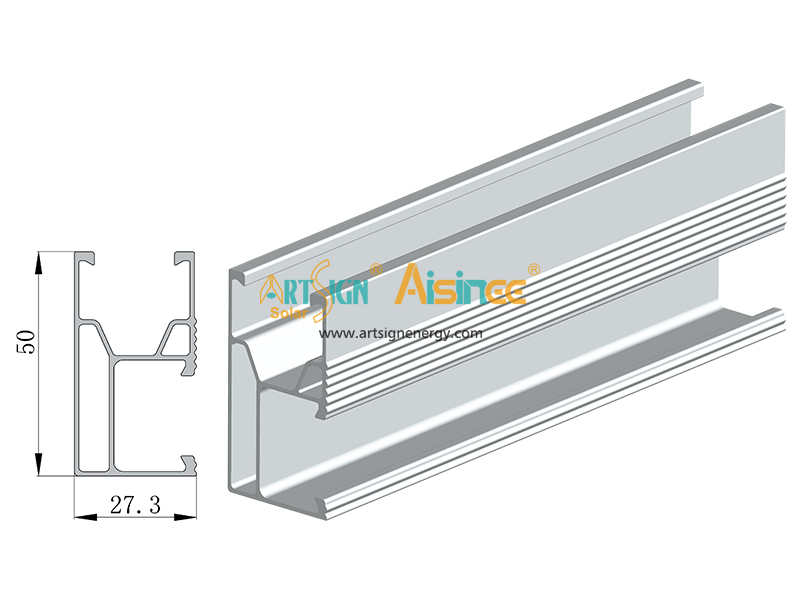

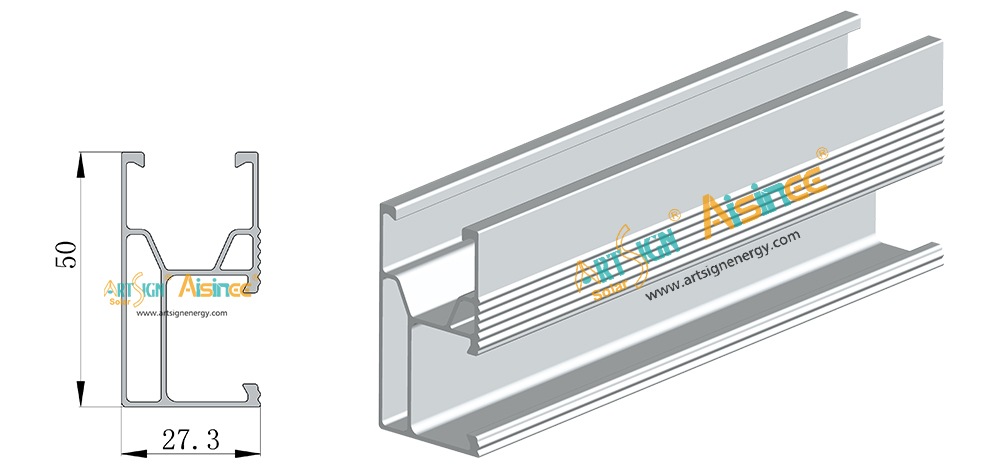

  W27.3*H50mm

Material

  Aluminum 6005-T5

Application
   solar rail mounting system Packing
  Wooden Pallet
Keyword
  aluminum rail for solar panel mounting Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details

ART SIGN solar aluminium mount rails AS-XR-02

ART SIGN pv racking rail x nut

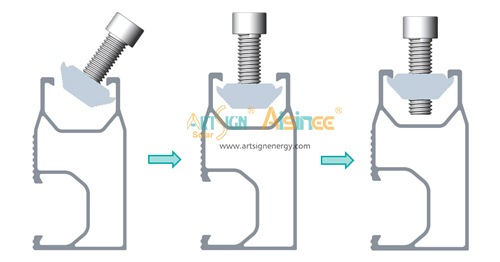

ART SIGN solar aluminium mount rails AS-XR-02 installation method

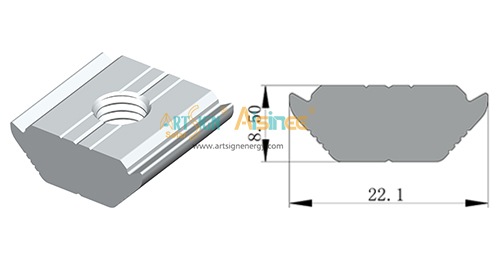

X nut
Installation Method
ART SIGN solar aluminium mount rails AS-XR-02

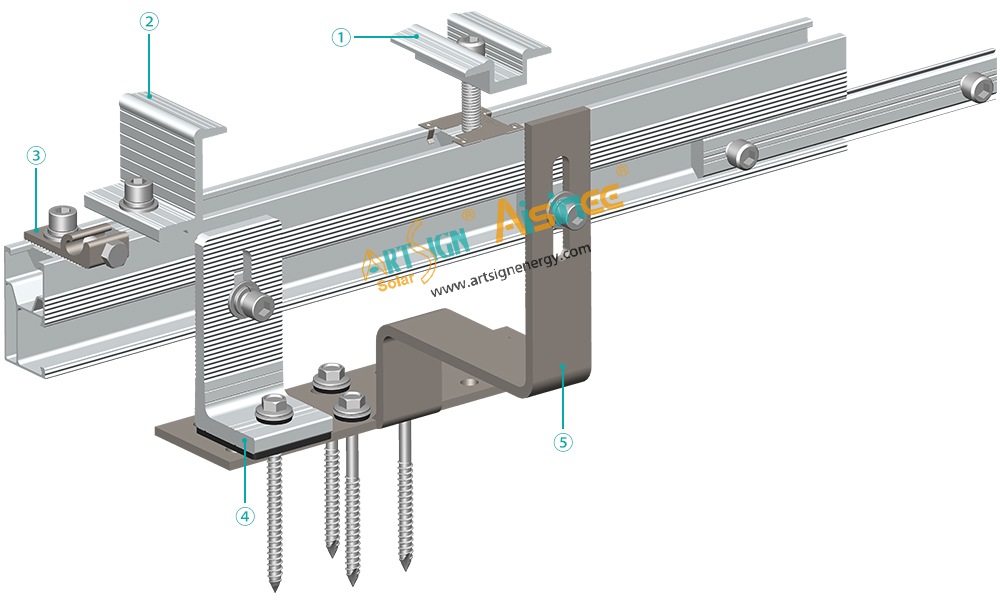

  ① 1pcs anodized aluminum mid clamp + 1pcs SUS304 allen bolt M8x50mm + 1pcs SUS304 spring washer + 1pcs anodized aluminum XR nut.

  ② Different sizes of end clamps for various thickness of modules.

  ③ Two options for earthing kit: (1) Cable channel inner diameter 5.8mm   (2) Cable channel inner diameter 8.0mm

  ④ Different heights' L feet.

  ⑤ Various hooks for option.


ART SIGN solar mounting systemApplication of #XR02 solar rail profile on metal and tile roof

ART SIGN aluminum bracket and L foot.
ART SIGN roof bracket and L clamp.

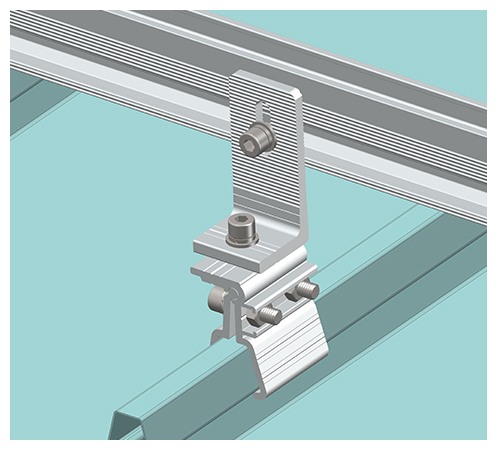

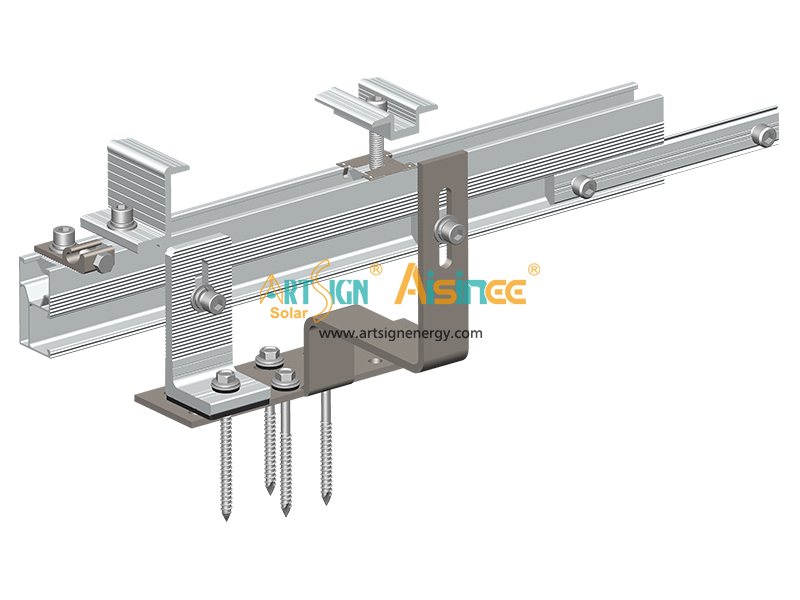

1. Installed with a non-penetration aluminum bracket and L foot.

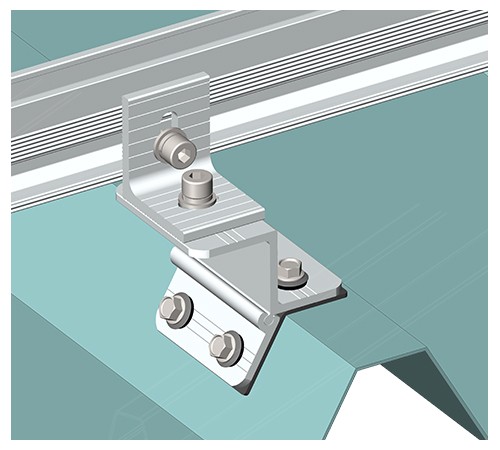

2. Installed with a penetrating roof bracket and L clamp.
ART SGIN tile roof mount.

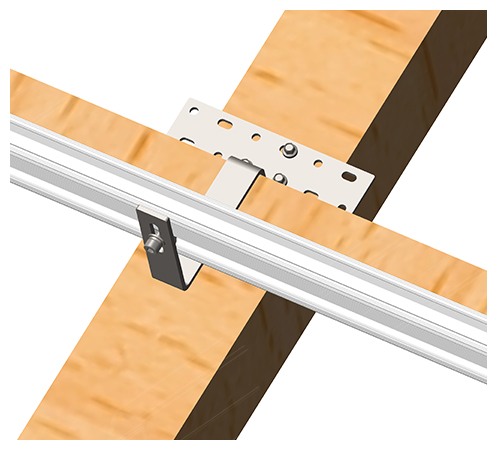

3. Installed with a stainless steel roof hook for a tile roof mount.


  Package Type

 Outer packing: wooden case / pallet

ART SIGN pv racking rail AS-XR-02 packages



ART SIGN solar mounting related accessories

Aluminum Solar panel roof rails AS-XR-01 which is most suitable for solar panel roof mount while has various size of profile for option, different size of aluminum rail is suitable for different strength request.

Click to see more XR nut series;

ART SIGN pv racking rail AS-XR-01
ART SIGN pv racking rail AS-XR-02
ART SIGN pv racking rail AS-XR-03
ART SIGN pv racking rail AS-XR-05
AS-XR-01
AS-XR-02
AS-XR-03
AS-XR-05
ART SIGN pv racking rail AS-XRS-01



AS-XRS-01
