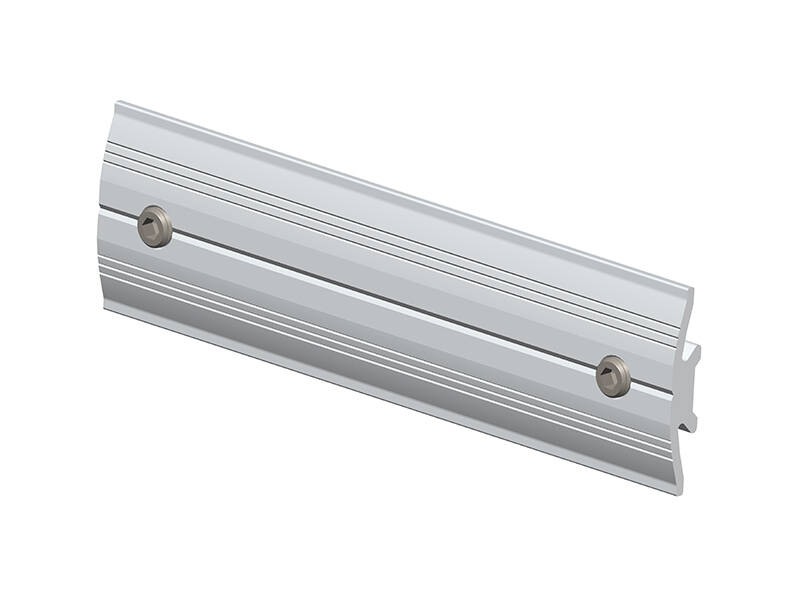

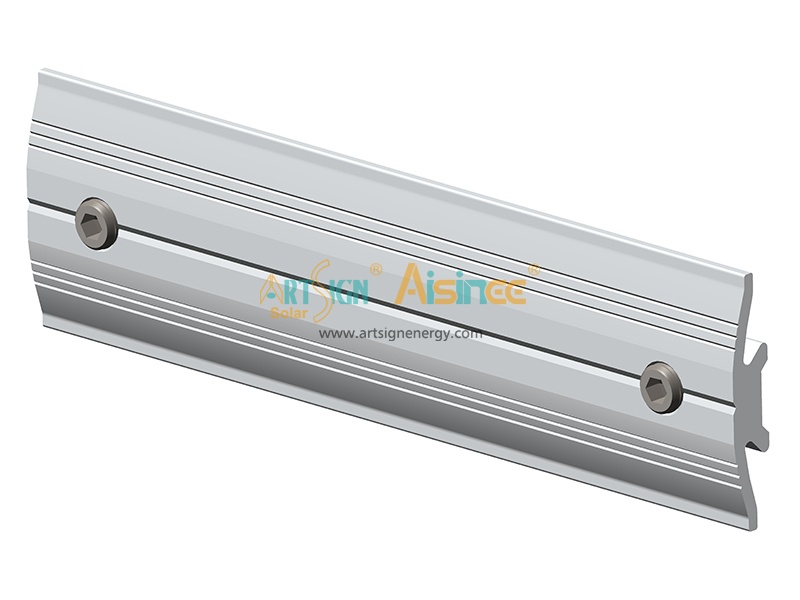

PV Rail splice kit 9#

Artsign professional PV rail splice kit made of anodized 6005-T5 aluminum. Provides a secure, universal connection for solar mounting rail splice and various photovoltaic profiles.
  • Item NO.:

    AS-RS-09
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

Universal PV rail splice kit for solar panel mounting rails |ART SIGN


Design Features

---Durable: Anodized 6005-T5 aluminum for corrosion resistance.
---Universal: Fits most profile solar rails.
---Quick Setup: Pre-assembled stainless steel hardware included.
---Robust: High wind/snow load resistance.



Mode Number

  AS-RS-09

Brand Name

  ART SIGN
Specs
  anodized above 10um
Material

  Anodized Aluminum 6005-T5

Application
   solar panel roof mounting system Packing
  cartons, plywood pallets / cases
Keyword
  Custom Solar Rail Splice Kit Factory Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details

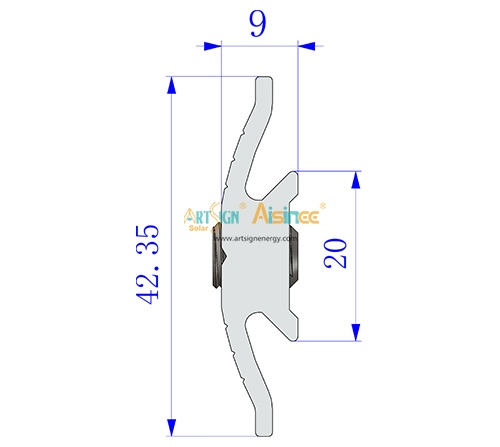

ART SIGN PV rail splice kit AS-RS-09
ART SIGN PV rail splice kit AS-RS-09

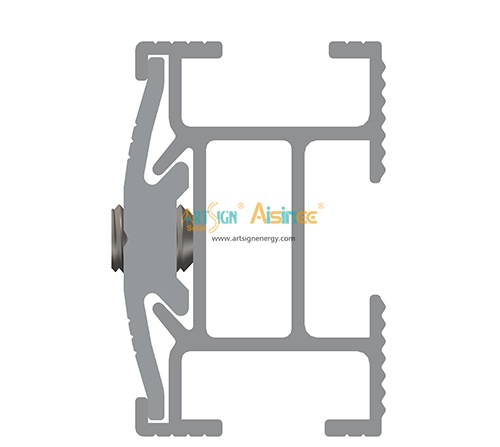

The curved stress-bearing surface design distributes pressure effectively, preventing deformation at the connection points under high wind pressure(60m/s) or heavy snow loads(1.5kn/㎡)

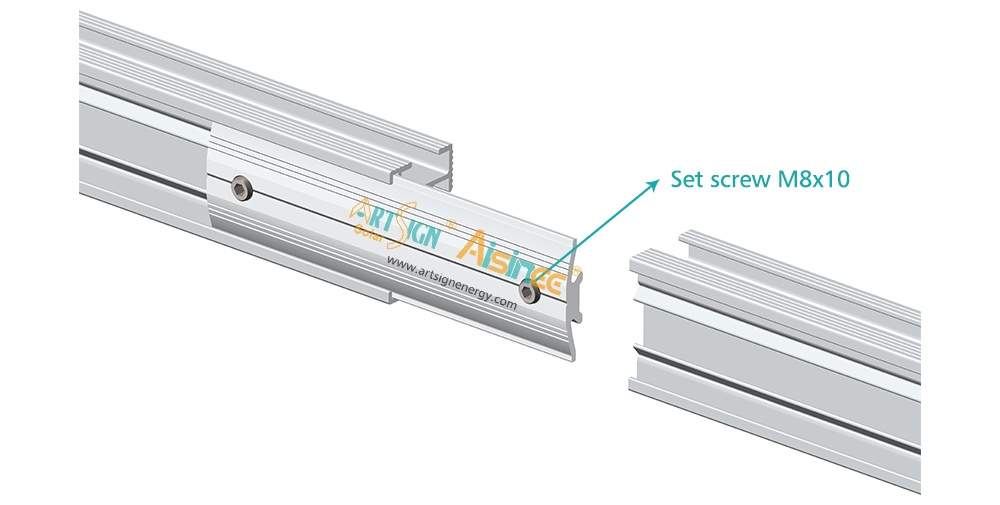

Secure the AS-RS-09 rail splice by inserting it into the aluminum profiles and tightening the M8 flat point set screws. This internal fastening method ensures a flush, high-strength connection across the solar rail junction.
ART SIGN PV rail splice kit AS-RS-09

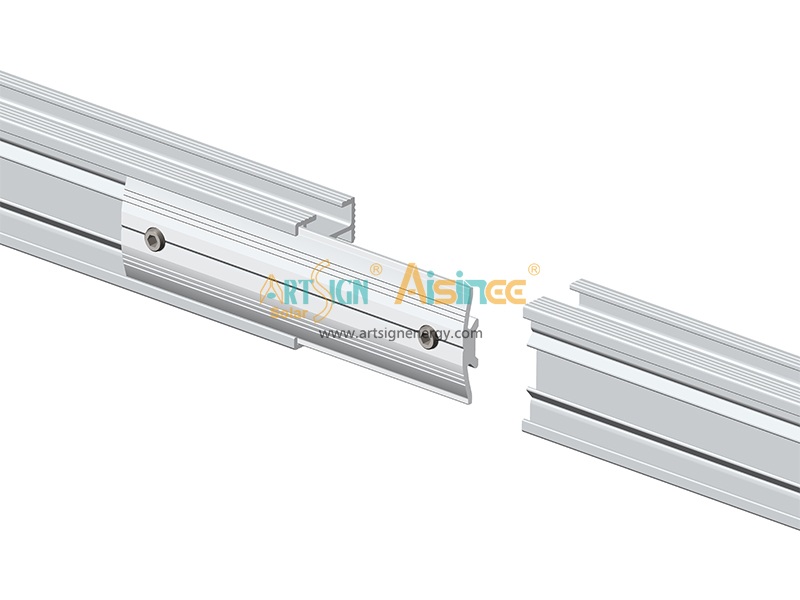

Engineered for structural continuity, our splices seamlessly connect aluminum rails into high-integrity extensions. This design ensures uniform load distribution across large-scale solar arrays, providing maximum stability for extended racking systems.


ART SIGN pv rail connector AS-BG07-02 packages

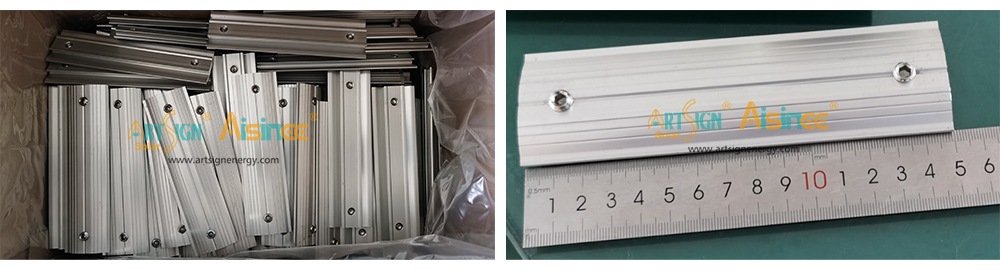

ART SIGN PV rail splice kit AS-RS-09 packages


ART SIGN solar mounting related accessories


Click to see more T bolt series.


ART SIGN customised solar rail
ART SIGN customised solar rail
ART SIGN customised solar rail
ART SIGN PV rail splice kit AS-BG07-02
AS-R-09B
AS-R-09H
AS-A-R59 AS-BG07-02
