Solar panel rail end clamp 30mm | ART SIGN

Solar panel rail end clamp 30mm | ART SIGN

For solar panels with a frame thickness of 30mm. Bolt and nut can be included. Compatible with most standard PV installations.

Item NO.:
AS-A-EC32
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western Union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

Solar panel rail end clamp 30mm | ART SIGN

Design Features

1. This end clamp is designed for effortless installation, allowing yo to quickly and securely mount your solar panels without any hassle.
2. Clamp holds module to rail, suggested 2 clamps on one side of a module.

Mode Number	AS-A-EC32	Brand Name	ART SIGN
Specs	L=40mm or customized	Material	Anodized AL6005-T5, SUS304
Application	for 30mm thick solar panel	Packing	Carton+plywood pallet
Keyword	Solar panel mounting clamps manufacturer	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting system products details

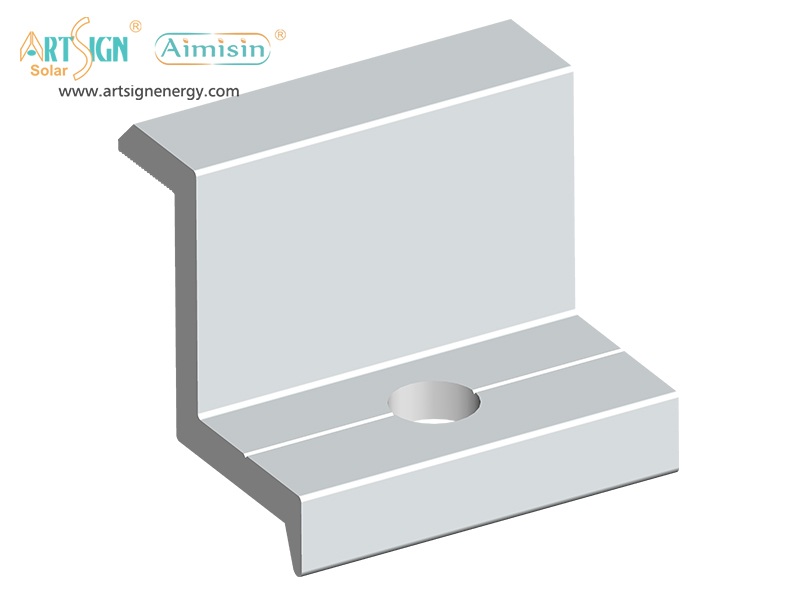

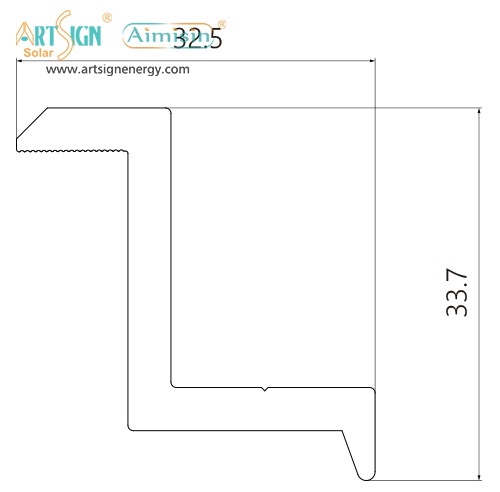

Made of high-quality anodized aluminum.	Solar panel end clamp dimension.

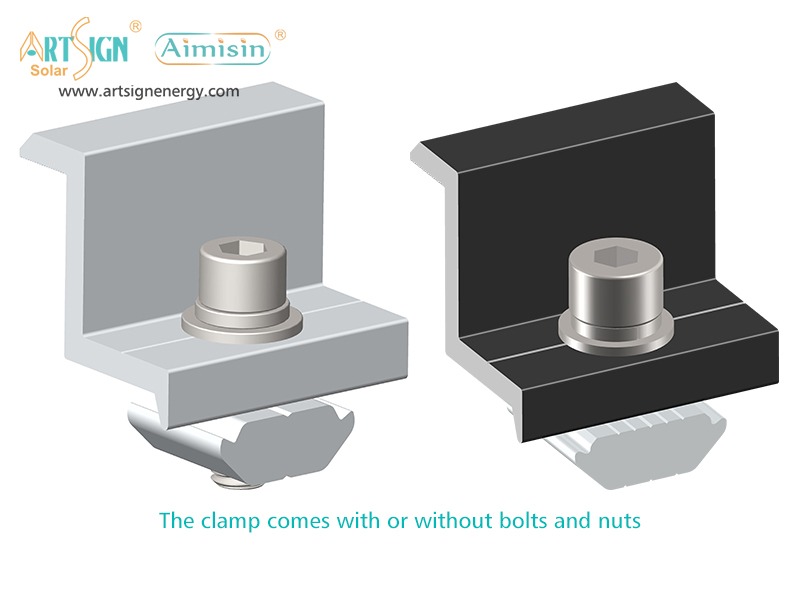

The clamp comes with or without bolts and nuts.

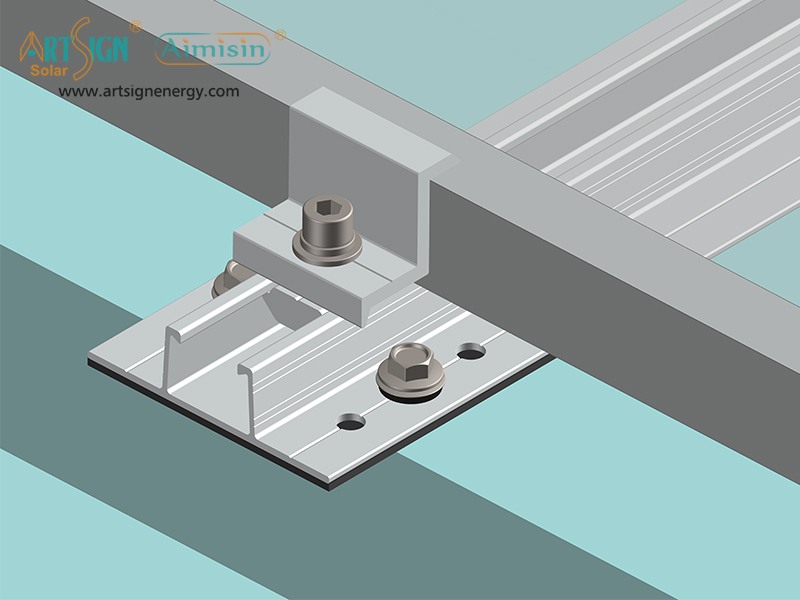

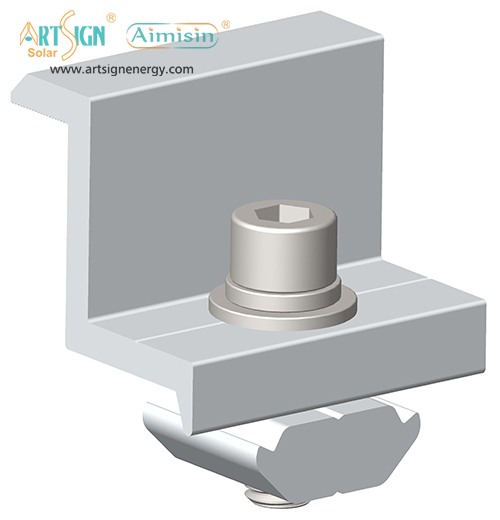

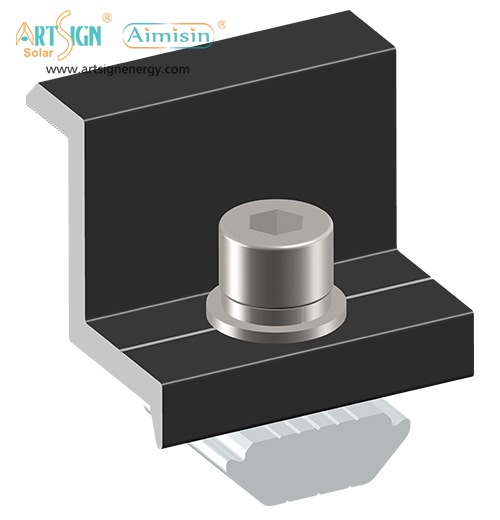

The clamp comes pre-assembled so you can slide it into position and tighten it to secure the solar module.	Black anodized finish delivers a high-end aesthetic appearance.

Easy to install, save time and labor cost.

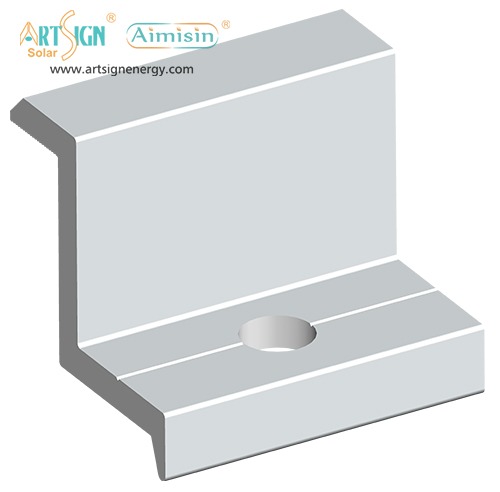

ART SIGN solar panel end clamps AS-A-EC32

ART SIGN solar panel end clamps AS-A-EC32 packages

ART SIGN solar mounting related accessories

We have different kinds of nuts to match the different rails.

Click to see more Module clamp.


AS-A-MC32	AS-A-EC32
