Art sign aluminum T rail 9# for solar PV mounting tile roof
Design Features
— Easier, faster and more convenient for solar panels installation.
|
Mode Number |
AS-R-09B |
Brand Name |
ART SIGN |
|
Specs |

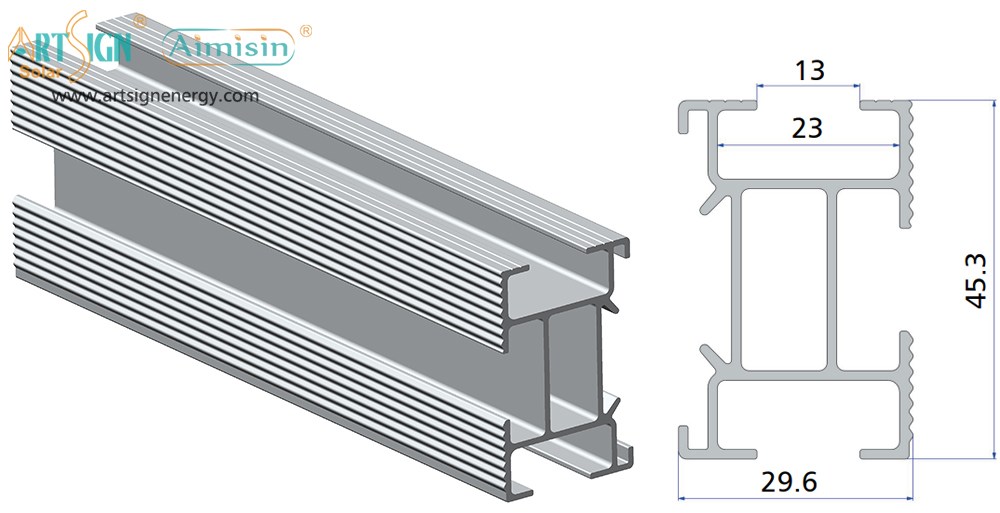

29.6*45.3mm |
Material |
Aluminum 6005-T5 |
|
Application |
PV solar roof mounting system |
Packing |
Wooden case |
|
Keyword |
Aluminum tile roof solar mounting rail |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |

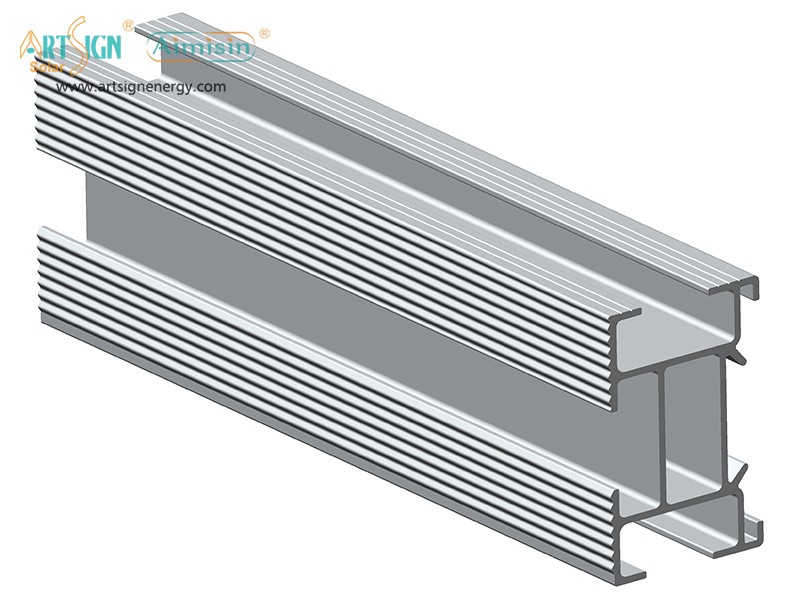

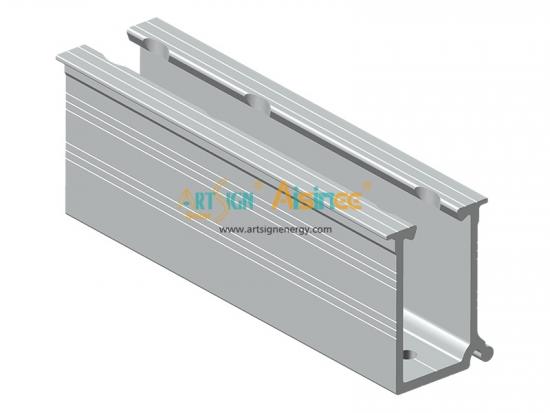

Rail 9B# is one of the most popular rails applied for roof mounting.

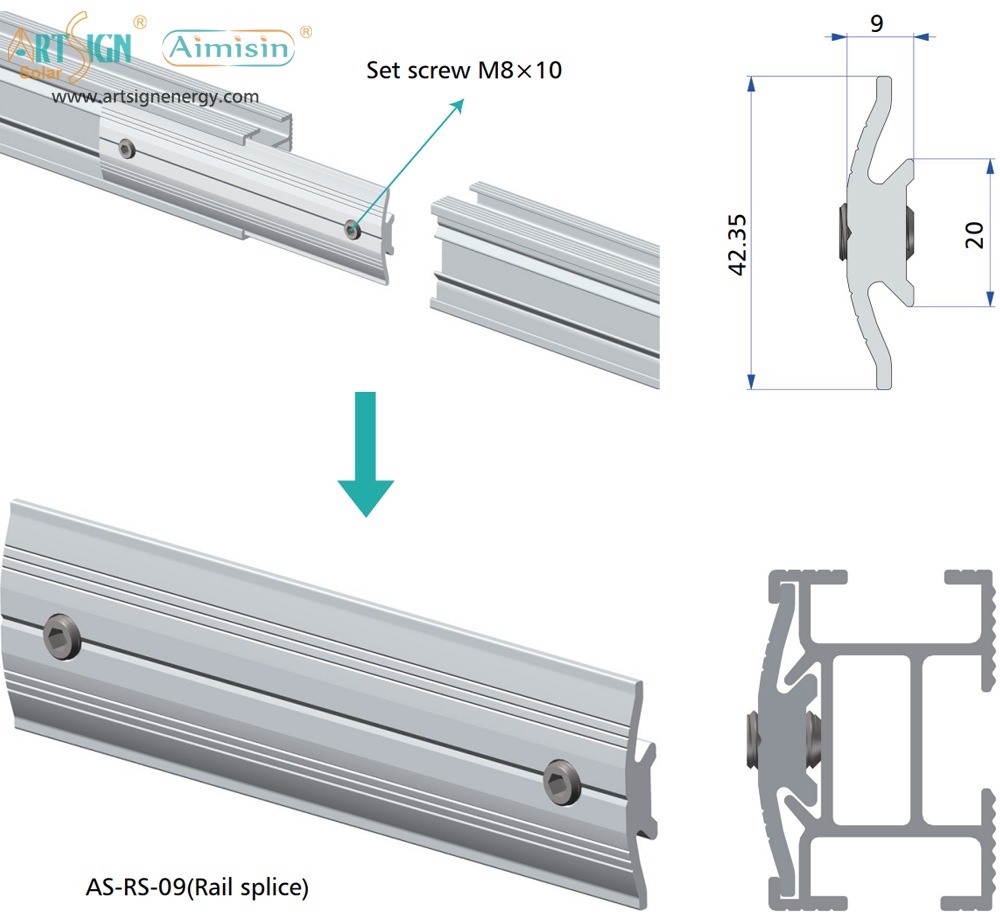

By using the rail slice to extend the length of rails Slice can be slid from the edge of rails to connect 2 rails
Rails can be installed on the tile roofs with L foot or the steel hooks and other accessories.

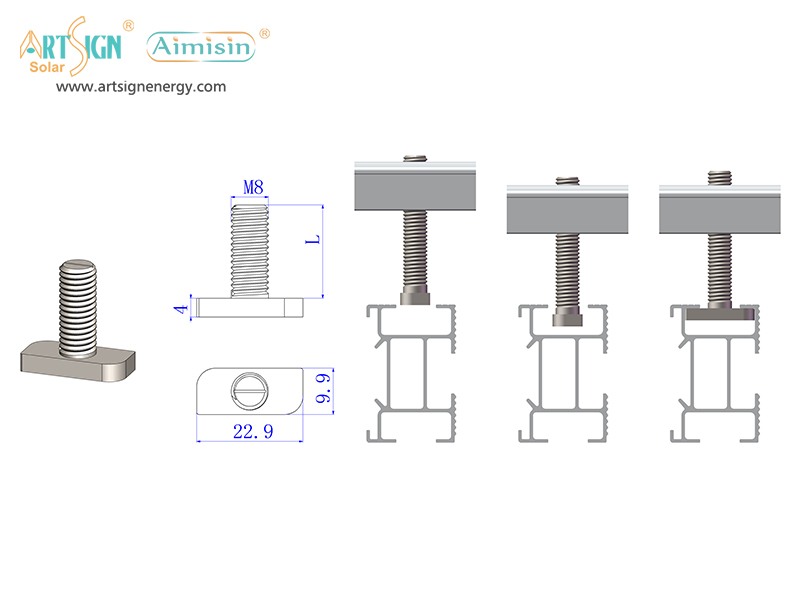

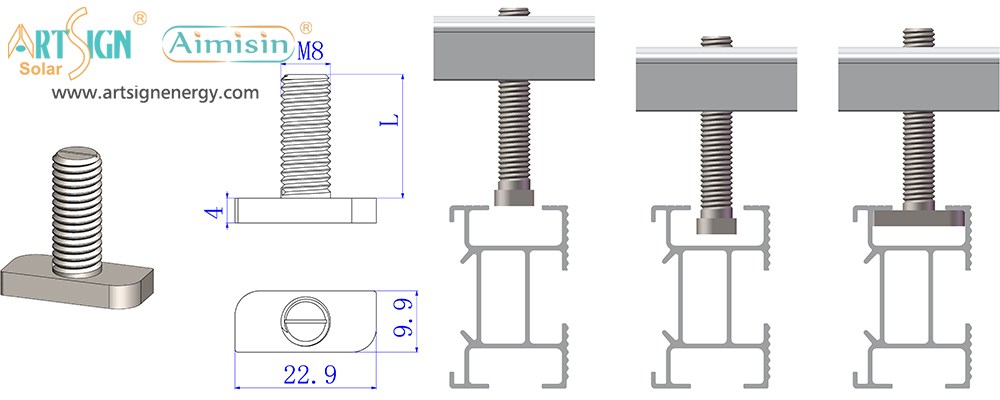

T bolts are designed for the installation of rails with the accessaries.

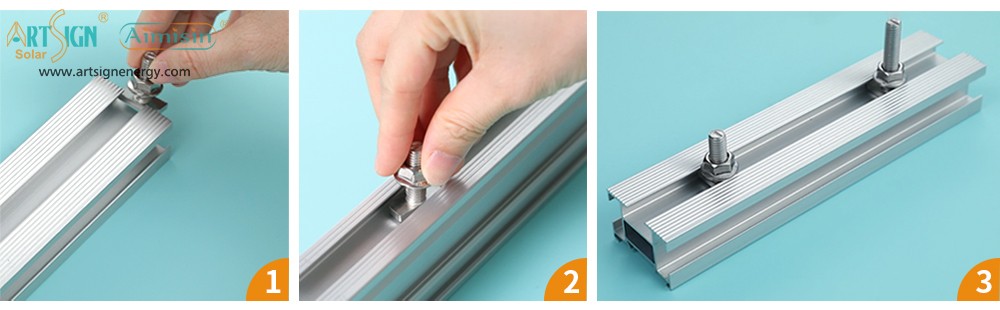

T bolts can be either slid from the rail edge or inserted in at any position of the rail.
More optional accessories to be required. T bolt series
|

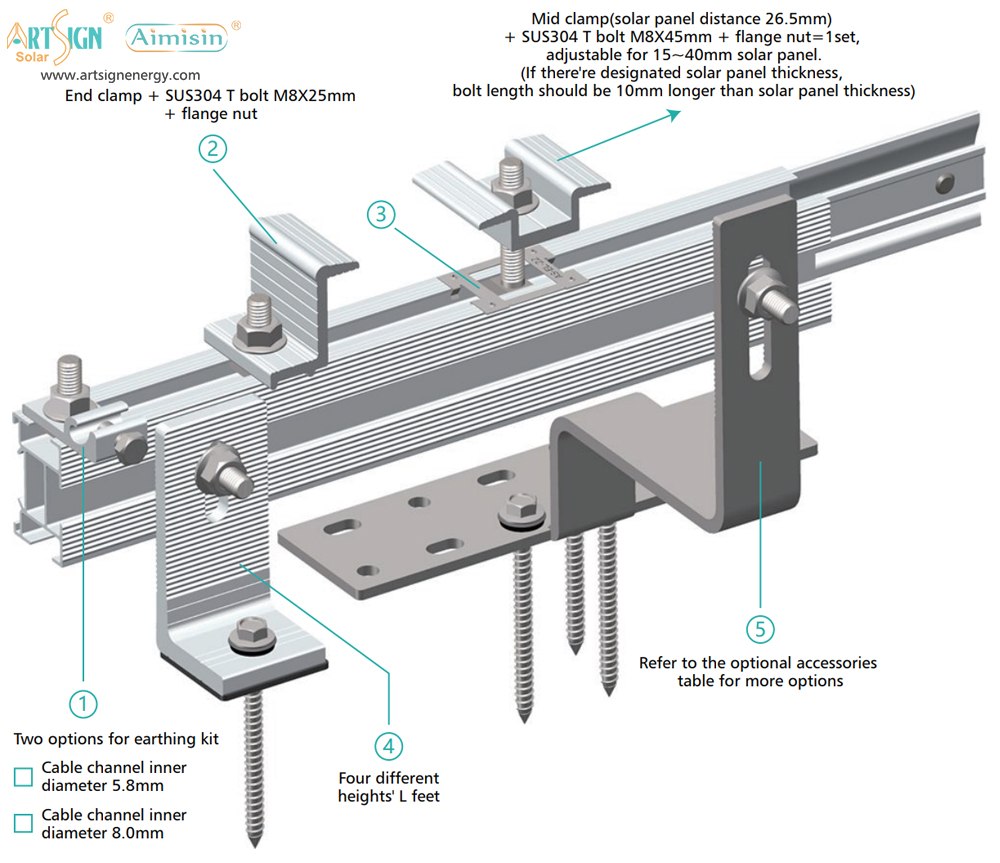

① Earthing kit |
 |
 |
 |
|
AS-EK-01 Cable channel inner diameter 6.2mm |
AS-EK-02 Cable channel inner diameter 8mm |
AS-EK-03 Cable channel inner diameter 10mm |
|
|
② End Clamp |
 |
 |
 |
|
③ Earthing lug |
 |
 |
 |
| AS-EL-22 | AS-EL-04 | AS-EL-08 | |
|

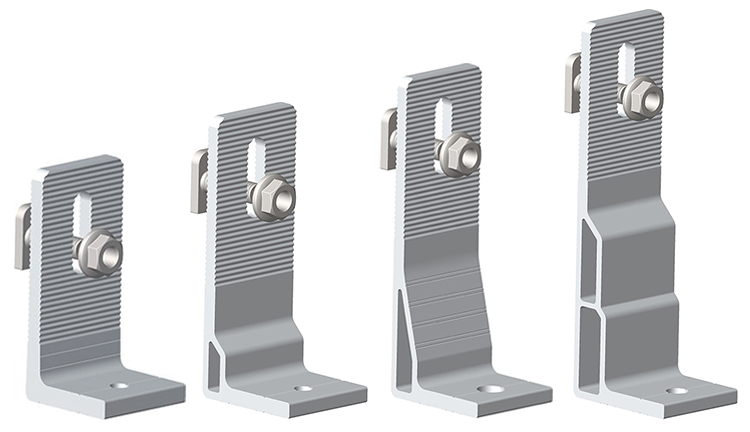

④ L feet |
 |
||
|
H=84/105/125/150mm |
|||
|

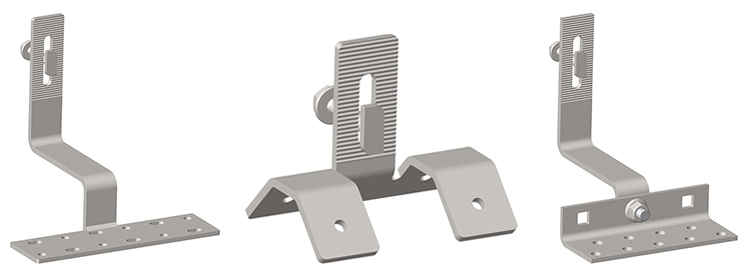

⑤ Roof hook |
 |
||
|
Please refer to the stainless steel solar hook introduction for more options. |
|||
