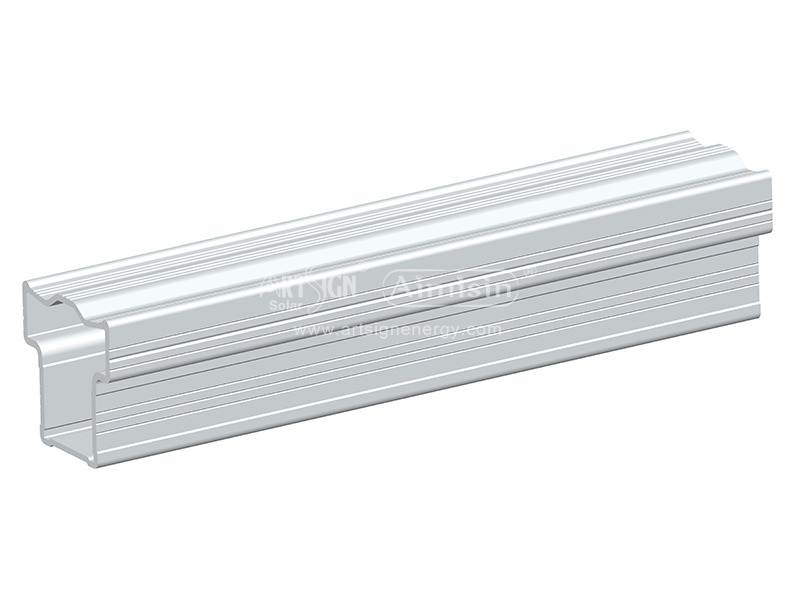

Anodized Aluminum solar pv mounting rail splice WHC-03#

Rail jointer WHC-03# is suited for W rail 3# which is the jointer of 2 solar aluminum profiles.

Item NO.:
AS-WHC-03
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
silver

Inquiry now

Product Detail

Anodized Aluminum solar pv mounting rail splice WHC-03#

Place of Origin	Xiamen China (mainland)	Brand Name	ART SIGN
Mode Number	AS-WHC-03	Specs	L=200mm Self drilling bolt M6.3*25mm 4pcs
Material	Aluminum 6005-T5	Application	solar panel ground mounting system
Surface treament	Anodized above 10um	Packing	wooden case
Color	Silver	Certificate	ISO/CE/SGS/AS/NZS/JIS/ASCE7-10
Keyword	splice solar mounting component	Service life:	25 years
Quality Warranty	20 years

Selling Units

per meter/ per pcs

Package Type

Inner packing:wrapping paper/film; Outer packing:wooden case

Lead Time：

Quantity(Sets)	1 - 1000	1001 - 5000	5001 - 10000	>10000
Est. Time (working days)	1-7	7-10	10-15	To be negotiated

Anodized Aluminum solar pv mounting rail splice WHC-03#

Rail jointer WHC-03# is suited for W rail 3# which is the jointer of 2 solar aluminum profiles.

Below are more rail spice for reference.

Click to see more aluminum mounting rail;


AS-ABS-D10	AS-RS-08	AS-RS-13	AS-RS-14

AS-RS-16	AS-RS-18	AS-TRS-35B	AS-TRS-65

AS-TRS-85	AS-TRS-105	AS-WHC-01	AS-WHC-03

AS-WHC-04
