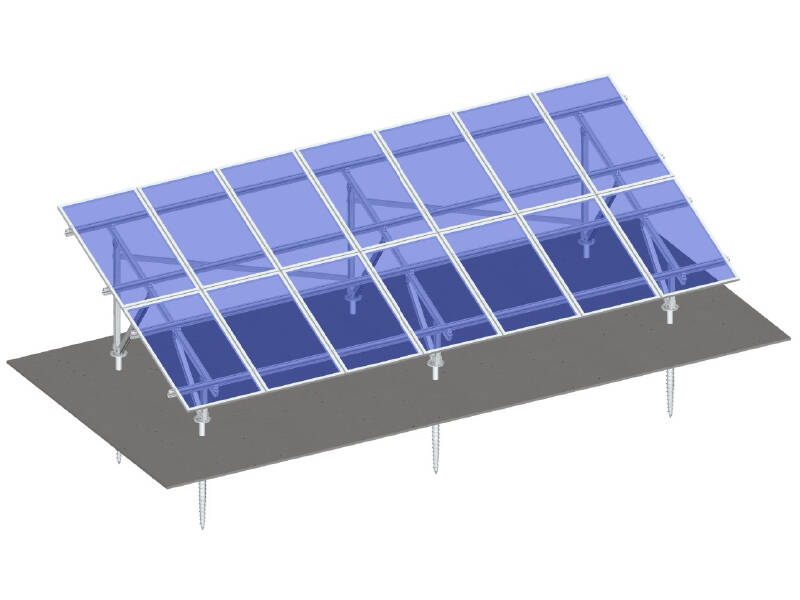

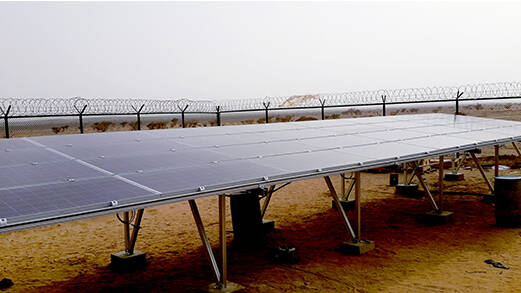

Aluminum solar panels ground mounting system - Rectangle beam

Aluminum solar panels ground mounting system - Rectangle beam is more stable and stronger,preassembled will save the installation time and labor cost
  • Item NO.:

    AS-AG-RB
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

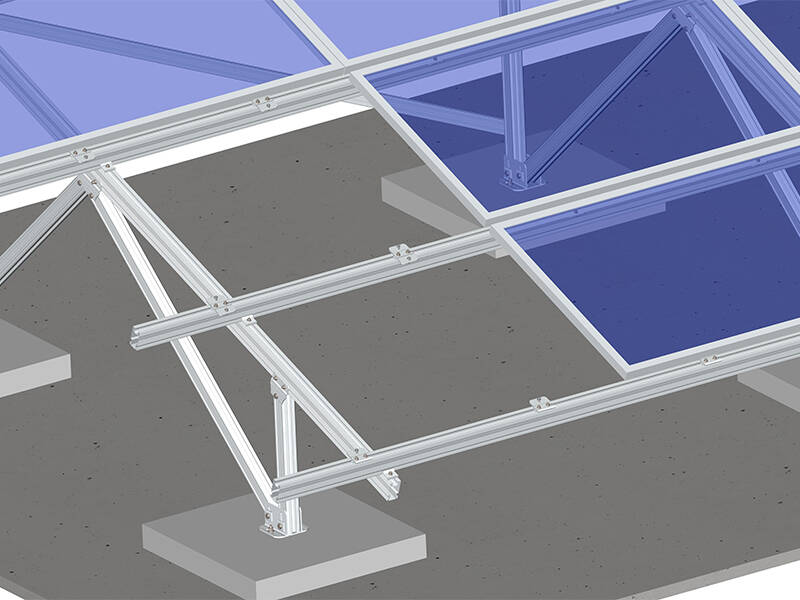

Aluminum solar panels ground mounting system - Rectangle beam


· Design Features

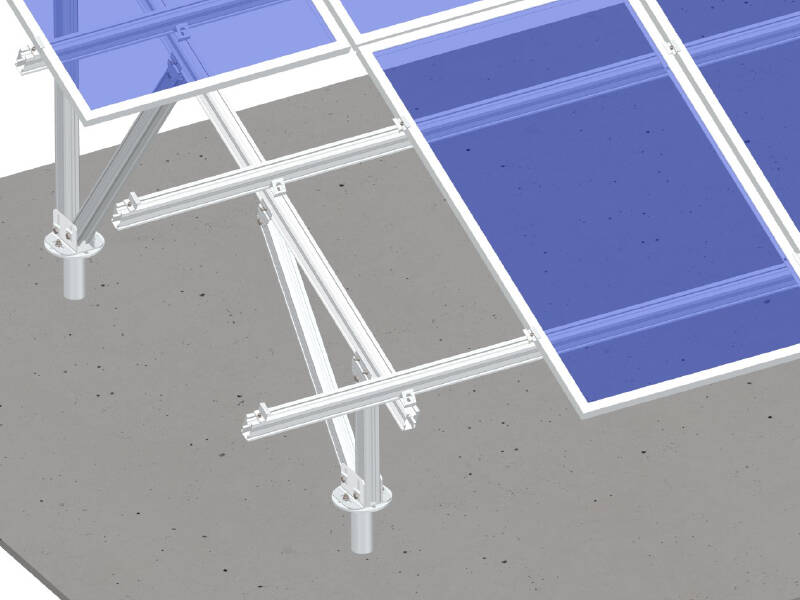

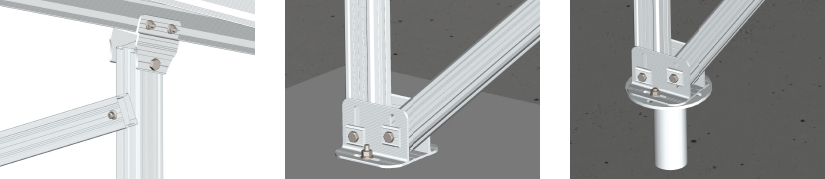

  ① V/K structure will be pre-assembled which saving the installation time and labor cost.
  ② Rectangle beam design is more stable and stronger.
  ③ The same mounting system can be installed landscape panel or portrait panel.



· Foundation type:

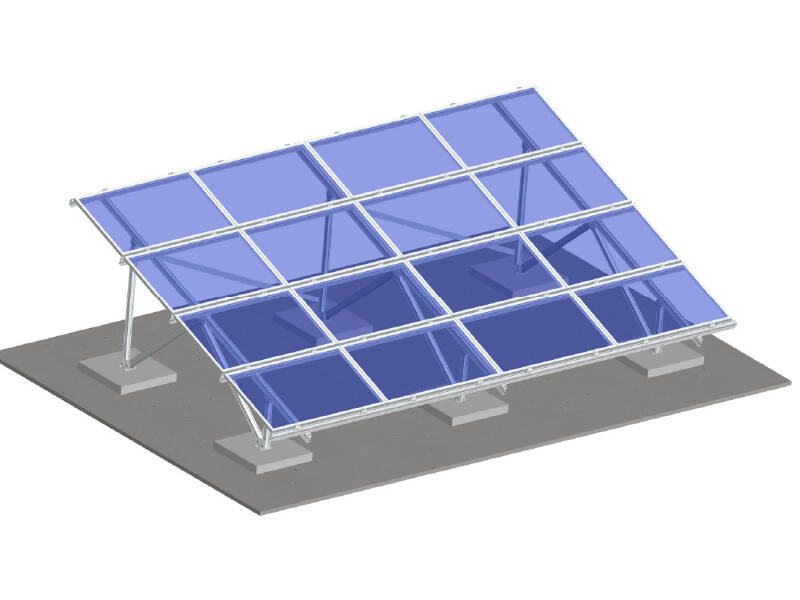

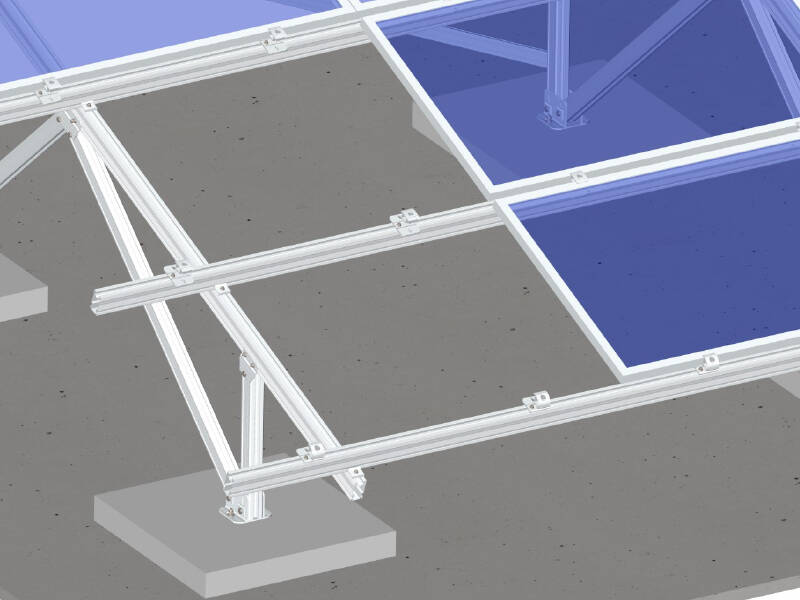

  Pile driven, ground screw, concrete pad.


· Surface treatment:
  10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.


· Design Strength:
  The structure designed according to the wind load or snow load request.


· Certification:
  Australia AS/NZS 1170.2-Wind load report; SGS report-Chemical&Physical test.



Suitable for
  open field ground
Module
  Framed, thin film
Material&Surface treatment
  10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color
  silver, black or customer requirement
Module orientation
  Landscape and portrait
Wind load
  Max 60m/s
Snow load
  Max 1.5kn/m2
Standards
  Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty
  20 years

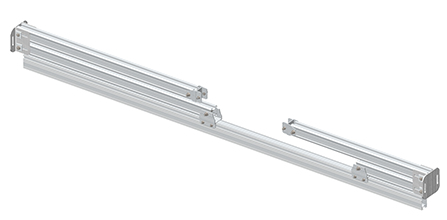

AS-R16 / AS-CB AS-R-17
AS-RS-16



AS-AS-2
AS-AS-3 / AS-AL-B
AS-TMC



AS-AL-BS
AS-AL-BS-155
AS-TEC



AS-PEB-3
AS-AL-MB
AS-SAB-8-50-T



AS-PIB-3
AS-AL-EB
AS-AL-RC



AS-VS
AS-KS
AS-GSF



Category : Aluminum Ground Mount

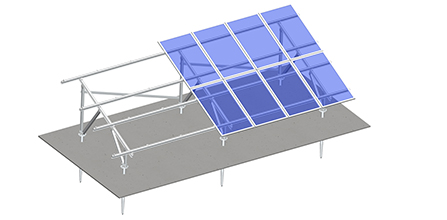

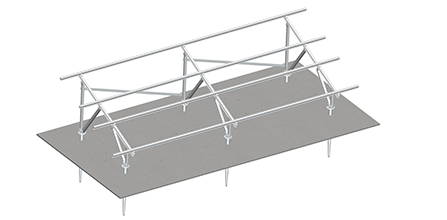

Step 1

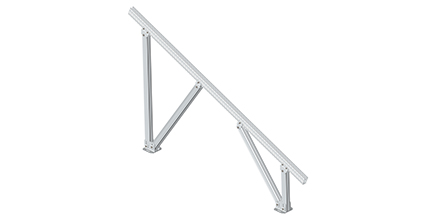

Prepare the pre-assembled triangle kit

Step 2
Open the pre-assembled triangle kit






Step 4
Install solar panel

Step 3
Fixed the pre-assembled triangle kit


Aluminum ground mounting system - Rectangle beam






Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
Solar mounting system for ground
Aluminum solar ground mounting system - 2 slots U beam
Aluminum solar ground mounting system-2 slots U beam mounting system is more stronger and can withstand high wind load and snow load.
Aluminum solar ground mount
Aluminum solar ground mount- Single slot U beam
Aluminum solar ground mount-Single slot U beam is more economical and most suitable for lower wind load and snow load.
Aluminum ground mount solar system
Aluminum ground mount solar system - W Type
Aluminum ground mount solar system -  W Type is suitable for heavy snow region,flexible installation is most suitable for sloping mountain.
Aluminum ground mount solar racking
Aluminum ground mount solar racking - Fixed W type
Aluminum ground mount solar racking - Fixed W type is most suitable for large span of footing such as 4 meters, W structure part will be pre-assembled
Aluminum solar panel ground mount system
Aluminum solar panel ground mount system- railless
Aluminum solar panel ground mount system- railless is easy for installation and most suitable for desert site
Mounting rails for solar panels D rail
Mounting rails for solar panels D rail 03#
Mounting rails for solar panel AS-DR-03 which is most suitable for solar panel roof mount while has various size of profile for option, different size of aluminum rail is suitable for different strength request.
PV solar roof hook
Solar pv roof hooks 6#
Solar pv roof hooks is for solar tile roof mounting system, various design of stainless steel roof hook for your option, stainless steel SUS304 hook, high corrosion resistant surface treatment.
solar aluminium ground structure support
solar aluminum ground mounting support AS-AS-3#
solar aluminum ground mounting support AS-AS-3# is the alumium support which mainly used for aluminum solar ground mounting system.
aluminum solar structure rail
solar aluminum mounting rails AS-R-17#
Solar aluminum mounting rails AS-R-17# is mainly used for ground mounting system, the desgined is suited for landscaple installation panel.
Stainless steel solar roof hook
Stainless steel solar roof hook 1#
Tile Roof Hook 1# is made of 304 stainless steel and with 180mm base.

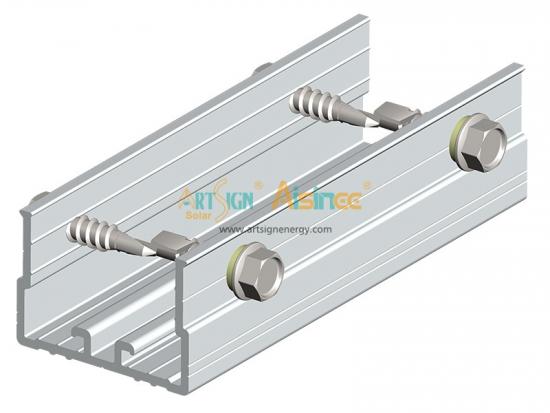

Solar rail splice 7#
