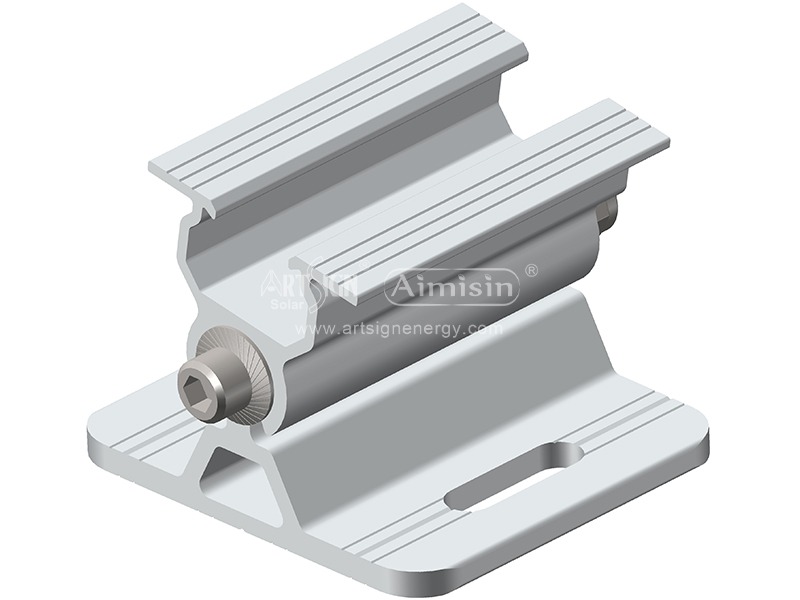

East-West Solar Mounting System for Flat Roofs | ART SIGN
Design Features
1. Designed for landscape orientation.
2. Perfect for both small and large projects.
|
Mode Number |
AS-AFL-03 |
Brand Name |
ART SIGN |
|
Specs |
L=75mm |
Material |
Anodized AL6005-T5, SUS304 |
|
Application |
Flat roofs |
Packing |
Carton+plywood pallet |
|
Keyword |
Flat roof solar mounting brackets supplier |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |
 |
 |
|

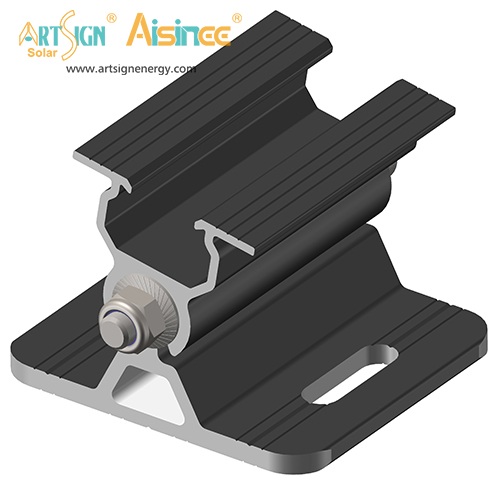

Black anodized finish delivers a high-end aesthetic appearance. |

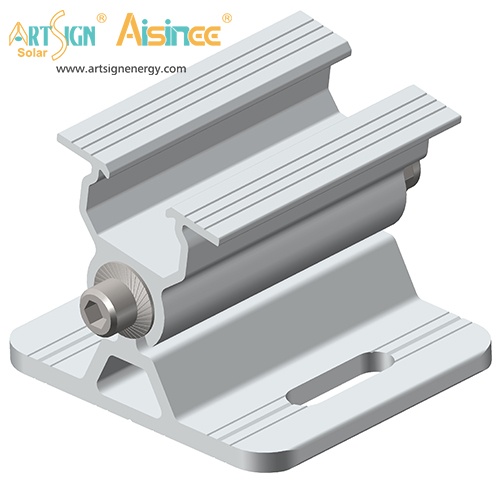

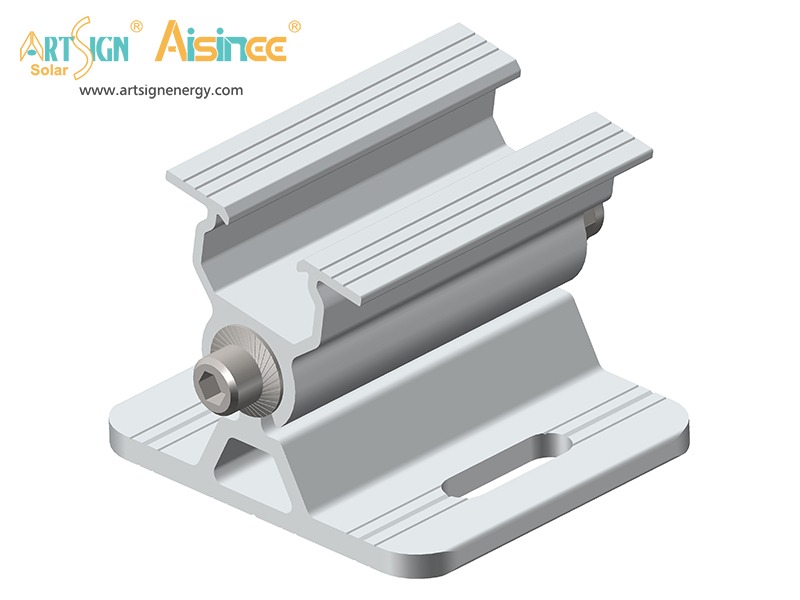

Made of high-quality anodized aluminum, SUS304 fasteners. |

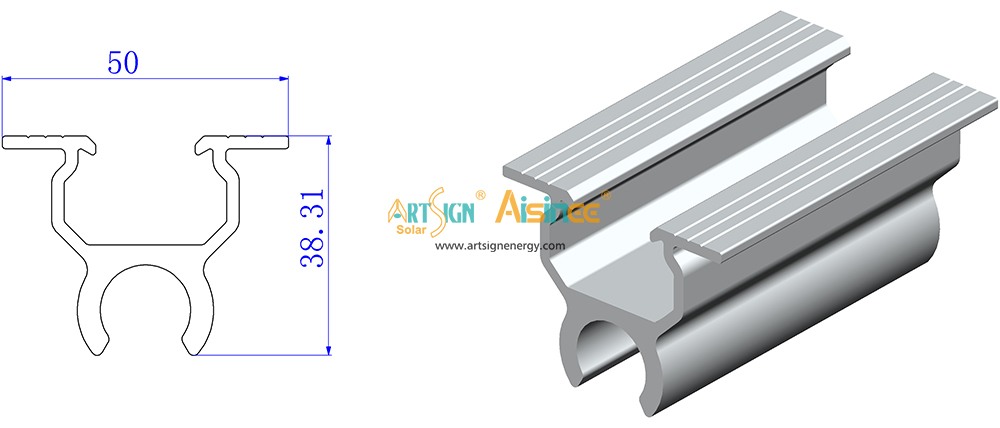

Front leg - upper part dimension

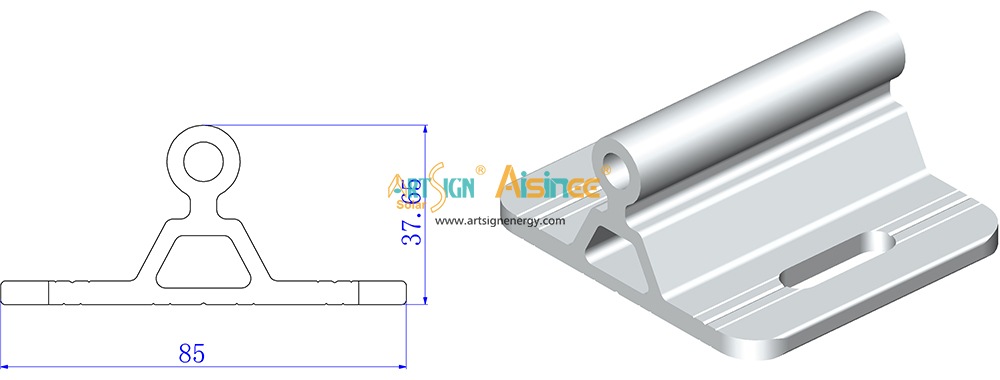

Front leg - bottom part dimension

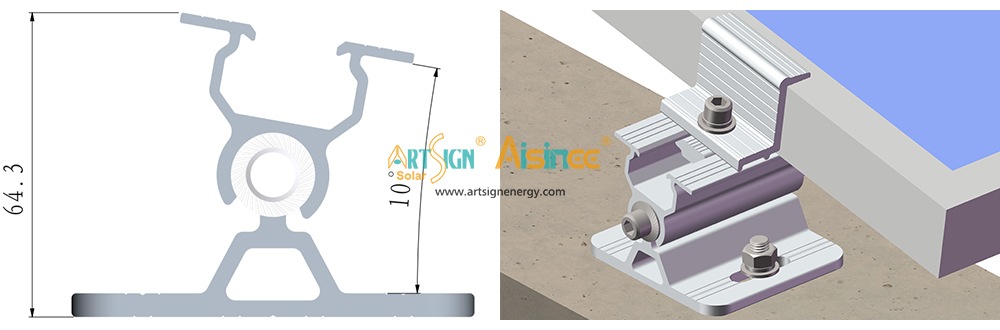

Solar mounting front leg tilt 10 degree

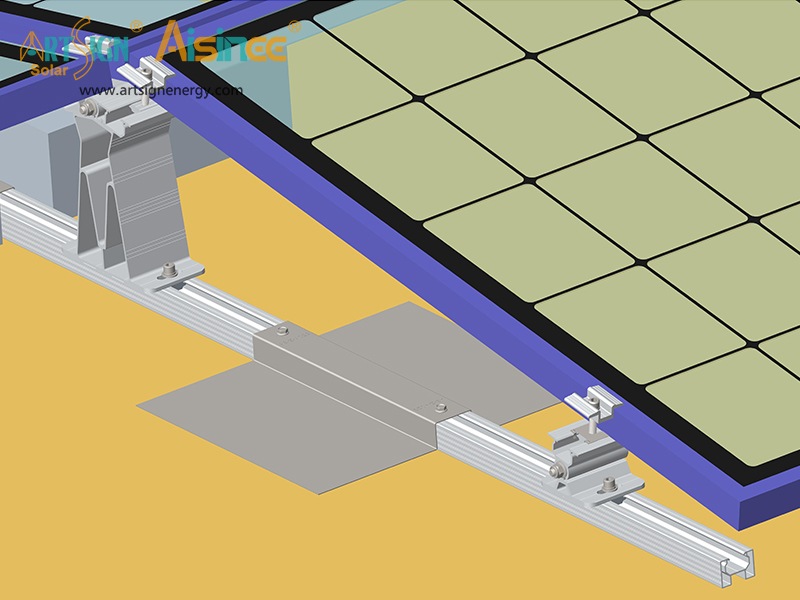

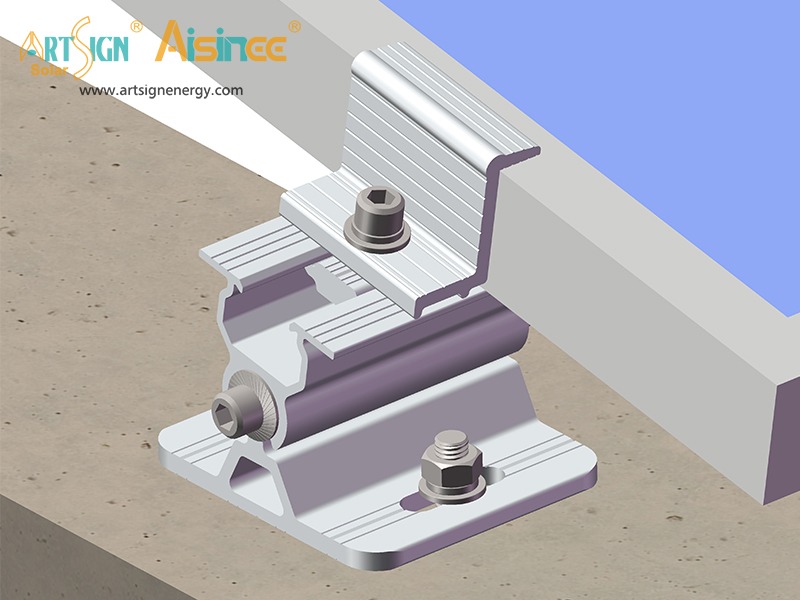

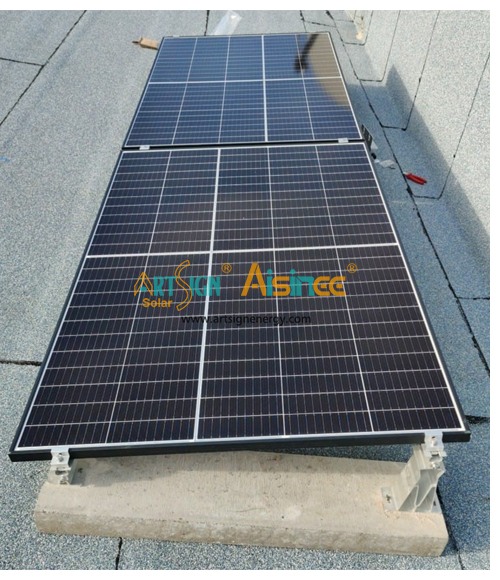

Fixed the structure to concrete block via anchor bolt.

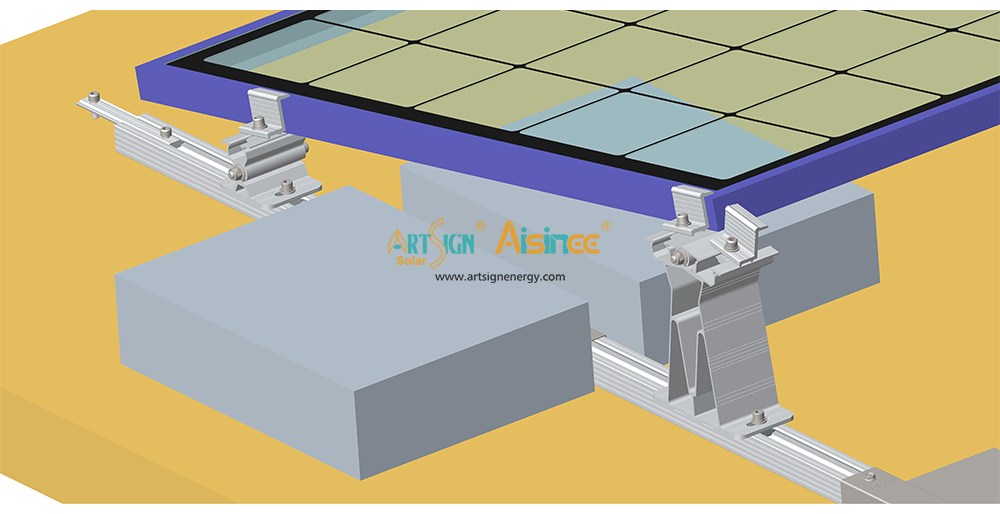

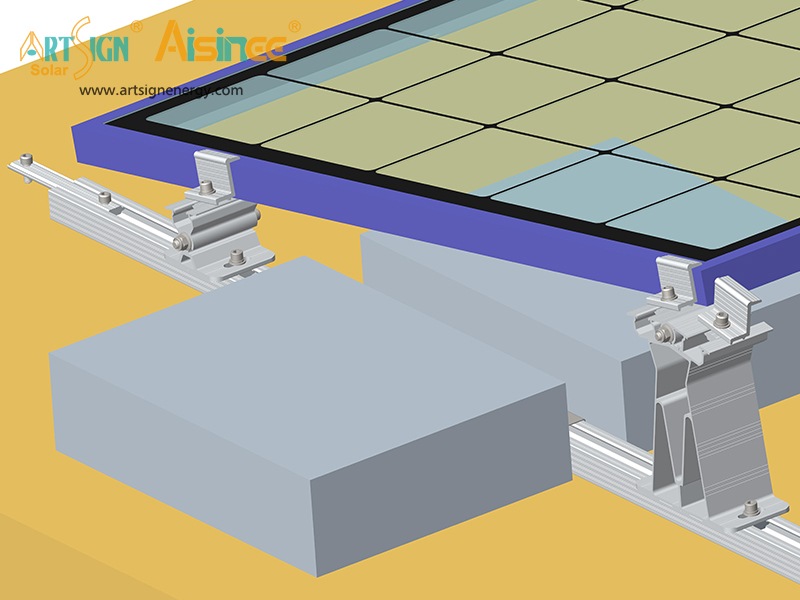

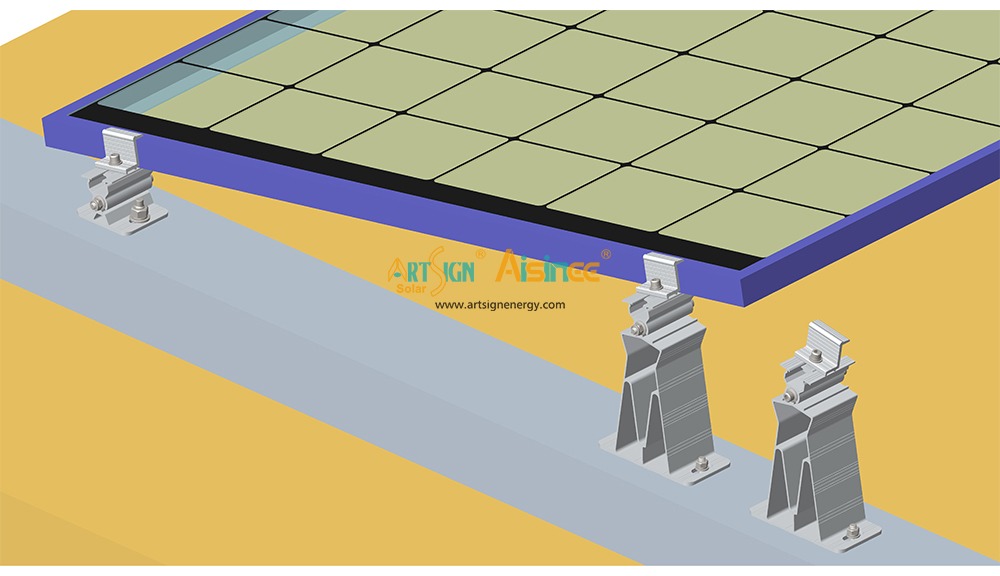

Ballast solution

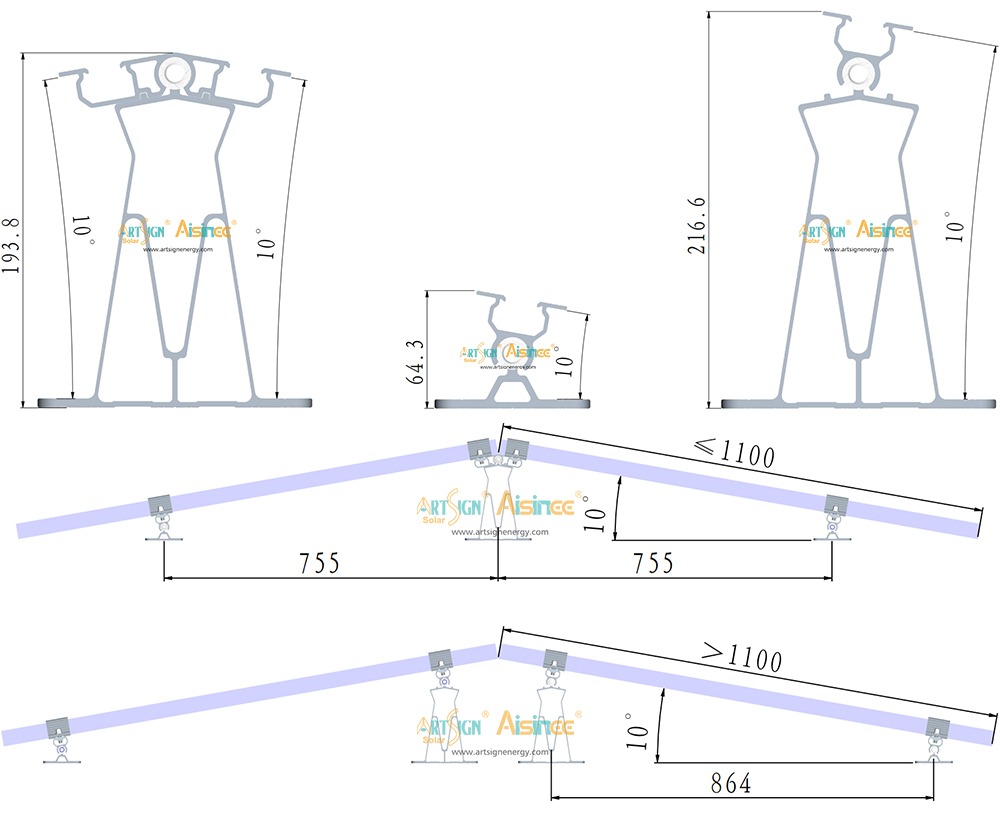

East-west solar mount installation tilt 10 degree

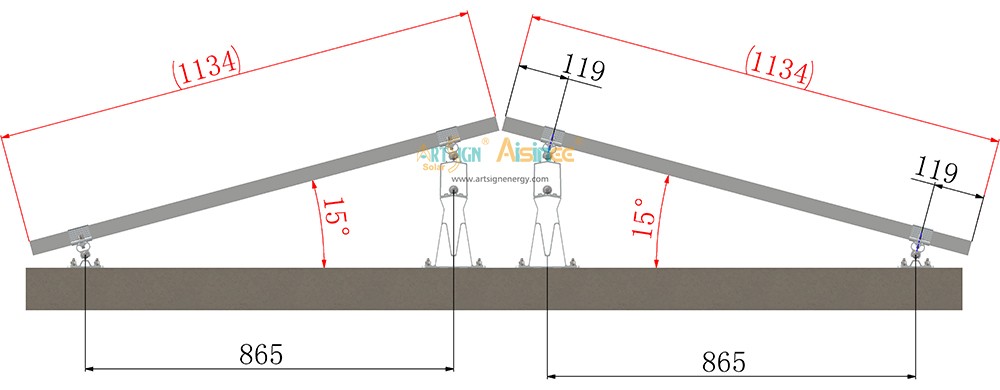

East-west solar mount installation tilt 15 degree

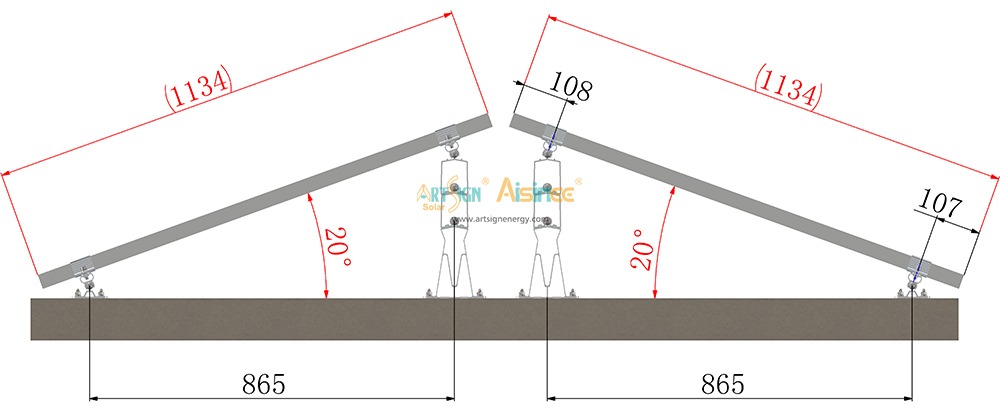

East-west solar mount installation tilt 20 degree

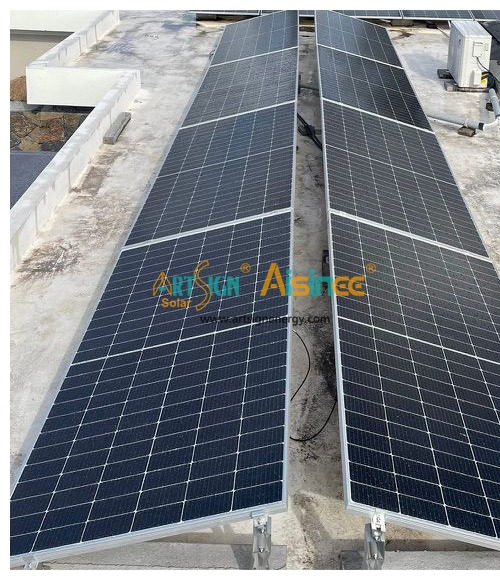

Installation site: Germany
Installation site: Mauritius
Concrete flat roof solar mounting front feet which is the component of flat roof solar mounts, the defaulted inclination angle is 10 degree, the angle can be customized, too. Below is more options for solar panel flat roof mounting brackets.
