Design Features

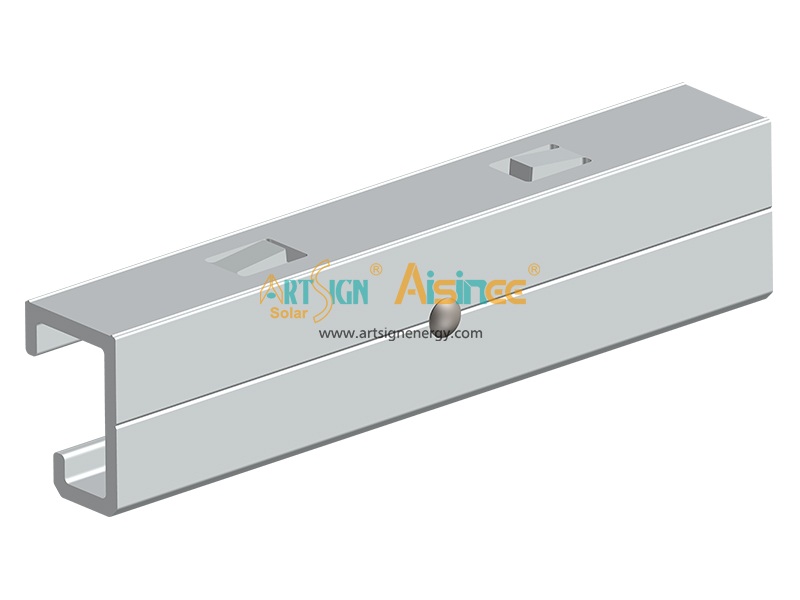

— Integrated Rivet Stopper Design: Features a built-in stainless steel rivet in the center of the solar rail insert connector. This smart rivet design acts as a mechanical stopper, allowing installers to slide the splice halfway into the AS-A-CR02 or AS-A-CR03 rail with exact centering every time—eliminating manual measuring and preventing off-center slippage on steep roofs.

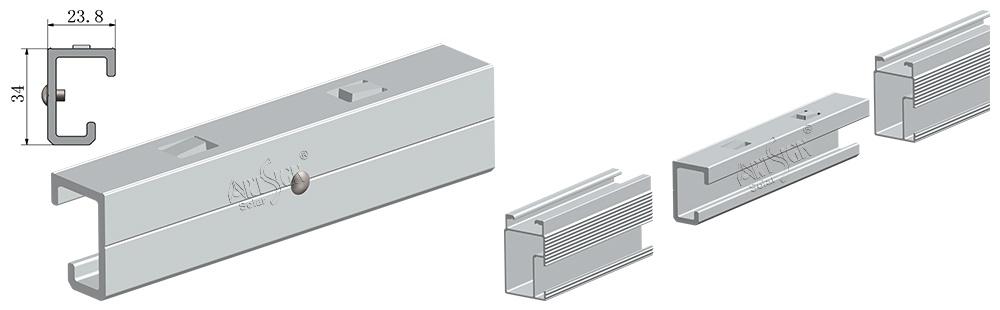

— Precision Profile Alignment:Specifically engineered for AS-A-CR02 and AS-A-CR03 profiles, the 23.8 * 34.3mm cross-section fits snugly inside the rail channel. Coupled with the central rivet positioning, this solar rail joint ensures a perfectly flush, continuous connection that won't interfere with top-mounted panel clamps or cable routing.

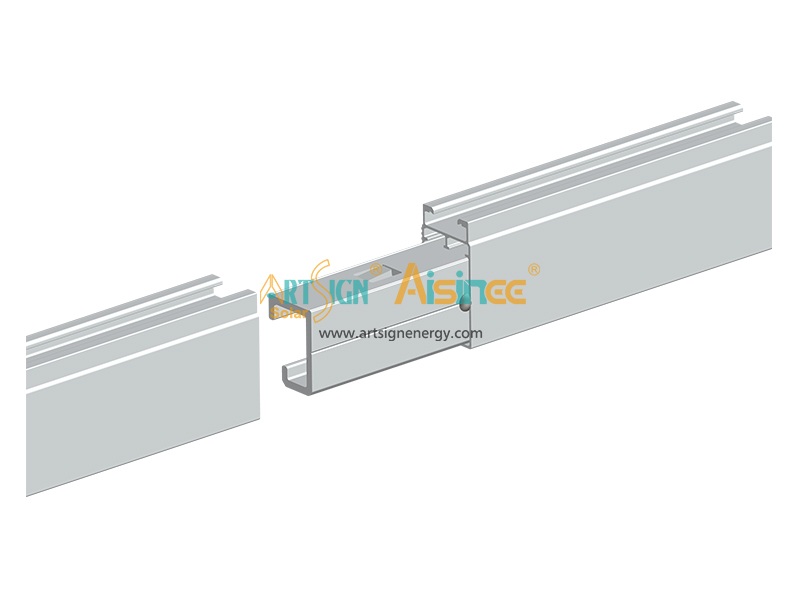

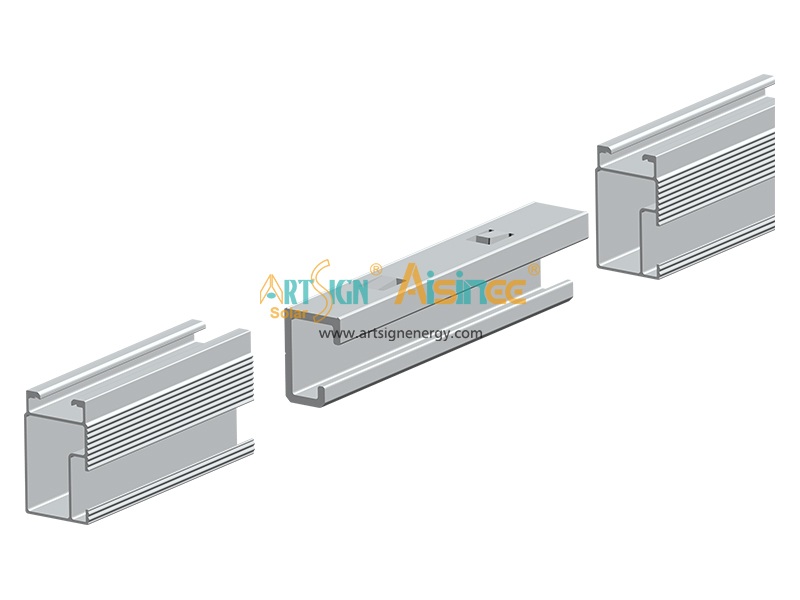

The AS-A-A454 CR rail 02# splice is a heavy-duty solar rail joint specifically engineered to connect and extend AS-A-CR02 and AS-A-CR03 aluminum mounting rails. Functioning as a precise solar rail insert connector, it slides smoothly inside the channels of AS-A-CR02 and AS-A-CR03 profiles to ensure seamless rail alignment, continuous load distribution, and rapid rooftop assembly for C&I and residential solar projects.

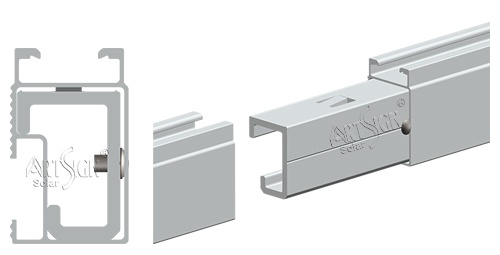

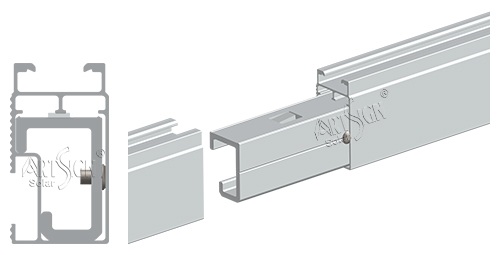

Solar roof mounting rail splice for AS-CR-02 Solar Profile	Solar rail joint for AS-CR-03

Products are packed in corrugated cartons.	Finished goods are shipped on pallets.

Click to see more N module series.

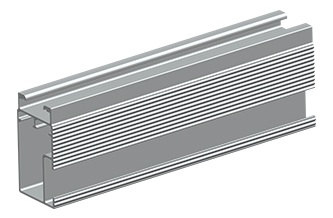

CR N nut	AS-CR-01	AS-A-CR02
AS-A-CR03	AS-CRS-01B

FAQ1: How does ART SIGN™ guarantee the long-term durability of its mounting systems?

A: We provide an industry-leading 20-year structural warranty. As the premium brand of ART SIGN (est. 2006), our systems are engineered for a 25-30 year design life, ensuring full synchronization with the lifespan of Tier-1 solar modules.

FAQ2: How are quality issues and component replacements handled?

A: We implement a "Safety Buffer" strategy: every shipment includes complimentary spare parts to prevent installation delays. For any manufacturing defects identified within the 20-year period, ART SIGN™ issues an official warranty letter and dispatches free replacements immediately.

FAQ3: What are the standard lead times for LCL and FCL project orders?

A: Leveraging ART SIGN’s ISO 9001 certified production lines, standard components (Rails/Clamps) are ready in 7-15 working days (LCL). Full Container Loads (FCL) typically take 20-35 days. Large-scale utility projects benefit from prioritized scheduling.

FAQ4: Which materials are used to ensure maximum corrosion resistance?

A: WOur structures utilize High-Strength Anodized Aluminum (AL6005-T5), Hot-Dip Galvanized Steel (ISO 1461), and advanced Zinc-Aluminum-Magnesium (Zn-Al-Mg) coatings. This trio guarantees premium performance even in harsh, high-salinity coastal environments.

FAQ5: Do ART SIGN™ structures comply with international wind and snow codes?

A: Yes. All systems are engineered to exceed major codes including AS/NZS 1170, Eurocode 9, and ASCE 7-10. They are rated for wind speeds up to 60m/s and snow loads up to 1.4kN/m². Project-specific engineering reports from ART SIGN are available upon request.

FAQ6: Are OEM/ODM and customized engineering services available?

A: Absolutely. Utilizing ART SIGN’s extensive R&D facilities, ART SIGN™ provides comprehensive ODM services. We customize structural profiles for trapezoidal metal, tile, or flat roofs, ensuring an optimized fit for complex terrains and specific architectural requirements.
