Anodized Aluminum Rail Premium Quick-Install Mounting Rail For Solar Panels |ART SIGN

Anodized Aluminum Rail Premium Quick-Install Mounting Rail For Solar Panels |ART SIGN

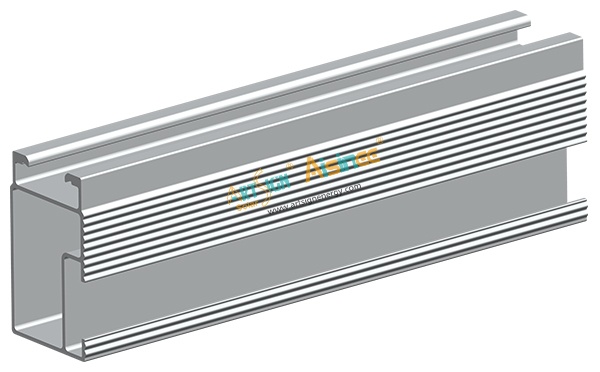

Engineered from high-strength Al6005-T5 alloy, these pv mounting rails provide superior durability and corrosion resistance. Their tool-assisted design ensures quick installation, offering reliable structural support for long-term solar array performance.

Item NO.:
AS-CR-02
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

Anodized Aluminum Rail Premium Quick-Install Mounting Rail For Solar Panels |ART SIGN

Design Features

— CR rail is thicker, stronger and easier installation
— N nut & T bolt is used for CR rail groove which makes the solar clamps quicker and fast speed installation.

Mode Number	AS-CR-02	Brand Name	ART SIGN
Specs	Anodized Above 10um	Material	Aluminum 6005-T5
Application	Residential / Commercial / Utility	Packing	Carton or Pallet
Keyword	Premium Aluminium Rail Mount Solar Panel	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

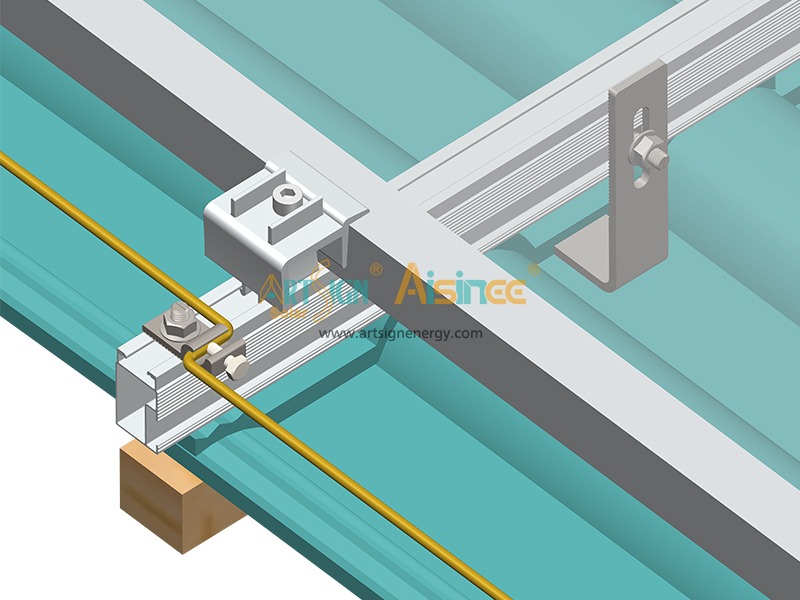

1. Most of the roof brackets can be directly work with solar mid clamp and end clamp and thus can fix the solar panels directly without any long rail.

2. It is light for transportation and easy for installation.

3.Available in various finishes: mill, silver anodizing or black anodizing

Premium Anodizing Aluminium Material: constructed from robust and weather resistant Al6005-T5, these pv railings accessories offer you the longevity and resistance to inclement weather, ensuring a secure for your solar system.

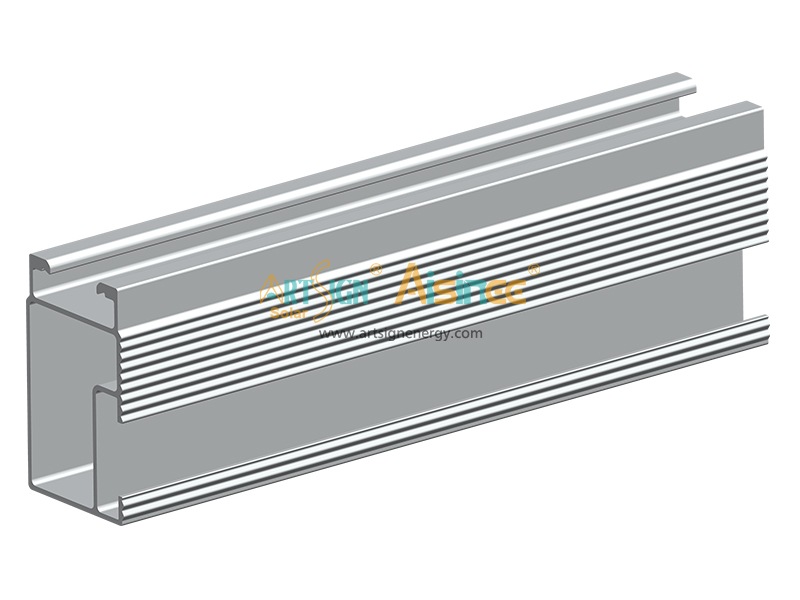

1.The CR series rails use a unique rail slot design for easy installation

2.rectangular profile to suit your installation way.

Adjustable, quicker and easier installation for solar clamps.

Solar Clamp Fit For CR Rail

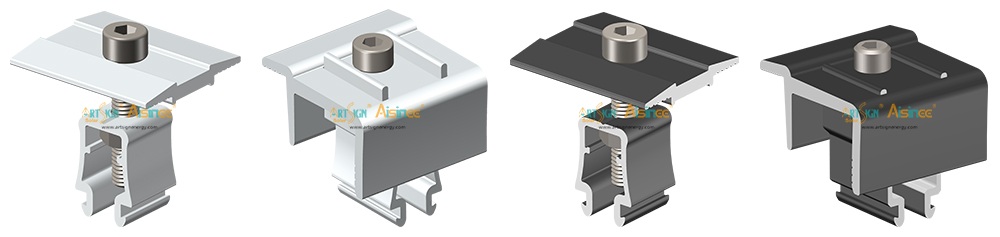

ART SIGN pv mounting clamps

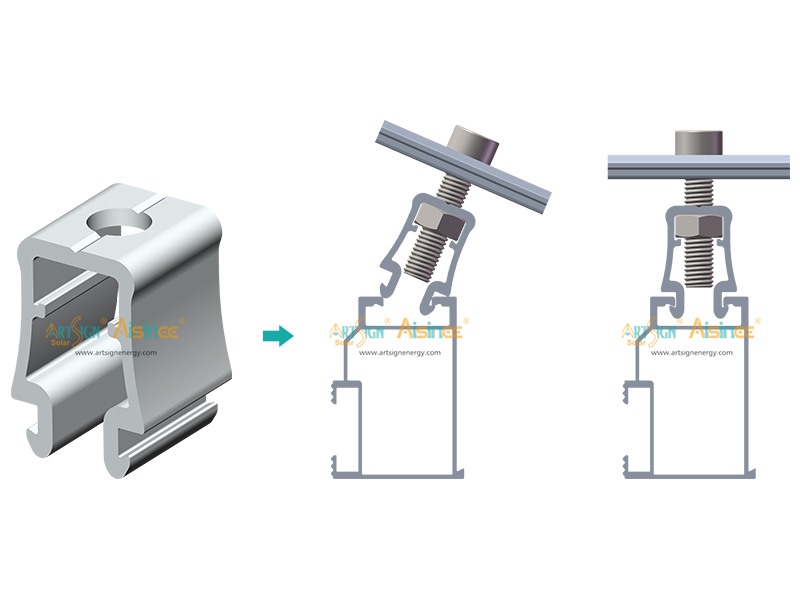

Adjustable solar module clamp is used for framed solar panels, which is
applicable to 30~40mm solar panel thickness.

It is suitable for CR rail system

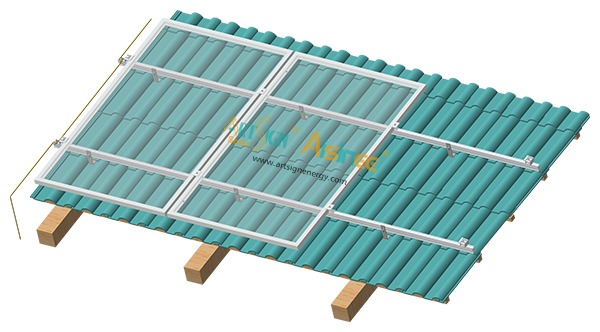

We supply mounting rails for solar panel, with quality material aluminum

Our sales team always follows your goods after leaving our warehouse. If any problem occur, we will assist to solve the problem at first time.

Your further feedback or opinion will also be adopted and improved in our future work.

Click to see more N module series.


CR N nut	AS-CR-01	AS-CRS-01
