Design Features

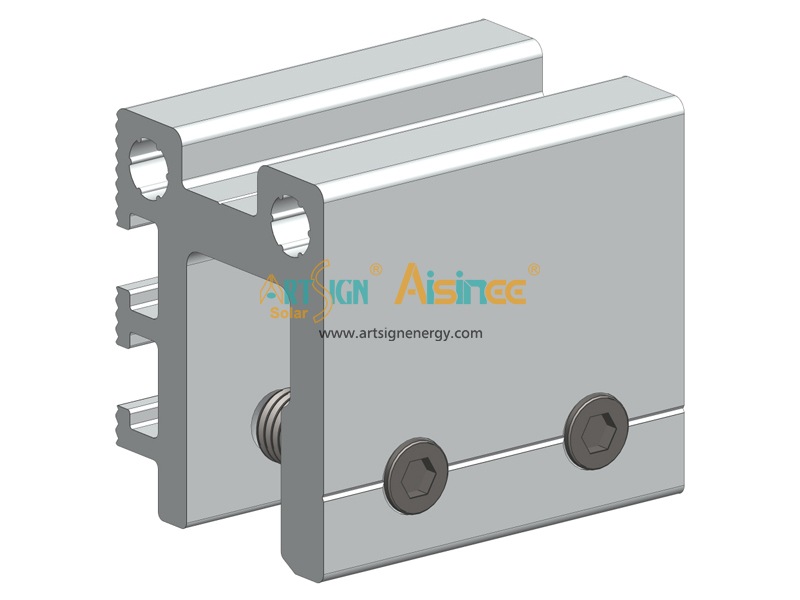

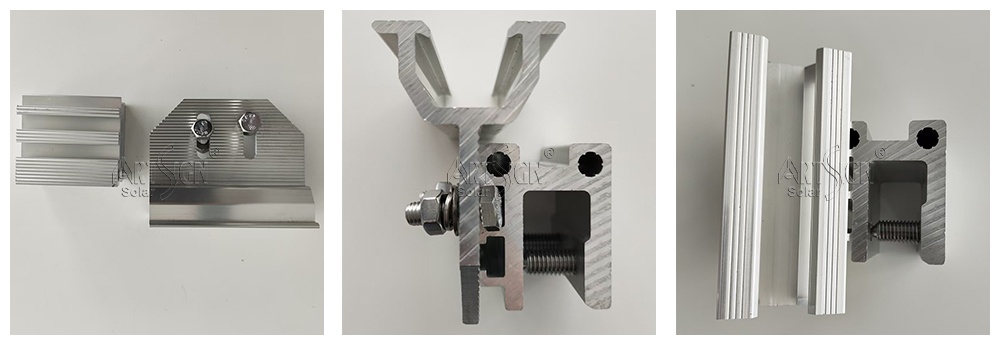

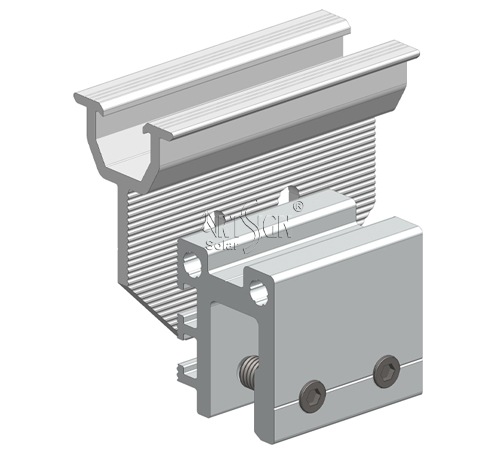

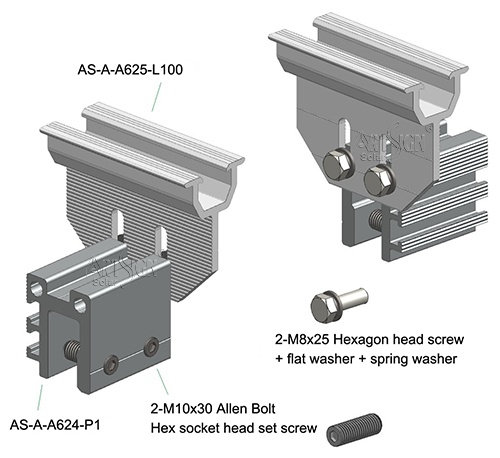

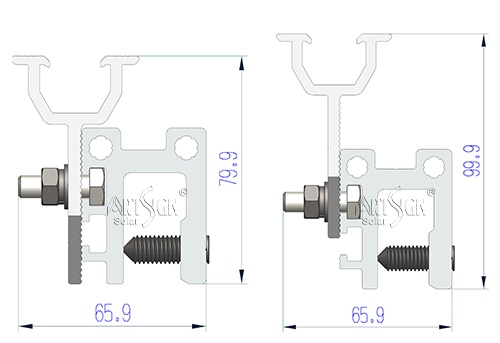

N clips combine with Mini Rails	Each clamp is made from AL 6005-T5 aluminum with anodized finish (10μm minimum). Stainless steel fasteners throughout.

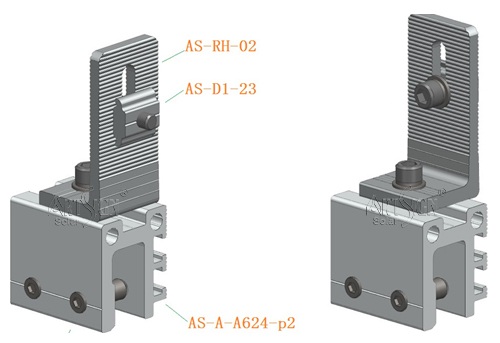

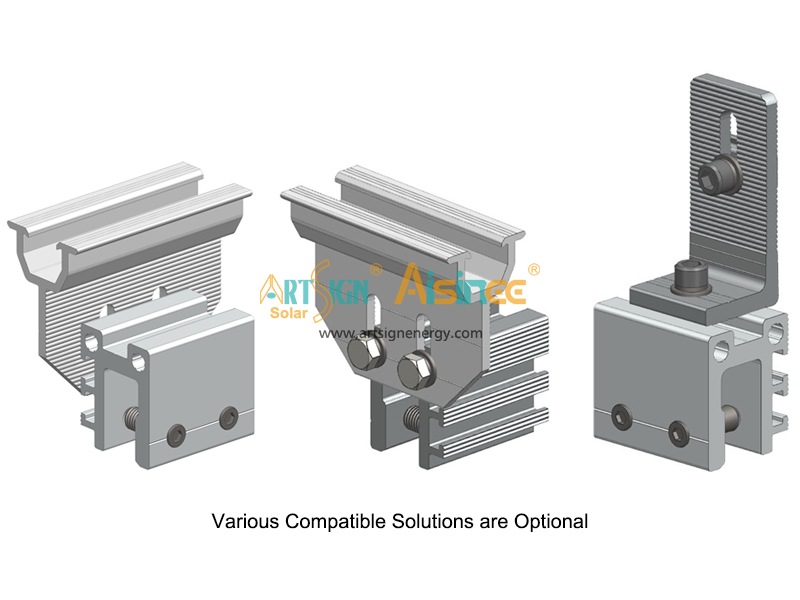

Compatible with L foot, too.	each clamp can be adjusted independently to level the array.

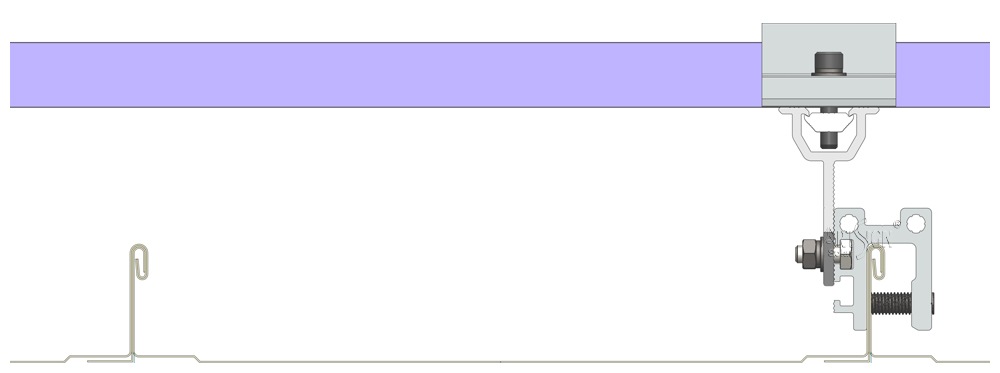

Rail-less solution: the clamps can be combine the solar panels directly to the roof and let installers easily adjust the height on the spot.

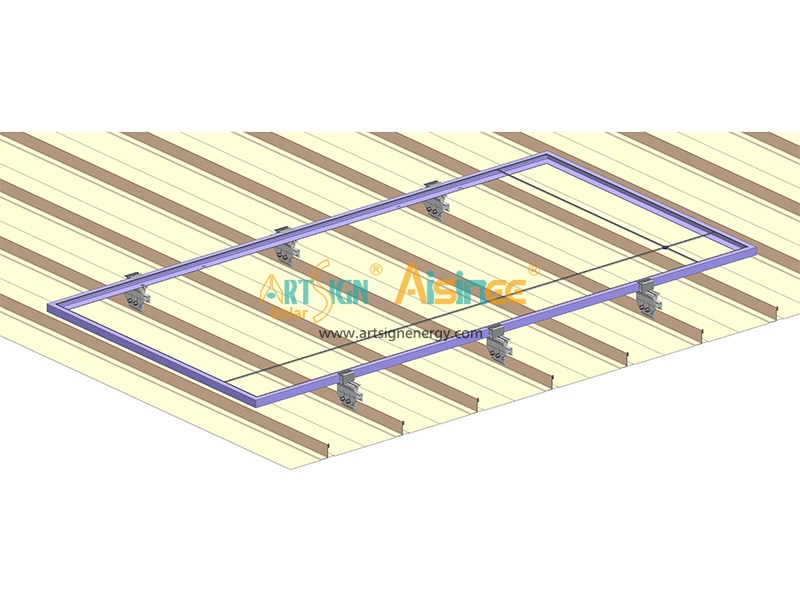

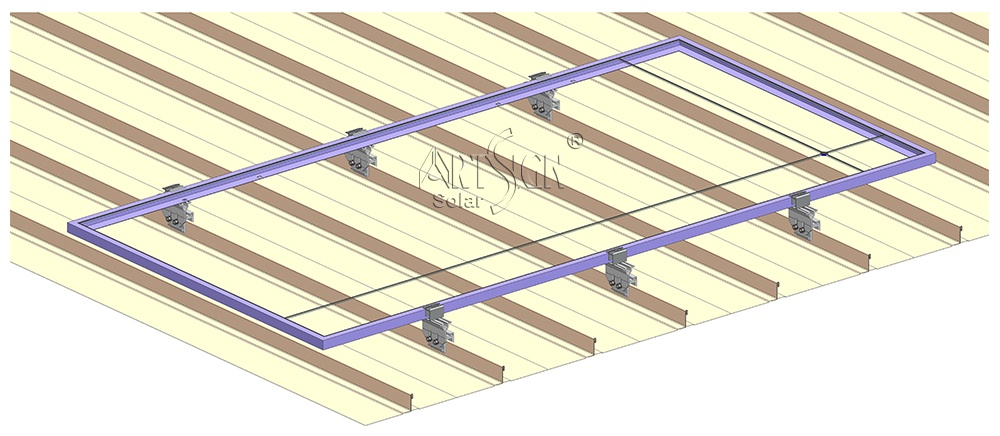

The overview after installed the clips and panels on the rooftop

Non penetrating and railless solution, it's waterproof and cost-effective, directly work with mid and end clamps. Easy for packing, transportation and installation.

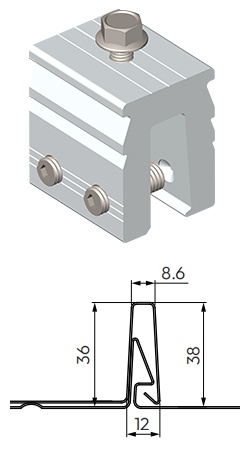

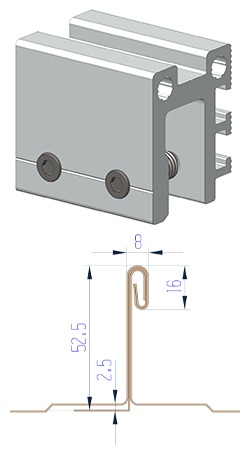

Click to see more N series roof clip(standing seam roof clip);

AS-N1A-50	AS-N2E-50	AS-N2F-50	AS-N3-50
AS-N4-50	AS-N5-50	AS-N5B-50	AS-N7-70
AS-N10-50	AS-N12

FAQ1: What certifications do your products have?

A: Xiamen Art Sign holds global leading certifications to ensure compliance in major markets: TUV Rheinland (Germany/Global) CE (Europe) ISO 9001 (Quality Management) AS/NZS 1170 (Australia/New Zealand) All test reports and certificates are available for download or upon request.

FAQ2: How do you ensure corrosion resistance in coastal areas?

A: We use premium Anodized Aluminum 6005-T5 with an anodizing layer thickness of 10-15μm. Why it matters: Unlike standard powder coating, our anodized surface offers superior resistance to salt spray and UV radiation, making it ideal for coastal and harsh industrial environments. Tested to withstand wind speeds up to 60 m/s and snow loads of 1.4 kN/m².

FAQ3: What is your terms of payment?

A: Payment s 1000 USD, 100% in advance. Payment 1000 USD, 30% T/T in advance, balancebefore shipment.For more request, we can discuss and make a payment plan according to both of our financialsituation.

FAQ4: How long is your delivery time?

A: Generally, for LCL goods is 7-15 working days, FCL can be 20-35 working days. For more, it shouldbe negotiated. We are verified with ISO 9001, so our production management system is completed.

FAQ5: What information is needed for a customized mounting design?

A: We need roof details, panel size, wind load, and project location for evaluation.

FAQ6: Can the L foot adjust the height for the uneven rooftop?

A: Yes. They allow height adjustment on each fixing point to keep panels level on uneven roofs.

FAQ7: How is the L Foot fixed to the roof?

A: It can be installed with hanger bolts, screws, or other fasteners based on roof conditions.

FAQ8: Can L Feet fit different solar rails?

A: Yes. Most L Feet are designed with standard slots for common solar mounting rails.
