Solar panel supporting structure installation on roof

Solar panel supporting structure installation on roof

Metal roof standing seam clamps are designed for virtually metals in solar panel profile.

Item NO.:
AS-N2E-50
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western Union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

PV metal roof mounting systems standing seam clamps | ART SIGN

Design Features

— Enables simple, fast and cost effective installation.
— Installation-friendly clamps with a click-in mechanism.
— Components usable across metal roof types.

Mode Number	AS-N2E-50	Brand Name	ART SIGN
Specs	L50W38H42mm	Material	Aluminum 6005-T5
Application	pv metal tin roof mounting system	Packing	Carton, plywood pallet / case
Keyword	OEM/ODM roof solar n clamps	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

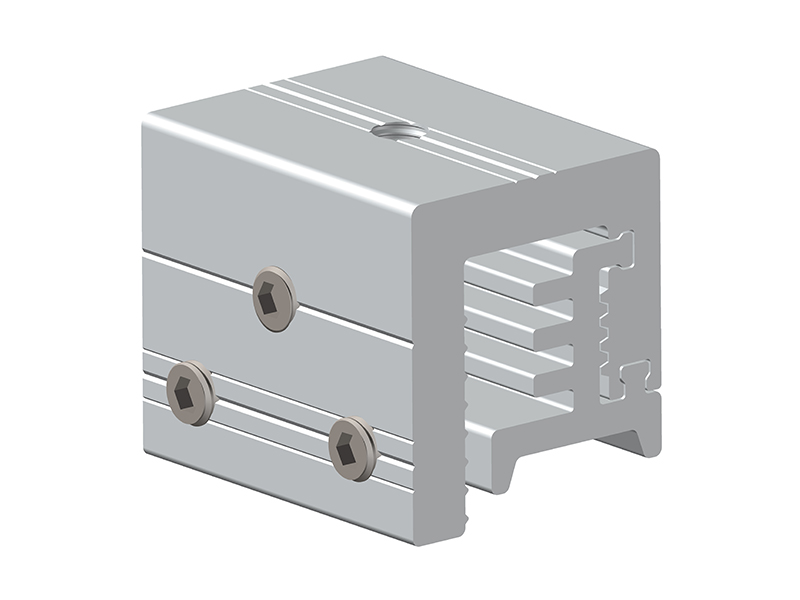

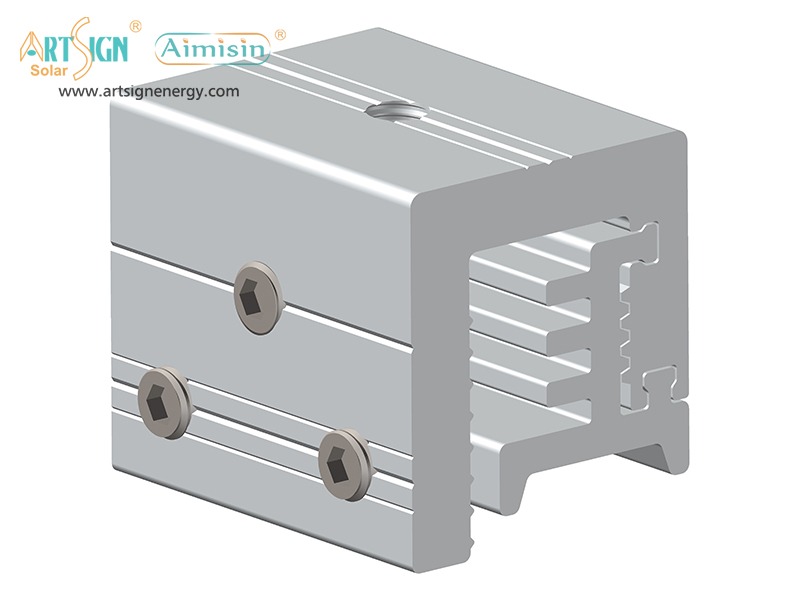

ART SIGN roof solar n clamps AS-N2E-50

ART SIGN solar mounting details

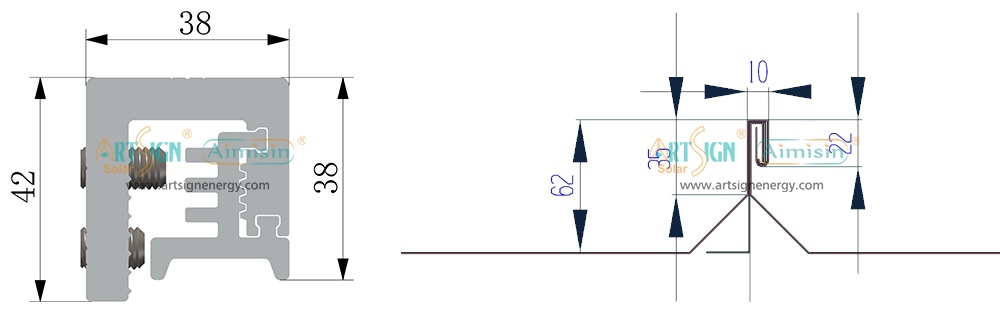

ART SIGN roof solar n clamps AS-N2E-50 size

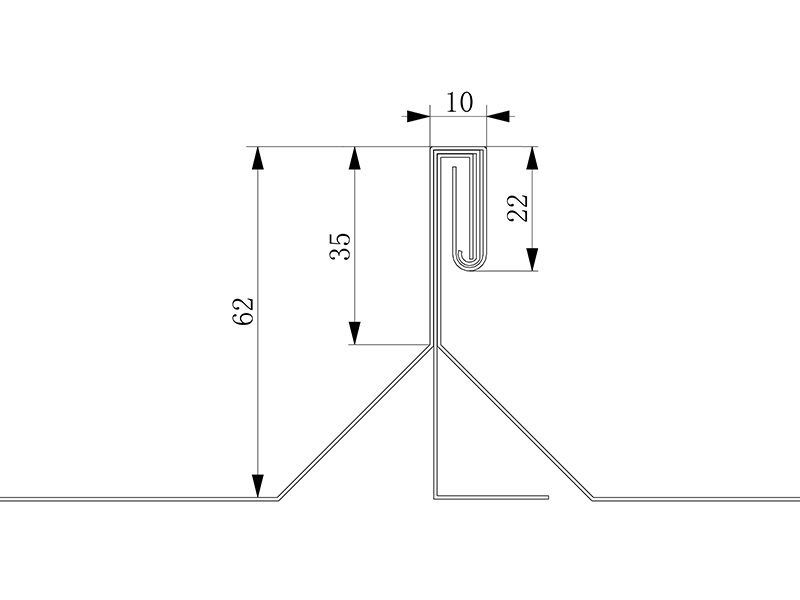

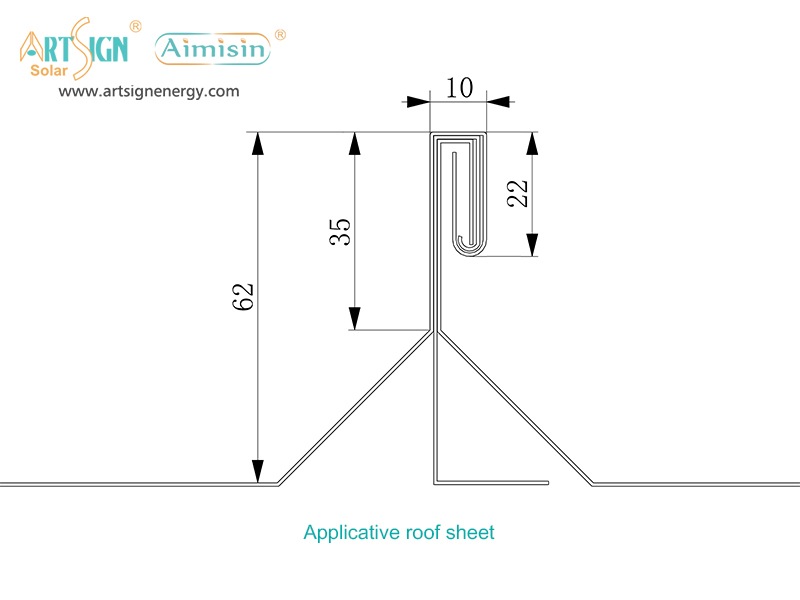

Standing seam clips size & Applicative roof sheet

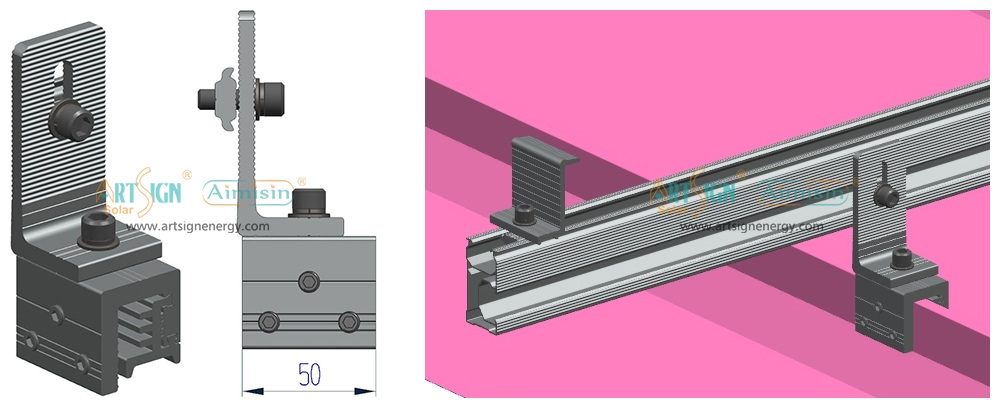

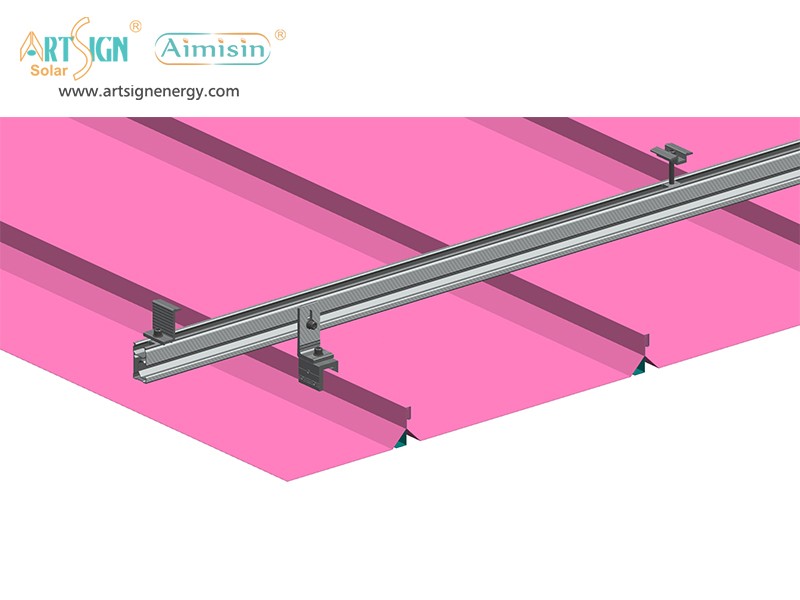

ART SIGN roof solar n clamps AS-N2E-50 with L feet

AS-N2E-50 with L feet kit installation

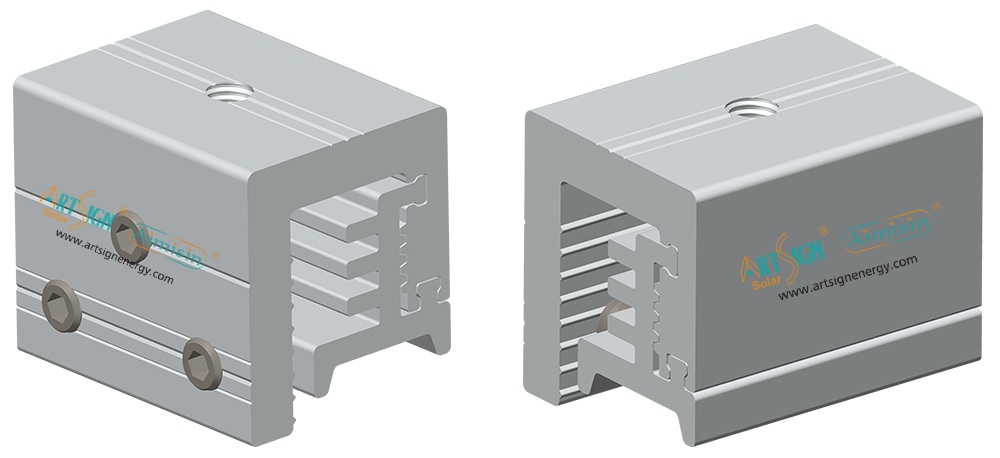

ART SIGN roof solar n clamps AS-N2E-50

zero-penetration technology for application on the popular metal roof profiles

Package Type	Inner packing: Kraft paper packaging
	Outer packing: wooden case / pallet

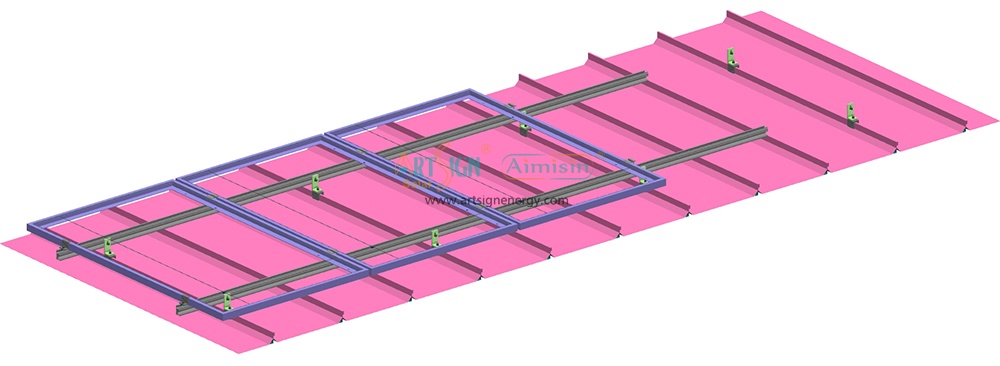

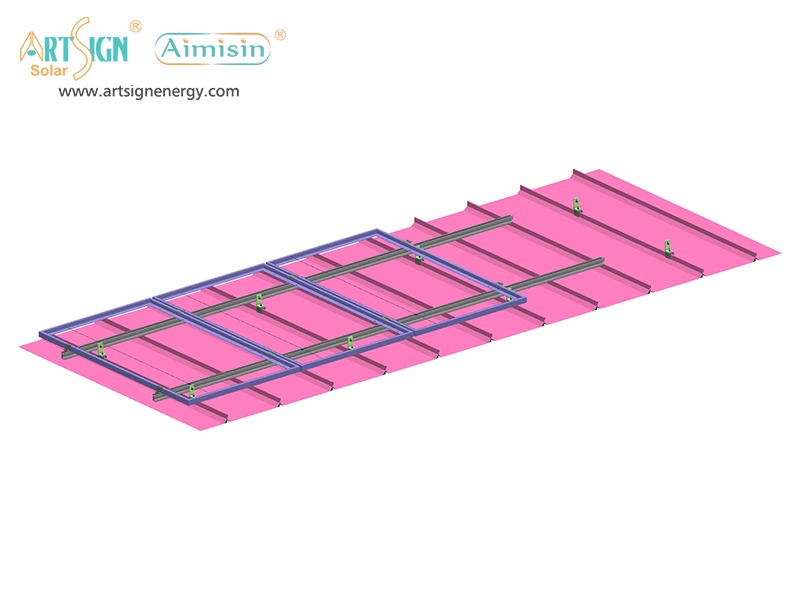

ART SIGN solar panel roof mounting bracket AS-N2E-50 case study

ART SIGN solar mounting related accessories

Non penetrating and railless solution, it's waterproof and cost-effective, directly work with mid and end clamps. Easy for packing, transportation and installation.

Click to see more N series roof clip(standing seam roof clip);


AS-N1A-50	AS-N2E-50	AS-N2F-50	AS-N3-50

AS-N4-50	AS-N5-50	AS-N5B-50	AS-N7-70
