Long-rail Solar Installation Solution for Roof PV Racking |Art Sign
Design Features
— This aluminum rail has a very versatile design and easy to install.
|
Mode Number |
AS-DR-21 |
Brand Name |
ART SIGN |
|
Specs |

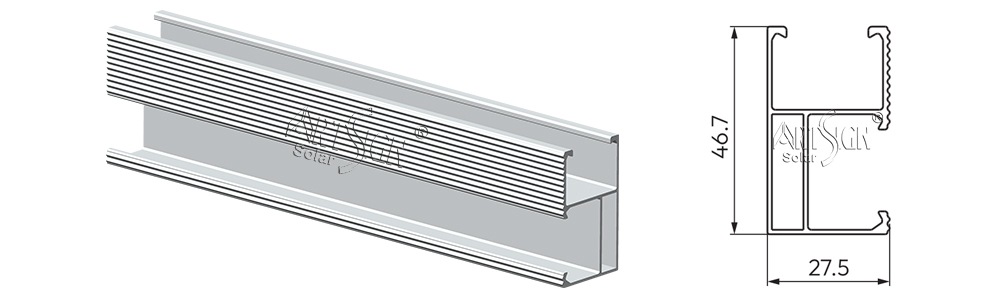

W27.5*H46.7mm |
Material |
Aluminum 6005-T5 |
|
Application |
Roof Railing Solar Mounting System |
Packing |
Wooden Pallet |
|
Keyword |
Wholesale Long Rail PV Panel Mounting |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |

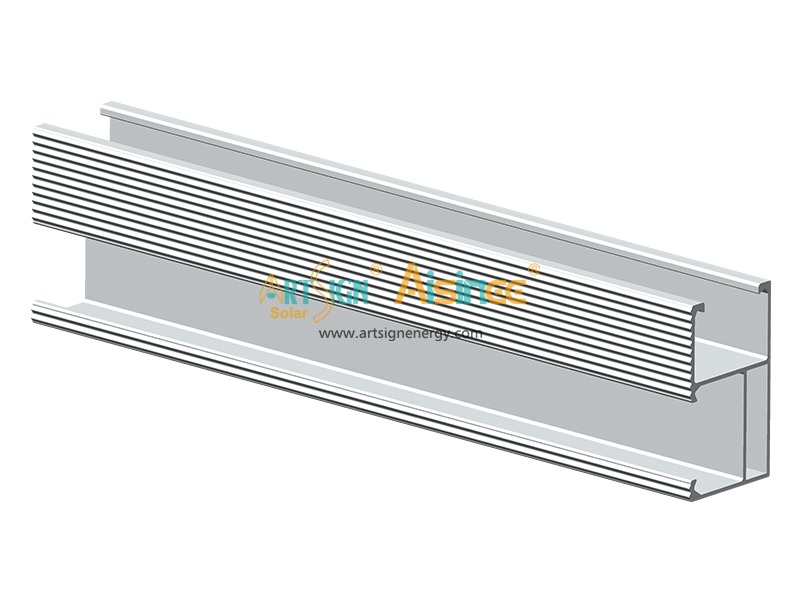

Very neat design for solar racking rail, and easy to install.
Solar rail can be cut to any length. Strong enough to stand the wind.

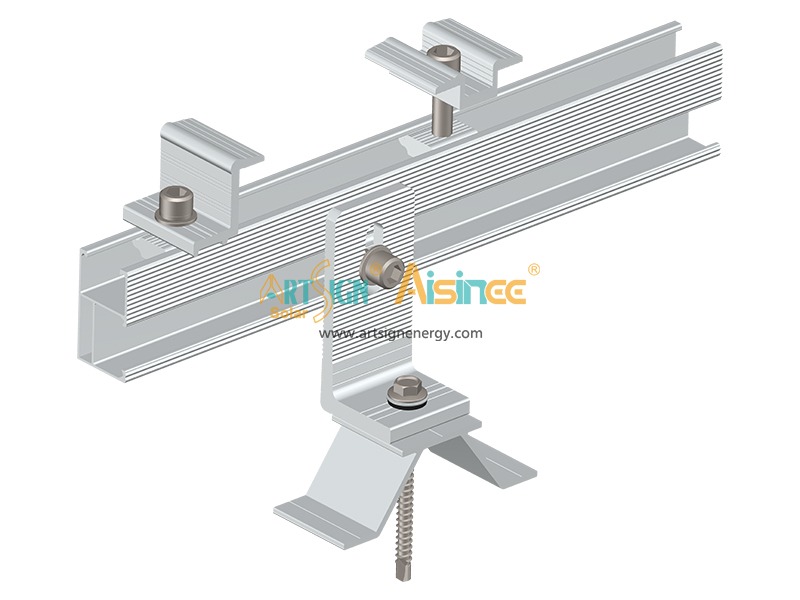

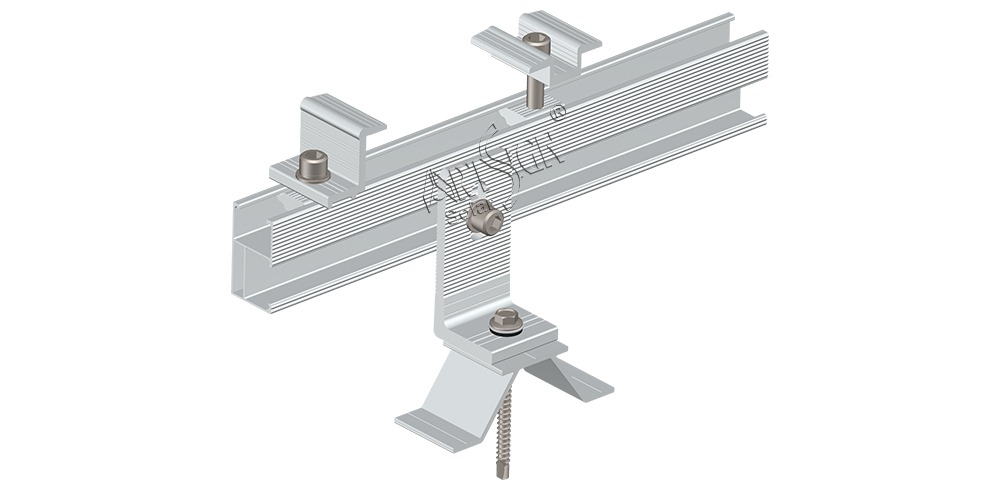

Long railing solar mounting systems can be installed with an L-foot on the metal roof.
High-quality aluminum material wholesale solar rail.
 |
|
|

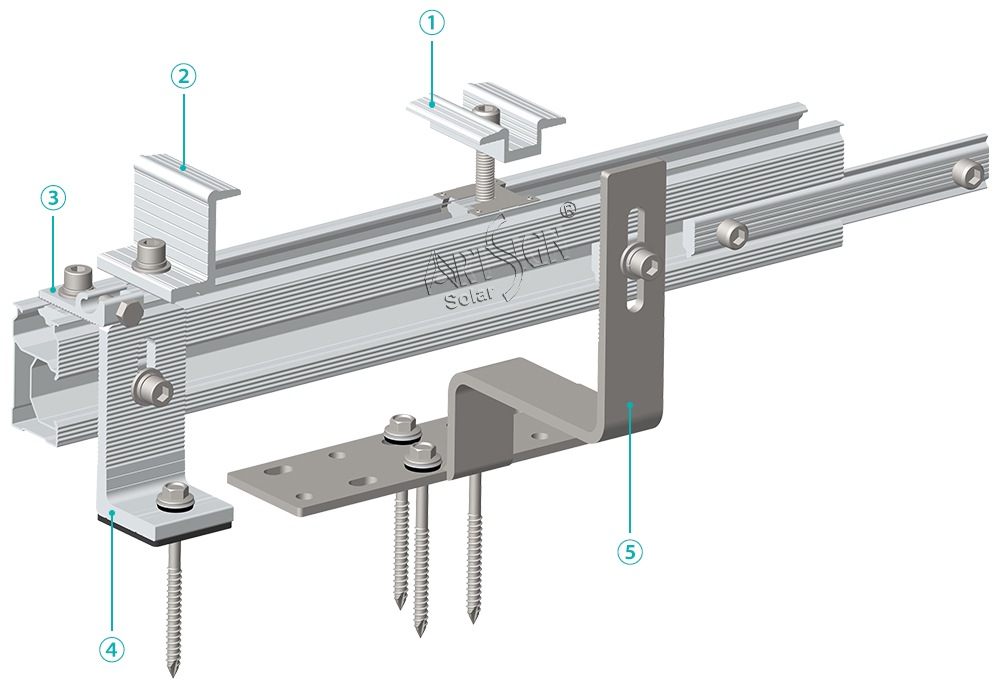

①. 1pcs anodized aluminum mid clamp + 1pcs SUS304 allen bolt M8x50mm + 1pcs SUS304 spring washer + 1pcs anodized aluminum D nut ②. There're three options for end clamp, please refer to below optional accessories for details ③. Two options for earthing kit. (1).Cable channel inner diameter 5.8mm (2).Cable channel inner diameter 8.0mm ④. Four different heights' L feet ⑤. Refer to the optional accessories table for more options |
|
Package Type |
Inner packing: Kraft paper packaging |
 |
| Outer packing: wooden case / pallet |
Aluminum Solar panel roof rails AS-XR-01 which is most suitable for solar panel roof mount while has various size of profile for option, different size of aluminum rail is suitable for different strength request.
Click to see more D nut series;
 |
 |
 |
 |
|
AS-DR-01A |
AS-DR-01B |
AS-DR-03 |
AS-DR-04 |
 |
 |
 |
 |
|
AS-DR-08 |
AS-DR-15 | AS-DR-19 | AS-DR-20 |
| Rail splice |
 |
 |
| AS-DRS-01 | AS-DRS-02 |
