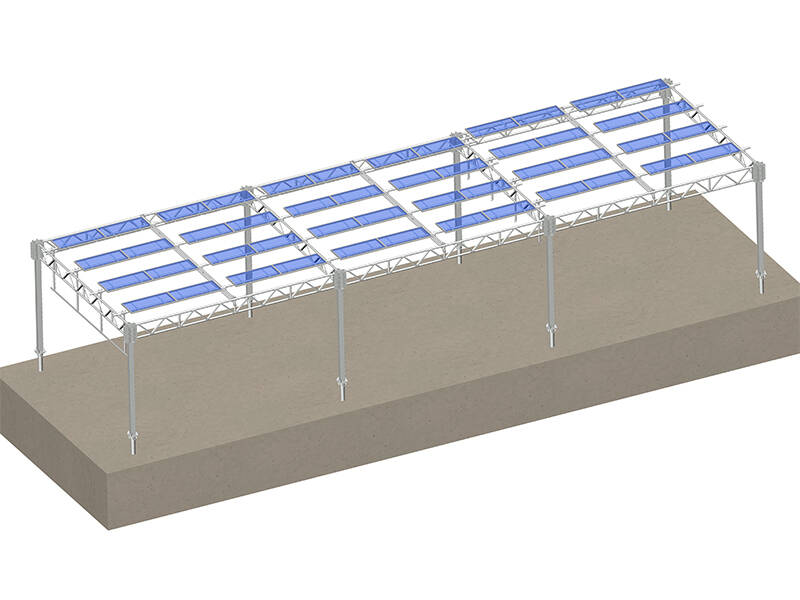

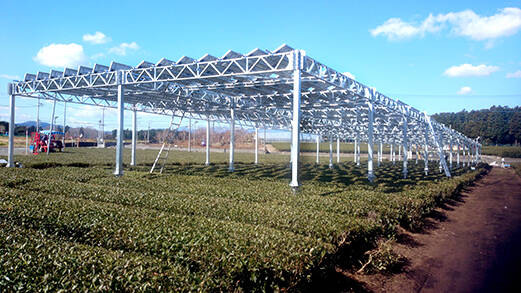

Steel agricultural farm solar mounting system
· Design Features

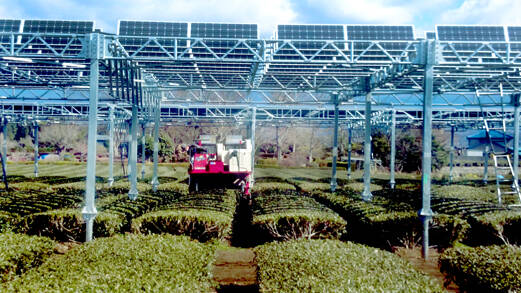

① Agricultural mounting structure which is available for farm cart handing underneath.
② Manual angle adjusted as season request.
· Surface treatment:
80μm thk. Hot dipped galvanizing steel, 10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.
· Design Strength:
The structure is designed according to the wind load or snow load request.
|
Suitable for |
agricultural farm |
|
Module |
Framed, thin film |
|
Material&Surface treatment |
10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts |
|
Color |
silver, black or customer requirement |
|
Module orientation |
Landscape and portrait |
|
Wind load |
Max 60m/s |
|
Snow load |
Max 1.5kn/m2 |
|
Standards |
Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS |
|
Warranty |
20 years |
 |
 |
 |

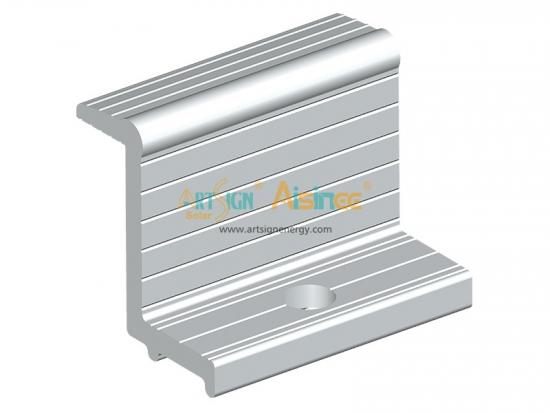

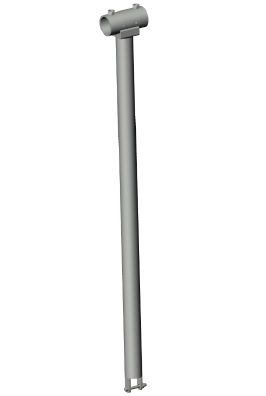

| AS-SF-MTRS |
AS-SF-SP |
AS-SF-RP-102 |
 |
 |
 |
|
AS-CP-102 |
AS-SF-STRS |
|
 |
 |
|
|
AS-CP-48 |
AS-SF-B |
AS-SF-AP |
Steel agricultural farm solar mounting system
 |
|

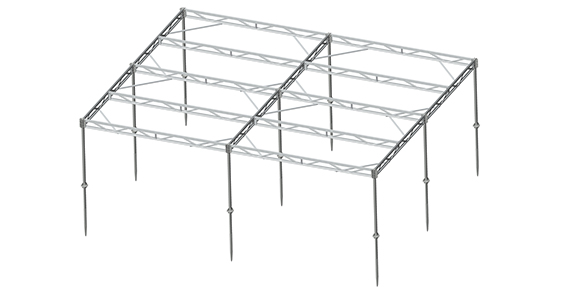

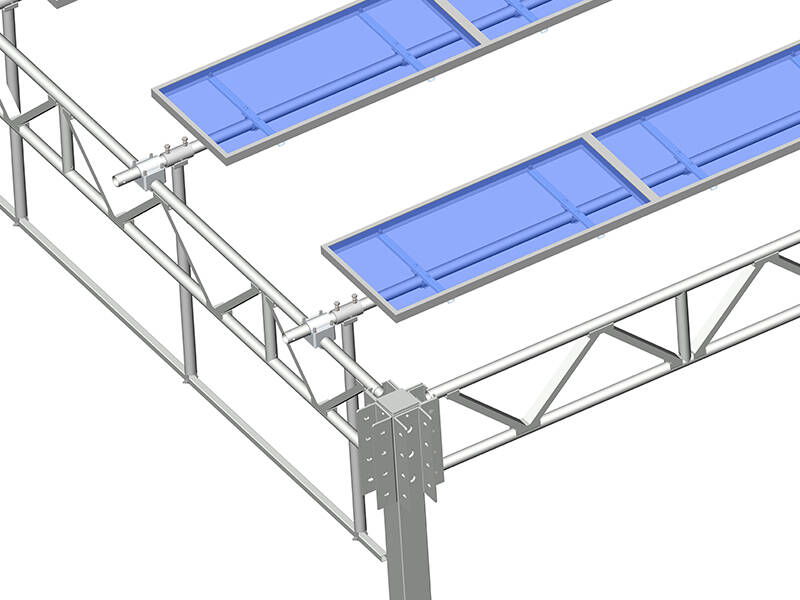

Step1 Post position and truss installation. |
 |
 |
|

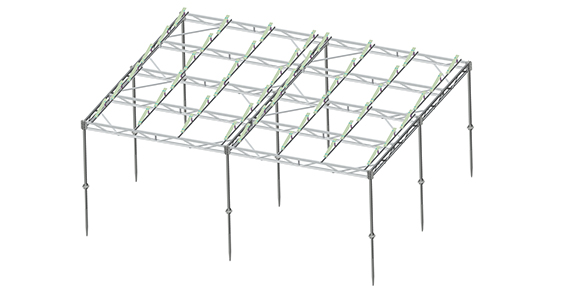

Step 2 Install the pre-assembled triangle kit. |
 |
|
|
|

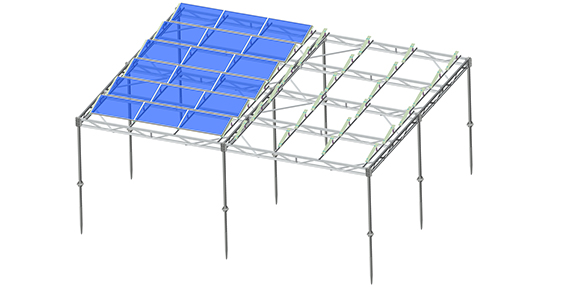

Step 3 Solar panel installation. |
Steel agricultural farm solar mounting system
 |
|
 |
