Aluminum solar mounting mid clamp AS-MC-G

Aluminum solar mounting mid clamp AS-MC-G

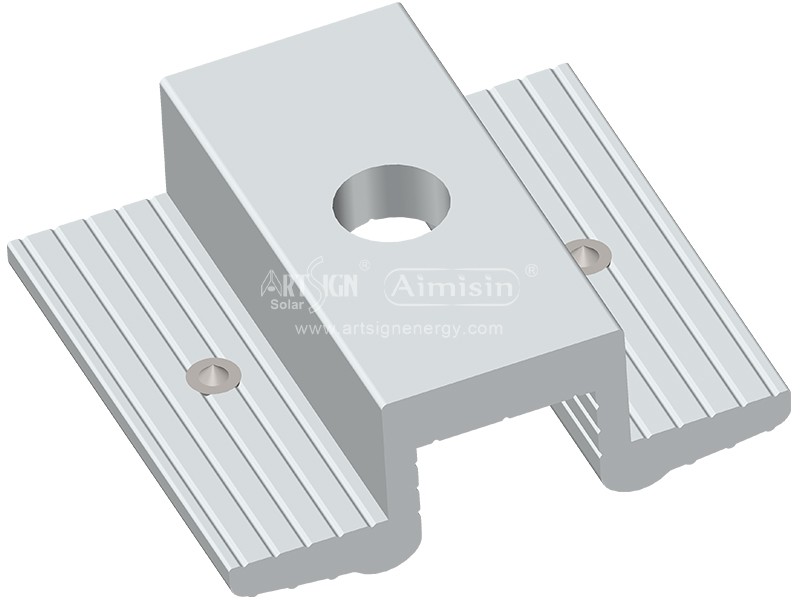

Built-in conductive insert and features a self-piercing serrated grounding design.

Item NO.:
AS-MC-G
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western Union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

Solar Panel Mid Clamp with Conductive Insert, Self-Piercing Grounding Design |Art Sign

Design Features

— Integrated Conductive Insert
— Self-Piercing Grounding Teeth

Mode Number	AS-MC-G	Brand Name	ART SIGN
Specs	40/50mm	Material	Aluminum 6005-T5
Application	PV solar roof mounting system	Packing	wooden pallet
Keyword	solar mounting clamp with earthing teeth	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

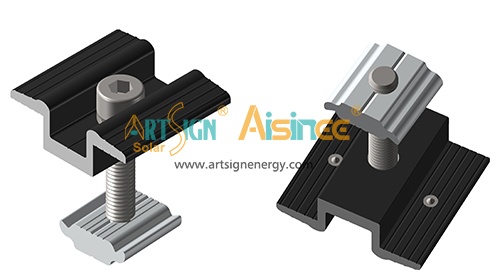

ART SIGN solar mounting details

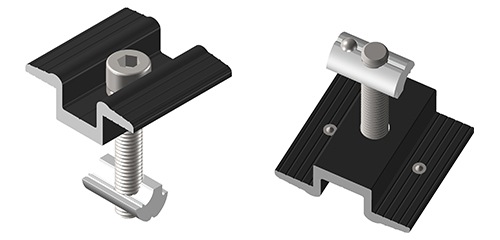

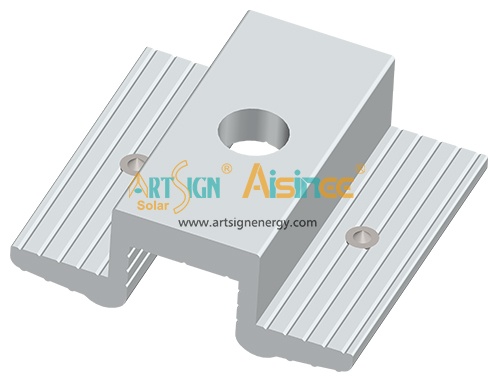

Mid Clamp AS-MC-G Integrated Conductive Insert	Provides both panel fastening and grounding in one component, reducing installation cost and time.

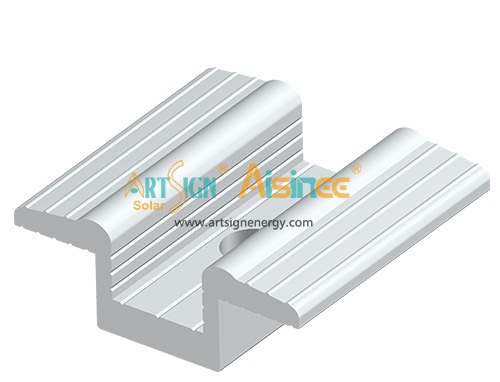

Ribbed clamp surfaces increase grip and prevent module shifting under wind or vibration.	Fits most 30–40 mm solar module frames and standard photovoltaic mounting rails.

Selling Units

per meter / per pcs

Package Type

Inner packing: poly bag into carton;

Outer packing: wooden case /pallet

Lead Time：

Quantity(Sets)	1 - 1000	1001 - 5000	5001 - 10000	>10000
Est. Time(days)	15	20	25	To be negotiated

ART SIGN solar mounting related accessories

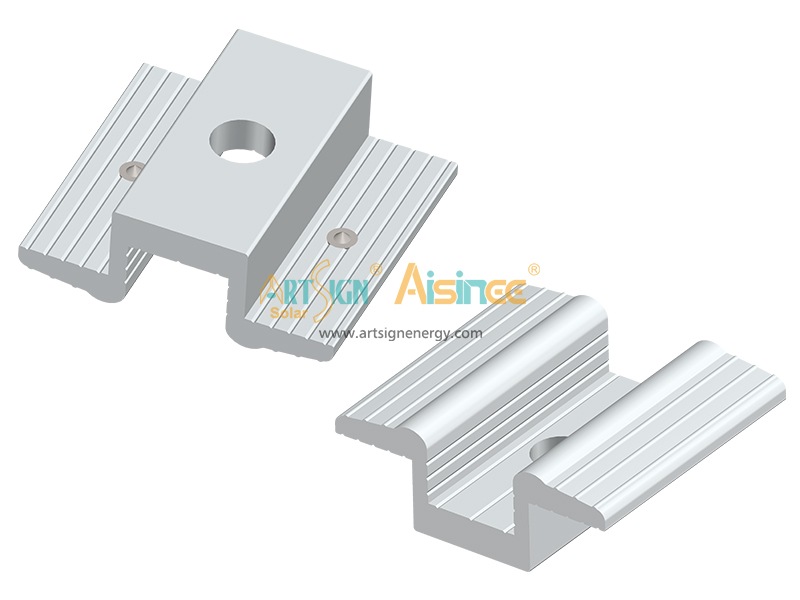

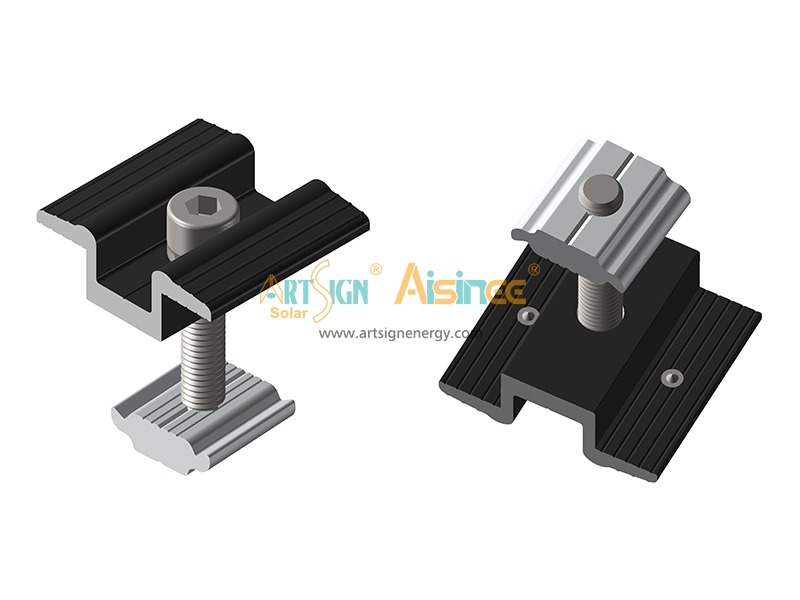

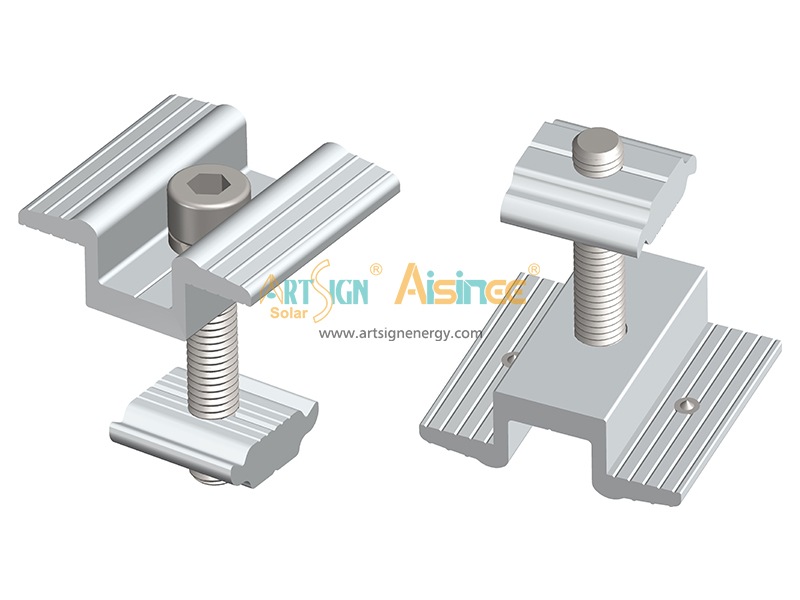

The mid clamp can be cut by 40mm/50mm/80mm etc. different lengths to be suitable for various projects. Color can be silver or black.

Click to see more module clamps.


AS-A-MC01	AS-A-MC02	AS-A-MC03	AS-A-MC12

AS-GMC-G

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Aluminum solar mounting mid clamp AS-MC-G
