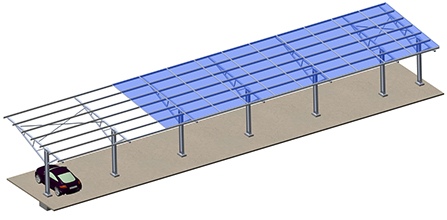

PV panel carport mounting structures - Single post solar carport

PV panel carport mounting structures - Single post solar carport is a hot dipped galvanized steel carport solar mounting system. It's easy to be installed and it's flexible for residential solar carport and commercial photovoltaic carport usage.
  • Item NO.:

    AS-CP-SP
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Color:

    natural or black
  • Product Detail

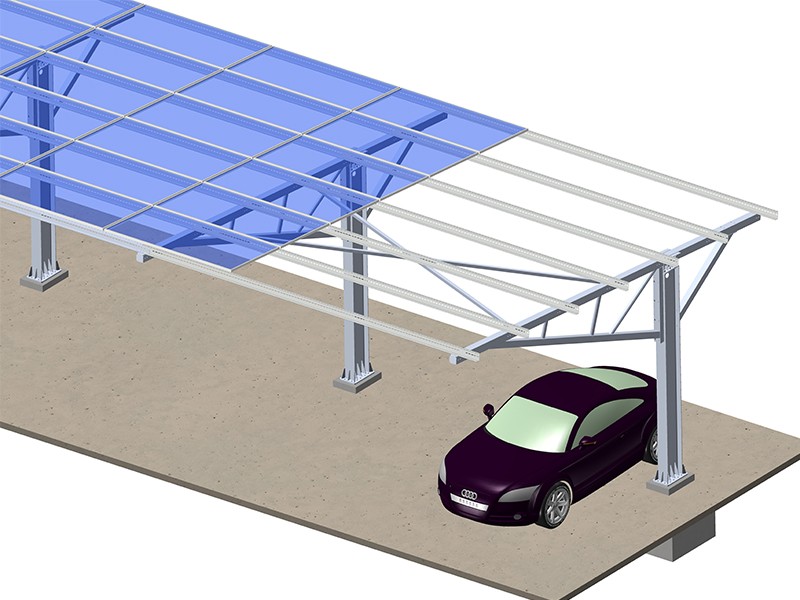

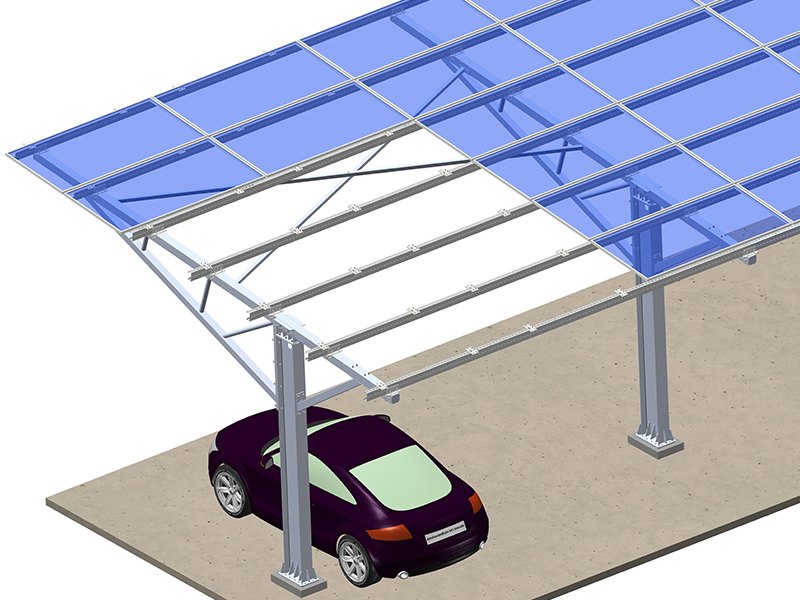

PV panel carport mounting structures - Single post solar carport


· Design Features

  ① Hot dipped galvanized steel structure which is strong enough to withstand heavy wind load and snow load
  ② Cost-effective and suitable for both residential and commercial solar panel carport.
  ③ No need extra welding and cutting.

  ④ Maximum to support two cars per span

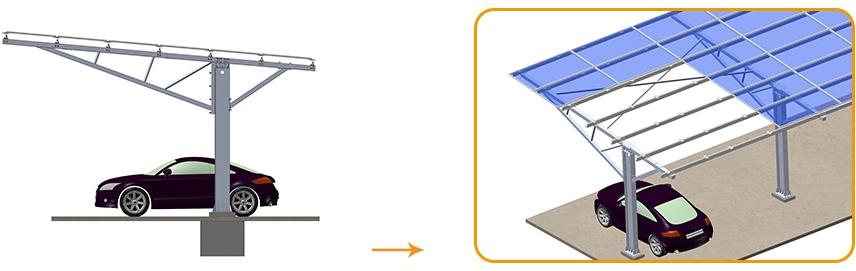

solar panel carport structure

· Surface treatment:

  80μm thk. Hot dipped galvanizing steel, 10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.


· Design Strength:
  The structure is designed according to the wind load or snow load request.



Category : Solar Agricultural Mount


Suitable for
  HDG Solar carports
Module
  Framed, thin film
Material&Surface treatment
  10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color
  silver
Module orientation
  Landscape and portrait
Wind load
  Max 60m/s or as per clients' requests
Snow load
  Max 1.5kn/m2 or as per clients' requests
Standards
  Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty
  20 years warranty and 25years service life






AS-I-A010 AS-I-A011
AS-I-A012



AS-I-H350x175
AS-I-SQ50x5884
AS-I-SQ100x1590



AS-Z-A003
AS-Z-A004
AS-Z-C120


Carport mounting system - Single post solar carport

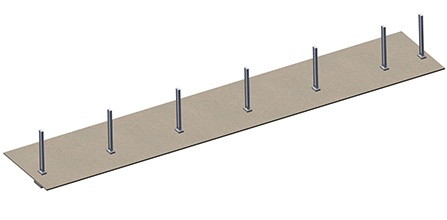

Step 1
Post position and installation.

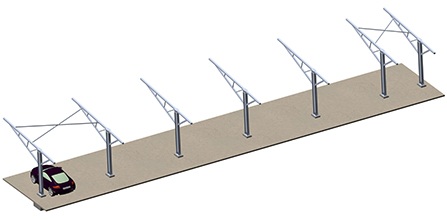

Step 2

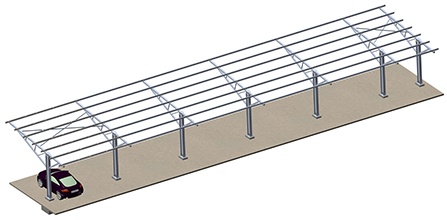

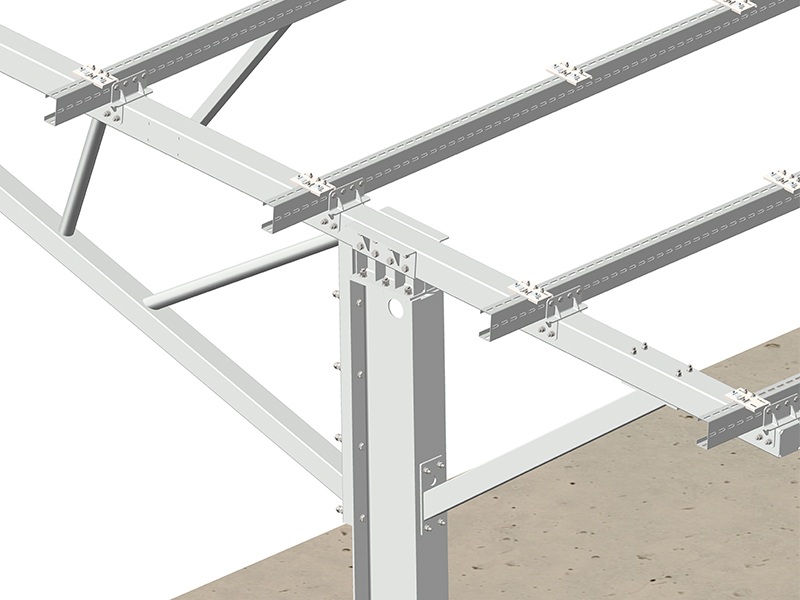

Truss installation.






Step 4

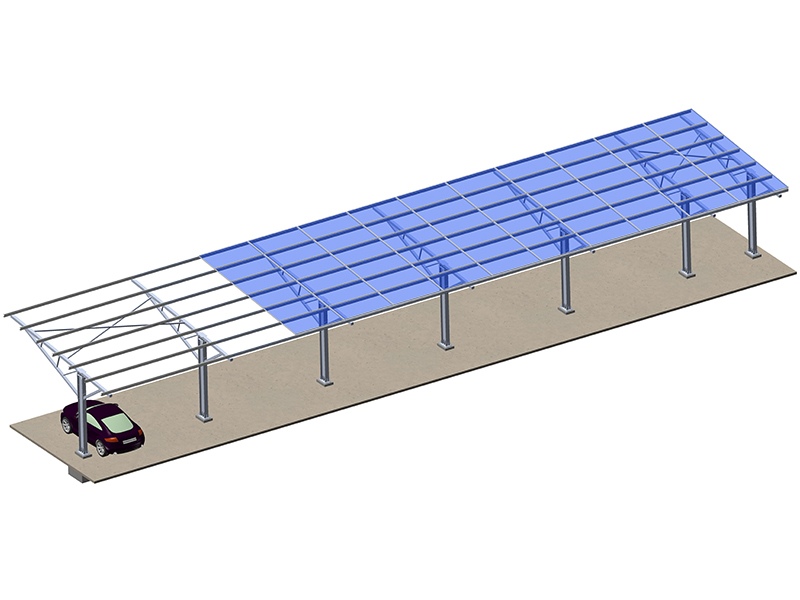

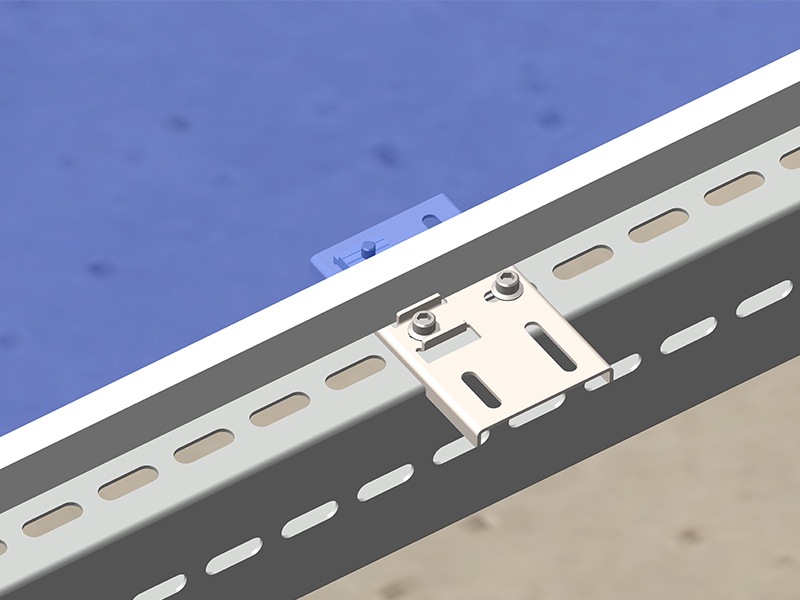

Solar panel installation.

Step 3

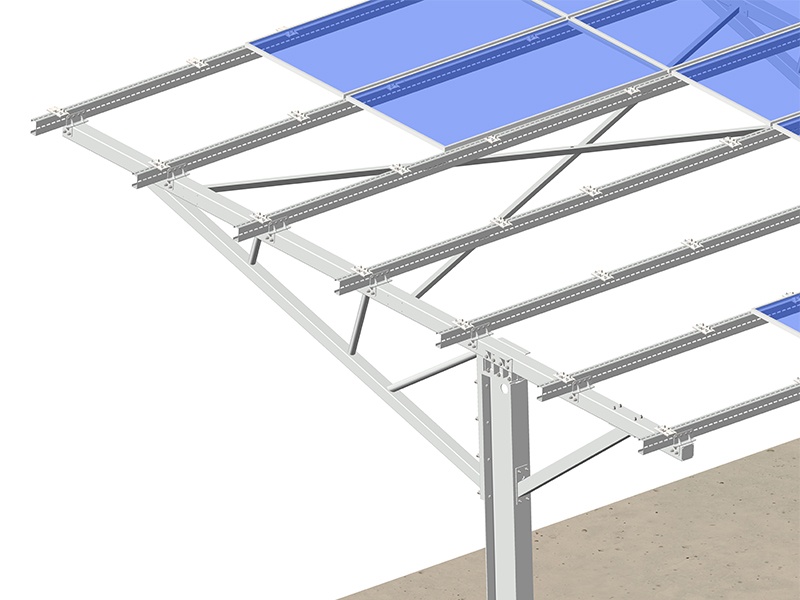

Rail and bracing installation.
