aluminum connectors for solar ground mount

Aluminum pipe sleeve connection for φ76 pipe

To connect different types of bracing to φ76 pipes at any site.

Item NO.:
AS-VPS-01
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
Anodized

Inquiry now

Product Detail

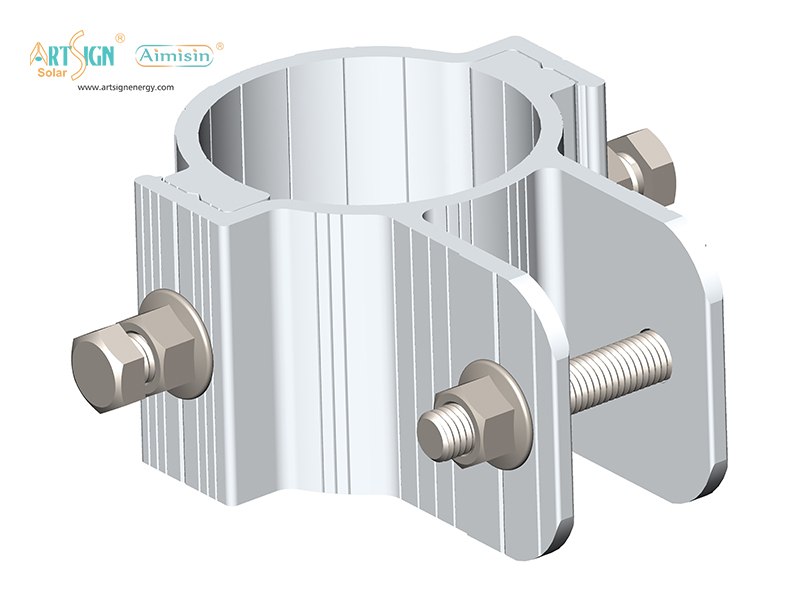

Aluminum pipe sleeve connection for φ76 pipe

Design Features
— Easy to hangle, just need to fasten three bolts.
— Able to connect other bracing to any site of φ76 pipe flexibly.

Mode Number	AS-VPS-01	Brand Name	ART SIGN
Specs	For φ76 pipe	Material	Aluminum 6005-T5
Application	solar panel ground mounting system	Packing	carton
Keyword	76 diamter solar pipe connection	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

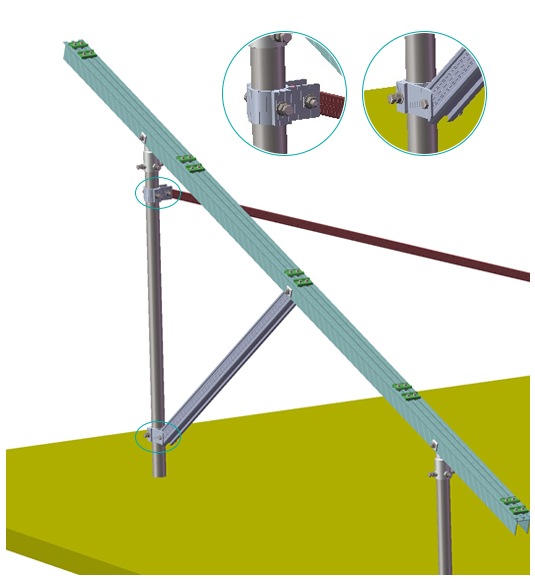

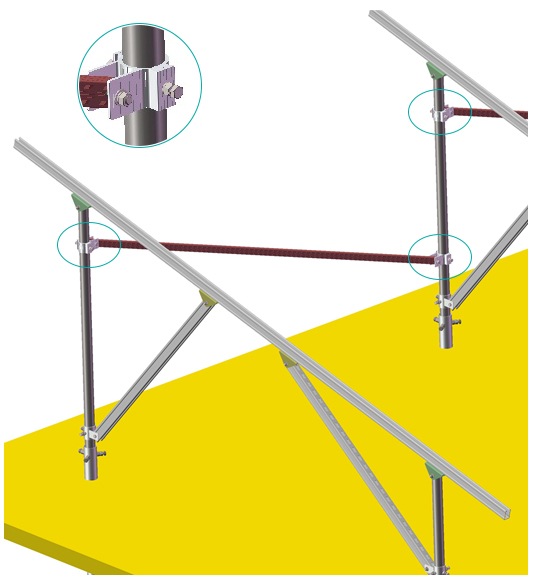

To connect back bracing to pipe supports	To connect side bracing to pipe support and sloped beam

ART SIGN solar mounting related accessories


AS-BPS-01	AS-BPS-02	AS-VPS-01	AS-VPS-02

AS-VPS-05	AS-SPS-A	AS-SPS-B
