Solar panel wire clips

English

AS-CL-01

AS-CL-02

AS-CL-02B

AS-CL-03

AS-CL-07

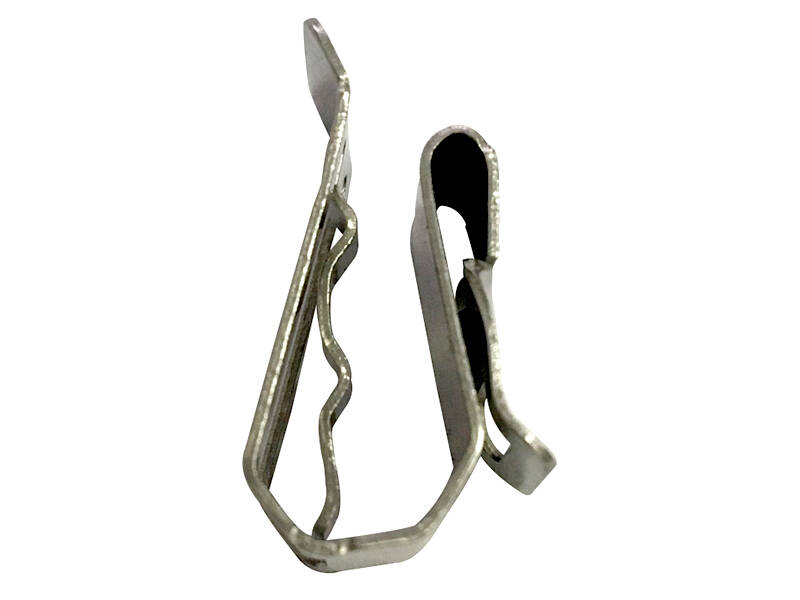

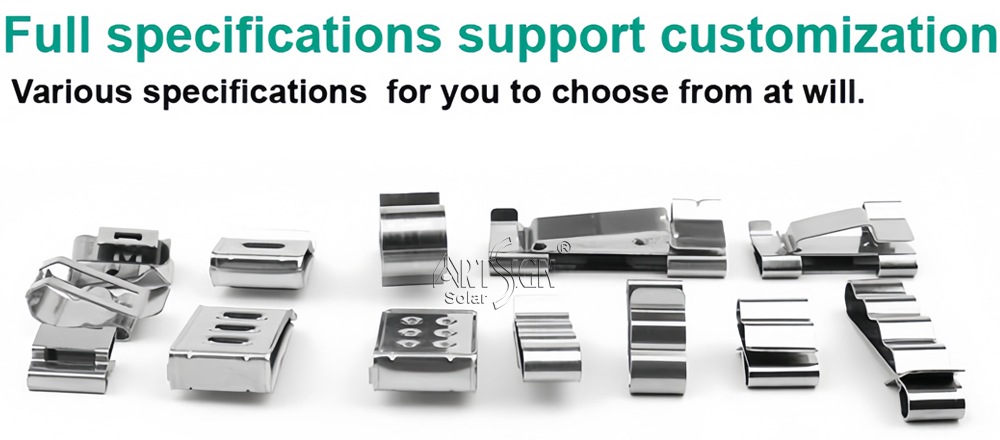

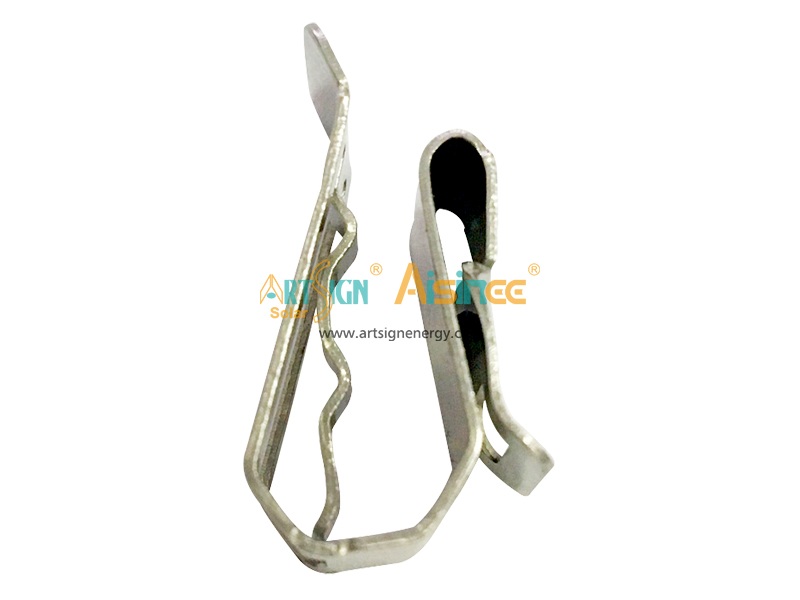

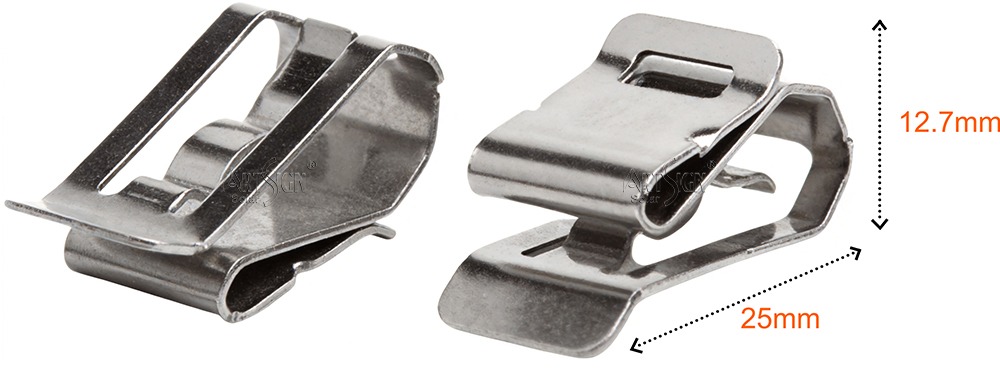

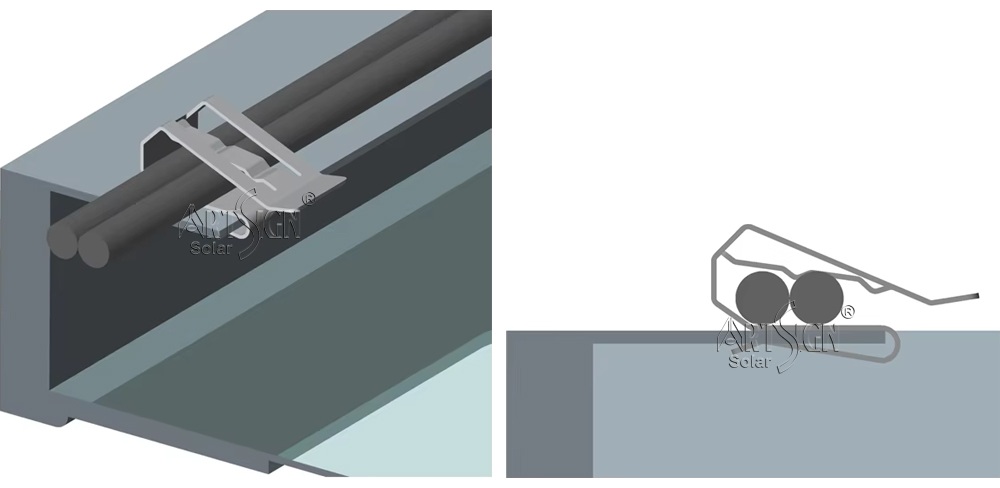

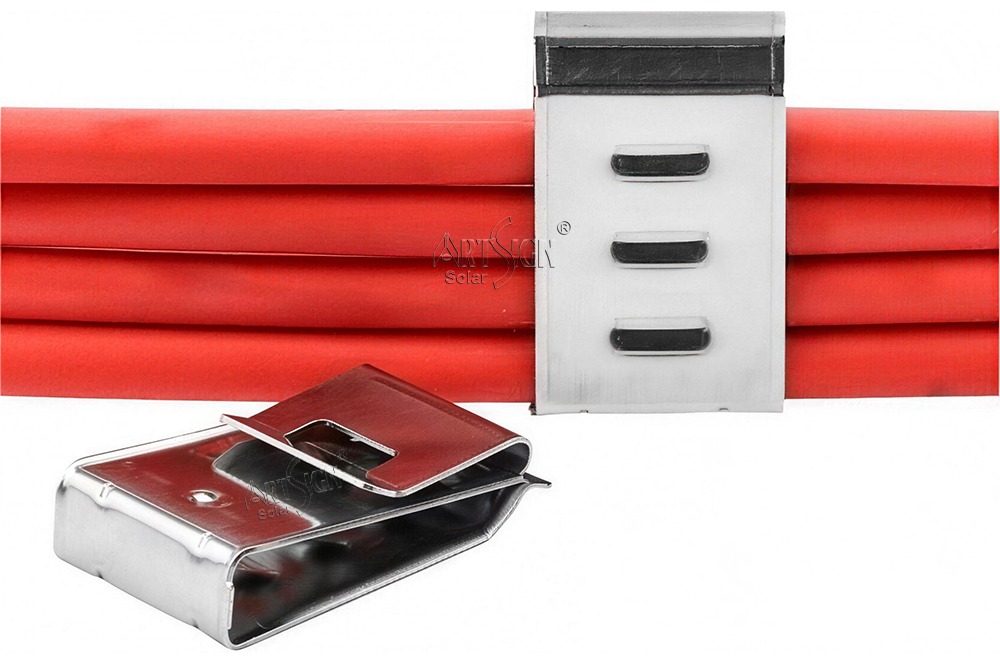

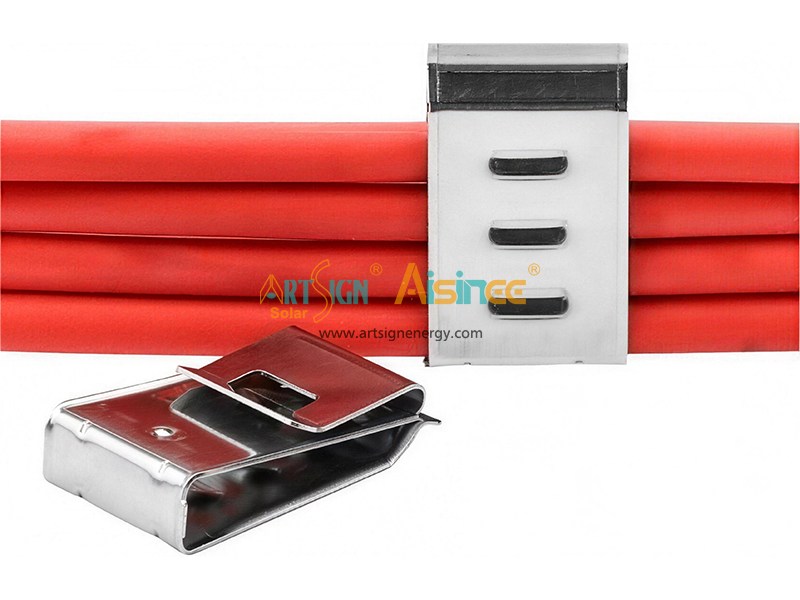

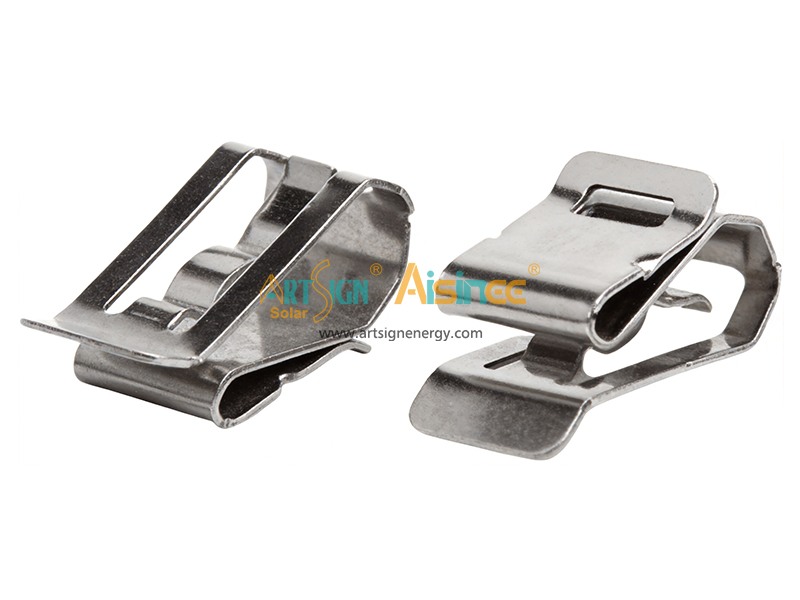

ART SIGN can supply various types of solar panel wire clips, for 4/6mm cable, 1 PV cable, 2PV cables, 3PV cables or on the aluminum profile directly.

Item NO.:
AS-CL-02B
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

solar panel wire clips

Category : Cable Clip

Place of Origin	Xiamen China (mainland)	Brand Name	ART SIGN
Mode Number	AS-CL-02B	Specs	L17W10H22mm
Material	Aluminum 6005-T5	Application	solar panel roof mounting system
Surface treament	Anodized above 10um	Packing	wooden case
Color	Silver	Certificate	ISO/CE/SGS/AS/NZS/JIS/ASCE7-10
Keyword	solar pv profile, aluminum profile	Service life:	25 years
Quality Warranty	20 years

Selling Units

per meter/ per pcs

Package Type

Inner packing:wrapping paper/film; Outer packing:wooden case

Lead Time：

Quantity(Sets)	1 - 1000	1001 - 5000	5001 - 10000	>10000
Est. Time(days)	15	20	25	To be negotiated

solar panel wire clips

ART SIGN can supply various types of solar panel wire clips, for 4/6mm cable, 1 PV cable, 2PV cables, 3PV cables or on the aluminum profile directly.
