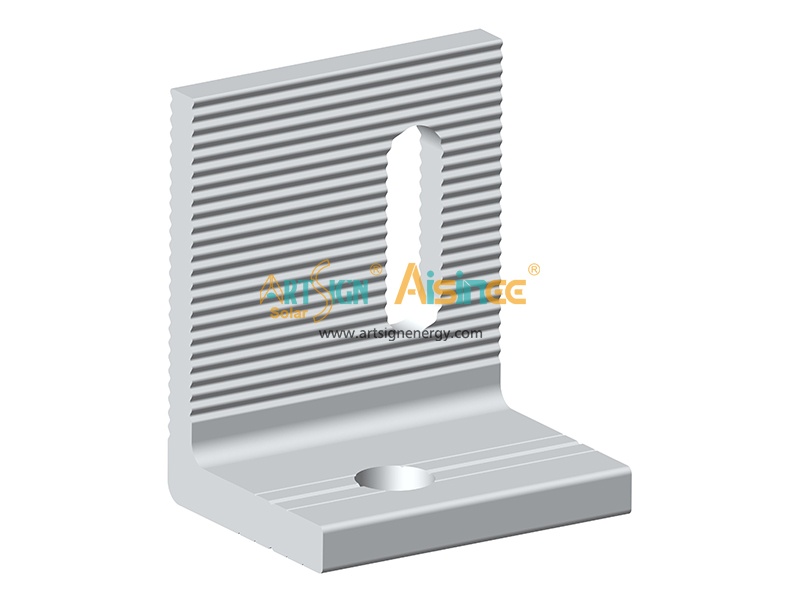

Solar PV module mounting aluminum 6005-T5 L foot AS-A-A475 |Art Sign
Design Features
— L foot is normally used as base of solar roof mounting on metal roof.
— For the demands of heat-evacuation under solar panels, there is a wide range of height for choice includes 80-150mm.
|
Mode Number |
AS-A-A475 |
Brand Name |
ART SIGN |
|
Specs |
L=50mm |
Material |
Aluminum 6005-T5 |
|
Application |
Metal / Tin Roof |

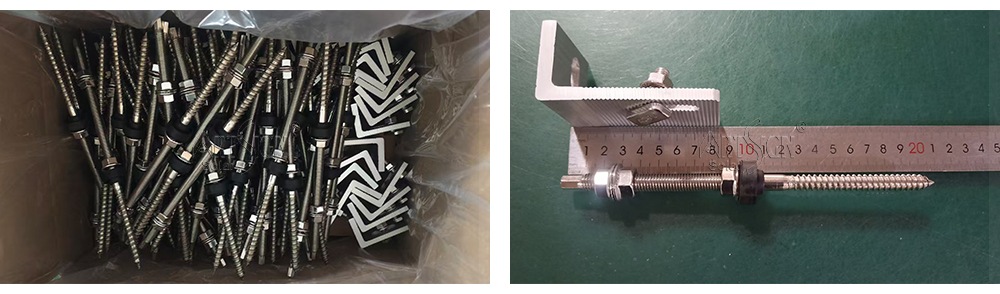

Packing |
Carton |
|
Keyword |
Chinese solar mounting L foot Manufacturer |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |
 |
 |
|
59mm height solar mounting L foot |

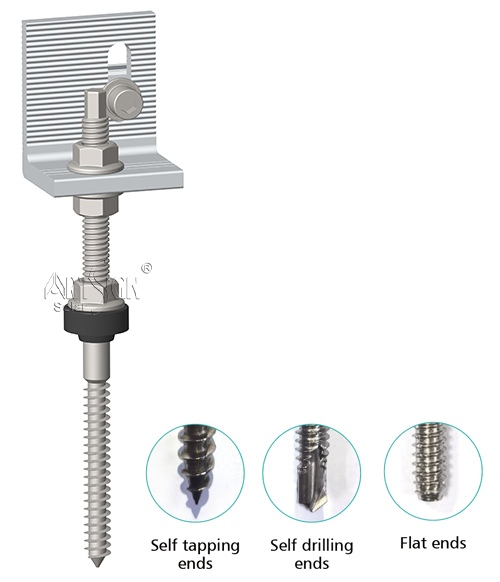

Compatible with hanger bolt, And hanger bolt has 3 kinds of tail for option according to different roof beam. |

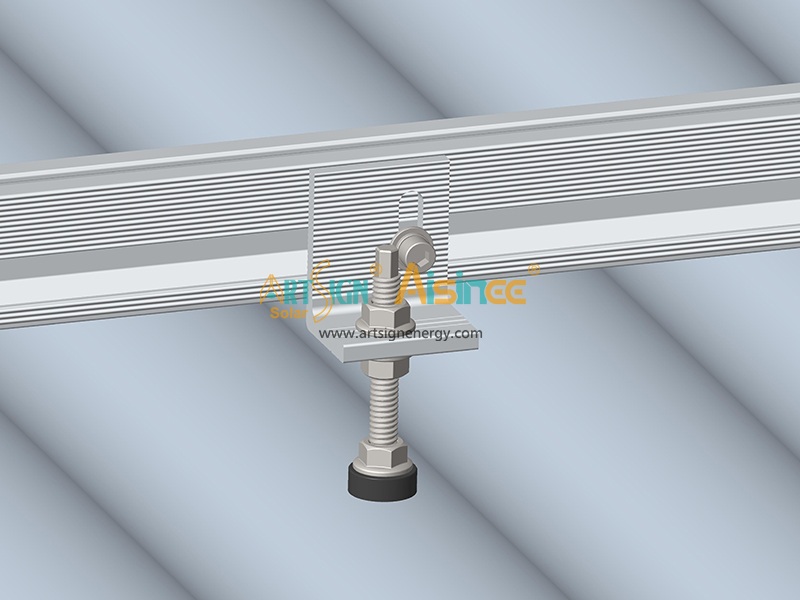

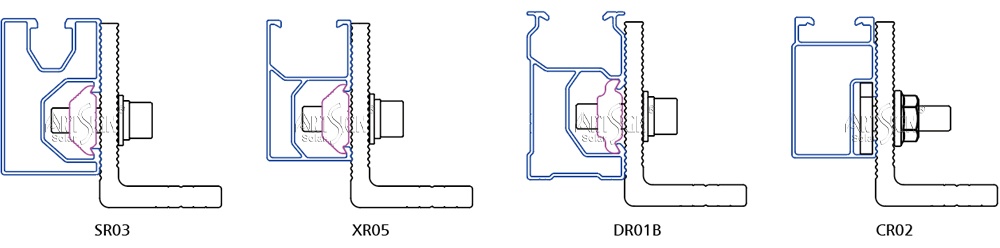

Compatible with different rails

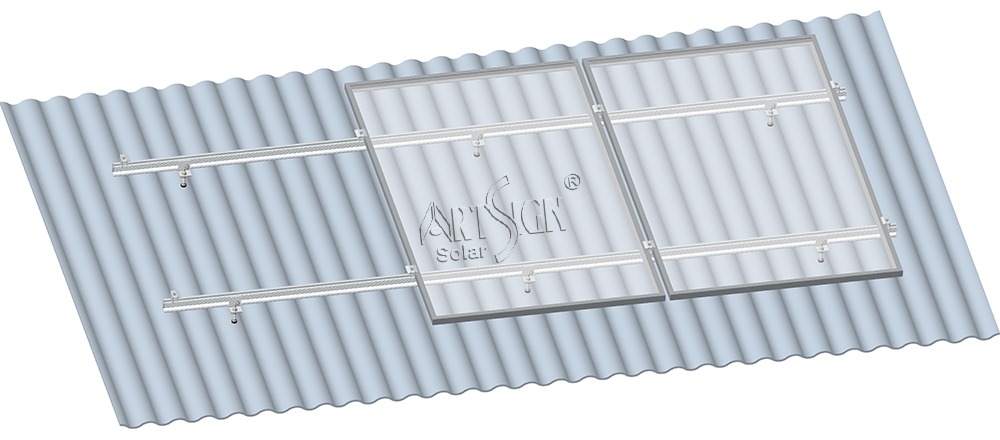

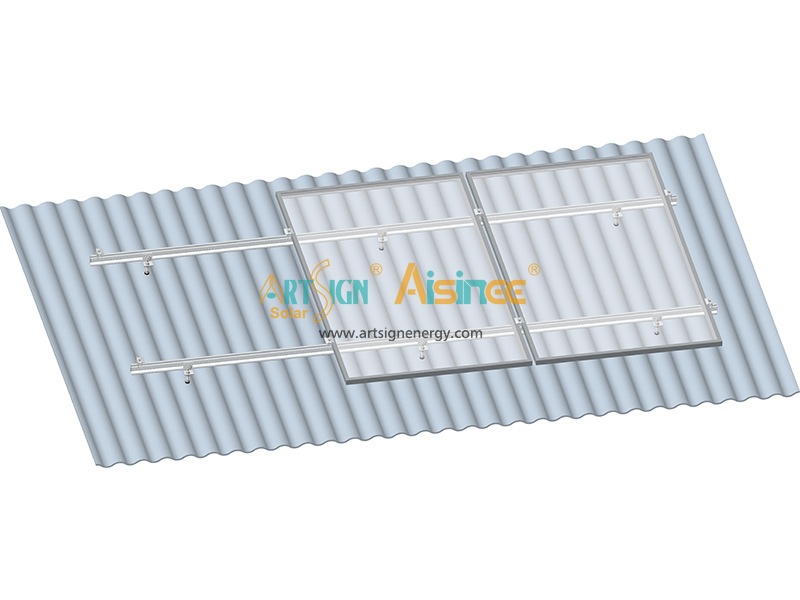

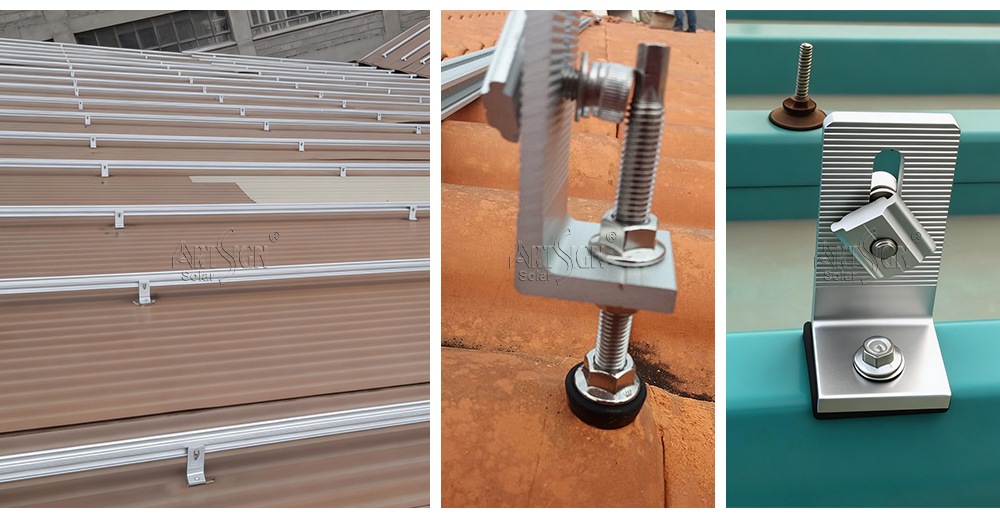

The overview after installed the L foot and Rails on the rooftop

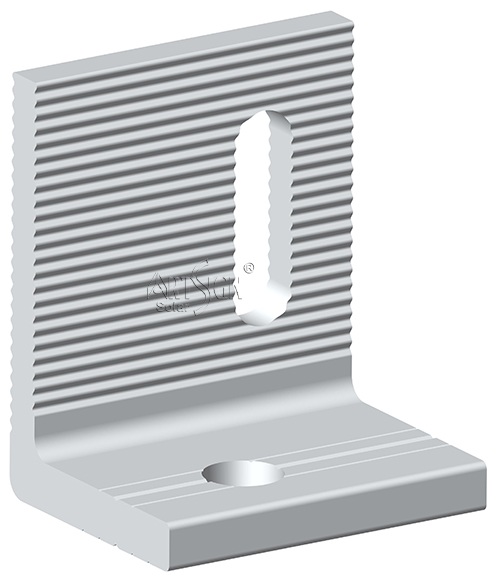

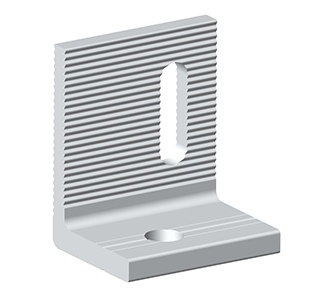

More optional L feet for your checking
 |
 |
 |
 |
|
AS-RH-02W Black color can be chosen |

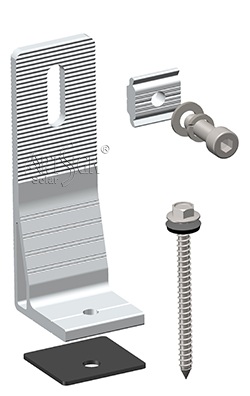

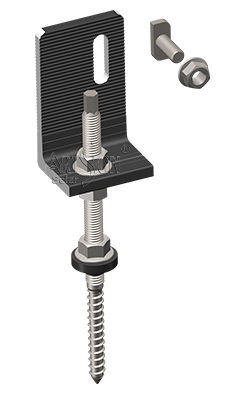

AS-RH-105 EPDM+ Self Tapping Screws+ T bolt |

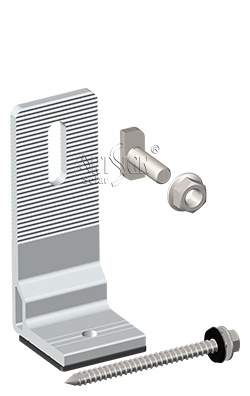

AS-RH-125 EPDM + Self tapping screws to allow it be waterproof |

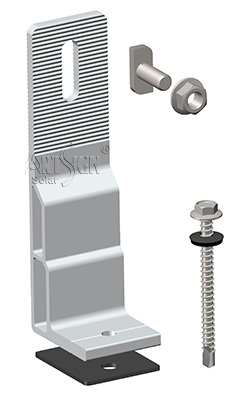

AS-RH-150 Compatible with Self Drilling Screws |
Click to see more L feet.
 |
 |
 |
| AS-RH-02 |
AS-RH-105 |
AS-RH-125 |
 |
 |
 |
|
AS-RH-150 |
AS-RH-103 |
AS-RH-123 |
 |
 |
 |
|
AS-RH-19 |
AS-A-A111 |
AS-A-A124 |
 |
 |
|
|
AS-A-A473 |
AS-A-A475 |
|
FAQ1: What certifications do your products have?
A: Xiamen Art Sign holds global leading certifications to ensure compliance in major markets: TUV Rheinland (Germany/Global) CE (Europe) ISO 9001 (Quality Management) AS/NZS 1170 (Australia/New Zealand) All test reports and certificates are available for download or upon request.
FAQ2: How do you ensure corrosion resistance in coastal areas?
A: We use premium Anodized Aluminum 6005-T5 with an anodizing layer thickness of 10-15μm. Why it matters: Unlike standard powder coating, our anodized surface offers superior resistance to salt spray and UV radiation, making it ideal for coastal and harsh industrial environments. Tested to withstand wind speeds up to 60 m/s and snow loads of 1.4 kN/m².
FAQ3: What is your terms of payment?
A: Payment s 1000 USD, 100% in advance. Payment 1000 USD, 30% T/T in advance, balancebefore shipment.For more request, we can discuss and make a payment plan according to both of our financialsituation.
FAQ4: How long is your delivery time?
A: Generally, for LCL goods is 7-15 working days, FCL can be 20-35 working days. For more, it shouldbe negotiated. We are verified with ISO 9001, so our production management system is completed.
FAQ5: What information is needed for a customized mounting design?
A: We need roof details, panel size, wind load, and project location for evaluation.
FAQ6: Can the L foot adjust the height for the uneven rooftop?
A: Yes. They allow height adjustment on each fixing point to keep panels level on uneven roofs.
FAQ7: How is the L Foot fixed to the roof?
A: It can be installed with hanger bolts, screws, or other fasteners based on roof conditions.
FAQ8: Can L Feet fit different solar rails?
A: Yes. Most L Feet are designed with standard slots for common solar mounting rails.
