Solar panel pv bracket flat roof mounting U beam triangle kit

U beam Triangle kit is suitable for metal tin roof,concrete flat roof and open field, meanwhile the degree can be fixed or adjustable from 10-15,15-30 degree, also can be railless design.
  • Item NO.:

    AS-FR-UBTK
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

Solar panel pv bracket flat roof mounting U beam triangle kit


Design Features

— Pre-assembled triangle kit makes easier installation
— Fixed customized degree or adjustable (10-15,15-30°) degree design
— With rail or without rail solution is alternative
— Optional foundation type anchor bolt or ballasted
— 10um thk anodized aluminum structures, stainless steel 304 bolts and nuts
— Australia AS/NZS 1170.2 - Wind load report, SGS report-Chemical & Physical test

Mode Number

  AS-FR-UBTK

Brand Name

  ART SIGN
Specs

  U57.1 beam W38.8xH57.1mm, U43.1 base W43.8xH43.1mm

Material

  Aluminum 6005-T5

Application
   solar pv flat roof mounting systems Packing
  Wooden case
Keyword
  China factory oem solar panel flat roof mounting kits Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details


ART SIGN Railless U shape triangle kit

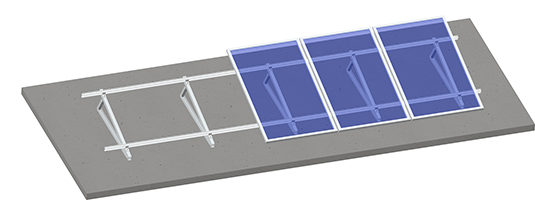

ART SIGN U shape triangle kit with rail solution

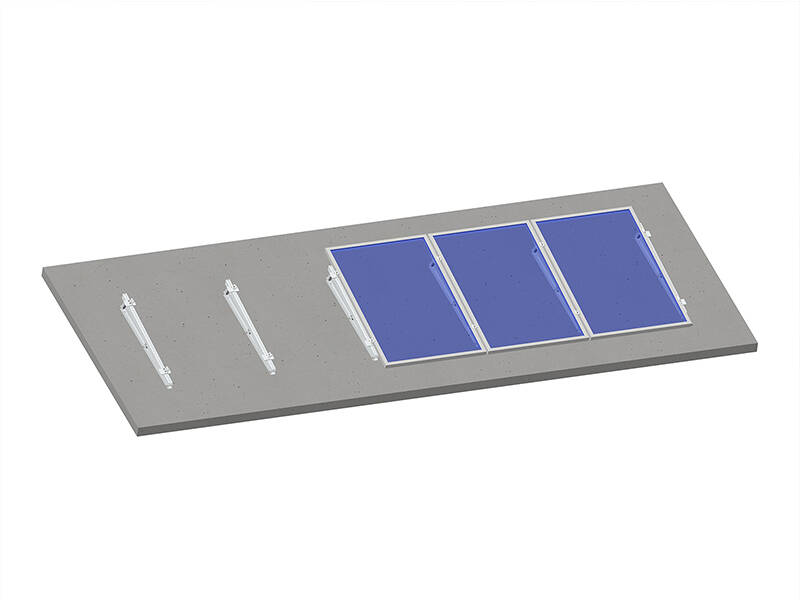

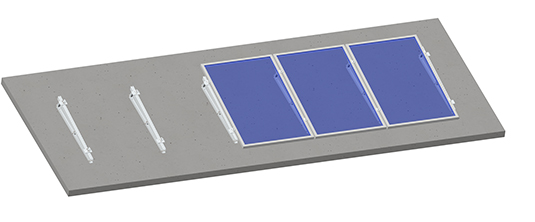

Railless U shape triangle kit

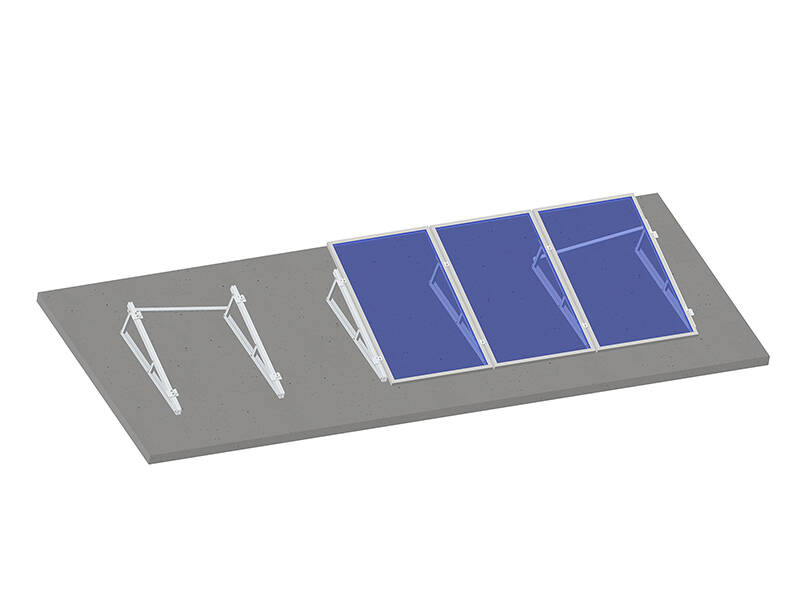

U shape triangle kit with rail solution


U Beam Triangle Kit design

ART SIGN Fixed triangle kit
ART SIGN Adjustable triangle kit

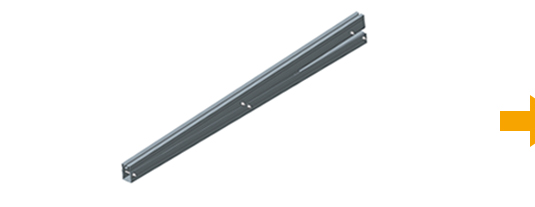

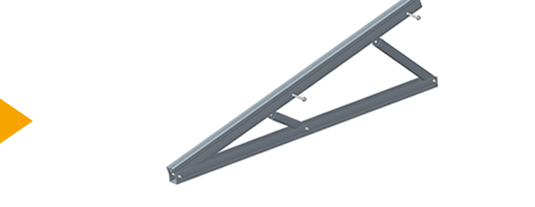

① Fixed triangle kit
② Adjustable triangle kit


Three fixation methods

ART SIGN Ballasted plate for flat roof
ART SIGN Anchor bolt fixation for flat roof

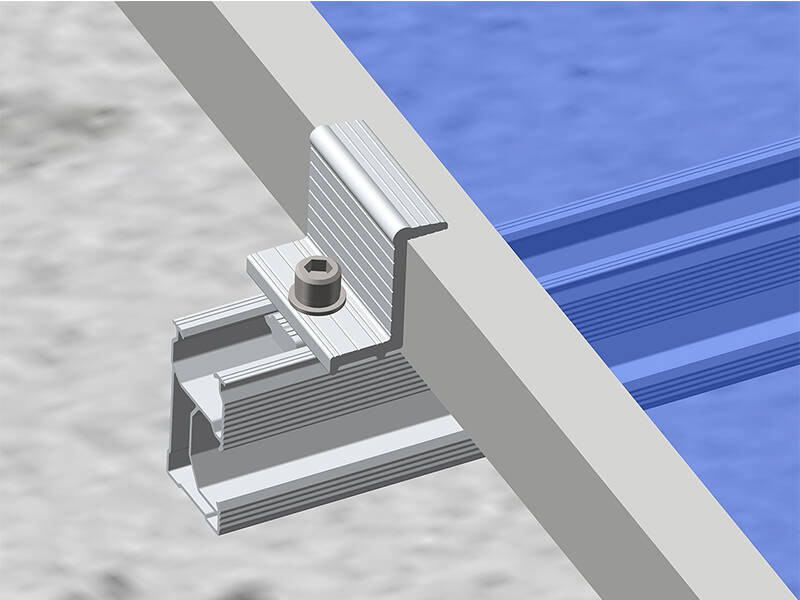

ART SIGN Aluminum fixing plate for metal roof
① Ballasted plate for flat roof
② Anchor bolt fixation for flat roof
③ Aluminum fixing plate for metal roof


Installation step


ART SIGN U beam installation step


ART SIGN solar mounting package

ART SIGN Each pre-assembled kit Stretch Film
ART SIGN Packing into wooden pallet
Each pre-assembled kit Stretch Film
Packing into wooden pallet


ART SIGN U beam case study



ART SIGN solar mounting related accessories

Click to see more Flat roof mount.

ART SIGN Angle Bar Triangle Kit - Fixed Type
ART SIGN Angle Bar Triangle Kit - Adjustable Type
Angle Bar Triangle Kit - Fixed Type
Angle Bar Triangle Kit - Adjustable Type
ART SIGN U Beam Triangle Kit - Fixed Type
ART SIGN U Beam Triangle Kit - Adjustable Type
U Beam Triangle Kit - Fixed Type
U Beam Triangle Kit - Adjustable Type
ART SIGN Foldable Triangle Kit

Foldable Triangle Kit



Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
Solar panel flat roof mounting system
Solar panel flat roof mounting system - adjustable tilt kit
solar panel flat roof mounting system-adjustable tilt kit which can be installed on concrete flat roof and metal roof, meanwhile the degree can be fixed or adjustable from 10-15, 15-30,30-60 degree.
solar mounts for flat roofs
Solar mounts for flat roofs - Angle bar triangle kit
solar mounts for flat roofs- Angle bar triangle kit which is convenient to install with pre-assembled,can be installed on concrete flat roof , meanwhile the degree can be fixed or adjustable from 10-30, 30-60 degree.
Flat roof solar mount for solar panel
Flat roof solar mounting - C type steel ballasted roof mounting system
Flat roof solar mounting - C type steel ballasted roof mounting system which can be installed on concrete flat roof,non-penetrating the roof,pre-assembled structure will make the installation easier and more flexible,customized tilt angle.
east-west solar mounting system
ART SIGN Solar Roof Racking Ballasting Mounting Frame East - West Mounting System
East-west flat roof solar mounting is a growing trend on flat commercial and industrial rooftop mounting. By placing modules back-to-back, clearance for module shading can be avoided, more modules can be placed in the same area, and can increase the power production.
solar panel flat roof mounting structure
East-West solar flat roof mounting system
East-West solar flat roof mounting system which can be installed on concrete flat roof and metal roof, meanwhile the degree can be fixed 10 degree or another other customized request.
support for solar panel on roofs
Solar panel flat roof mounting system - adjustable tilt kit raised clearance height
solar panel flat roof mounting system-adjustable tilt kit which can be installed on concrete flat roof and metal roof, meanwhile the degree can be fixed or adjustable from 10-15, 15-30,30-60 degree.
adjustable tilt flat roof solar racking
FLAT ROOF - Adjustable tilt solar mount bracket with foldable tilt legs
solar mounts for flat roofs - Adjustable tilt solar mount bracket with foldable tilt legs which is convenient to install with pre-assembled, can be installed on concrete flat roof, meanwhile the degree can be fixed or adjustable from 10-30, 30-60 degree.
adjustable tilt flat roof solar racking
C41x41 steel triangle kit
C41x41 steel triangle kit which is convenient to install with pre-assembled, can be installed on concrete flat roof.
solar tripod bracket
New design PV panel mounting structures solar triangle steel brackets
Used for tin roof/flat roof solar mounting brackets, steel material can be more stronger.
E rail splice for solar
E rail splice for solar
E rail splice connect art sign aluminum rail AS-R-01H,AS-R-01B
profile solar panel
Solar panel roof mounting aluminum SR Rails SR04#
Silver or black anodized aluminum rail AS-A-SR04 (W29xH45mm) for fixing solar panels, are designed for most PV roof mounting systems, length can be customized per requirement. And other sizes of SR rails are also available.
rack for flat roof mount for solar
# A232 Fixed 10° Rear feet aluminum solar flat roof rack system
Rear feet is part of 4# flat roof racking system with tilt 10°.
Solar mounting rail splice kit
Solar mounting rail splice kit ​DRS 1#
Solar mounting rail splice kit AS-DRS-01 to connect the rails AS-DR-01A, AS-DR-01B, AS-DR-03
aluminum clamp for solar system
Universal aluminum PV module solar panel end clamps with anodizing treatment
Anodized aluminum solar panel end clamps for T nut series rails is with 20 years warranty, preassembly with bolt and nut, to be used for framed solar panels 30-50mm thickness.
ground solar system bracket beam slider
Solar ground system aluminum beam slider AS-AL-BS-155
Solar ground system aluminum beam slider AS-AL-BS-155 is suitable for aluminum solar racking system, with 20 years warranty, material is Anodized aluminum 6005-T5. It is used as connection between solar strucutre beam and bracing.
solar tripod bracket
New design PV panel mounting structures solar triangle steel brackets
Used for tin roof/flat roof solar mounting brackets, steel material can be more stronger.
iron solar ground mount
Galvanized dacromet iron steel photovoltaic ground mounted solar racking systems structure AS-SLC-02
Galvanized dacromet iron steel photovoltaic ground mounted solar racking systems structure AS-SLC-02 is used for solar pv ground mounting system. Material is carbon steel Q235 with galvanization or dacromet treatment, it's with nice performance in antirust and corrosion resistance.
mid clamps for solar panel mounting
China manufacturer adjustable aluminum solar panel mount mid clamp
Solar panel mid clamp is fixed between 2 panels. It is adjustable, more easy installation.
Anodized aluminum  mid clamp for solar panel mounting frame
Anodized aluminum mid clamp for solar panel mounting frame
Anodized aluminum  mid clamp for solar panel mounting frame, with 20 years warranty, material is Anodized aluminum 6005-T5 and stainless steel 304. Products are preassembly, easy to be install to save labour costs and installation time.
xiamen solar mounting
Xiamen structure factory solar panel ground mounting support system open base
solar ground mount system aluminum components open base AS-OB3 is with 20 years warranty, the  material is Anodized aluminum 6005-T5. It is used to reinforce the structure to against strong wind speed. Products are preassembly, easy to be install to save labour costs and installation time. ART SIGN can do OEM items when you offer us sampl1
aluminum connectors for solar ground mount
Aluminum connectors components pipe sleeve for solar panel ground mounting AS-BPS-02
Aluminum connectors piple sleeve AS-BPS-02 is used to connect cross pipe, front feet and back feet. It's widely used in solar panel ground mounting.The material is Anodized aluminum 6005-T5. Products are preassembly, easy to be install to save labour costs and installation time. ArtSign solar is top China solar ground mount manufacturers, to b1
Solar PV panels mounting profile railing TR65 rails1#
Solar PV panels mounting profile railing TR65 rails1#
Solar PV panels mounting profile railing TR65 rails1# - TR series T65 rail 01# which is most suitable for solar panel roof mount while has various size of profile for option, such as use for solar panel roof mounting aluminum rail , PV solar panels and so on ,different size of aluminum rail is suitable for different strength request.
bonding jumper solar
Solar grounding copper wire bonding jumper
Photovoltaic ground bonding jumper are used to establish electrical connections between overlapping tracks, ensuring that the entire solar system can be safely grounded.
