SUS304 Solar Roof Hook Anti-Corrosion OEM Supplier |Art Sign
Design Features
—— Material: Made of 304 stainless steel, suitable for outdoor coastal and high-humidity areas.
—— Fast Installation: Supplied with pre-assembled bolts and nuts to reduce on-site labor time.
—— OEM Customization: Custom dimensions, thickness, and hole patterns available based on drawings or samples.
|
Mode Number |
AS-ARH-44 |
Brand Name |
ART SIGN |
| Specs |
L81.5mm x H30mm |
Material |
Stainless steel 304 |
| Application | Trapezoidal / Corrugated / Fiber Cement Roofs | Packing |
Carton and Plywood pallet |
| Keyword | China SUS304 Solar Hook Manufacturer | Certificate | ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
| Service Life | 25 years | Quality Warranty | 20 years |
 |
 |
|

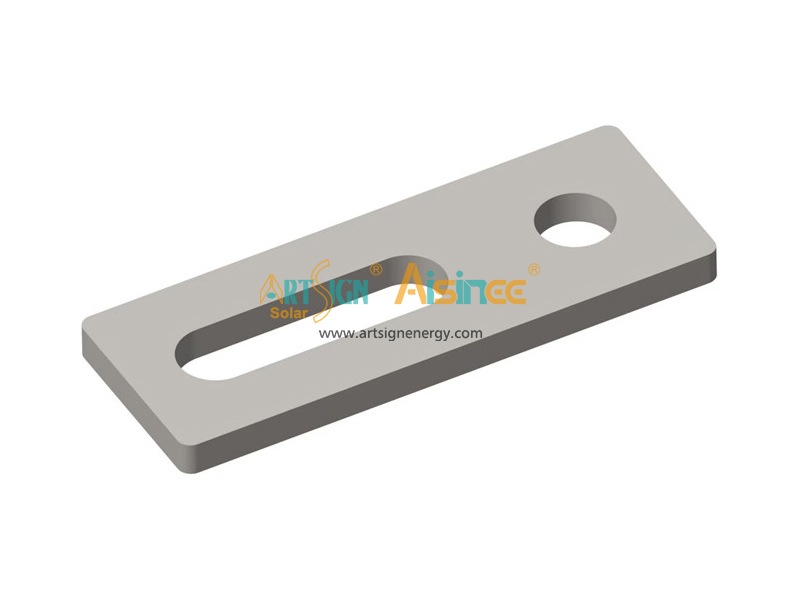

This solar mounting adapter plate is to be used with M10 hanger bolts, and then fasten to aluminum profile rails that support solar panels. It features a circular hole on one side for securing the hanger bolt and an elongated slot on the other side, which allows for flexible adjustments when installing the PV mounting profiles. |

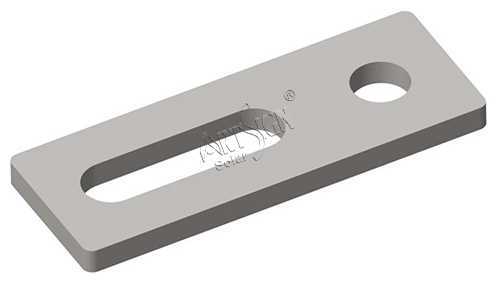

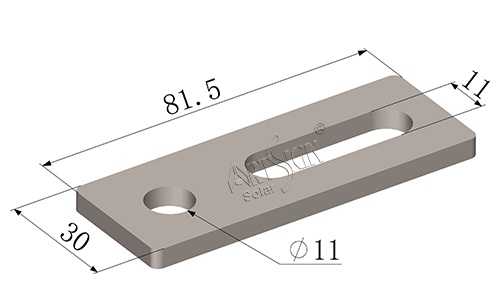

SUS304 Solar Adapter Plate Dimensions
• Sizes: 81.5 × 30 mm.
• Thickness: 5 mm.
• Material: Durable stainless steel 304 to withstand outdoor weathering and corrosion.
|
 |
 |
|

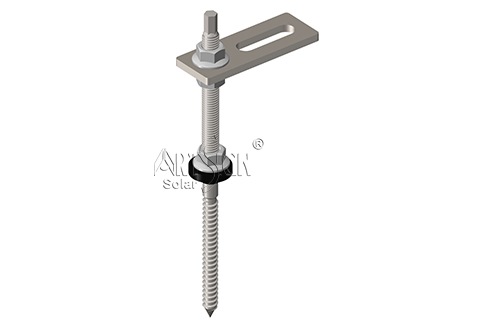

Pre-assembled Solar hook with M10 Hanger Bolt (Available Lengths: 200mm / 250mm / Custom Sizes with EPDM Rubber Washer)
Suitable for trapezoidal / corrugated roofs
|

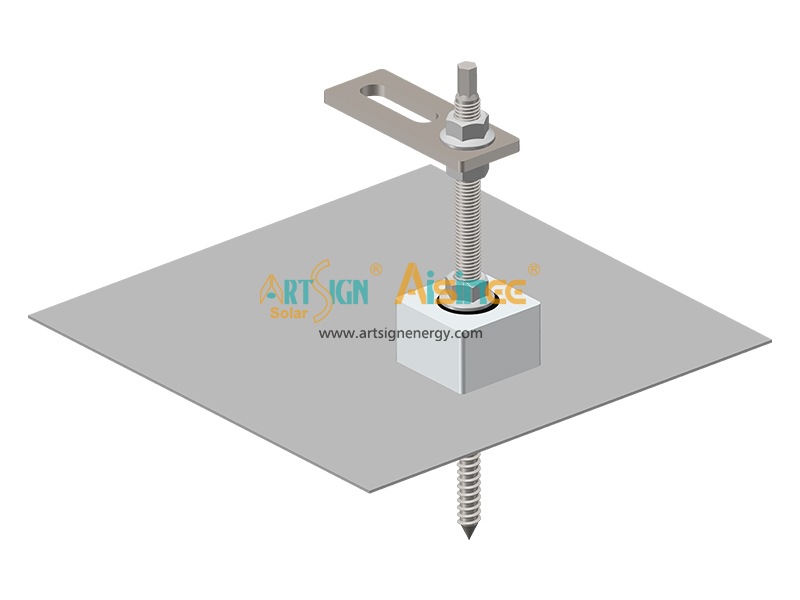

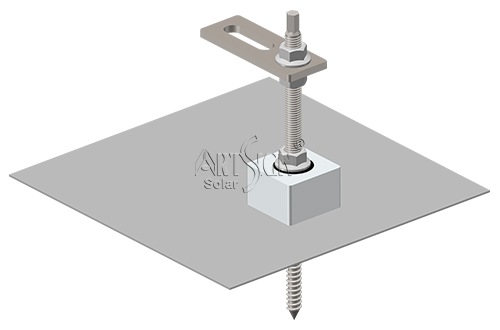

Comes with an aluminum adapter plate to ensure seamless compatibility with fiber cement roofing systems. |
 |
 |
|

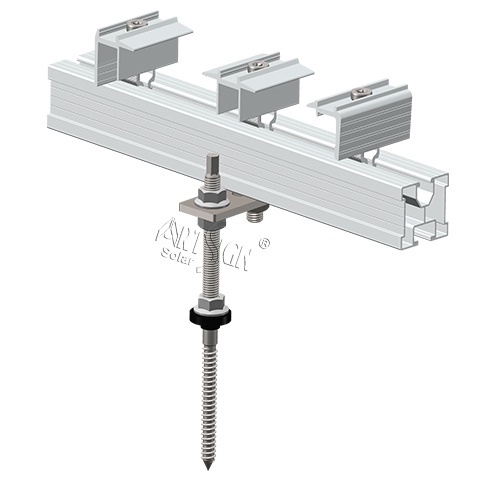

Fast Rail Connection via T-Nut & Bolt for Standard SR Solar Rail Profiles. |

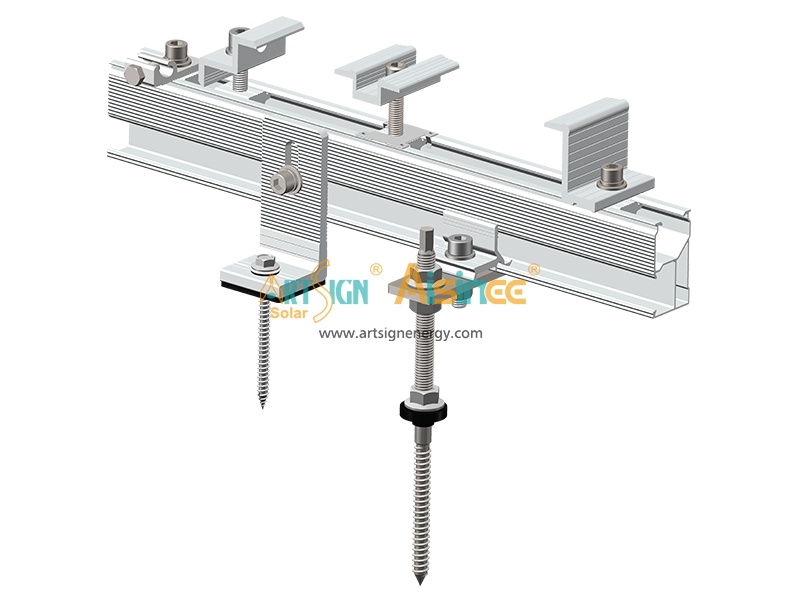

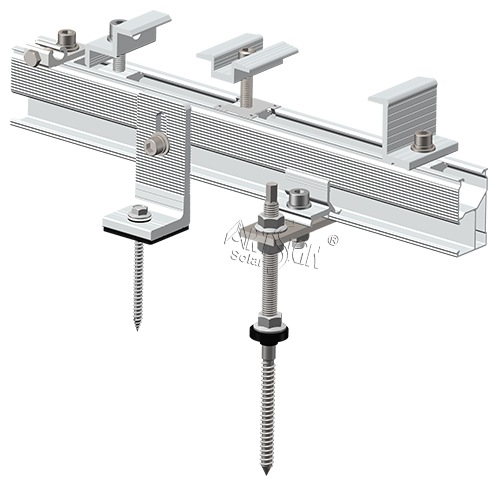

Universal Mounting Solution Compatible with D-Nut, X-Nut, and Custom Rail Connectors. |
Click to see more stainless steel roof hooks.
FAQ1: What roof types are these SUS304 mounting adapter plates suitable for?
A: They are mainly used on corrugated metal roofs, trapezoidal sheet roofs, and fiber cement roofs. The adapter plate connects the M10 hanger bolt to the solar rail, allowing height adjustment for uneven roof surfaces.
FAQ2: Which solar rails and nuts are compatible with this adapter plate?
A: The Ø11mm slot fits standard M10 bolts. It works with Artsign SR solar rails using T-nuts, as well as D-nut rail and X-nut rai using rail connectors.
FAQ3: Does the hanger bolt assembly include waterproofing accessories?
A: Yes. Each hanger bolt set comes pre-assembled with a heavy-duty EPDM rubber washer and three flange nuts to ensure a watertight seal against rain leakages.
FAQ4: Do you support OEM customization for specific project requirements?
A: Yes, as a direct manufacturer, Artsign offers custom plate thickness, slot dimensions, hole sizes, and hanger bolt lengths (e.g., M10x200mm, M10x250mm, or M12 options) based on your technical drawings.
FAQ5: Why choose SUS304 solar roof hook plates for rooftop PV installations?
A: As a leading China stainless steel solar roof hook manufacturer, Artsign uses premium SUS304 and SUS316 grade steel. Our anti-corrosion stainless steel 304 / 316 solar roof hooks deliver superior resistance against rust, salt spray, and extreme weather, ensuring a 20 year warranty for coastal and high-humidity environments.
