Art Sign Anodized Aluminum Ibr Solar Mounting Brackets 19#
Design Features
— Solar mounting bracket 19# can be directly work with solar L feet to fix the solar rails and non-pentrating roof.
— It is light for transportation and easy for installation.
— Available in various finishes: mill, silver anodizing or black anodizing.
— It is light for transportation and easy for installation.
— Available in various finishes: mill, silver anodizing or black anodizing.
|
Mode Number |
AS-ARH-19 |
Brand Name |
ART SIGN |
|
Specs |
L60*W52.4*H56.5mm |
Material |
Aluminum 6005-T5 |
|
Application |
solar panel roof mounting system |
Packing |
Wooden Pallet |
|
Keyword |
Xiamen advantageous tin roof hook for solar manufacturer |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |
 |
 |
|

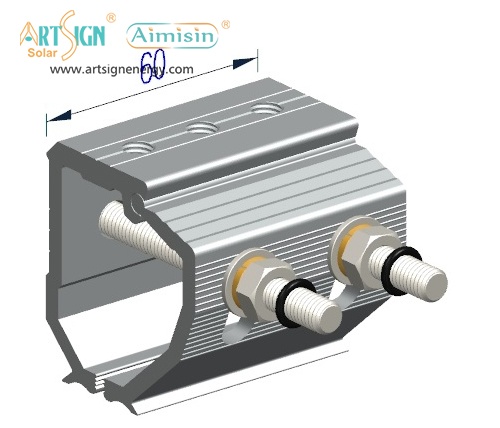

Spec: L=60 mm |

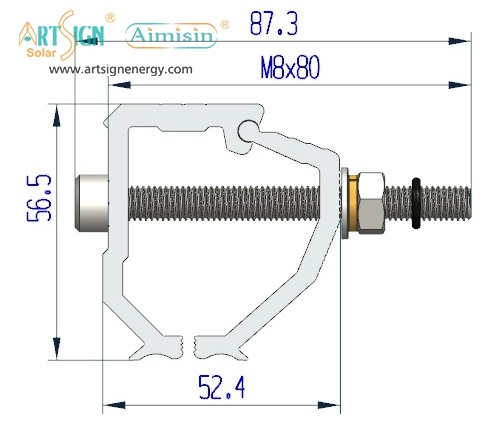

Spec: W52.4 * H56.5 mm |

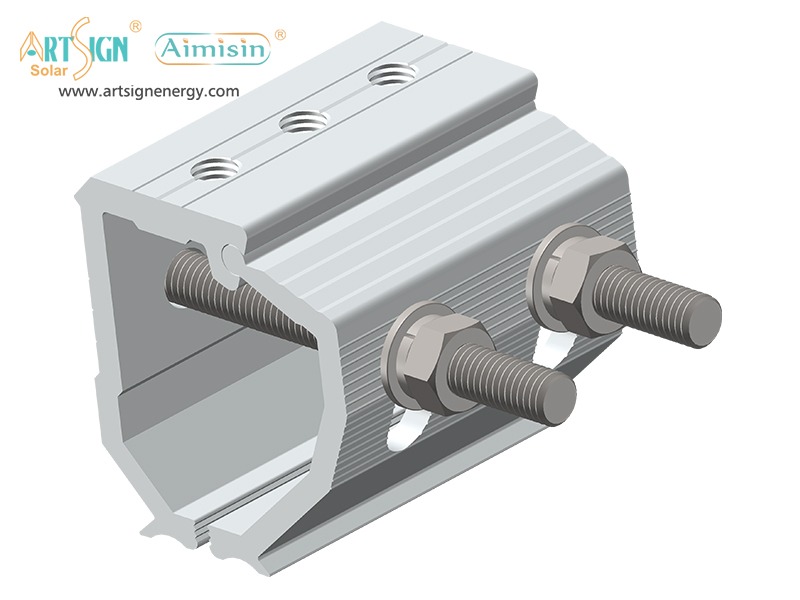

Overview of roof hook solar AS-ARH-19

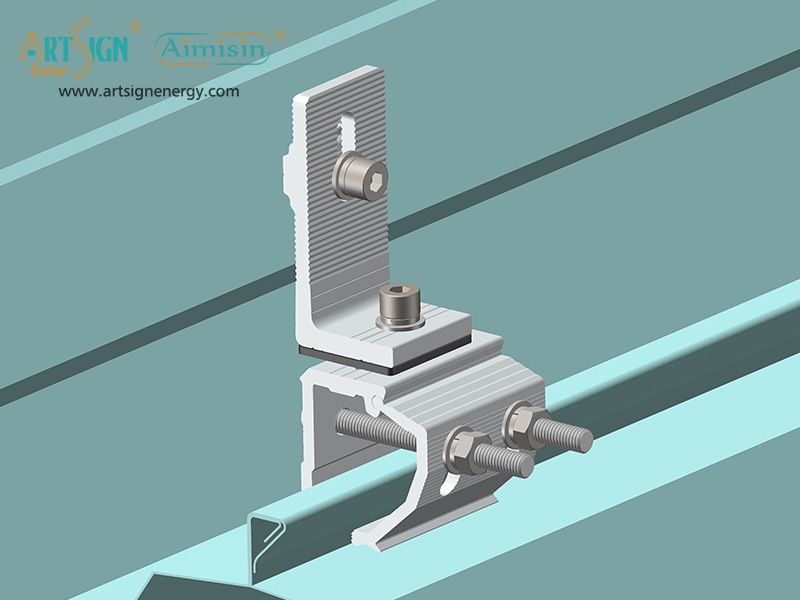

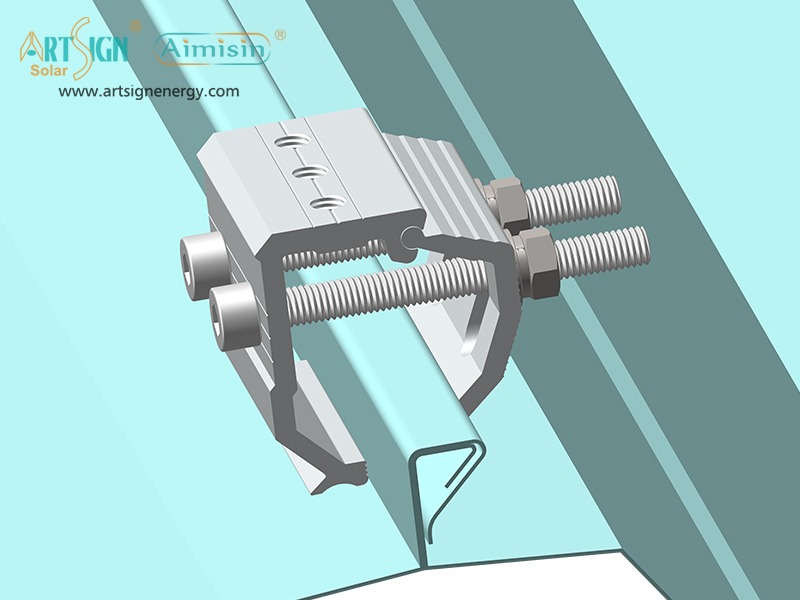

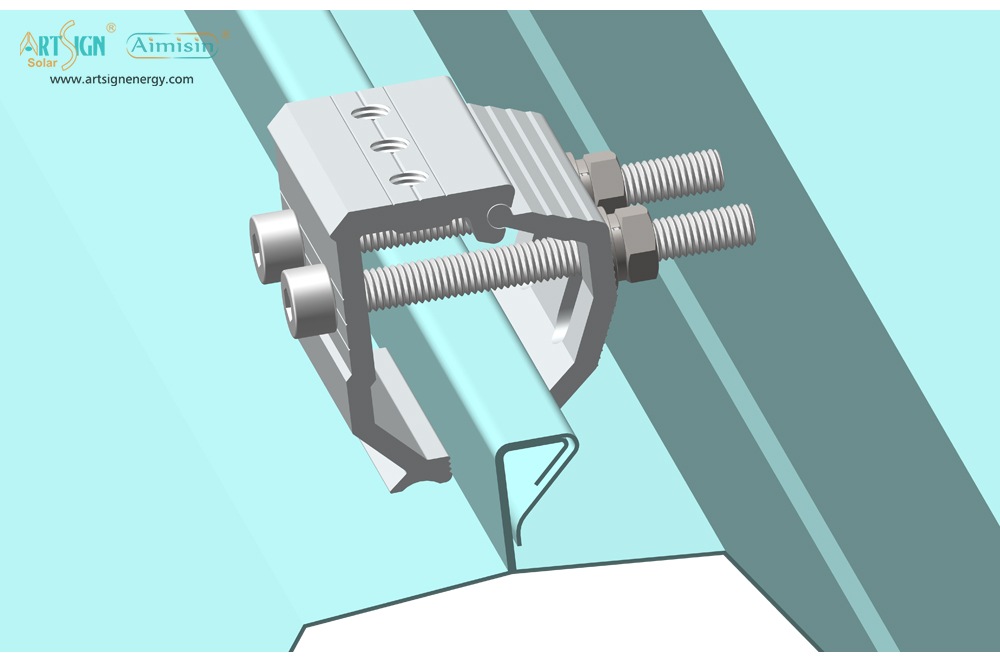

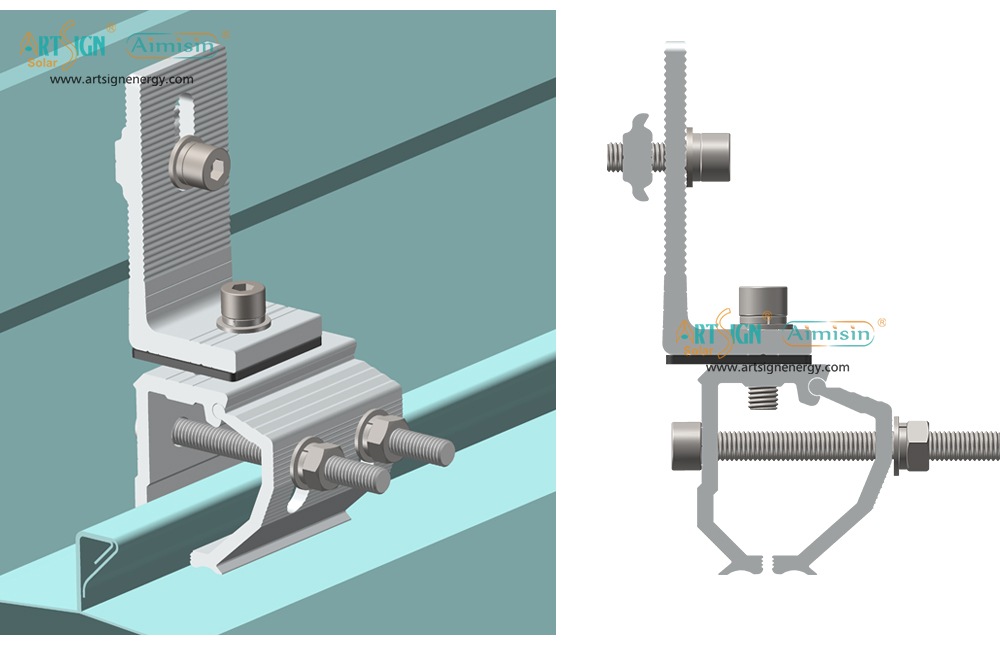

Solar L feet match roof mount bracket solar fixed on the metal roof
Package Type
· Inner packing: carton boxes
· Outer packing: wooden case/pallet
Customized cutting length to be suitable for different wind load and snow load requirements.
