Design Features

— Different heights to suite your installation way.
— Adjustable, quicker and easier installation for solar panels.

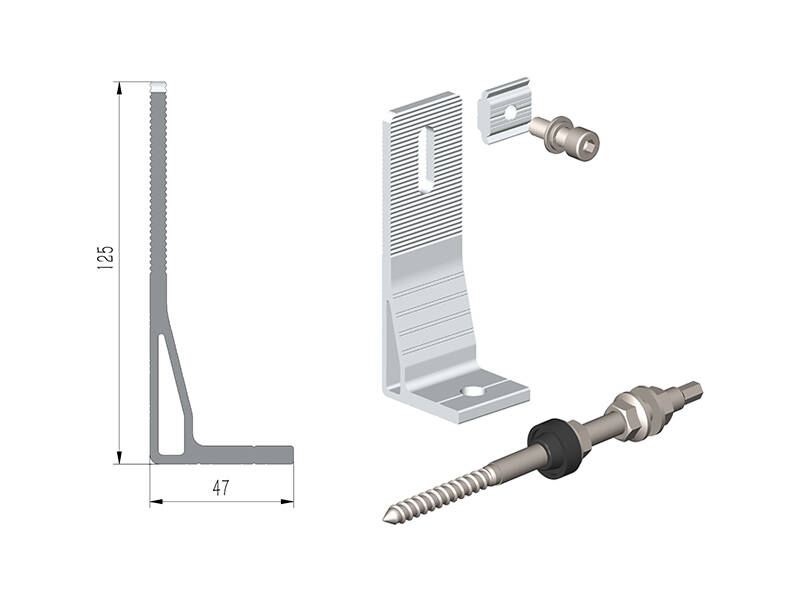

China Solar Panel Mounting Structure Exporter-AS-RH-125

Integrated Waterproofing (EPDM Pad): Equipped with a highly durable, anti-aging EPDM rubber pad that creates a flawless seal on metal roofs, effectively preventing any potential water leakage. Pre-assembled Efficiency: Optimized structure allows for rapid on-site deployment, saving massive labor costs and installation time.

Customized PV Mounting Structure for Solar Panel.

Solar L Bracket from Xiamen solar module mounting system manufacturer

Highly Adaptable Roof Solution: Perfectly tailored for various metal roofs, including corrugated, trapezoidal, standing seam, and tin roofs. Seamless System Compatibility: Works flawlessly with Artsign solar rails, mid/end clamps, hanger bolts, and self-tapping screws, offering a highly flexible, modular configuration for both residential and utility-scale PV projects.

We provide full customization for solar L-feet, tailored to your needs: height, width, thickness, hole sizes, surface finishes, and rubber pads for optimal roofing installation. Click to see more L Feet.

AS-RH-02	AS-RH-105	AS-RH-150
AS-RH-103	AS-RH-123	AS-RH-19
AS-A-A111	AS-A-A124	AS-A-A475

FAQ1: What is the primary function of a solar L-foot?

A: The L-foot acts as an anchor bracket connecting the solar rail to the roof structural attachments (such as hanger bolts or roof hooks), commonly used on corrugated or trapezoidal metal roofs.

FAQ2: Is an L-foot suitable for all roof types?

A: L-feet are most frequently used on metal roofs (trapezoidal, corrugated, or standing seam with clamps). They are generally not used directly on tile or shingle roofs without specific flashing kits.

FAQ3: How does an L-foot ensure waterproof sealing on a metal roof?

A: L-feet are installed with integrated EPDM rubber pads or washer gaskets beneath the base to create a tight, weather-proof seal around the penetration point, preventing leaks.

FAQ4: Can I adjust the height of the solar array using an L-foot?

A: Yes. Most solar L-feet feature vertical slotted holes that allow installers to adjust the rail height and level out uneven roof surfaces during installation.

FAQ5: What hardware is included with a typical solar L-foot set?

A: A standard L-foot assembly usually includes the aluminum L-bracket, an EPDM rubber pad, a stainless steel bolt with a T-nut (or rail clamp bolt), and a self-drilling screw or wood screw for roof fixation.

FAQ6: What is the typical load capacity of a solar L-foot?

A: Load capacity varies by manufacturer and design, but quality aluminum L-feet are engineered and tested to withstand high uplift and lateral forces, fully meeting international building code standards for wind and snow loads.
