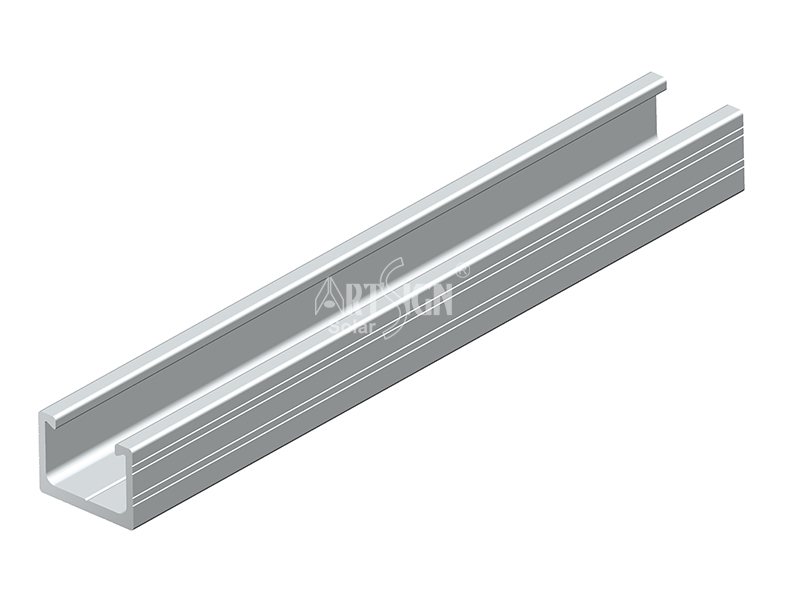

Factory Outlet Aluminum Solar Mini U Shaped Rail with Screws and EPDM PV Mounting System |Art Sign

Factory Outlet Aluminum Solar Mini U Shaped Rail with Screws and EPDM PV Mounting System |Art Sign

Solar panels are fix directly on Mini rail aluminum roof bracket.

Item NO.:
AS-DR-07B
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

Factory Outlet Aluminum Solar Mini U Shaped Rail with Screws and EPDM PV Mounting System |Art Sign

Design Features:

— Square profile and rectangular profile to suite your installation way.
— Quicker and easier installation for solar mount.
— It is easy for transportation and installation. Rails are pre-cut in customized length, clamps are pre-assembled.

Mode Number	AS-DR-07B	Brand Name	ART SIGN
Specs	W27.9*H20.5mm	Material	Aluminum 6005-T5
Application	solar panel roof mounting system	Packing	wooden case
Keyword	Customize Railless solar racking	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

ART SIGIN aluminium rail solar AS-DR-07B

aluminium rail solar size

ART SIGIN aluminium rail solar AS-DR-07B

Customize the length you need Railless solar racking

ART SIGIN aluminium rail solar AS-DR-07B

Install horizontally according to the roof

ART SIGIN aluminium rail solar AS-DR-07B

Vertical installation according to the roof


Mating side clamp	Mating mid clamp

ART SIGN solar mounting system package

ART SIGN solar mounting system AS-DR-07B package

Mini Rail for solar panel AS-DR-07 is for solar metal roof mounting made of anodized aluminum, simple and cost effective solution.


AS-DR-07	AS-DR-07B	AS-DR-07C

AS-DR-07E	AS-A-DR12	AS-R-15

AS-R-15C	AS-A-R25	AS-A-R26

AS-SR-09	AS-SR-12	AS-AU-01

AS-XR-06	AS-XR-07
