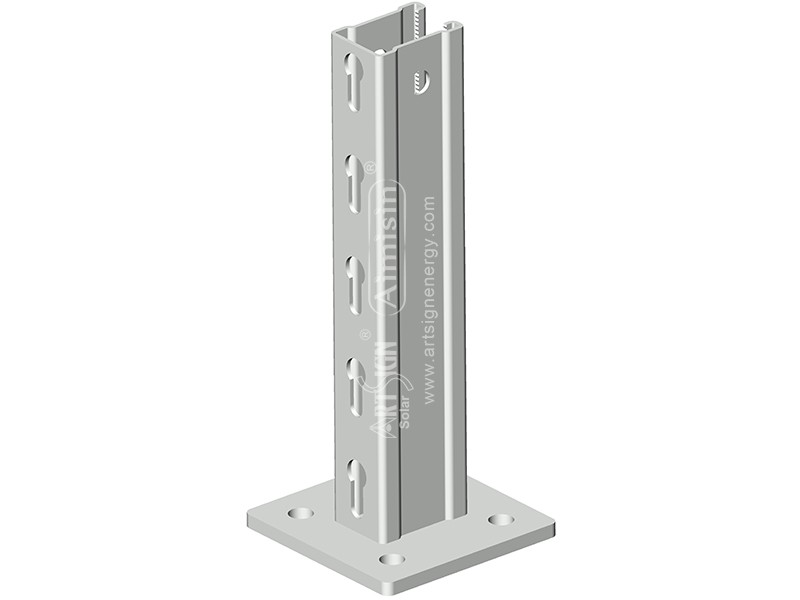

Solar panel ground mounting frames steel support brackets structure system rack AS-BCP-C62

Solar panel ground mounting frames steel support brackets structure system rack AS-BCP-C62 is prewelding, it can be used for both rooftop and ground mounted solar rack system. Clients don't need to do extra cutting or welding on site. The material is hot dipped galvanized steel Q235. Besides C62 profiles, ArtSign solar also produce C52, C41, C80, C100, C120, etc. profiles. ArtSign has it's own production line for both aluminuim products and steel solar structures and accessories. Welders are with more than 10years warranty to make sure the welded products are high quality and good looking appearance.

Item NO.:
AS-BCP-C62
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
silver

Inquiry now

Product Detail

Solar panel ground mounting frames steel support brackets structure system rack AS-BCP-C62

Place of Origin	Xiamen China (mainland)	Brand Name	ART SIGN
Mode Number	AS-BCP-C62	Specs	Base plate: L120W120mm C62 section: W42H61mm
Material	Hot dipped galvanized steel	Application	framed panel
Surface treament	galvanized above 80um	Packing	cartons, plywood pallets / cases
Color	Silver	Certificate	ISO/CE/SGS/AS/NZS/JIS/ASCE7-10
Keyword	steel structure solar solar panel support steel c channel solar panel ground mounting frames solar panel ground mounting brackets structure solar panel ground mounted rack system	Service life:	25 years
Quality Warranty	20 years	product name	C channel steel post mounting C52

Selling Units

per meter/ per pcs

Package Type

cartons, plywood pallets / cases

Lead Time：

Quantity(Sets)	1 - 5000	5001 - 10000	10001 - 100000	>100000
Est. Time (work days)	1 - 3	3 - 7	7 - 15	To be negotiated

Solar panel ground mounting frames steel support brackets structure system rack AS-BCP-C62

Customized cutting length to be suitable for different wind load and snow load requirements.

Click to see more PV aluminum components.

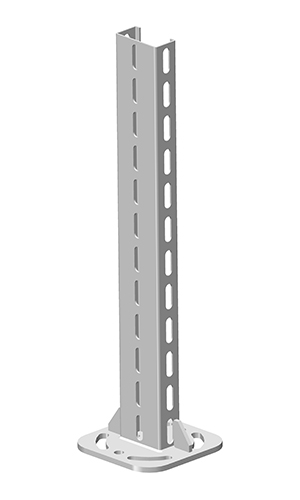

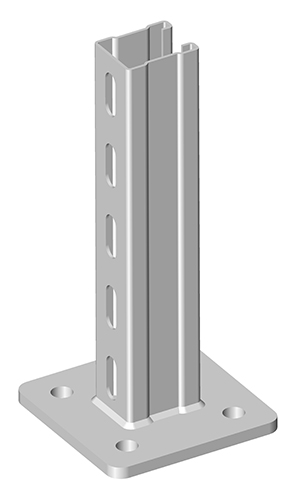

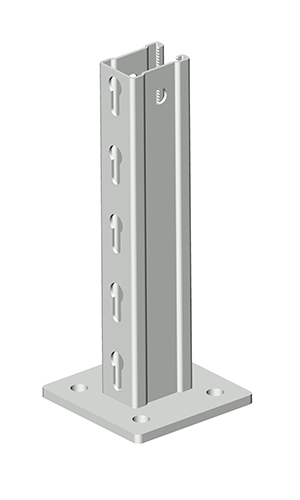

AS-BPC-C52	AS-BCP-C62	AS-BCP-C80
