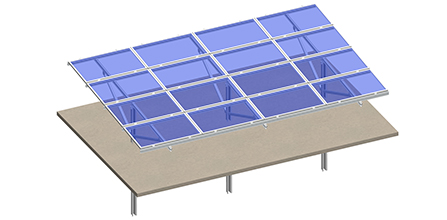

C type carbon steel solar pv panel ground mounting system U133 pillar
· Design Features
① More economical and suitabe for large scale solar project.
② Few elements, quick installation.
③ HDG or Zin-Alu-Mag material for option.
· Surface treatment:
80μm thk. Hot dipped galvanizing steel or Zin-Mag steel, 10μm thk. Anodozed aluminum, stainless steel 304 or steel Q235B bolts and nuts.
· Design Strength:
The structure is designed according to the wind load or snow load request.
· Certification:
Japanese JIS, Australia AS/NZS 1170.2-Wind load report; SGS report - Chemical & Physical test.
Name |
Steel Ground Mounting Systems |
Suitable for |
Open field |
Module |
Framed, thin film |
Material&Surface treatment |
80um thk. hot dipped galvanized steel, 10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts |
Color |
silver, black or customer requirement |
Module orientation |
Landscape and portrait |
Wind load |
Max 60m/s |
Snow load |
Max 1.5kn/m2 |
Standards |
Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS |
Warranty |
20 years |

![]() |
![]() |
![]() |
AS-R16 / AS-CB |
AS-TR85-01 |
AS-AS-5 |
![]() |
![]() |
![]() |
AS-TCEC |
AS-TCMC |
AS-KC02 |
![]() |
![]() |
![]() |
AS-AL-BS-100-T |
AS-AL-HBS-80 |
AS-AL-HBS-100 |
![]() |
|
|

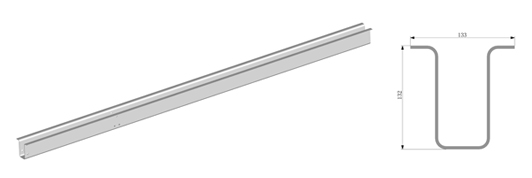

AS-U132×133 |
|
C type carbon steel solar pv panel ground mounting system U133 pillar
![]() |
![]() |
![]() |

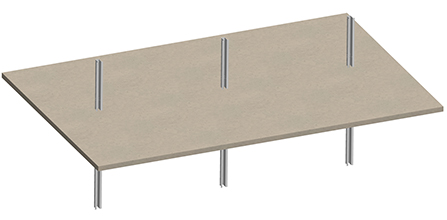

Step 1 Ramming pile. |
|

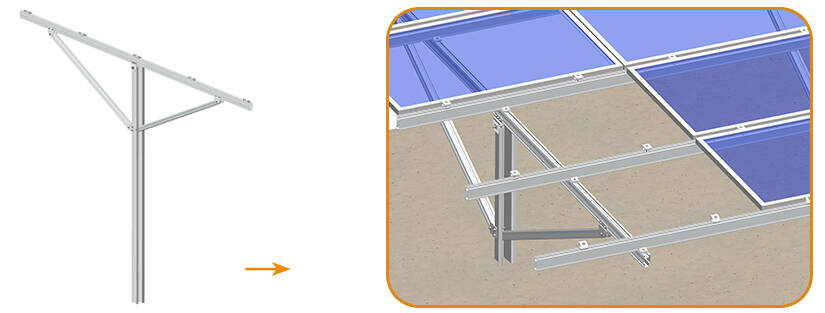

Step 2 Install the beam and support. |
|
|
![]() |
![]() |
![]() |
![]() |
Step 4 Fasten the solar panel with end and mid clamps. |
|

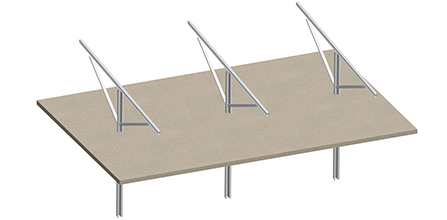

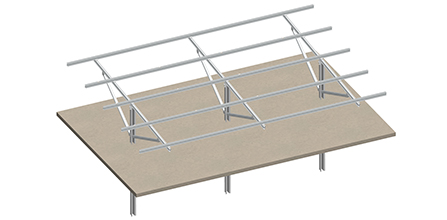

Step 3 Install the rails. |

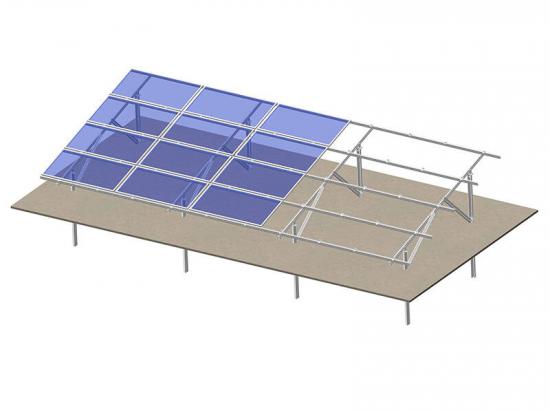

C type carbon steel ground mounting system
