Quick Installation Solar End Clamp 30-40mm

Quick Installation Solar End Clamp 30-40mm

Adjustable end clamp suit for 30-40mm panel. Mounting system accessory.

Item NO.:
AS-AEC-03B
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

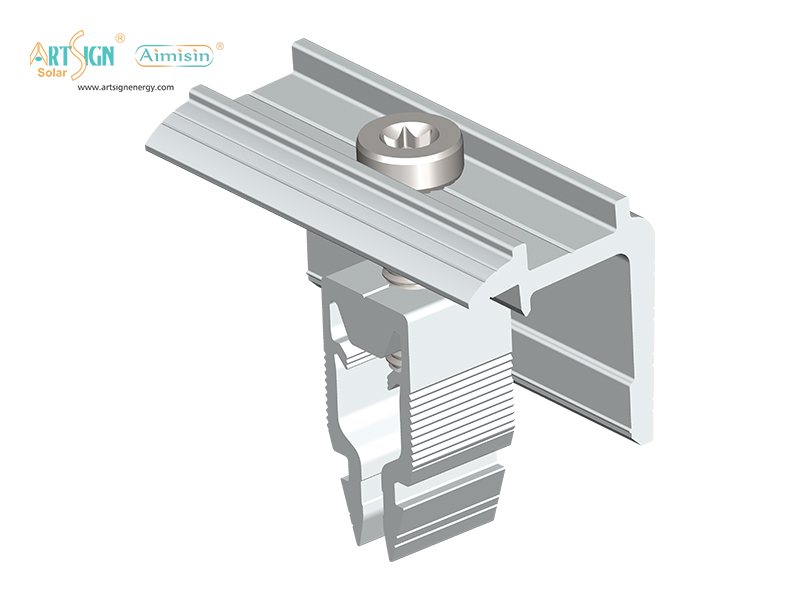

ART SIGN quick installation solar end clamp 30-40mm

Design Features

— Adjustable solar module clamp, applicable to 30-40mm solar panel thickness.

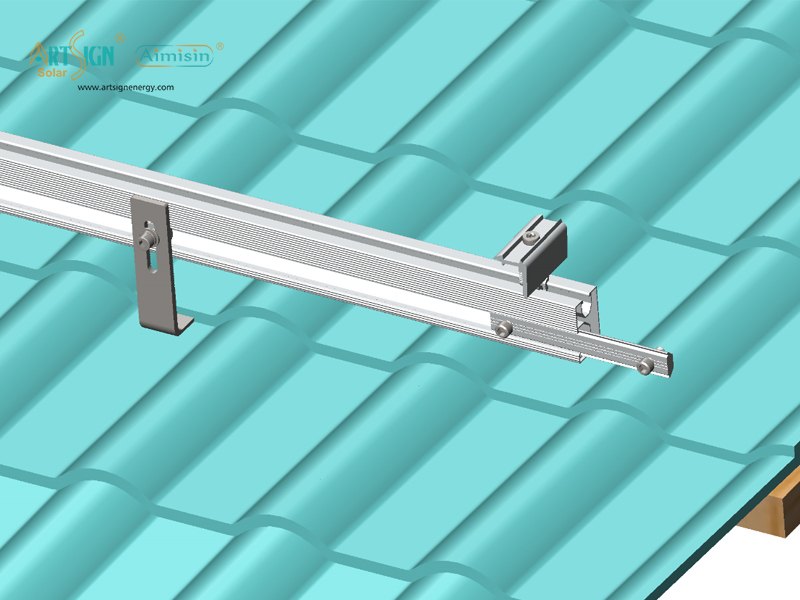

— Suitable for SR rail system.
— Easier, quicker installation.

Mode Number	AS-AEC-03B	Brand Name	ART SIGN
Specs	50MM cutting length or customized, stop bolt: M8*43mm Compression spring (optional)	Material	Aluminum 6005-T5, SUS304
Application	30-40mm solar panel mounting system	Packing	Carton + Processed wood pallet
Keyword	Wholesale quicker installation adjustable end clamp for solar mouting rail	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

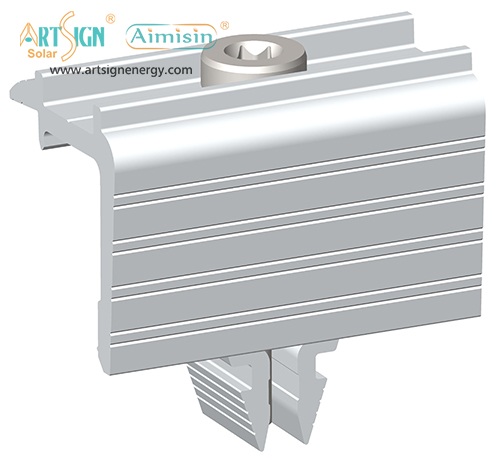

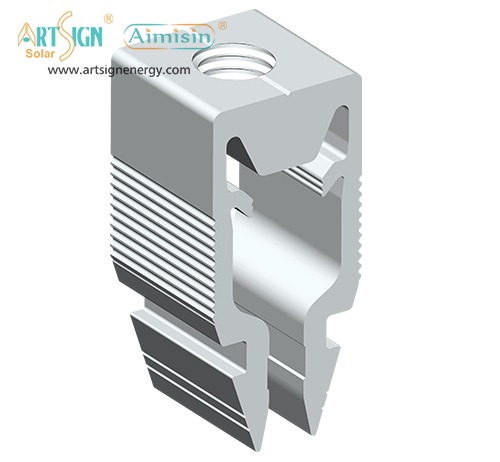

End clamp, fit for 30mm-40mm soalr panel	SR nut, suitable for SR rails groove

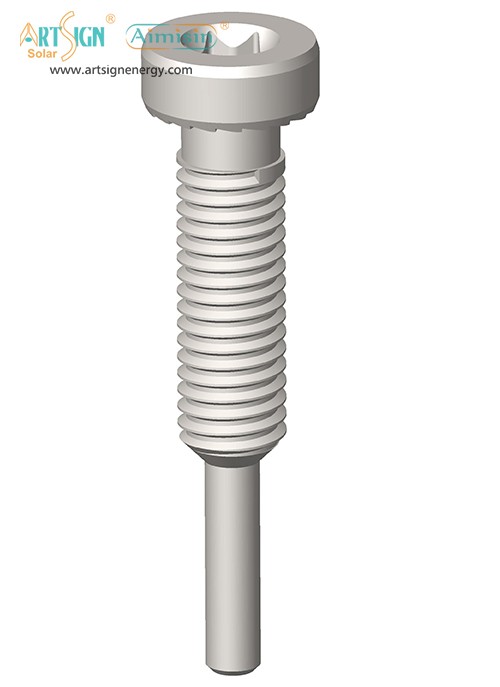

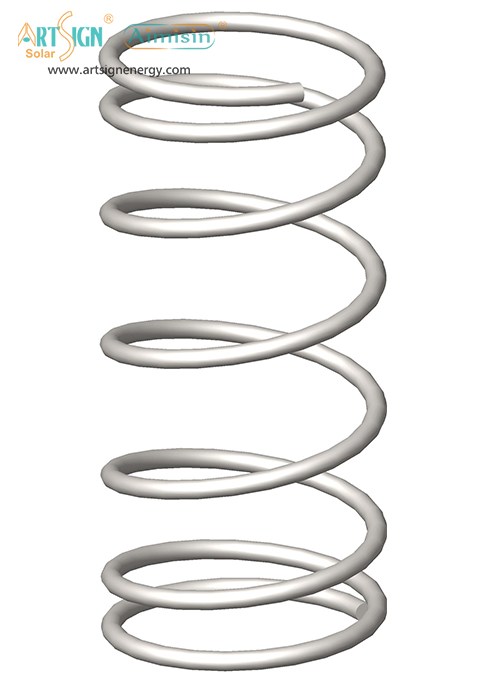

Stop bolt M8*43mm	Sping length 20mm (optional)

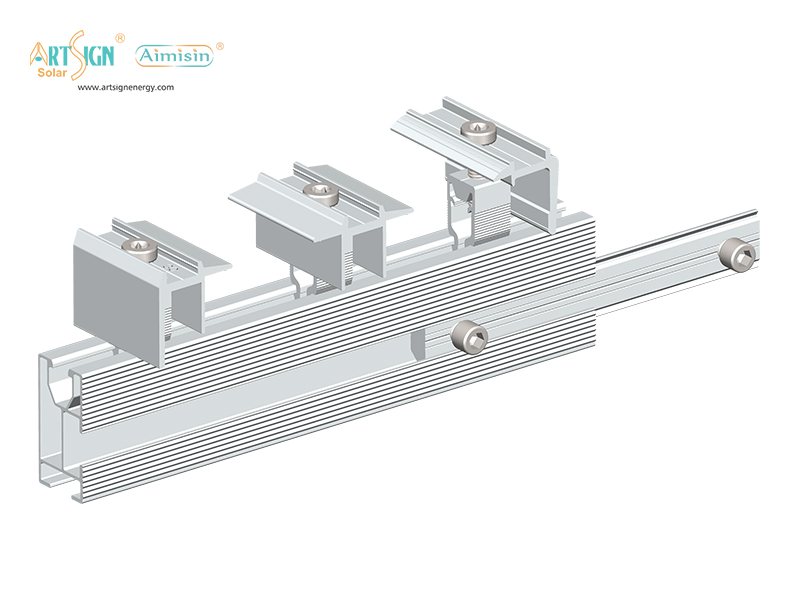

ART SIGN quick installation solar end clamp 30-40mm related accessories

Quick Installation Solar End Clamp 30-40mm

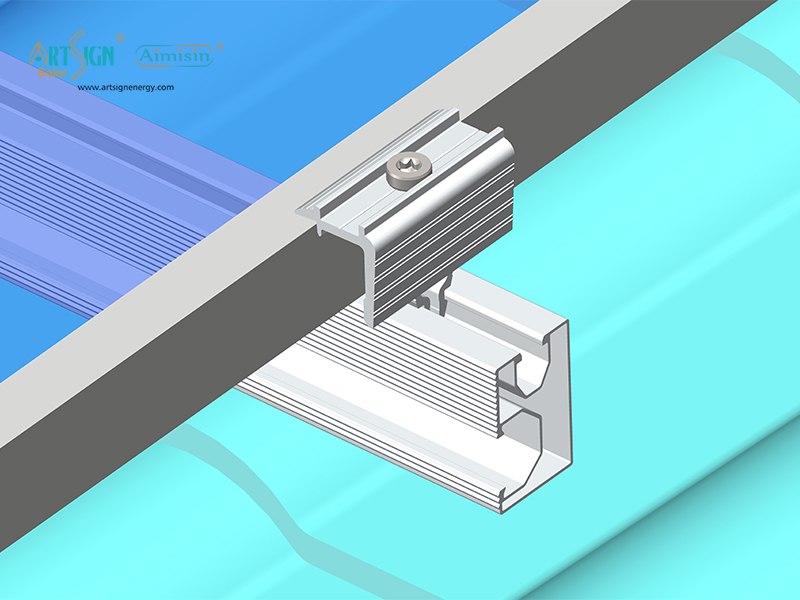

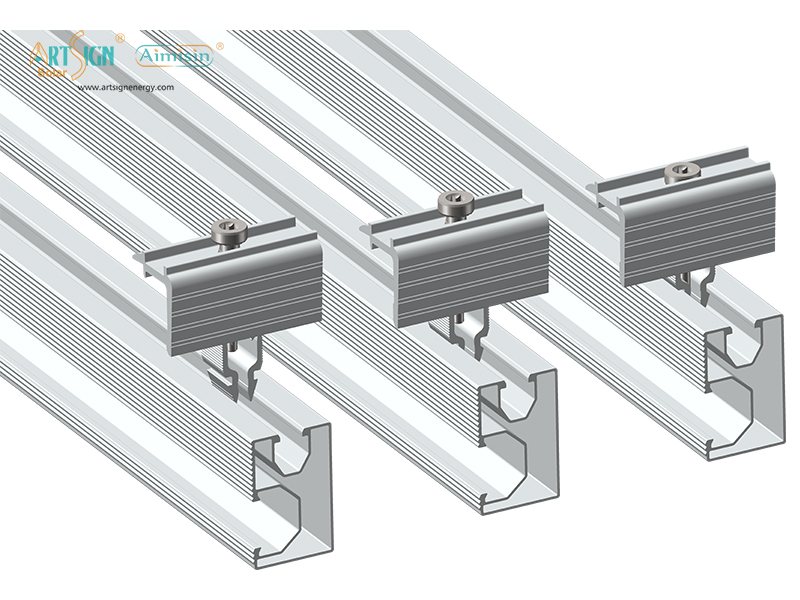

AS-AEC-03B end clamp is adjustable for different module frame heights from 30mm to 40mm, and provide fast and secure attachment of modules.

Click to see more aluminum profiles;


AS-A-MC-SR30-40	AS-AEC-03B	AS-A-EC-SR30	AS-A-EC-SR35
