Asphalt Shingle Roof Solar Mounting System 02RP#

Asphalt Shingle Roof Solar Mounting System is used for pitched shingle roof with a water proof foundation.

Item NO.:
AS-RH-02RP
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western Union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

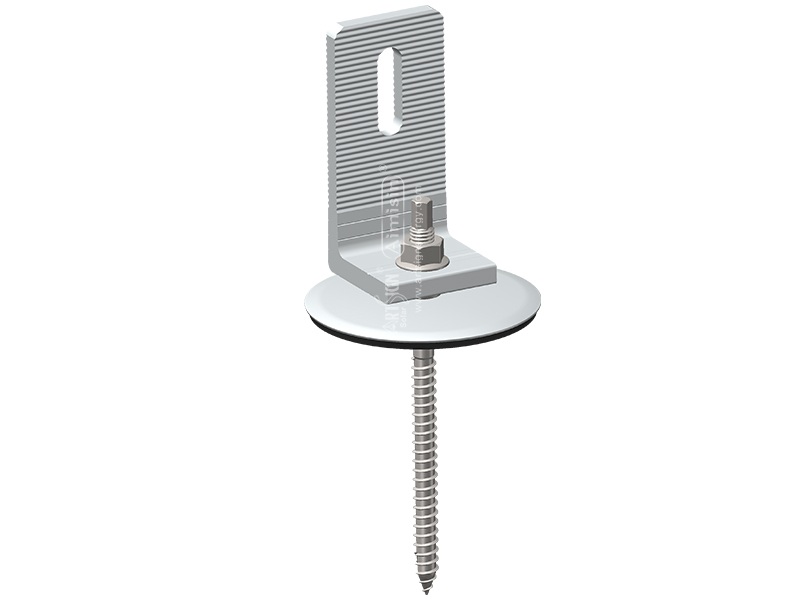

Asphalt Shingle Roof Solar Mounting System 02RP#

Place of Origin	Xiamen China (mainland)	Brand Name	ART SIGN

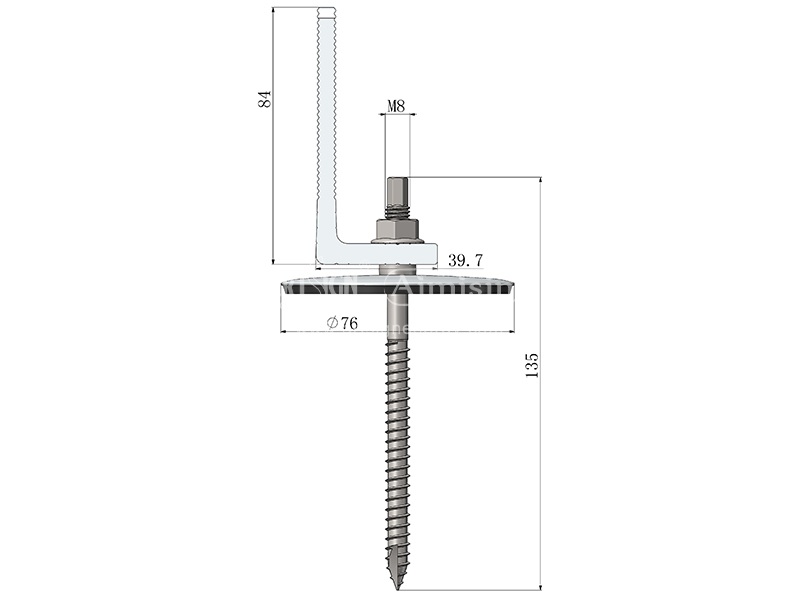

Mode Number	AS-RH-02RP	Specs	Width of L feet: 40/50mm Dimension of round plate: φ76 Hanger bolt M8*135 or as request
Material	Aluminum 6005-T5	Application	asphalt shingle roof
Surface treament	Anodized above 10um	Packing	cartons, plywood pallets / cases
Color	Silver	Certificate	ISO/CE/SGS/AS/NZS/JIS/ASCE7-10
Keyword	Asphalt Shingle Roof Flashing L Feet	Service life:	25 years
Quality Warranty	20 years	Name	Solar mounting roof bracket

Selling Units

per set

Package Type

cartons, plywood pallets / cases

Lead Time：

Quantity(Sets)	1 - 1000	1001 - 5000	5001 - 10000	>10000
Est. Time (work days)	1 - 3	3 - 7	7 - 15	To be negotiated

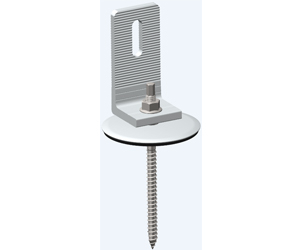

Asphalt Shingle Roof Solar Mounting System 02RP#

Customized design is also available.

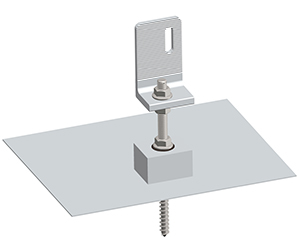

Shingle roof mounting installed with L feet and water proof aluminum plate foundation.

Category : Aluminum roof bracket


AS-RH-02P	AS-RH-02RP
