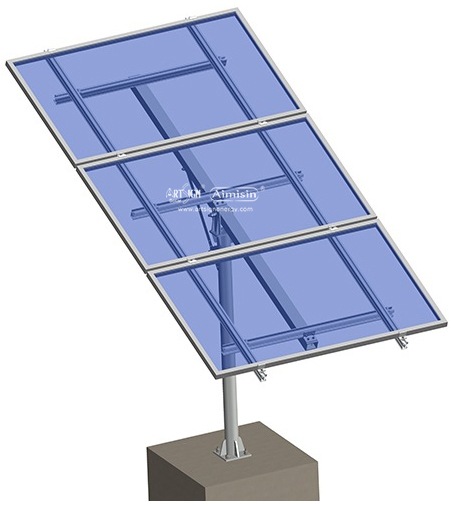

Solar pole mounting system is a ground solar panel mounting system on one single pole that delivers flexible, effective and durable design to mount 2, 3, 4, 6, 8, 10, 12 panels per pole. It can be applied to large commercial scale installations, and the pole system support is customized with hot galvanized steel and the brackets is anodized aluminum which offers good corrosion-resistant capability.

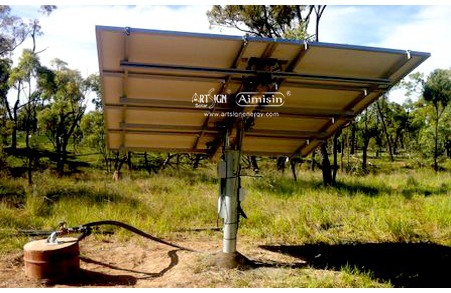

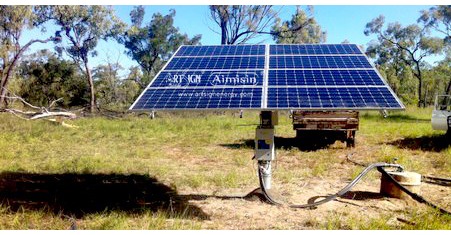

While solar pole mounting can maximize exposure to sunlight, it does require a large portion of land to be dedicated to the solar installation. For this reason, solar panel pole mounting tends to be limited to commercial or agricultural installations, or on large private properties. In these situations, professionally installed solar panels pole mounting systems can help reduce your energy bill or even power your property entirely.

Prerequisites
1.To install Art Sign solar pole mounting, you need to prepare solar pole mounting brackets based on the mounting brackets dimensions and solar panels’ quantities.

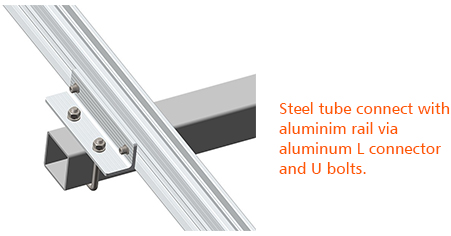

2.You are advised to use U-shaped bolts and Aluminum or Steel L connector to secure the solar pole mounting brackets.
3.If you choice concrete foundation, you have to digging and make concrete pad first. Or choose ground screw foundation, piling screw into the soil directly.

Procedure

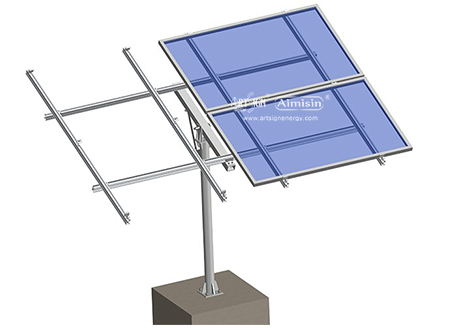

1.Secure the solar pole mounting brackets to the pole and tighten the U-shaped bolts and L connectors.

2. Align the mounting bracket holes with the drilled holes, insert bolt assemblies (flat washers, spring washers, and M12x40 bolts) into the holes through the mounting bracket, and secure them using the supplied stainless steel nuts and flat washers. Securing solar pole mounting brackets and solar panels.

Solar pole mounting solution you select is primarily driven by the number of solar panels you are planning on using in your system. You can contact us by email sales@artsign.net.cn or whatsapp/wechat/mob +86 180 3023 5875 to consultant.
