Since 2006, ART SIGN mainly produce the solar rooftop mounting system, solar ground mounting system includes relative solar racking accessories solar roof hook, solar module clamps and solar ground screw pile ect.

According to different

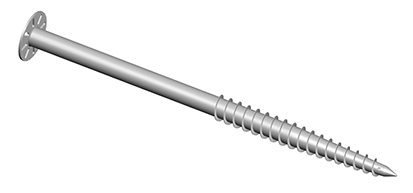

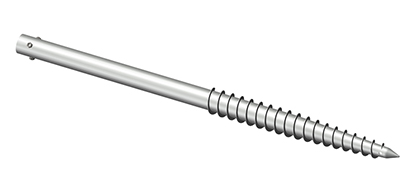

Solar Ground Screw, Standard Thread, Open Hole Type AS-GS	Solar Ground Screw, Standard Thread, Flange Type AS-GSF

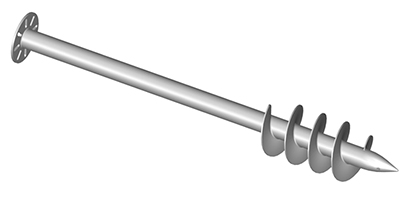

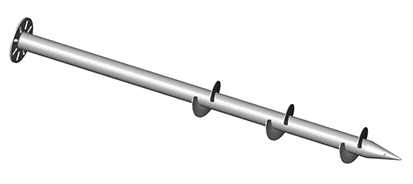

Solar Ground Screw, Spiral blades, Flange Type AS-GSWS	Solar Ground Screw, Continous Spiral blades, Flange Type AS-GSRS

installation site, ART SIGN fabricate various of HDG steel solar ground screw for ground solar mount. Below please see our normal design of solar ground screw.

Specification of solar ground screw

Length: 1600/1800/2000/3000mm

OD of pipe: 60/76/89mm

Thickness of pipe:3-4mm

Flange size: 200mm or customized design

Flange thickness: 10mm

Thread length:800-1500mm

Thread height: 10mm

Thread thickness:2-3mm

Material: Q235, Q355

Surface treatment: hot dipped galvanized

Thickness of HDG: average 80um

Customized design is available.

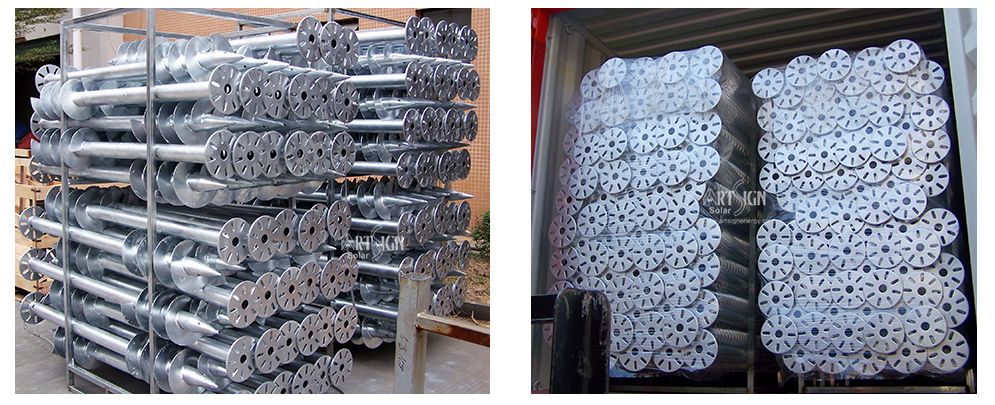

Package of solar ground screw: steel frame as below

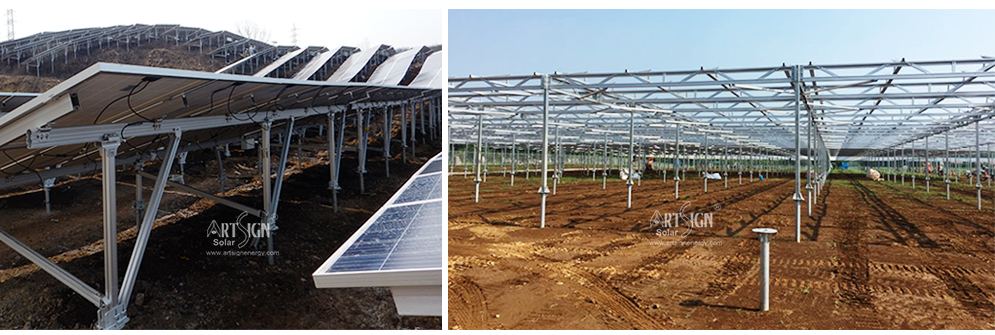

What is the application of solar ground screw?
It is widely used for large scale solar energy system, not only for solar aluminum ground mounting system, but also the carbon steel solar ground mounting system.

For any inquiry for solar  mounting system, pls contact me via emait sales@artsign.net.cn Whatsappl/ Wechat Skype.+86 18030235875 , thanks.
