Art sign Adjustable tilt kit | Artsignenergy.com Sep 14,2021

Xiamen Art sign offer adjustable tilt kit which is suitable for metal roof mounts and concrete roof mounts .

The adjustable tilt kit include components : Aluminum rail --- D nut series has 4 types of rails to meet different wind load and snow load request .

Rail splice : two types for your option

Mide and end clamp
Adjustable front leg and adjustable rear leg which have two kinds . And one kind is more thicker than the other kind which is more suitable for heavy wind load and snow load .
Anchor bolt is for fixing the mounting on the concrete roof .

Self tapping screw is for fixing the mounting on the metal roof .


Design features:
1.Suited for concrete flat roof and metal roof
2.Adjustable type structure which has 3 angle range for option: 10-15 degree,15-30 degree,30-60 degree.
3. All the components will be pre-assembled and it can save your time and labour cost .
Surface treatment :
10μm thk.anodized aluminum, stainless steel 304 bolts and nuts
Design strength :
2 kinds of design to meet the different wind load and snow load requirement .
Certification :
Australia AS/NZS 1170.2- Wind load report, SGS report-Chemical & Physical test,

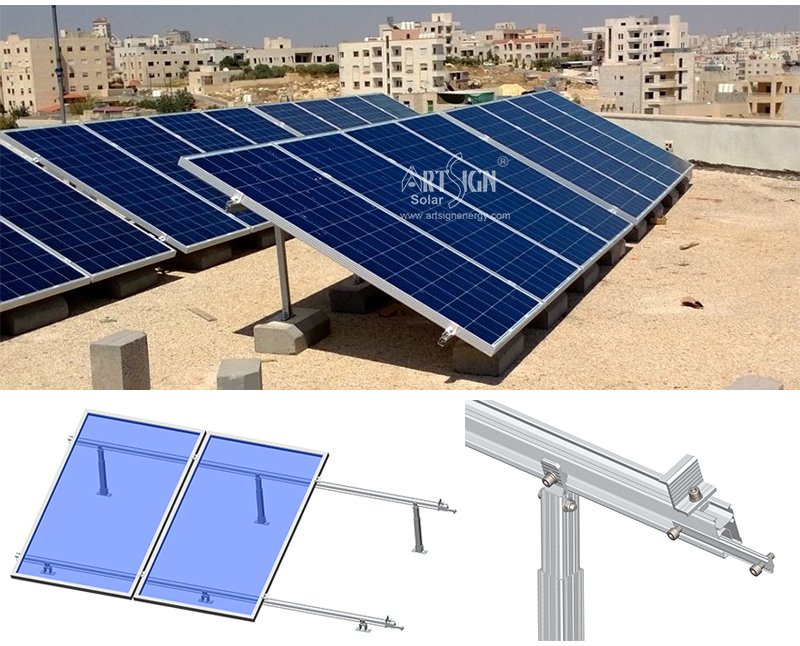

I would like to show you some pictures of our adjustable tilt kit project as below :


concrete roof mounting system


Xiamen art sign co.,ltd can produce 15-20MW of mounting structure per month, and we are professional on customized products such as Tile roof mounting system,Metal roof mounting system,Aluminum ground mounting system, solar farm mounting system
and so on .

Welcome to send us any inquiry and we will offer you good price and best service and excellent products .

Email : sales@artsign.net.cn whatsapp/ wechat/ skype +86 180 3023 5875
