solar panel rail clamp structure accessories for solar mounting system AS-YK04

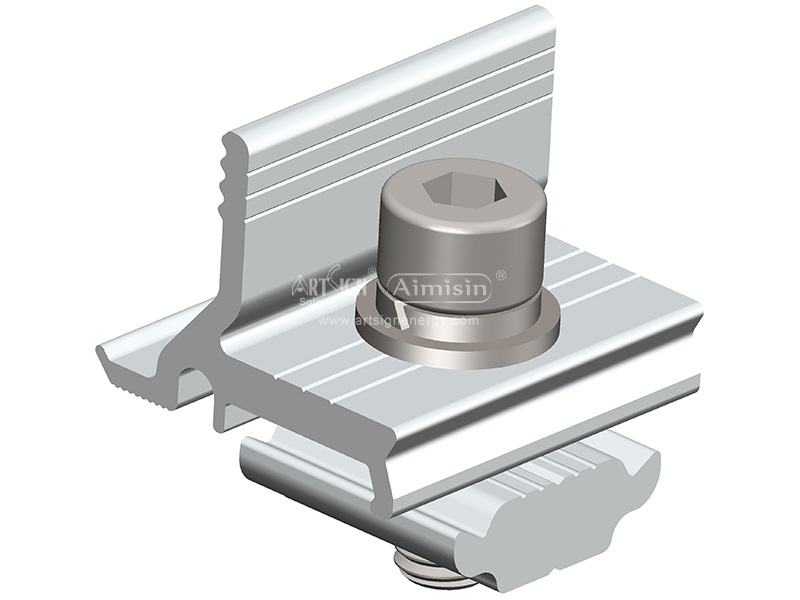

Solar panel rail clamp structure accessories for solar mounting system AS-YK04 is to be used to fix D nut series solar rails to solar hooks. The material is anodized aluminum 6005-T5, preassembly with bolt and nut. Very easy for installation.

Item NO.:
AS-YK04
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

Solar panel rail clamp structure accessories for solar mounting system AS-YK04

Place of Origin	Xiamen China (mainland)	Brand Name	ART SIGN
Mode Number	AS-YK04	Specs	L35W32H37mm
Material	Aluminum 6005-T5	Application	solar panel roof mounting system
Surface treament	Anodized above 10um	Packing	carton, plywood pallat, plywood case
Color	Silver	Certificate	ISO/CE/SGS/AS/NZS/JIS/ASCE7-10
Keyword	solar panel structure accessorie	Service life:	25 years
Quality Warranty	20 years

Selling Units

per meter/ per pcs

Package Type

Inner packing:wrapping paper/film; Outer packing:wooden case

Lead Time：

Quantity(Sets)	1 - 1000	1001 - 5000	5001 - 10000	>10000
Est. Time (working days)	1-7	7-10	10-15	To be negotiated

Solar rail clamp structure accessories for solar mounting system AS-YK04

solar panel rail clamp structure accessories for solar mounting system AS-YK04 is to be used to fix D nut series solar rails to solar hooks. The material is anodized aluminum 6005-T5, preassembly with bolt and nut. It's a strong and economic solution, very easy for installation.


AS-YK04	AS-YK05
